Overview

Metric	CentroidFold		ProbKnot
MCC	0.541	>	0.532
Average MCC ± 95% Confidence Intervals	0.648 ± 0.056	>	0.638 ± 0.059
Sensitivity	0.450	<	0.475
Positive Predictive Value	0.652	>	0.597
Total TP	1929	<	2037
Total TN	2773284	>	2772827
Total FP	1138	<	1531
Total FP CONTRA	98	<	164
Total FP INCONS	930	<	1213
Total FP COMP	110	<	154
Total FN	2356	>	2248
P-value	4.32815307575e-07

^top

Performance plots

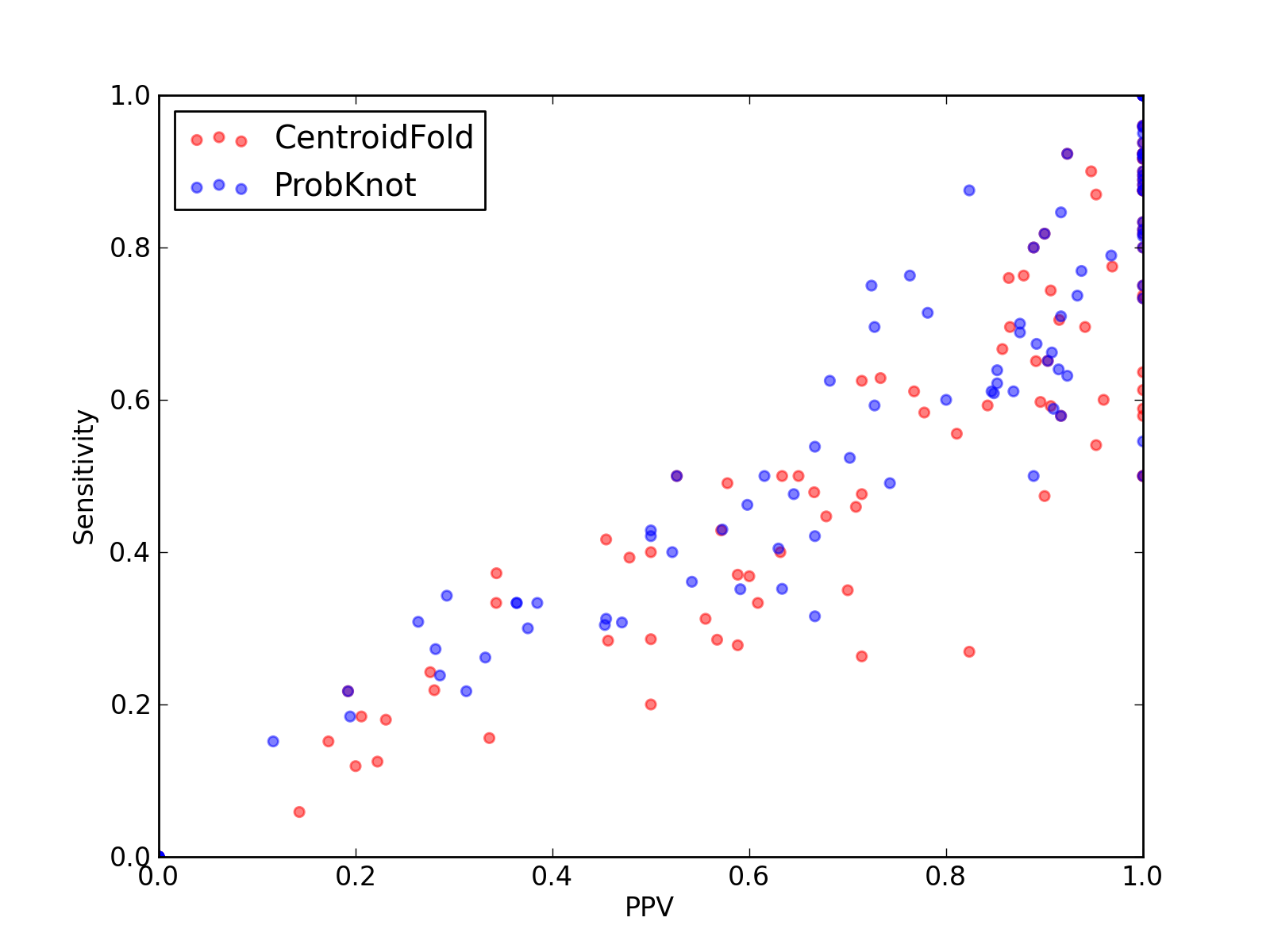

Comparison of performance of CentroidFold and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidFold and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidFold and ProbKnot).

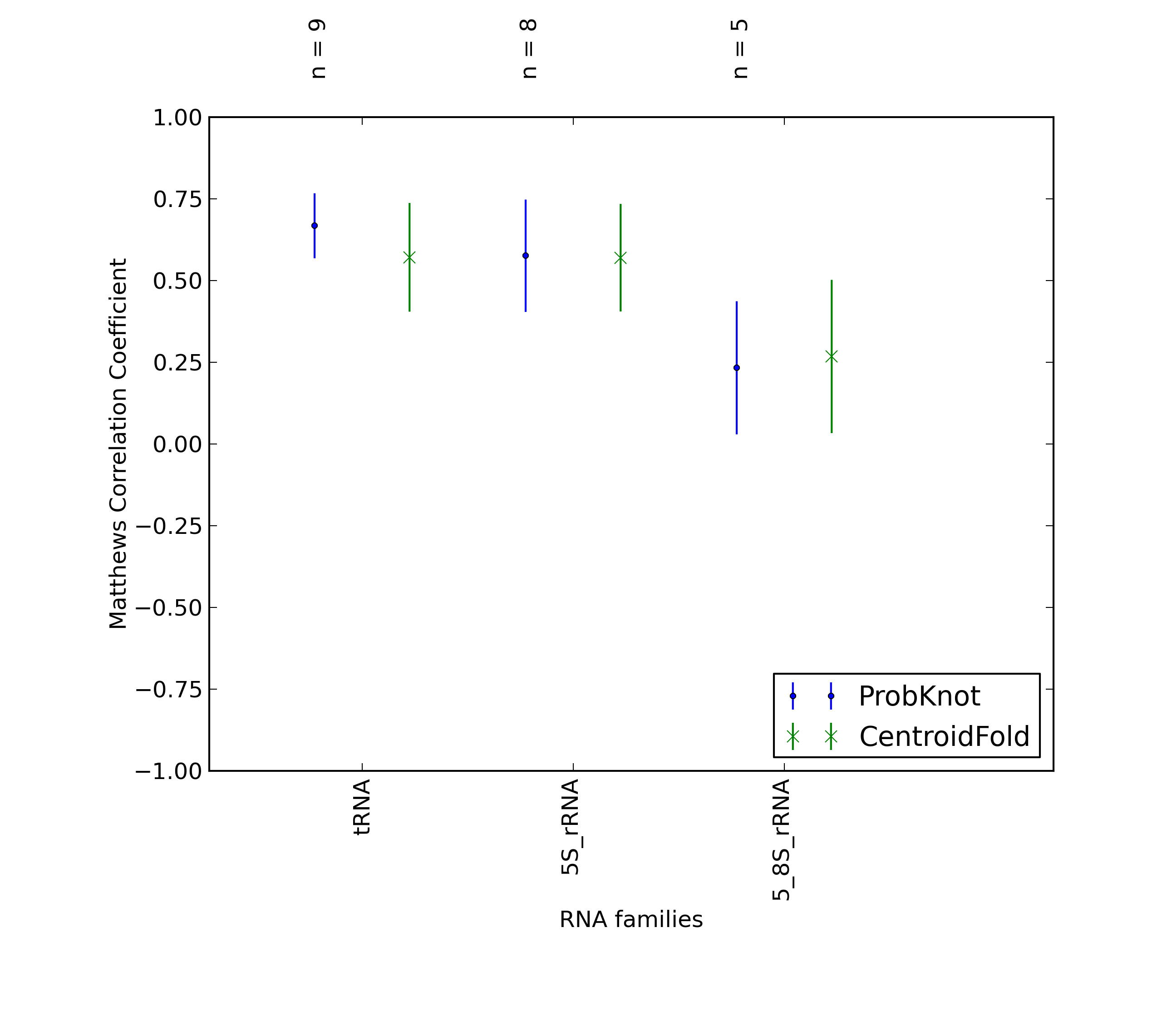

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidFold and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidFold and ProbKnot).

^top

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	1929
Total TN	2773284
Total FP	1138
Total FP CONTRA	98
Total FP INCONS	930
Total FP COMP	110
Total FN	2356

Total Scores
MCC	0.541
Average MCC ± 95% Confidence Intervals	0.648 ± 0.056
Sensitivity	0.450
Positive Predictive Value	0.652
Nr of predictions	105

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.89	0.80	1.00	8	343	0	0	0	0	2
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.42	0.26	0.71	5	623	2	0	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.82	0.74	0.91	29	6073	4	0	3	1	10
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LU0_A	-	0.93	0.88	1.00	14	1162	0	0	0	0	2
2LWK_A	-	0.92	0.92	0.92	12	483	1	0	1	0	1
2M58_A	-	0.09	0.06	0.14	1	1646	6	0	6	0	16
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	25	0	9	16	10
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.15	0.12	0.20	5	5126	20	1	19	0	37
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.66	0.63	0.71	15	2257	8	1	5	2	9
2YIE_X	-	0.67	0.58	0.78	7	1369	3	1	1	1	5
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3IYQ_A	tmRNA links to Rfam database...	0.36	0.37	0.34	35	60624	71	17	50	4	59
3IZ4_A	tmRNA links to Rfam database...	0.55	0.45	0.68	59	70789	33	4	24	5	73
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_2	-	0.25	0.24	0.28	8	6187	24	0	21	3	25
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_h	-	0.77	0.65	0.90	28	6074	5	0	3	2	15
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_a	-	0.41	0.31	0.56	5	1119	4	2	2	0	11
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.56	0.48	0.67	303	1116310	158	8	144	6	330
3J20_1	tRNA links to Rfam database...	0.91	0.87	0.95	20	2905	2	0	1	1	3
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J2C_O	-	0.76	0.65	0.89	41	10250	6	0	5	1	22
3J2C_M	-	0.40	0.29	0.57	59	106387	47	5	40	2	148
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.49	0.58	26	7830	21	0	19	2	27
3J3D_C	tRNA links to Rfam database...	0.49	0.43	0.57	12	2754	9	0	9	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7485	21	2	16	3	33
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3F_7	5S_rRNA links to Rfam database...	0.20	0.18	0.23	9	7221	30	1	29	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.33	0.34	12	12211	34	4	19	11	24
3J3V_B	5S_rRNA links to Rfam database...	0.47	0.37	0.60	21	6986	14	1	13	0	36
3NDB_M	-	0.80	0.70	0.91	43	9133	5	0	4	1	18
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NMU_E	-	0.71	0.50	1.00	3	558	3	0	0	3	3
3NPB_A	SAM links to Rfam database...	0.77	0.70	0.86	32	6984	7	1	4	2	14
3O58_2	5S_rRNA links to Rfam database...	0.82	0.76	0.88	29	7227	7	1	3	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.29	0.50	10	12383	10	0	10	0	25
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	1	0	0	1	1
3PDR_A	ykoK links to Rfam database...	0.73	0.60	0.90	43	12832	7	0	5	2	29
3R4F_A	-	0.81	0.76	0.86	19	2123	3	1	2	0	6
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3SIU_F	-	0.79	0.64	1.00	7	371	0	0	0	0	4
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.57	0.46	0.71	17	3136	7	0	7	0	20
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W1K_J	tRNA-Sec links to Rfam database...	0.56	0.50	0.63	19	4156	11	2	9	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_F	-	0.00	0.00	0.00	0	2619	9	2	7	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.47	0.27	0.82	14	14179	3	1	2	0	38
3ZEX_G	-	0.36	0.28	0.46	21	16425	29	2	23	4	53
3ZEX_B	-	0.23	0.16	0.34	87	1072121	178	9	163	6	471
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.59	0.91	29	6989	3	0	3	0	20
3ZEX_E	-	0.00	0.00	0.00	0	21895	52	3	47	2	77
3ZEX_H	-	0.19	0.18	0.21	7	9011	27	4	23	0	31
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ATO_G	-	0.31	0.20	0.50	2	524	2	0	2	0	8
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FNJ_A	-	0.15	0.13	0.22	2	586	7	0	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.28	7	3461	18	3	15	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.40	0.28	0.59	10	5134	7	2	5	0	26
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.81	0.70	0.94	16	1523	1	0	1	0	7

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	2037
Total TN	2772827
Total FP	1531
Total FP CONTRA	164
Total FP INCONS	1213
Total FP COMP	154
Total FN	2248

Total Scores
MCC	0.532
Average MCC ± 95% Confidence Intervals	0.638 ± 0.059
Sensitivity	0.475
Positive Predictive Value	0.597
Nr of predictions	105

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.69	0.60	0.80	24	5121	11	2	4	5	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.78	0.70	0.88	7	343	1	0	1	0	3
2KZL_A	-	0.83	0.74	0.93	14	1470	1	0	1	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.45	0.32	0.67	6	621	3	0	3	0	13
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.85	0.77	0.94	30	6073	4	0	2	2	9
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LU0_A	-	0.85	0.88	0.82	14	1159	4	3	0	1	2
2LWK_A	-	0.88	0.85	0.92	11	484	1	0	1	0	2
2M58_A	-	-0.01	0.00	0.00	0	1638	15	0	15	0	17
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.26	0.24	0.29	10	5116	25	1	24	0	32
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_X	-	0.34	0.33	0.36	4	1367	7	2	5	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AM1_B	-	0.74	0.71	0.78	25	3208	7	1	6	0	10
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60616	85	22	59	4	65
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J0L_g	-	-0.01	0.00	0.00	0	458	7	2	5	0	4
3J0L_2	-	0.27	0.27	0.28	9	6184	26	2	21	3	24
3J0L_7	-	-0.01	0.00	0.00	0	1212	13	0	13	0	17
3J0L_h	-	0.77	0.65	0.90	28	6074	3	0	3	0	15
3J0L_1	-	0.76	0.63	0.92	12	1212	3	0	1	2	7
3J0L_a	-	0.55	0.50	0.62	8	1115	5	2	3	0	8
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.50	0.43	0.57	272	1116290	208	11	192	5	361
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2C_M	-	0.37	0.30	0.45	63	106352	79	9	67	3	144
3J2C_O	-	0.60	0.52	0.70	33	10249	15	0	14	1	30
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7476	37	3	24	10	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.36	12	12213	35	3	18	14	24
3J3F_7	5S_rRNA links to Rfam database...	0.76	0.64	0.91	32	7225	3	0	3	0	18
3J3V_B	5S_rRNA links to Rfam database...	0.53	0.42	0.67	24	6985	12	1	11	0	33
3NDB_M	-	0.77	0.69	0.88	42	9132	7	0	6	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	-0.01	0.00	0.00	0	552	11	2	7	2	6
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3OVB_D	-	1.00	1.00	1.00	11	584	2	0	0	2	0
3OVS_D	-	0.92	0.92	0.92	12	548	1	0	1	0	1
3P22_G	-	0.96	0.92	1.00	11	730	1	0	0	1	1
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	2	0	0	2	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.73	0.62	0.85	23	3543	4	0	4	0	14
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	4	25	0	31
3ZEX_G	-	0.77	0.66	0.91	49	16417	10	0	5	5	25
3ZEX_E	-	0.00	0.00	0.00	0	21886	61	2	57	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
3ZEX_B	-	0.29	0.26	0.33	146	1071940	307	34	260	13	412
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
3ZEX_F	-	0.00	0.00	0.00	0	2620	11	2	6	3	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	24	1	20	3	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FNJ_A	-	0.66	0.50	0.89	8	586	1	0	1	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.44	0.36	0.54	13	5127	11	2	9	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.80	0.71	0.92	22	2826	2	2	0	0	9
4JRC_A	-	0.25	0.22	0.31	5	1524	11	0	11	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of CentroidFold - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidFold

2. Individual counts for CentroidFold [ download as .csv ]

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

2. Individual counts for ProbKnot [ download as .csv ]
