Overview

Metric	CentroidHomfold‑LAST		CentroidFold
MCC	0.578	>	0.548
Average MCC ± 95% Confidence Intervals	0.640 ± 0.076	>	0.638 ± 0.072
Sensitivity	0.440	<	0.458
Positive Predictive Value	0.763	>	0.661
Total TP	841	<	874
Total TN	325611	>	325390
Total FP	309	<	507
Total FP CONTRA	23	<	43
Total FP INCONS	238	<	406
Total FP COMP	48	<	58
Total FN	1069	>	1036
P-value	3.56938820447e-08

^top

Performance plots

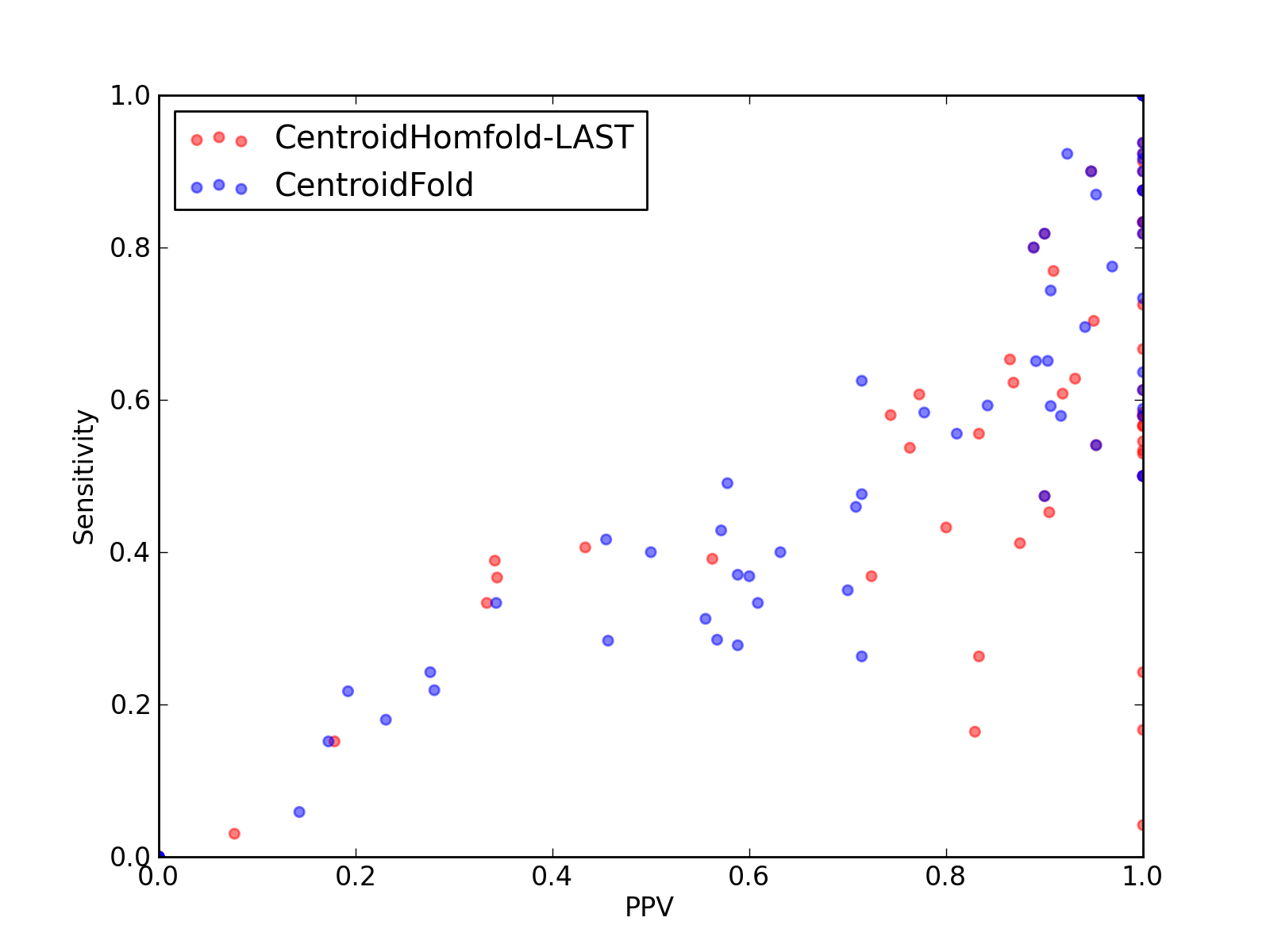

Comparison of performance of CentroidHomfold-LAST and CentroidFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidFold).

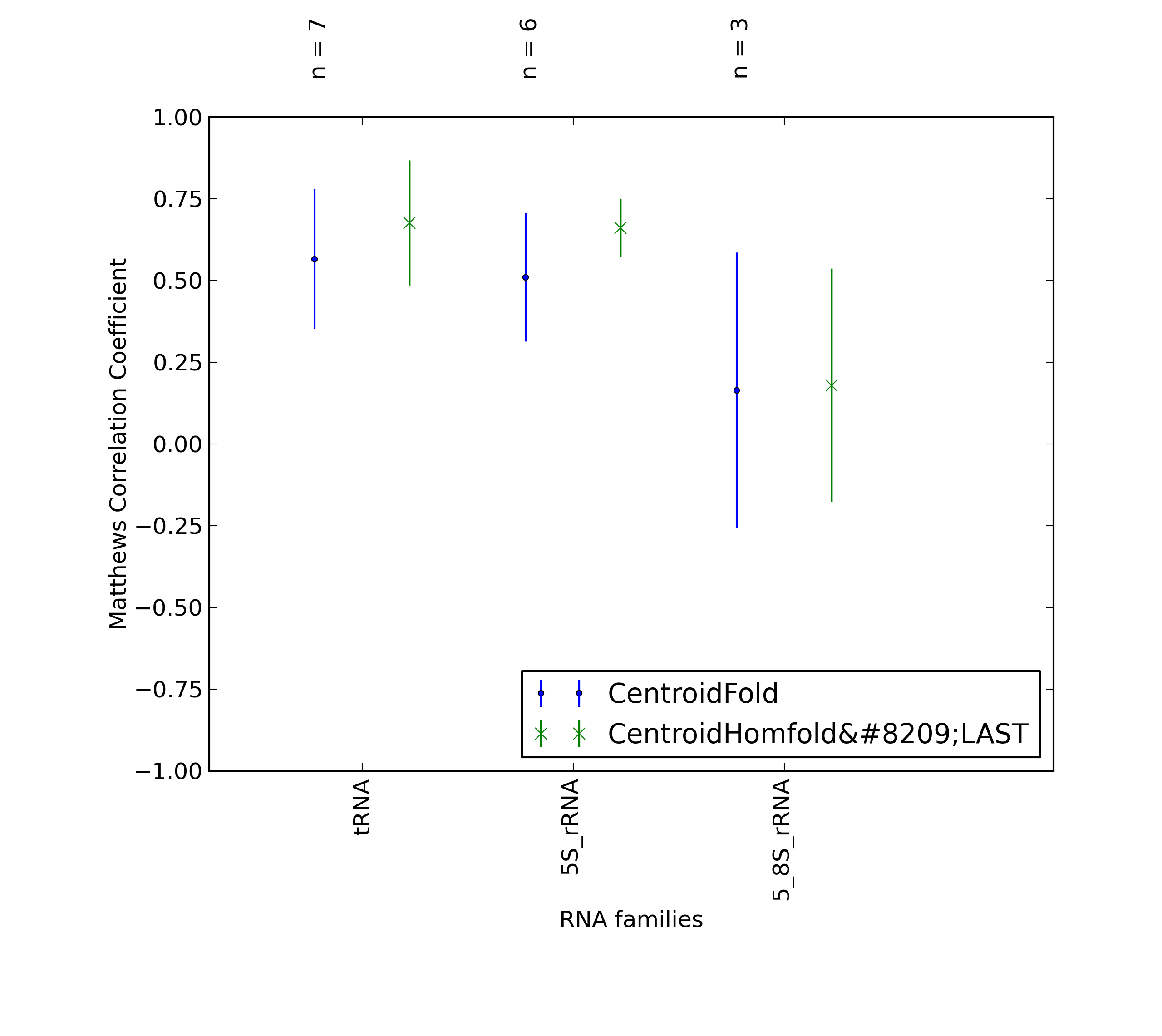

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidFold).

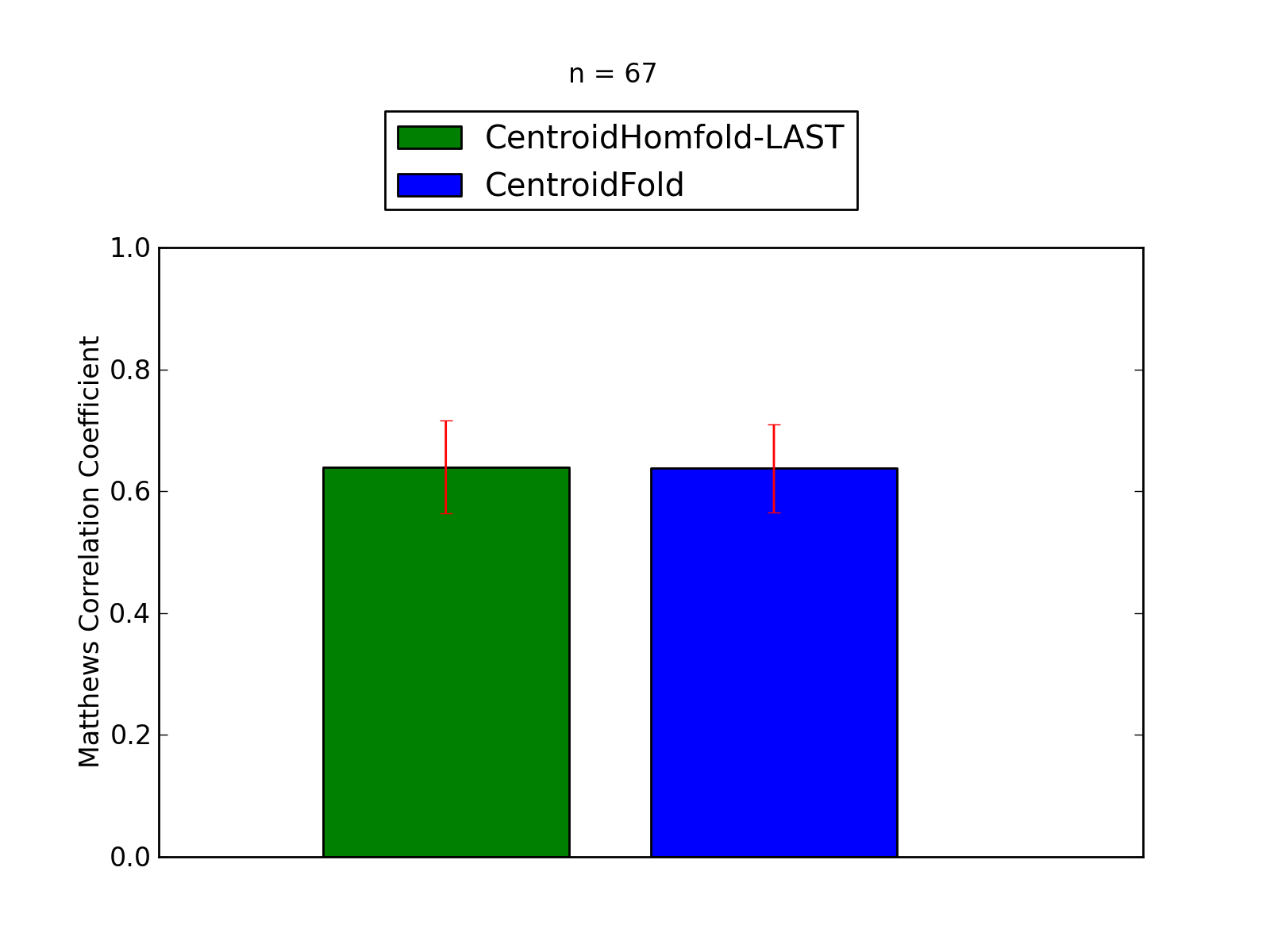

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and CentroidFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and CentroidFold).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	841
Total TN	325611
Total FP	309
Total FP CONTRA	23
Total FP INCONS	238
Total FP COMP	48
Total FN	1069

Total Scores
MCC	0.578
Average MCC ± 95% Confidence Intervals	0.640 ± 0.076
Sensitivity	0.440
Positive Predictive Value	0.763
Nr of predictions	67

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.72	0.53	1.00	8	457	0	0	0	0	7
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.00	0.00	0.00	0	6101	4	0	4	0	39
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LU0_A	-	0.93	0.88	1.00	14	1162	0	0	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2M58_A	-	-0.01	0.00	0.00	0	1648	5	0	5	0	17
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.20	0.04	1.00	1	2277	0	0	0	0	23
2YIE_X	-	0.76	0.58	1.00	7	1371	0	0	0	0	5
2YIE_Z	-	0.82	0.67	1.00	8	1532	0	0	0	0	4
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J0L_a	-	-0.01	0.00	0.00	0	1125	3	0	3	0	16
3J0L_2	-	0.49	0.24	1.00	8	6208	0	0	0	0	25
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_7	-	0.60	0.41	0.88	7	1217	1	0	1	0	10
3J0L_h	-	0.76	0.63	0.93	27	6076	4	0	2	2	16
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J2C_M	-	0.37	0.16	0.83	34	106450	8	0	7	1	173
3J2C_O	-	0.00	0.00	0.00	0	10296	0	0	0	0	63
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3J3D_C	tRNA links to Rfam database...	0.68	0.61	0.77	17	2753	5	0	5	0	11
3J3E_7	5S_rRNA links to Rfam database...	0.64	0.54	0.76	29	7102	9	0	9	0	25
3J3E_8	5_8S_rRNA links to Rfam database...	0.05	0.03	0.08	1	7490	16	1	11	4	32
3J3F_7	5S_rRNA links to Rfam database...	0.65	0.58	0.74	29	7221	10	1	9	0	21
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	33	4	20	9	24
3J3V_B	5S_rRNA links to Rfam database...	0.51	0.37	0.72	21	6992	8	1	7	0	36
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.91	0.83	1.00	10	396	0	0	0	0	2
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.58	0.43	0.80	16	3140	4	0	4	0	21
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_G	-	0.75	0.61	0.92	45	16422	7	0	4	3	29
3ZEX_E	-	0.00	0.00	0.00	0	21914	33	1	30	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
3ZND_W	tRNA links to Rfam database...	0.47	0.39	0.56	9	2987	10	0	7	3	14
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	7104	6	0	6	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	11753	29	5	18	6	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4FRN_A	AdoCbl-variant links to Rfam database...	0.36	0.39	0.34	14	5110	27	3	24	0	22
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.75	0.57	1.00	13	1527	0	0	0	0	10

^top

Performance of CentroidFold - scored lower in this pairwise comparison

1. Total counts & total scores for CentroidFold

Total Base Pair Counts
Total TP	874
Total TN	325390
Total FP	507
Total FP CONTRA	43
Total FP INCONS	406
Total FP COMP	58
Total FN	1036

Total Scores
MCC	0.548
Average MCC ± 95% Confidence Intervals	0.638 ± 0.072
Sensitivity	0.458
Positive Predictive Value	0.661
Nr of predictions	67

^top

2. Individual counts for CentroidFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.42	0.26	0.71	5	623	2	0	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.49	0.35	0.70	7	1530	3	1	2	0	13
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.82	0.74	0.91	29	6073	4	0	3	1	10
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LU0_A	-	0.93	0.88	1.00	14	1162	0	0	0	0	2
2LWK_A	-	0.92	0.92	0.92	12	483	1	0	1	0	1
2M58_A	-	0.09	0.06	0.14	1	1646	6	0	6	0	16
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.66	0.63	0.71	15	2257	8	1	5	2	9
2YIE_X	-	0.67	0.58	0.78	7	1369	3	1	1	1	5
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3J0L_a	-	0.41	0.31	0.56	5	1119	4	2	2	0	11
3J0L_2	-	0.25	0.24	0.28	8	6187	24	0	21	3	25
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_h	-	0.77	0.65	0.90	28	6074	5	0	3	2	15
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J16_L	tRNA links to Rfam database...	0.50	0.40	0.63	12	2756	7	0	7	0	18
3J20_1	tRNA links to Rfam database...	0.91	0.87	0.95	20	2905	2	0	1	1	3
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J2C_M	-	0.40	0.29	0.57	59	106387	47	5	40	2	148
3J2C_O	-	0.76	0.65	0.89	41	10250	6	0	5	1	22
3J2L_3	5S_rRNA links to Rfam database...	0.53	0.49	0.58	26	7830	21	0	19	2	27
3J3D_C	tRNA links to Rfam database...	0.49	0.43	0.57	12	2754	9	0	9	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.46	0.37	0.59	20	7106	14	1	13	0	34
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7485	21	2	16	3	33
3J3F_7	5S_rRNA links to Rfam database...	0.20	0.18	0.23	9	7221	30	1	29	0	41
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.33	0.34	12	12211	34	4	19	11	24
3J3V_B	5S_rRNA links to Rfam database...	0.47	0.37	0.60	21	6986	14	1	13	0	36
3NMU_E	-	0.71	0.50	1.00	3	558	3	0	0	3	3
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3SIU_F	-	0.79	0.64	1.00	7	371	0	0	0	0	4
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.57	0.46	0.71	17	3136	7	0	7	0	20
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_G	-	0.36	0.28	0.46	21	16425	29	2	23	4	53
3ZEX_E	-	0.00	0.00	0.00	0	21895	52	3	47	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.59	0.91	29	6989	3	0	3	0	20
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.56	0.81	30	7103	7	1	6	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11752	29	5	19	5	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.45	0.33	0.61	14	4348	10	1	8	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.28	7	3461	18	3	15	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.40	0.28	0.59	10	5134	7	2	5	0	26
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12
4JRC_A	-	0.81	0.70	0.94	16	1523	1	0	1	0	7

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
