Overview

Metric	CentroidHomfold‑LAST		Cylofold
MCC	0.591	>	0.534
Average MCC ± 95% Confidence Intervals	0.631 ± 0.094	>	0.598 ± 0.084
Sensitivity	0.451	>	0.448
Positive Predictive Value	0.781	>	0.645
Total TP	498	>	495
Total TN	127528	>	127399
Total FP	158	<	292
Total FP CONTRA	10	<	23
Total FP INCONS	130	<	249
Total FP COMP	18	<	20
Total FN	607	<	610
P-value	3.56938820447e-08

^top

Performance plots

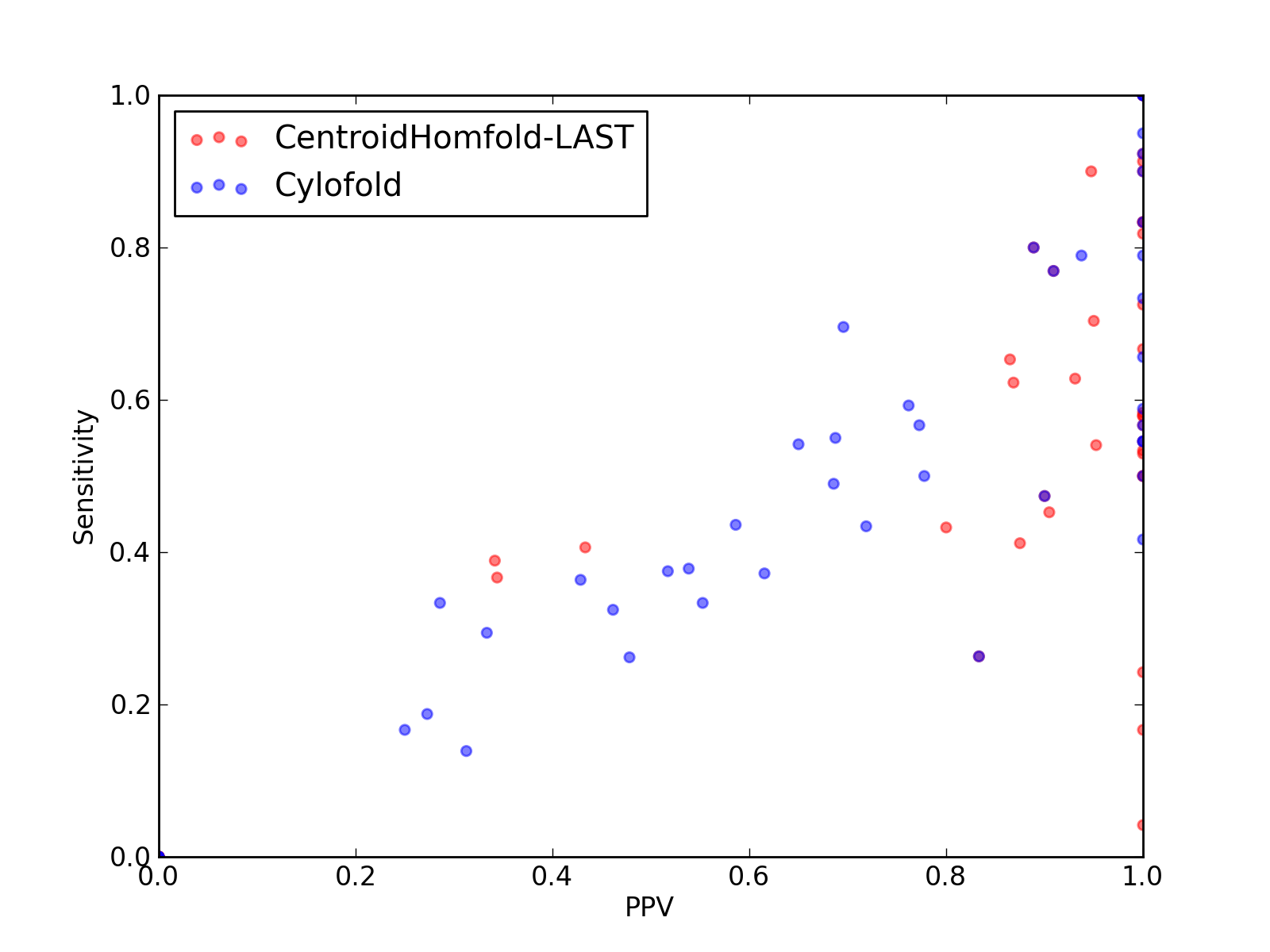

Comparison of performance of CentroidHomfold-LAST and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Cylofold).

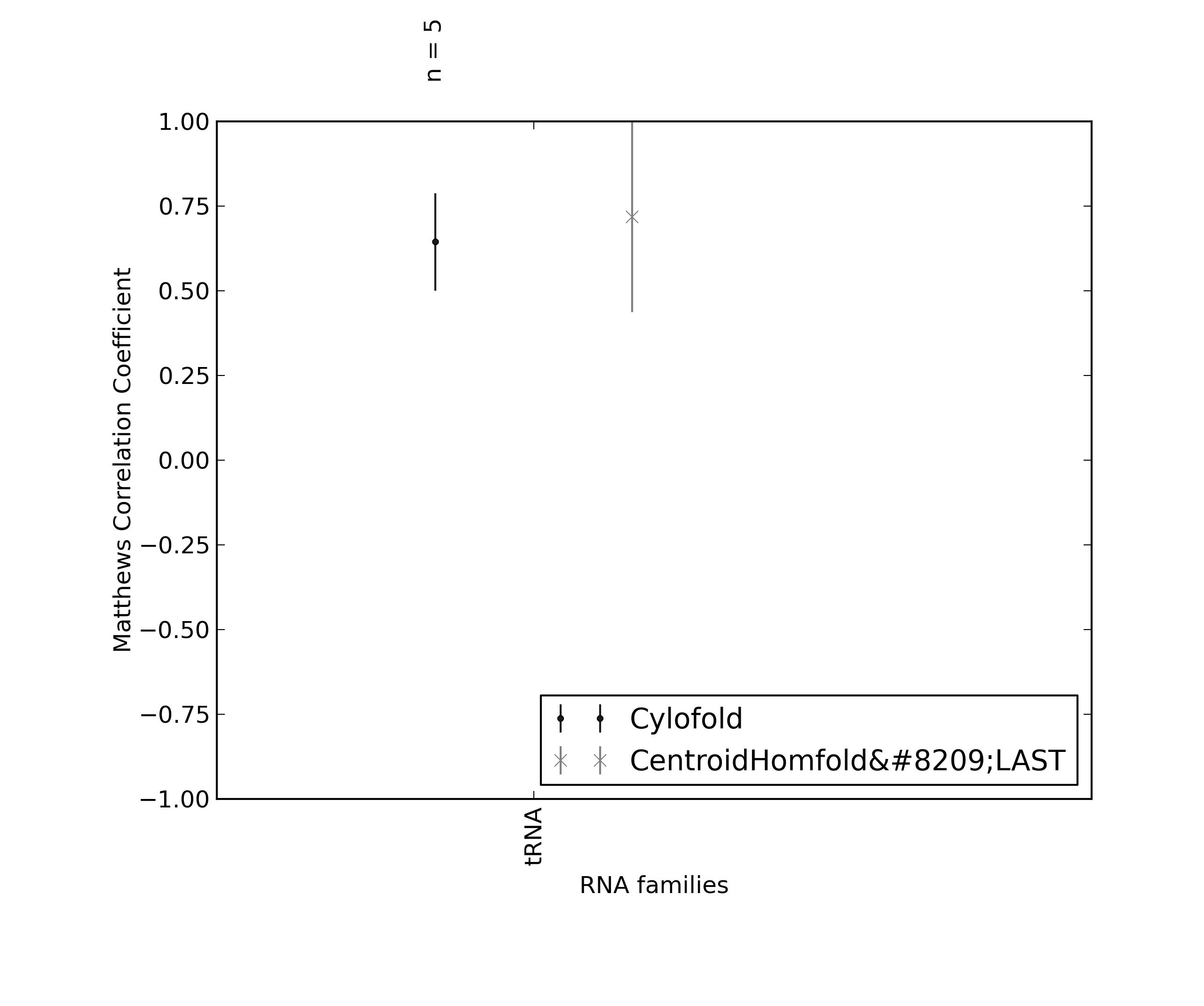

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Cylofold).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	498
Total TN	127528
Total FP	158
Total FP CONTRA	10
Total FP INCONS	130
Total FP COMP	18
Total FN	607

Total Scores
MCC	0.591
Average MCC ± 95% Confidence Intervals	0.631 ± 0.094
Sensitivity	0.451
Positive Predictive Value	0.781
Nr of predictions	45

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.72	0.53	1.00	8	457	0	0	0	0	7
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.00	0.00	0.00	0	6101	4	0	4	0	39
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y9C_V	-	0.20	0.04	1.00	1	2277	0	0	0	0	23
2YIE_X	-	0.76	0.58	1.00	7	1371	0	0	0	0	5
2YIE_Z	-	0.82	0.67	1.00	8	1532	0	0	0	0	4
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J0L_a	-	-0.01	0.00	0.00	0	1125	3	0	3	0	16
3J0L_7	-	0.60	0.41	0.88	7	1217	1	0	1	0	10
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_2	-	0.49	0.24	1.00	8	6208	0	0	0	0	25
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_h	-	0.76	0.63	0.93	27	6076	4	0	2	2	16
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J2C_O	-	0.00	0.00	0.00	0	10296	0	0	0	0	63
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.91	0.83	1.00	10	396	0	0	0	0	2
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.58	0.43	0.80	16	3140	4	0	4	0	21
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_E	-	0.00	0.00	0.00	0	21914	33	1	30	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4FRN_A	AdoCbl-variant links to Rfam database...	0.36	0.39	0.34	14	5110	27	3	24	0	22
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	495
Total TN	127399
Total FP	292
Total FP CONTRA	23
Total FP INCONS	249
Total FP COMP	20
Total FN	610

Total Scores
MCC	0.534
Average MCC ± 95% Confidence Intervals	0.598 ± 0.084
Sensitivity	0.448
Positive Predictive Value	0.645
Nr of predictions	45

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.73	0.55	1.00	6	345	0	0	0	0	5
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.50	0.44	0.59	17	6076	12	2	10	0	22
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y9C_V	-	0.59	0.54	0.65	13	2258	8	1	6	1	11
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3J0L_a	-	0.22	0.19	0.27	3	1117	8	1	7	0	13
3J0L_7	-	0.30	0.29	0.33	5	1210	10	0	10	0	12
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_2	-	0.39	0.36	0.43	12	6188	18	2	14	2	21
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_h	-	0.48	0.37	0.62	16	6079	10	0	10	0	27
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.69	0.70	0.70	16	2903	7	2	5	0	7
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J2C_O	-	0.43	0.33	0.55	21	10258	18	0	17	1	42
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3NMU_E	-	0.20	0.17	0.25	1	557	6	1	2	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.62	0.50	0.78	21	3889	6	0	6	0	21
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.64	0.42	1.00	5	401	0	0	0	0	7
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.45	0.38	0.54	14	3544	12	1	11	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.52	15	4724	15	0	14	1	25
3ZEX_E	-	0.00	0.00	0.00	0	21897	51	2	46	3	77
3ZEX_D	5S_rRNA links to Rfam database...	0.58	0.49	0.69	24	6986	11	0	11	0	25
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.20	0.14	0.31	5	5135	11	2	9	0	31
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
