Overview

Metric	CentroidHomfold‑LAST		Pknots
MCC	0.661	>	0.571
Average MCC ± 95% Confidence Intervals	0.693 ± 0.079	>	0.658 ± 0.081
Sensitivity	0.538	>	0.506
Positive Predictive Value	0.818	>	0.652
Total TP	643	>	605
Total TN	133028	>	132886
Total FP	172	<	365
Total FP CONTRA	15	<	29
Total FP INCONS	128	<	294
Total FP COMP	29	<	42
Total FN	552	<	590
P-value	3.56938820447e-08

^top

Performance plots

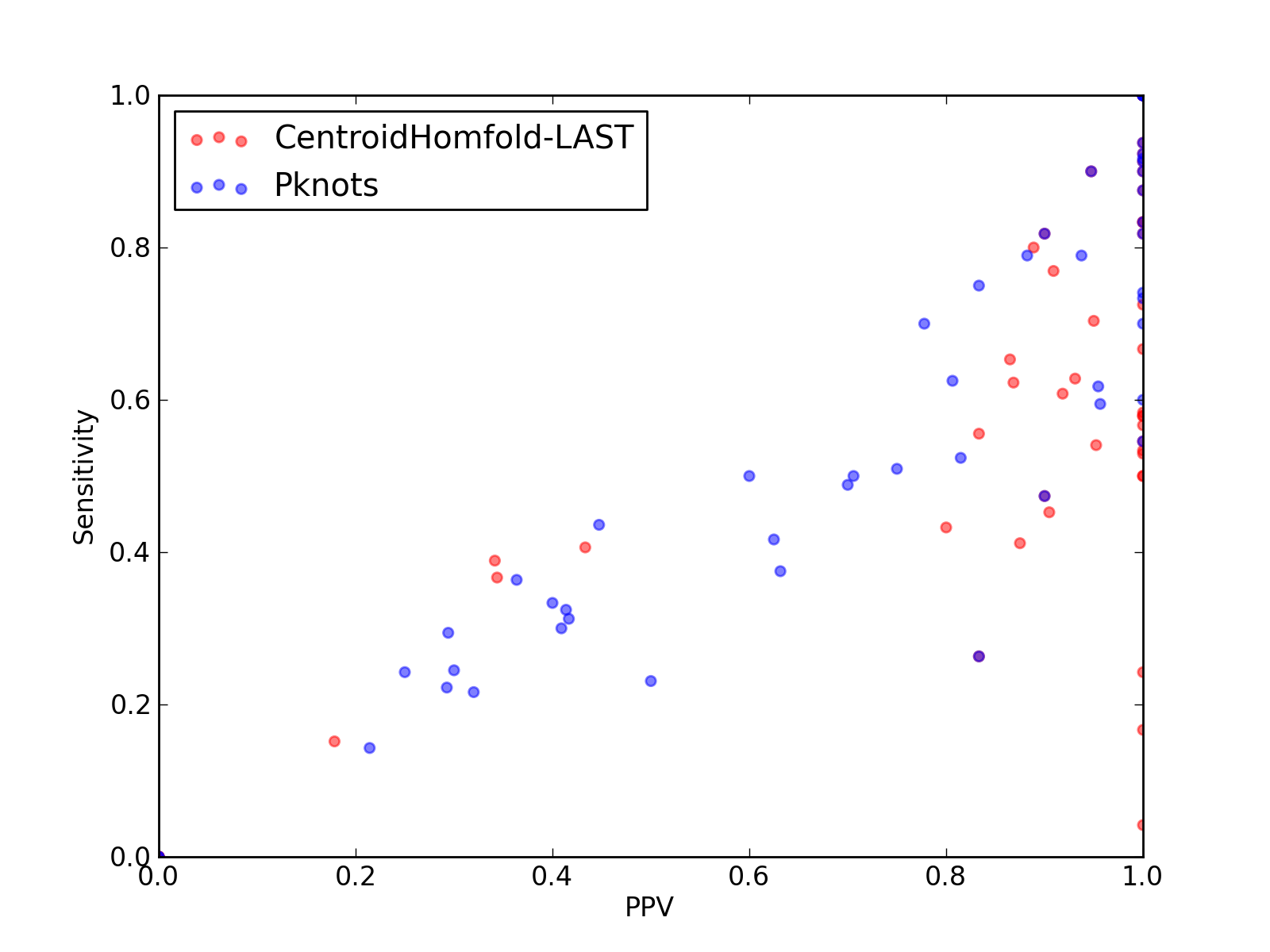

Comparison of performance of CentroidHomfold-LAST and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Pknots).

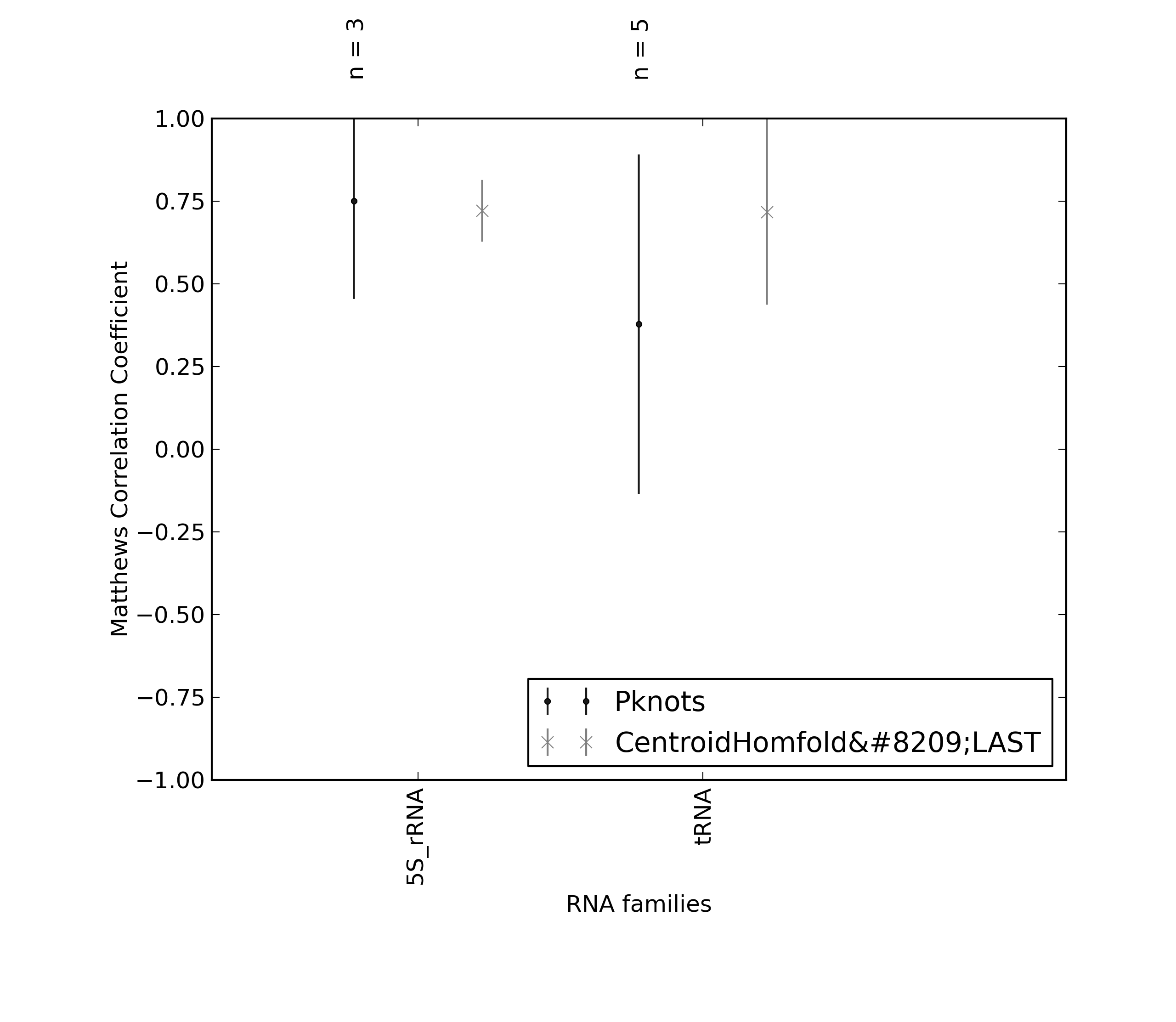

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Pknots).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	643
Total TN	133028
Total FP	172
Total FP CONTRA	15
Total FP INCONS	128
Total FP COMP	29
Total FN	552

Total Scores
MCC	0.661
Average MCC ± 95% Confidence Intervals	0.693 ± 0.079
Sensitivity	0.538
Positive Predictive Value	0.818
Nr of predictions	53

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.72	0.53	1.00	8	457	0	0	0	0	7
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.00	0.00	0.00	0	6101	4	0	4	0	39
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.20	0.04	1.00	1	2277	0	0	0	0	23
2YIE_Z	-	0.82	0.67	1.00	8	1532	0	0	0	0	4
2YIE_X	-	0.76	0.58	1.00	7	1371	0	0	0	0	5
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J0L_h	-	0.76	0.63	0.93	27	6076	4	0	2	2	16
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	-0.01	0.00	0.00	0	1125	3	0	3	0	16
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_7	-	0.60	0.41	0.88	7	1217	1	0	1	0	10
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_2	-	0.49	0.24	1.00	8	6208	0	0	0	0	25
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.91	0.83	1.00	10	396	0	0	0	0	2
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.58	0.43	0.80	16	3140	4	0	4	0	21
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
3ZEX_G	-	0.75	0.61	0.92	45	16422	7	0	4	3	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	11753	29	5	18	6	28
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	7104	6	0	6	0	24
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4FRN_A	AdoCbl-variant links to Rfam database...	0.36	0.39	0.34	14	5110	27	3	24	0	22
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	605
Total TN	132886
Total FP	365
Total FP CONTRA	29
Total FP INCONS	294
Total FP COMP	42
Total FN	590

Total Scores
MCC	0.571
Average MCC ± 95% Confidence Intervals	0.658 ± 0.081
Sensitivity	0.506
Positive Predictive Value	0.652
Nr of predictions	53

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.44	0.44	0.45	17	6067	22	4	17	1	22
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.33	0.23	0.50	3	490	3	0	3	0	10
2RRC_A	-	0.77	0.60	1.00	6	225	0	0	0	0	4
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.59	0.50	0.71	12	2261	6	1	4	1	12
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3J0L_h	-	0.58	0.49	0.70	21	6075	11	0	9	2	22
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_g	-	-0.01	0.00	0.00	0	460	5	2	3	0	4
3J0L_2	-	0.36	0.36	0.36	12	6183	23	3	18	2	21
3J16_L	tRNA links to Rfam database...	0.34	0.30	0.41	9	2753	13	0	13	0	21
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.51	0.75	27	7839	12	0	9	3	26
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3R9X_C	-	0.73	0.70	0.78	7	586	5	0	2	3	3
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.26	0.22	0.32	8	3135	17	0	17	0	29
3UZL_B	tRNA links to Rfam database...	0.75	0.59	0.96	22	3547	1	0	1	0	15
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.63	0.81	25	4722	7	0	6	1	15
3ZEX_D	5S_rRNA links to Rfam database...	0.27	0.24	0.30	12	6981	28	0	28	0	37
3ZEX_G	-	0.36	0.32	0.41	24	16413	37	3	31	3	50
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.17	0.14	0.21	6	4343	23	1	21	1	36
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.48	0.38	0.63	12	3467	7	0	7	0	20
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.42	0.63	15	5127	9	1	8	0	21
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
