Overview

Metric	CentroidHomfold‑LAST		Vsfold4
MCC	0.624	>	0.516
Average MCC ± 95% Confidence Intervals	0.673 ± 0.085	>	0.619 ± 0.082
Sensitivity	0.484	>	0.430
Positive Predictive Value	0.811	>	0.626
Total TP	629	>	558
Total TN	160128	>	160013
Total FP	178	<	366
Total FP CONTRA	13	<	26
Total FP INCONS	134	<	307
Total FP COMP	31	<	33
Total FN	670	<	741
P-value	3.56938820447e-08

^top

Performance plots

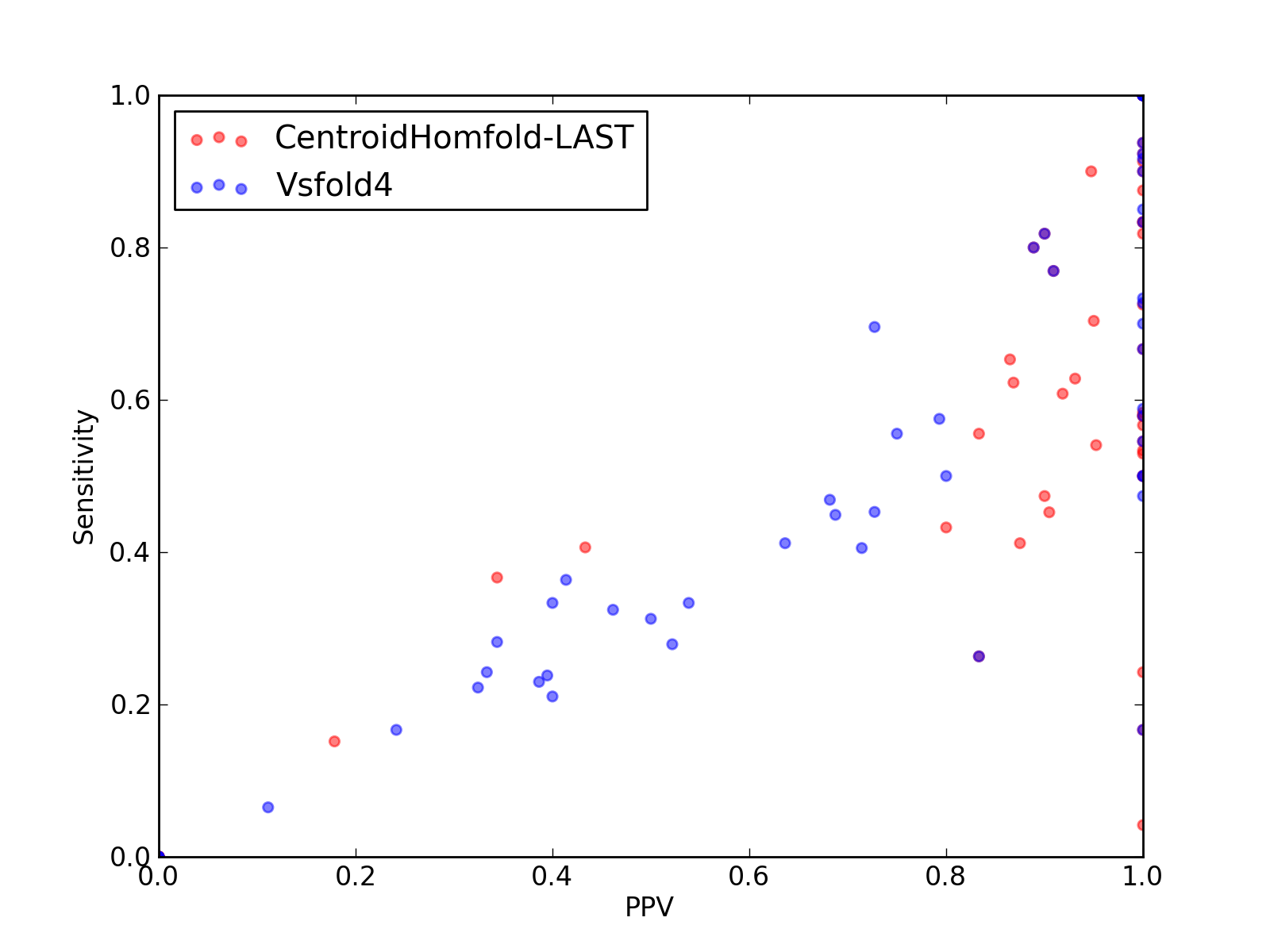

Comparison of performance of CentroidHomfold-LAST and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidHomfold-LAST and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidHomfold‑LAST and Vsfold4).

^top

Performance of CentroidHomfold‑LAST - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidHomfold‑LAST

Total Base Pair Counts
Total TP	629
Total TN	160128
Total FP	178
Total FP CONTRA	13
Total FP INCONS	134
Total FP COMP	31
Total FN	670

Total Scores
MCC	0.624
Average MCC ± 95% Confidence Intervals	0.673 ± 0.085
Sensitivity	0.484
Positive Predictive Value	0.811
Nr of predictions	54

^top

2. Individual counts for CentroidHomfold‑LAST [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1529	11	0	11	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.72	0.53	1.00	8	457	0	0	0	0	7
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.00	0.00	0.00	0	6101	4	0	4	0	39
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.20	0.04	1.00	1	2277	0	0	0	0	23
2YIE_Z	-	0.82	0.67	1.00	8	1532	0	0	0	0	4
2YIE_X	-	0.76	0.58	1.00	7	1371	0	0	0	0	5
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_h	-	0.76	0.63	0.93	27	6076	4	0	2	2	16
3J0L_7	-	0.60	0.41	0.88	7	1217	1	0	1	0	10
3J0L_g	-	0.00	0.00	0.00	0	465	0	0	0	0	4
3J0L_a	-	-0.01	0.00	0.00	0	1125	3	0	3	0	16
3J0L_2	-	0.49	0.24	1.00	8	6208	0	0	0	0	25
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.35	0.37	0.34	11	2818	22	3	18	1	19
3J2C_O	-	0.00	0.00	0.00	0	10296	0	0	0	0	63
3J2L_3	5S_rRNA links to Rfam database...	0.73	0.62	0.87	33	7837	7	0	5	2	20
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.64	0.45	0.90	19	3895	2	0	2	0	23
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.91	0.83	1.00	10	396	0	0	0	0	2
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.58	0.43	0.80	16	3140	4	0	4	0	21
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	1	0	1	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	29	4724	1	0	0	1	11
3ZEX_G	-	0.75	0.61	0.92	45	16422	7	0	4	3	29
3ZEX_E	-	0.00	0.00	0.00	0	21914	33	1	30	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.75	0.65	0.86	32	6984	5	0	5	0	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.18	5	11753	29	5	18	6	28
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	7104	6	0	6	0	24
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.71	0.50	1.00	21	4350	1	0	0	1	21
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.41	0.43	13	3456	17	3	14	0	19
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	558
Total TN	160013
Total FP	366
Total FP CONTRA	26
Total FP INCONS	307
Total FP COMP	33
Total FN	741

Total Scores
MCC	0.516
Average MCC ± 95% Confidence Intervals	0.619 ± 0.082
Sensitivity	0.430
Positive Predictive Value	0.626
Nr of predictions	54

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.85	1.00	17	973	0	0	0	0	3
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LDL_A	-	0.85	0.73	1.00	8	343	1	0	0	1	3
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.31	0.28	0.34	11	6073	21	3	18	0	28
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.63	0.50	0.80	12	2263	4	0	3	1	12
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3J0L_8	-	0.70	0.50	1.00	4	186	0	0	0	0	4
3J0L_1	-	0.28	0.21	0.40	4	1215	6	1	5	0	15
3J0L_h	-	0.38	0.28	0.52	12	6082	11	0	11	0	31
3J0L_7	-	0.51	0.41	0.64	7	1214	4	0	4	0	10
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J0L_2	-	0.38	0.36	0.41	12	6187	18	3	14	1	21
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2C_O	-	0.30	0.24	0.39	15	10258	24	0	23	1	48
3J2L_3	5S_rRNA links to Rfam database...	0.57	0.45	0.73	24	7842	12	1	8	3	29
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.53	0.41	0.71	15	3549	6	1	5	0	22
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.58	0.79	23	4724	7	0	6	1	17
3ZEX_G	-	0.30	0.23	0.39	17	16427	27	2	25	0	57
3ZEX_E	-	0.08	0.06	0.11	5	21900	40	1	39	0	72
3ZEX_D	5S_rRNA links to Rfam database...	0.55	0.45	0.69	22	6989	10	0	10	0	27
4A1C_2	5_8S_rRNA links to Rfam database...	0.28	0.24	0.33	8	11757	28	0	16	12	25
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
