Overview

Metric	Cylofold		Vsfold4
MCC	0.612	>	0.563
Average MCC ± 95% Confidence Intervals	0.664 ± 0.061	>	0.628 ± 0.069
Sensitivity	0.524	>	0.477
Positive Predictive Value	0.722	>	0.673
Total TP	977	>	888
Total TN	216957	<	216991
Total FP	426	<	466
Total FP CONTRA	42	>	40
Total FP INCONS	335	<	392
Total FP COMP	49	>	34
Total FN	886	<	975
P-value	3.56938820447e-08

^top

Performance plots

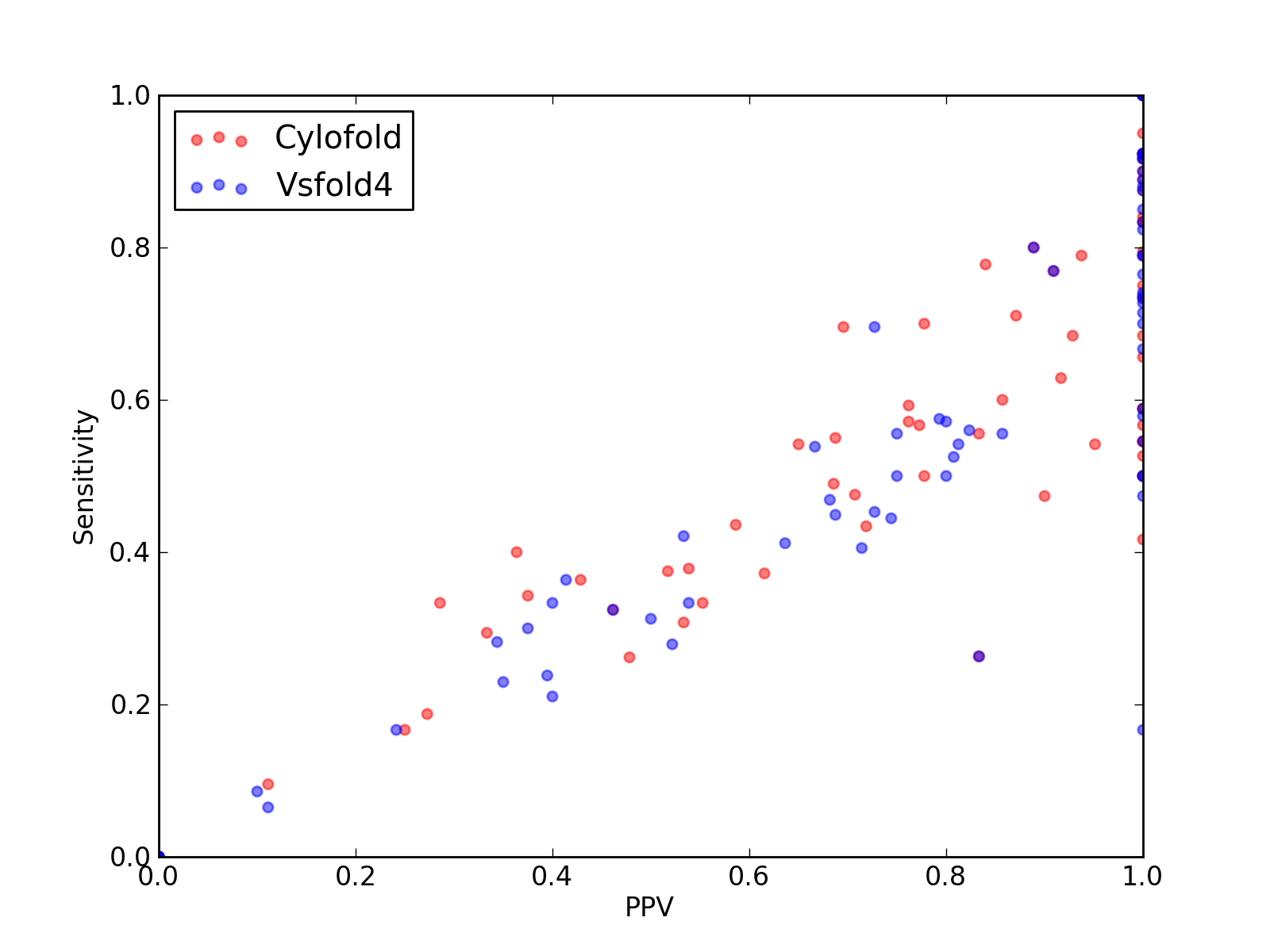

Comparison of performance of Cylofold and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Cylofold and Vsfold4).

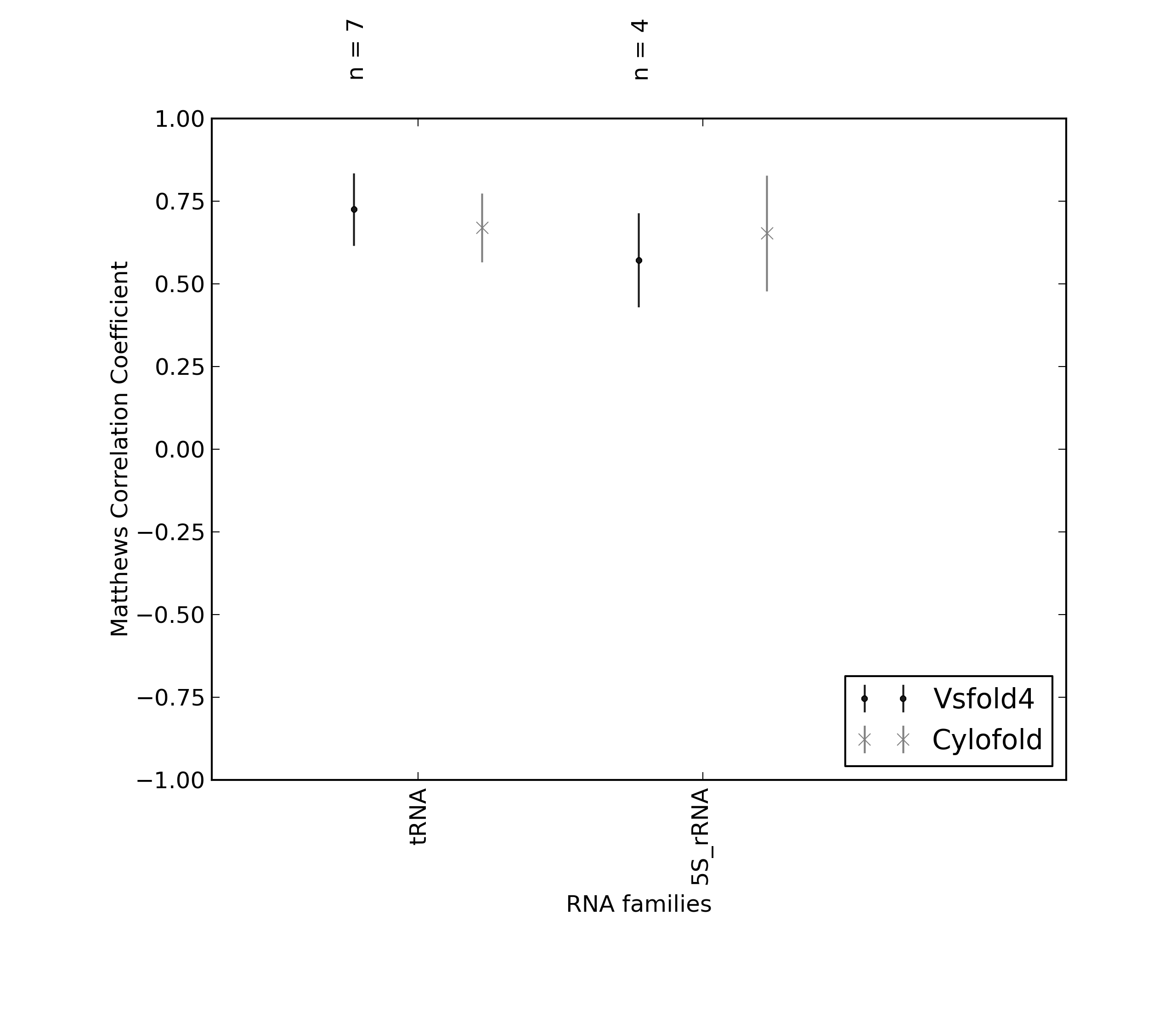

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Cylofold and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for Cylofold and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Cylofold and Vsfold4).

^top

Performance of Cylofold - scored higher in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	977
Total TN	216957
Total FP	426
Total FP CONTRA	42
Total FP INCONS	335
Total FP COMP	49
Total FN	886

Total Scores
MCC	0.612
Average MCC ± 95% Confidence Intervals	0.664 ± 0.061
Sensitivity	0.524
Positive Predictive Value	0.722
Nr of predictions	73

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.72	0.60	0.86	24	5123	8	2	2	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.72	0.53	1.00	10	1475	0	0	0	0	9
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.83	1.00	20	2060	0	0	0	0	4
2L1F_B	Gammaretro_CES links to Rfam database...	0.92	0.84	1.00	21	2124	0	0	0	0	4
2L2K_A	-	0.82	0.68	1.00	13	848	0	0	0	0	6
2L3C_B	-	0.76	0.59	1.00	10	551	0	0	0	0	7
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.89	0.79	1.00	27	2458	0	0	0	0	7
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.73	0.55	1.00	6	345	0	0	0	0	5
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.50	0.44	0.59	17	6076	12	2	10	0	22
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.40	0.36	8	4538	23	7	7	9	12
2XQD_Y	tRNA links to Rfam database...	0.81	0.78	0.84	21	2825	4	4	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.10	0.10	0.11	4	5115	32	1	31	0	38
2Y9C_V	-	0.59	0.54	0.65	13	2258	8	1	6	1	11
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
3ADB_C	-	0.78	0.71	0.87	27	4155	4	0	4	0	11
3AKZ_H	tRNA links to Rfam database...	0.66	0.57	0.76	16	2680	6	0	5	1	12
3AM1_B	-	0.76	0.63	0.92	22	3216	2	0	2	0	13
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J0L_h	-	0.48	0.37	0.62	16	6079	10	0	10	0	27
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_a	-	0.22	0.19	0.27	3	1117	8	1	7	0	13
3J0L_2	-	0.39	0.36	0.43	12	6188	18	2	14	2	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	0.30	0.29	0.33	5	1210	10	0	10	0	12
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.69	0.70	0.70	16	2903	7	2	5	0	7
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J2C_O	-	0.43	0.33	0.55	21	10258	18	0	17	1	42
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3NDB_M	-	0.58	0.48	0.71	29	9139	13	1	11	1	32
3NKB_B	-	0.40	0.31	0.53	8	2001	7	0	7	0	18
3NMU_E	-	0.20	0.17	0.25	1	557	6	1	2	3	5
3O58_2	5S_rRNA links to Rfam database...	0.80	0.68	0.93	26	7232	3	0	2	1	12
3O58_3	5_8S_rRNA links to Rfam database...	0.36	0.34	0.38	12	12371	29	5	15	9	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.72	0.54	0.95	39	12839	4	0	2	2	33
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.62	0.50	0.78	21	3889	6	0	6	0	21
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.64	0.42	1.00	5	401	0	0	0	0	7
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.45	0.38	0.54	14	3544	12	1	11	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.52	15	4724	15	0	14	1	25
3ZEX_D	5S_rRNA links to Rfam database...	0.58	0.49	0.69	24	6986	11	0	11	0	25
3ZEX_E	-	0.00	0.00	0.00	0	21897	51	2	46	3	77
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ATO_G	-	0.73	0.70	0.78	7	519	2	1	1	0	3
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	888
Total TN	216991
Total FP	466
Total FP CONTRA	40
Total FP INCONS	392
Total FP COMP	34
Total FN	975

Total Scores
MCC	0.563
Average MCC ± 95% Confidence Intervals	0.628 ± 0.069
Sensitivity	0.477
Positive Predictive Value	0.673
Nr of predictions	73

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.65	0.53	0.81	21	5125	7	0	5	2	19
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.66	0.54	0.81	13	2064	3	0	3	0	11
2L1F_B	Gammaretro_CES links to Rfam database...	0.68	0.56	0.82	14	2128	3	0	3	0	11
2L2K_A	-	0.89	0.79	1.00	15	846	0	0	0	0	4
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.87	0.76	1.00	26	2459	0	0	0	0	8
2L5Z_A	-	0.60	0.50	0.75	6	317	2	0	2	0	6
2L94_A	HIV_FE links to Rfam database...	0.92	0.85	1.00	17	973	0	0	0	0	3
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LDL_A	-	0.85	0.73	1.00	8	343	1	0	0	1	3
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.31	0.28	0.34	11	6073	21	3	18	0	28
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	4533	27	8	19	0	20
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5122	29	1	28	0	42
2Y9C_V	-	0.63	0.50	0.80	12	2263	4	0	3	1	12
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
3ADB_C	-	0.89	0.79	1.00	30	4156	0	0	0	0	8
3AKZ_H	tRNA links to Rfam database...	0.67	0.57	0.80	16	2681	5	1	3	1	12
3AM1_B	-	0.84	0.71	1.00	25	3215	0	0	0	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.56	0.75	15	2983	7	0	5	2	12
3IZF_C	5S_rRNA links to Rfam database...	0.69	0.56	0.86	30	6868	5	0	5	0	24
3J0L_h	-	0.38	0.28	0.52	12	6082	11	0	11	0	31
3J0L_1	-	0.28	0.21	0.40	4	1215	6	1	5	0	15
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J0L_2	-	0.38	0.36	0.41	12	6187	18	3	14	1	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	0.51	0.41	0.64	7	1214	4	0	4	0	10
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2C_O	-	0.30	0.24	0.39	15	10258	24	0	23	1	48
3J2L_3	5S_rRNA links to Rfam database...	0.57	0.45	0.73	24	7842	12	1	8	3	29
3NDB_M	-	0.28	0.23	0.35	14	9140	26	0	26	0	47
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3O58_2	5S_rRNA links to Rfam database...	0.47	0.42	0.53	16	7230	16	3	11	2	22
3O58_3	5_8S_rRNA links to Rfam database...	0.09	0.09	0.10	3	12373	35	5	22	8	32
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3R4F_A	-	0.94	0.88	1.00	22	2123	0	0	0	0	3
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.19	0.17	0.24	7	3887	22	1	21	0	35
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.53	0.41	0.71	15	3549	6	1	5	0	22
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.58	0.79	23	4724	7	0	6	1	17
3ZEX_D	5S_rRNA links to Rfam database...	0.55	0.45	0.69	22	6989	10	0	10	0	27
3ZEX_E	-	0.08	0.06	0.11	5	21900	40	1	39	0	72
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.69	0.47	1.00	9	1317	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
