Overview

Metric	Fold		Cylofold
MCC	0.659	>	0.607
Average MCC ± 95% Confidence Intervals	0.679 ± 0.070	>	0.658 ± 0.061
Sensitivity	0.589	>	0.517
Positive Predictive Value	0.742	>	0.718
Total TP	1128	>	990
Total TN	222537	<	222679
Total FP	451	>	437
Total FP CONTRA	40	<	44
Total FP INCONS	352	>	344
Total FP COMP	59	>	49
Total FN	787	<	925
P-value	3.56938820447e-08

^top

Performance plots

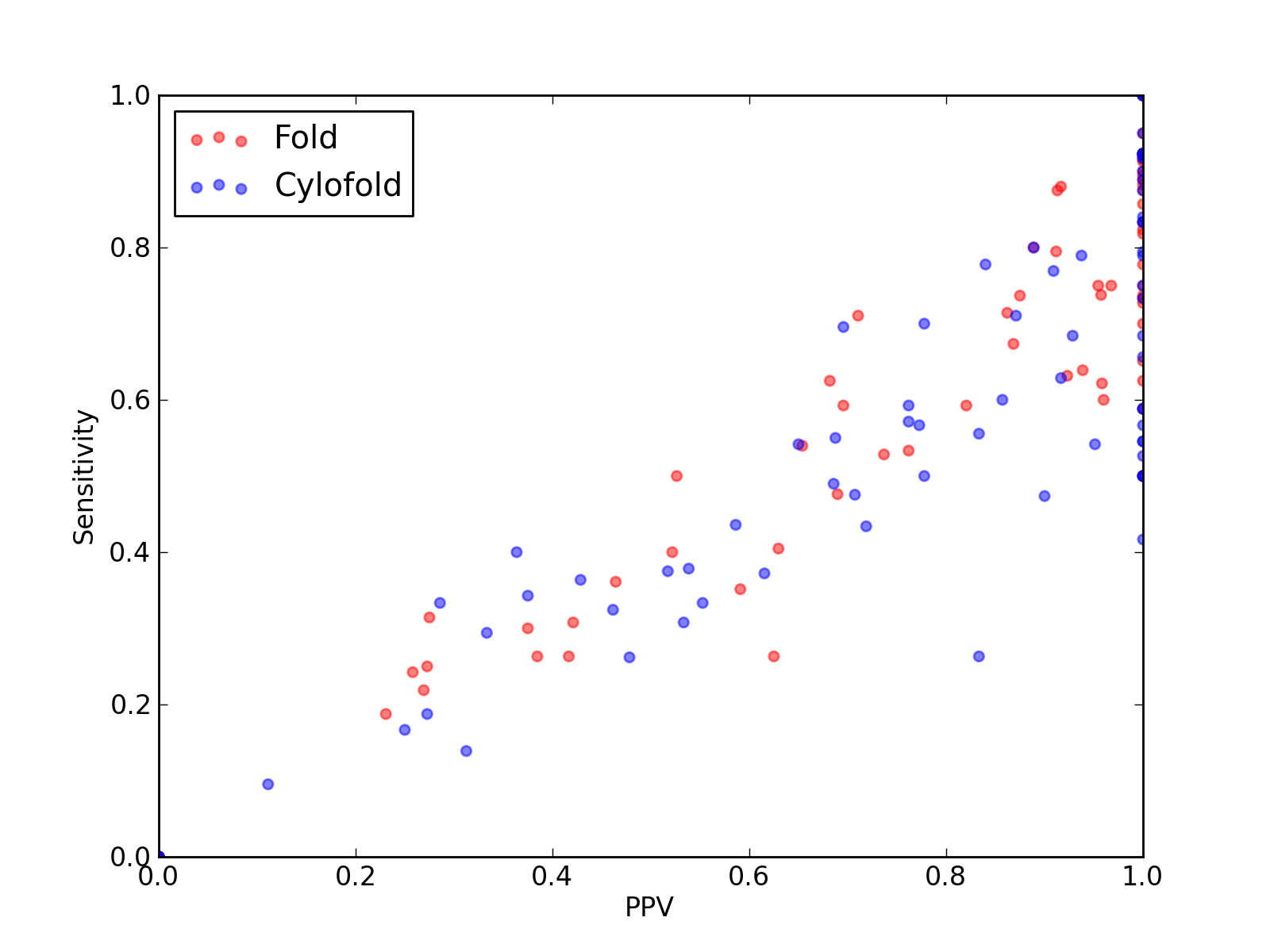

Comparison of performance of Fold and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and Cylofold).
Comparison of performance of Fold and Cylofold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Fold and Cylofold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and Cylofold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Fold and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and Cylofold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Fold and Cylofold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Fold and Cylofold).

^top

Performance of Fold - scored higher in this pairwise comparison

1. Total counts & total scores for Fold

Total Base Pair Counts
Total TP	1128
Total TN	222537
Total FP	451
Total FP CONTRA	40
Total FP INCONS	352
Total FP COMP	59
Total FN	787

Total Scores
MCC	0.659
Average MCC ± 95% Confidence Intervals	0.679 ± 0.070
Sensitivity	0.589
Positive Predictive Value	0.742
Nr of predictions	75

^top

2. Individual counts for Fold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.90	0.88	0.92	22	2121	2	0	2	0	3
2L1F_A	Gammaretro_CES links to Rfam database...	0.89	0.88	0.91	21	2057	2	0	2	0	3
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.85	0.79	0.91	31	6071	5	0	3	2	8
2LWK_A	-	0.96	0.92	1.00	12	484	0	0	0	0	1
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.93	0.86	1.00	36	5115	0	0	0	0	6
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.25	0.25	0.27	3	1367	8	2	6	0	9
3ADB_C	-	0.80	0.74	0.88	28	4154	4	0	4	0	10
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.78	0.71	0.86	25	3211	4	0	4	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.59	0.70	16	2980	9	0	7	2	11
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	6864	7	1	6	0	22
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_a	-	0.20	0.19	0.23	3	1115	10	2	8	0	13
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.81	0.65	1.00	28	6077	2	0	0	2	15
3J16_L	tRNA links to Rfam database...	0.63	0.53	0.76	16	2754	5	0	5	0	14
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2C_O	-	0.59	0.54	0.65	34	10244	18	1	17	0	29
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.35	0.31	0.42	8	1997	11	0	11	0	18
3NMU_E	-	-0.01	0.00	0.00	0	552	11	2	7	2	6
3O58_3	5_8S_rRNA links to Rfam database...	0.29	0.31	0.28	11	12363	41	3	26	12	24
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	3	8	1	11
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.77	0.64	0.94	46	12831	5	0	3	2	26
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.57	0.48	0.69	20	3887	9	1	8	0	22
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.77	0.62	0.96	23	3546	1	0	1	0	14
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.85	0.75	0.97	30	4722	2	0	1	1	10
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.67	0.87	33	6983	5	1	4	0	16
3ZEX_E	-	0.00	0.00	0.00	0	21890	57	2	53	2	77
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1263	7	1	6	0	14
4ENC_A	crcB links to Rfam database...	0.31	0.26	0.38	5	1313	8	1	7	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.24	0.22	0.27	7	3460	19	3	16	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.41	0.36	0.46	13	5123	15	2	13	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Cylofold - scored lower in this pairwise comparison

1. Total counts & total scores for Cylofold

Total Base Pair Counts
Total TP	990
Total TN	222679
Total FP	437
Total FP CONTRA	44
Total FP INCONS	344
Total FP COMP	49
Total FN	925

Total Scores
MCC	0.607
Average MCC ± 95% Confidence Intervals	0.658 ± 0.061
Sensitivity	0.517
Positive Predictive Value	0.718
Nr of predictions	75

^top

2. Individual counts for Cylofold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.72	0.60	0.86	24	5123	8	2	2	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.72	0.53	1.00	10	1475	0	0	0	0	9
2L1F_B	Gammaretro_CES links to Rfam database...	0.92	0.84	1.00	21	2124	0	0	0	0	4
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.83	1.00	20	2060	0	0	0	0	4
2L2K_A	-	0.82	0.68	1.00	13	848	0	0	0	0	6
2L3C_B	-	0.76	0.59	1.00	10	551	0	0	0	0	7
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.89	0.79	1.00	27	2458	0	0	0	0	7
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.73	0.55	1.00	6	345	0	0	0	0	5
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.50	0.44	0.59	17	6076	12	2	10	0	22
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.38	0.40	0.36	8	4538	23	7	7	9	12
2XQD_Y	tRNA links to Rfam database...	0.81	0.78	0.84	21	2825	4	4	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.10	0.10	0.11	4	5115	32	1	31	0	38
2Y9C_V	-	0.59	0.54	0.65	13	2258	8	1	6	1	11
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
3ADB_C	-	0.78	0.71	0.87	27	4155	4	0	4	0	11
3AKZ_H	tRNA links to Rfam database...	0.66	0.57	0.76	16	2680	6	0	5	1	12
3AM1_B	-	0.76	0.63	0.92	22	3216	2	0	2	0	13
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J0L_7	-	0.30	0.29	0.33	5	1210	10	0	10	0	12
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_a	-	0.22	0.19	0.27	3	1117	8	1	7	0	13
3J0L_2	-	0.39	0.36	0.43	12	6188	18	2	14	2	21
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_h	-	0.48	0.37	0.62	16	6079	10	0	10	0	27
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.69	0.70	0.70	16	2903	7	2	5	0	7
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J2C_O	-	0.43	0.33	0.55	21	10258	18	0	17	1	42
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3NDB_M	-	0.58	0.48	0.71	29	9139	13	1	11	1	32
3NKB_B	-	0.40	0.31	0.53	8	2001	7	0	7	0	18
3NMU_E	-	0.20	0.17	0.25	1	557	6	1	2	3	5
3O58_3	5_8S_rRNA links to Rfam database...	0.36	0.34	0.38	12	12371	29	5	15	9	23
3O58_2	5S_rRNA links to Rfam database...	0.80	0.68	0.93	26	7232	3	0	2	1	12
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.72	0.54	0.95	39	12839	4	0	2	2	33
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.62	0.50	0.78	21	3889	6	0	6	0	21
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.64	0.42	1.00	5	401	0	0	0	0	7
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.45	0.38	0.54	14	3544	12	1	11	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.52	15	4724	15	0	14	1	25
3ZEX_D	5S_rRNA links to Rfam database...	0.58	0.49	0.69	24	6986	11	0	11	0	25
3ZEX_E	-	0.00	0.00	0.00	0	21897	51	2	46	3	77
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ATO_G	-	0.73	0.70	0.78	7	519	2	1	1	0	3
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	0.70	0.50	1.00	8	587	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.20	0.14	0.31	5	5135	11	2	9	0	31
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
