Overview

Metric	HotKnots		PknotsRG
MCC	0.622	>	0.608
Average MCC ± 95% Confidence Intervals	0.692 ± 0.049	>	0.683 ± 0.048
Sensitivity	0.558	>	0.544
Positive Predictive Value	0.699	>	0.683
Total TP	2023	>	1974
Total TN	615774	<	615779
Total FP	1001	<	1060
Total FP CONTRA	122	=	122
Total FP INCONS	750	<	794
Total FP COMP	129	<	144
Total FN	1603	<	1652
P-value	3.56938820447e-08

^top

Performance plots

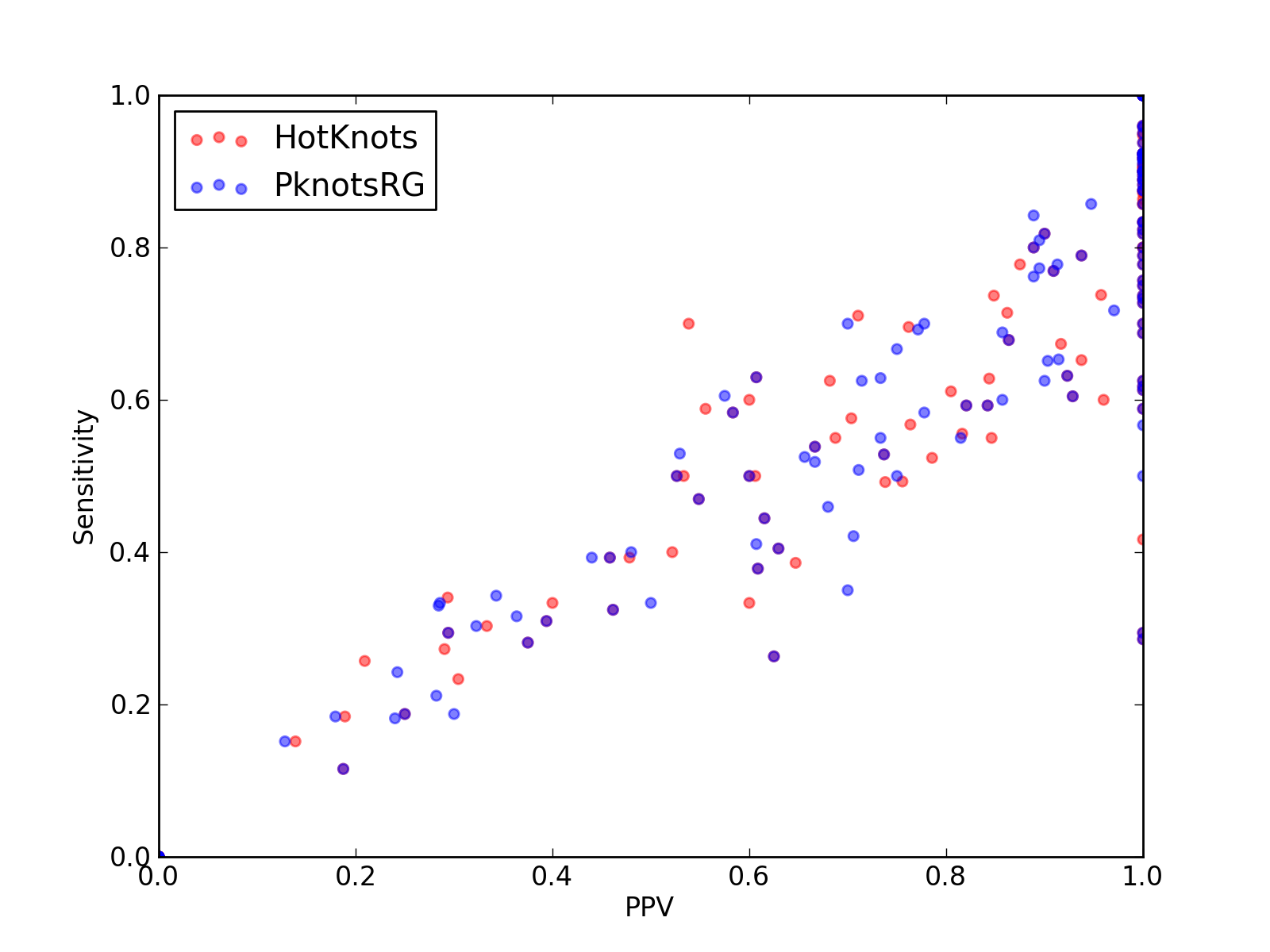

Comparison of performance of HotKnots and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for HotKnots and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for HotKnots and PknotsRG).
Comparison of average Matthews Correlation Coefficients (MCCs) for HotKnots and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for HotKnots and PknotsRG).

^top

Performance of HotKnots - scored higher in this pairwise comparison

1. Total counts & total scores for HotKnots

Total Base Pair Counts
Total TP	2023
Total TN	615774
Total FP	1001
Total FP CONTRA	122
Total FP INCONS	750
Total FP COMP	129
Total FN	1603

Total Scores
MCC	0.622
Average MCC ± 95% Confidence Intervals	0.692 ± 0.049
Sensitivity	0.558
Positive Predictive Value	0.699
Nr of predictions	135

^top

2. Individual counts for HotKnots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	395	0	0	0	0	0
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KGP_A	-	1.00	1.00	1.00	9	291	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KU0_A	-	0.83	0.69	1.00	11	692	0	0	0	0	5
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.89	0.80	1.00	8	343	0	0	0	0	2
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.93	0.87	1.00	34	6071	3	0	0	3	5
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.83	0.70	1.00	7	224	0	0	0	0	3
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.31	0.39	13	5118	20	1	19	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.79	0.74	0.85	28	4153	5	0	5	0	10
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.78	0.71	0.86	25	3211	4	0	4	0	10
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	-0.02	0.00	0.00	0	345	6	0	6	0	10
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.39	0.65	22	7347	12	1	11	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.94	0.89	1.00	16	1637	2	0	0	2	2
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.44	0.33	0.60	3	491	5	0	2	3	6
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.31	0.34	0.29	32	60617	81	22	55	4	62
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_2	-	0.28	0.27	0.29	9	6185	23	3	19	1	24
3J16_L	tRNA links to Rfam database...	0.26	0.23	0.30	7	2752	16	1	15	0	23
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	7	0	5	2	7
3J2C_O	-	0.60	0.49	0.74	31	10254	12	0	11	1	32
3J2C_M	-	0.61	0.49	0.76	102	106356	38	5	28	5	105
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.32	0.30	0.33	10	12216	31	5	15	11	23
3KTW_C	-	0.73	0.63	0.84	27	4528	6	2	3	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.78	0.65	0.94	30	6989	5	0	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	4	7	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.26	0.21	9	12360	34	10	24	0	26
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.67	0.56	0.82	40	12831	11	0	9	2	32
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.50	0.61	20	4720	14	1	12	1	20
3ZEX_G	-	0.66	0.57	0.76	42	16416	18	0	13	5	32
3ZEX_H	-	0.18	0.18	0.19	7	9008	30	5	25	0	31
3ZEX_D	5S_rRNA links to Rfam database...	0.78	0.67	0.92	33	6985	3	0	3	0	16
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	4	48	2	77
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14150	46	6	40	0	52
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	42	6	25	11	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.61	0.70	0.54	7	515	6	2	4	0	3
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.52	0.44	0.62	16	5125	10	2	8	0	20
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	1974
Total TN	615779
Total FP	1060
Total FP CONTRA	122
Total FP INCONS	794
Total FP COMP	144
Total FN	1652

Total Scores
MCC	0.608
Average MCC ± 95% Confidence Intervals	0.683 ± 0.048
Sensitivity	0.544
Positive Predictive Value	0.683
Nr of predictions	135

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	395	0	0	0	0	0
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.86	0.84	0.89	16	1110	3	0	2	1	3
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	0.48	0.35	0.70	7	620	3	0	3	0	13
2KGP_A	-	0.70	0.67	0.75	6	292	2	0	2	0	3
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.72	0.60	0.86	24	5123	8	2	2	4	16
2KU0_A	-	0.83	0.69	1.00	11	692	0	0	0	0	5
2KUR_A	K10_TLS links to Rfam database...	0.85	0.81	0.89	17	1109	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.76	0.89	16	1110	3	0	2	1	5
2KUV_A	K10_TLS links to Rfam database...	0.83	0.77	0.89	17	1109	2	0	2	0	5
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.63	0.55	0.73	11	1525	4	1	3	0	9
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.73	0.69	0.77	27	6070	8	2	6	0	12
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.66	0.58	0.78	7	342	2	1	1	0	5
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	22	0	9	13	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.31	0.39	13	5118	20	1	19	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.66	0.63	0.71	15	2257	8	1	5	2	9
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.33	0.32	0.36	12	4153	21	0	21	0	26
3AKZ_H	tRNA links to Rfam database...	0.41	0.39	0.44	11	2676	14	4	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	-0.02	0.00	0.00	0	348	3	0	3	0	10
3G4S_9	5S_rRNA links to Rfam database...	0.54	0.42	0.71	24	7347	10	1	9	0	33
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.67	0.55	0.81	22	4344	6	0	5	1	18
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.94	0.89	1.00	16	1637	2	0	0	2	2
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.40	0.33	0.50	3	490	6	0	3	3	6
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.20	0.18	0.24	6	4253	19	1	18	0	27
3IYQ_A	tmRNA links to Rfam database...	0.31	0.33	0.28	31	60617	80	24	54	2	63
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_2	-	0.24	0.24	0.24	8	6183	27	2	23	2	25
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2C_O	-	0.60	0.51	0.71	32	10251	14	0	13	1	31
3J2C_M	-	0.50	0.41	0.61	85	106351	58	9	46	3	122
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3KTW_C	-	0.77	0.65	0.90	28	4529	4	2	1	1	15
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	3	0	1	2	13
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.58	0.53	0.66	21	4721	12	1	10	1	19
3ZEX_G	-	0.56	0.46	0.68	34	16421	21	1	15	5	40
3ZEX_H	-	0.18	0.18	0.18	7	9006	32	6	26	0	31
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_E	-	0.00	0.00	0.00	0	21892	55	4	49	2	77
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	43	1	27	15	41
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.73	0.70	0.78	7	519	2	1	1	0	3
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.52	0.44	0.62	16	5125	10	2	8	0	20
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of HotKnots - scored higher in this pairwise comparison

1. Total counts & total scores for HotKnots

2. Individual counts for HotKnots [ download as .csv ]

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

2. Individual counts for PknotsRG [ download as .csv ]
