Overview

Metric	IPknot		MCFold
MCC	0.610	>	0.455
Average MCC ± 95% Confidence Intervals	0.649 ± 0.078	>	0.516 ± 0.094
Sensitivity	0.517	>	0.466
Positive Predictive Value	0.726	>	0.452
Total TP	731	>	659
Total TN	186346	>	185896
Total FP	326	<	933
Total FP CONTRA	36	<	98
Total FP INCONS	240	<	700
Total FP COMP	50	<	135
Total FN	682	<	754
P-value	3.56938820447e-08

^top

Performance plots

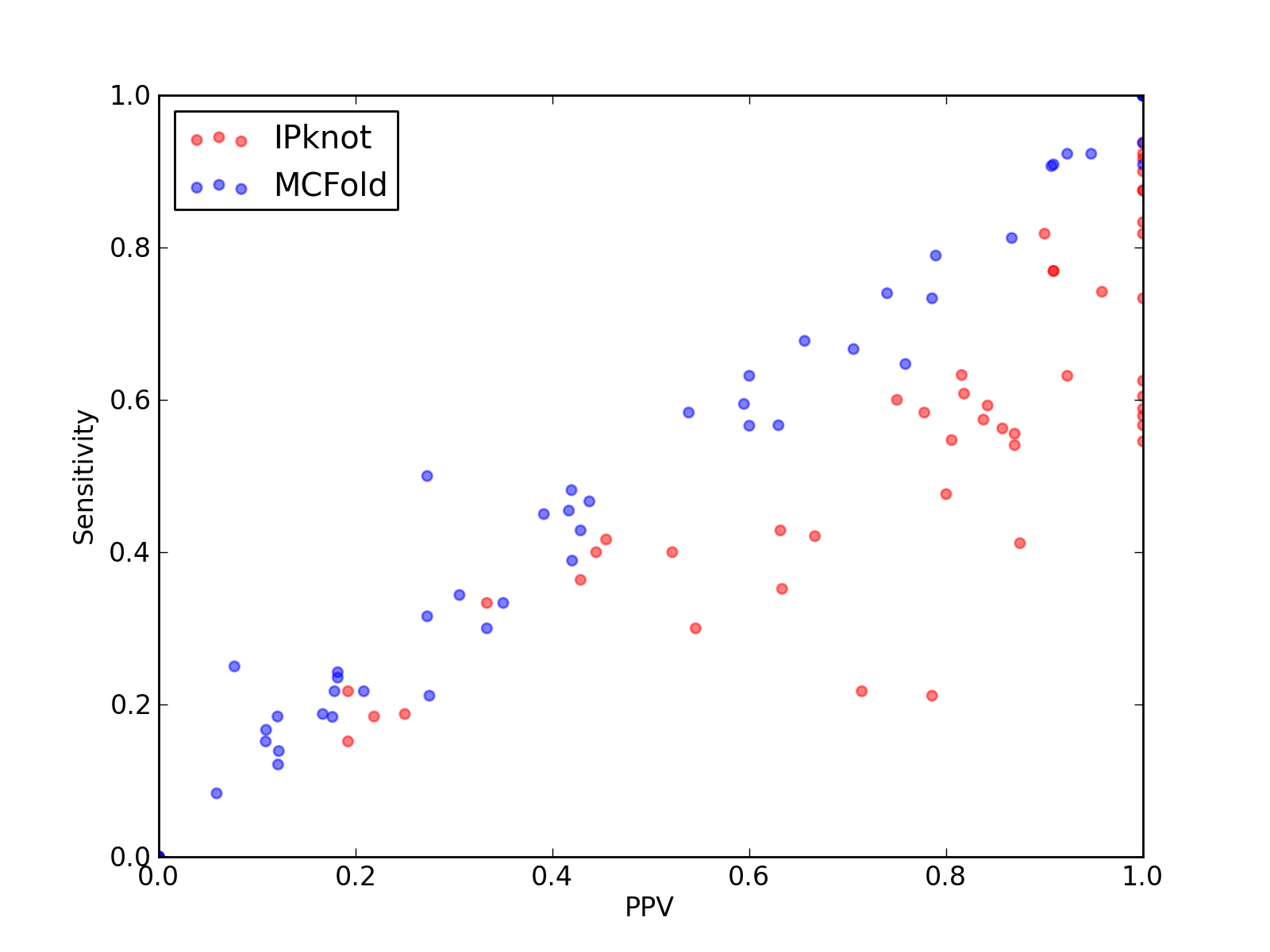

Comparison of performance of IPknot and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and MCFold).

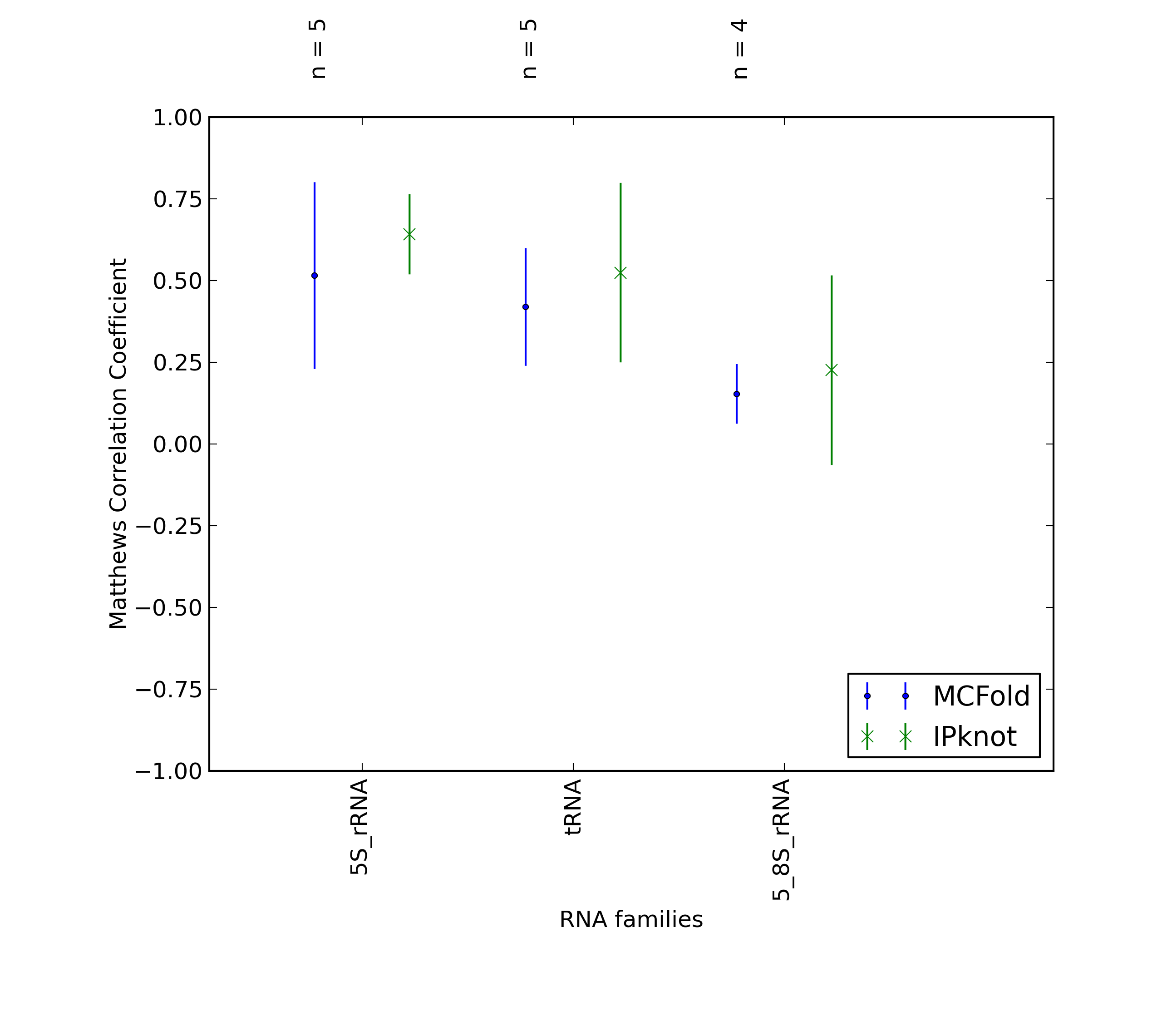

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and MCFold).

^top

Performance of IPknot - scored higher in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	731
Total TN	186346
Total FP	326
Total FP CONTRA	36
Total FP INCONS	240
Total FP COMP	50
Total FN	682

Total Scores
MCC	0.610
Average MCC ± 95% Confidence Intervals	0.649 ± 0.078
Sensitivity	0.517
Positive Predictive Value	0.726
Nr of predictions	58

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.40	0.30	0.55	6	1529	5	1	4	0	14
2LDL_A	-	0.90	0.82	1.00	9	342	0	0	0	0	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.84	0.77	0.91	30	6072	4	0	3	1	9
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LU0_A	-	1.00	1.00	1.00	16	1160	0	0	0	0	0
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2M58_A	-	0.60	0.41	0.88	7	1645	1	1	0	0	10
2YIE_X	-	0.67	0.58	0.78	7	1369	3	1	1	1	5
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3J0L_2	-	0.39	0.36	0.43	12	6188	18	2	14	2	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.21	0.19	0.25	3	1116	9	1	8	0	13
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.78	0.60	1.00	26	6079	2	0	0	2	17
3J0L_7	-	-0.01	0.00	0.00	0	1218	7	0	7	0	17
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.66	0.55	0.81	29	7839	9	0	7	2	24
3J3D_C	tRNA links to Rfam database...	0.52	0.43	0.63	12	2756	7	0	7	0	16
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7484	25	2	17	6	33
3J3F_7	5S_rRNA links to Rfam database...	0.67	0.60	0.75	30	7220	10	1	9	0	20
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.33	0.33	12	12210	37	4	20	13	24
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.48	0.80	20	3891	5	0	5	0	22
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.68	0.54	0.87	20	3137	3	1	2	0	17
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3ZEX_G	-	0.70	0.61	0.82	45	16416	14	1	9	4	29
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.63	0.82	31	6983	7	0	7	0	18
3ZEX_H	-	0.20	0.18	0.22	7	9013	25	4	21	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.21	0.79	11	14182	6	1	2	3	41
3ZEX_F	-	0.00	0.00	0.00	0	2619	9	2	7	0	12
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	23	1	20	2	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	11755	26	4	17	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4ATO_G	-	0.41	0.40	0.44	4	519	6	0	5	1	6
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.52	0.42	0.67	8	1314	4	0	4	0	11
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.56	0.86	18	3465	3	1	2	0	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.56	0.87	20	5128	3	1	2	0	16
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0
4JF2_A	preQ1-II links to Rfam database...	0.84	0.74	0.96	23	2826	1	1	0	0	8
4JRC_A	-	0.39	0.22	0.71	5	1533	2	0	2	0	18

^top

Performance of MCFold - scored lower in this pairwise comparison

1. Total counts & total scores for MCFold

Total Base Pair Counts
Total TP	659
Total TN	185896
Total FP	933
Total FP CONTRA	98
Total FP INCONS	700
Total FP COMP	135
Total FN	754

Total Scores
MCC	0.455
Average MCC ± 95% Confidence Intervals	0.516 ± 0.094
Sensitivity	0.466
Positive Predictive Value	0.452
Nr of predictions	58

^top

2. Individual counts for MCFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LBS_A	-	1.00	1.00	1.00	14	482	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.45	0.39	9	1517	16	0	14	2	11
2LDL_A	-	0.95	0.91	1.00	10	341	2	0	0	2	1
2LDT_A	-	0.75	0.73	0.79	11	451	3	0	3	0	4
2LHP_A	-	1.00	1.00	1.00	16	650	1	0	0	1	0
2LI4_A	-	0.97	0.94	1.00	15	481	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	1.00	1.00	1.00	10	266	0	0	0	0	0
2LKR_A	-	0.93	0.92	0.95	36	6067	14	0	2	12	3
2LQZ_A	-	0.91	0.91	0.91	10	340	1	1	0	0	1
2LU0_A	-	1.00	1.00	1.00	16	1160	5	0	0	5	0
2LWK_A	-	0.92	0.92	0.92	12	483	2	0	1	1	1
2M58_A	-	0.20	0.24	0.18	4	1631	19	2	16	1	13
2YIE_X	-	0.06	0.08	0.06	1	1361	21	1	15	5	11
2YIE_Z	-	0.36	0.50	0.27	6	1518	18	4	12	2	6
3AMU_B	tRNA links to Rfam database...	0.44	0.48	0.42	13	2972	18	2	16	0	14
3J0L_2	-	0.21	0.24	0.18	8	6172	39	7	29	3	25
3J0L_8	-	1.00	1.00	1.00	8	182	0	0	0	0	0
3J0L_a	-	0.16	0.19	0.17	3	1110	15	1	14	0	13
3J0L_1	-	0.79	0.79	0.79	15	1206	6	0	4	2	4
3J0L_h	-	0.91	0.91	0.91	39	6062	13	0	4	9	4
3J0L_7	-	-0.01	0.00	0.00	0	1206	19	4	15	0	17
3J0L_g	-	0.13	0.25	0.08	1	452	12	8	4	0	3
3J16_L	tRNA links to Rfam database...	0.45	0.47	0.44	14	2743	19	1	17	1	16
3J20_0	tRNA links to Rfam database...	0.59	0.57	0.63	17	2823	12	1	9	2	13
3J2L_3	5S_rRNA links to Rfam database...	0.58	0.57	0.60	30	7825	23	2	18	3	23
3J3D_C	tRNA links to Rfam database...	0.42	0.43	0.43	12	2747	18	2	14	2	16
3J3E_7	5S_rRNA links to Rfam database...	0.40	0.39	0.42	21	7090	29	3	26	0	33
3J3E_8	5_8S_rRNA links to Rfam database...	0.12	0.12	0.12	4	7470	46	3	26	17	29
3J3F_7	5S_rRNA links to Rfam database...	0.74	0.74	0.74	37	7210	17	2	11	4	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.13	0.17	0.11	6	12191	61	9	40	12	30
3RKF_A	Purine links to Rfam database...	0.70	0.65	0.76	22	2182	7	1	6	0	12
3SD1_A	THF links to Rfam database...	0.33	0.33	0.35	14	3876	26	0	26	0	28
3SIU_F	-	0.42	0.45	0.42	5	366	7	1	6	0	6
3SN2_B	IRE_II links to Rfam database...	0.55	0.58	0.54	7	393	6	0	6	0	5
3TRZ_Z	-	-0.04	0.00	0.00	0	201	9	0	9	0	6
3TS0_U	-	1.00	1.00	1.00	6	247	2	0	0	2	0
3TS2_V	-	-0.02	0.00	0.00	0	268	9	0	8	1	5
3U4M_B	-	0.59	0.59	0.59	22	3123	15	0	15	0	15
3VJR_D	-	1.00	1.00	1.00	13	617	1	0	0	1	0
3ZEX_G	-	0.00	0.00	0.00	0	16456	15	1	14	0	74
3ZEX_D	5S_rRNA links to Rfam database...	0.17	0.18	0.18	9	6970	42	4	38	0	40
3ZEX_H	-	0.14	0.18	0.12	7	8987	52	14	37	1	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14156	29	3	26	0	41
3ZEX_F	-	-0.01	0.00	0.00	0	2610	29	4	14	11	12
3ZND_W	tRNA links to Rfam database...	0.19	0.22	0.18	5	2975	26	1	22	3	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.11	5	11735	56	10	31	15	28
4A1C_3	5S_rRNA links to Rfam database...	0.68	0.67	0.71	36	7089	17	1	14	2	18
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4ATO_G	-	0.30	0.30	0.33	3	519	8	0	6	2	7
4ENB_A	crcB links to Rfam database...	0.61	0.63	0.60	12	1255	8	2	6	0	7
4ENC_A	crcB links to Rfam database...	0.28	0.32	0.27	6	1304	17	2	14	1	13
4FNJ_A	-	0.83	0.81	0.87	13	580	3	0	2	1	3
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.34	0.31	11	3450	25	0	25	0	21
4FRN_A	AdoCbl-variant links to Rfam database...	0.12	0.14	0.12	5	5110	38	1	35	2	31
4HXH_A	-	1.00	1.00	1.00	6	319	4	0	0	4	0
4JF2_A	preQ1-II links to Rfam database...	0.66	0.68	0.66	21	2818	11	0	11	0	10
4JRC_A	-	0.20	0.22	0.21	5	1516	19	0	19	0	18

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
