Overview

Metric	MXScarna(seed)		RNAsubopt
MCC	0.666	>	0.572
Average MCC ± 95% Confidence Intervals	0.663 ± 0.058	>	0.603 ± 0.072
Sensitivity	0.554	>	0.520
Positive Predictive Value	0.804	>	0.633
Total TP	1013	>	951
Total TN	344313	>	344071
Total FP	344	<	641
Total FP CONTRA	45	<	77
Total FP INCONS	202	<	474
Total FP COMP	97	>	90
Total FN	815	<	877
P-value	3.56938820447e-08

^top

Performance plots

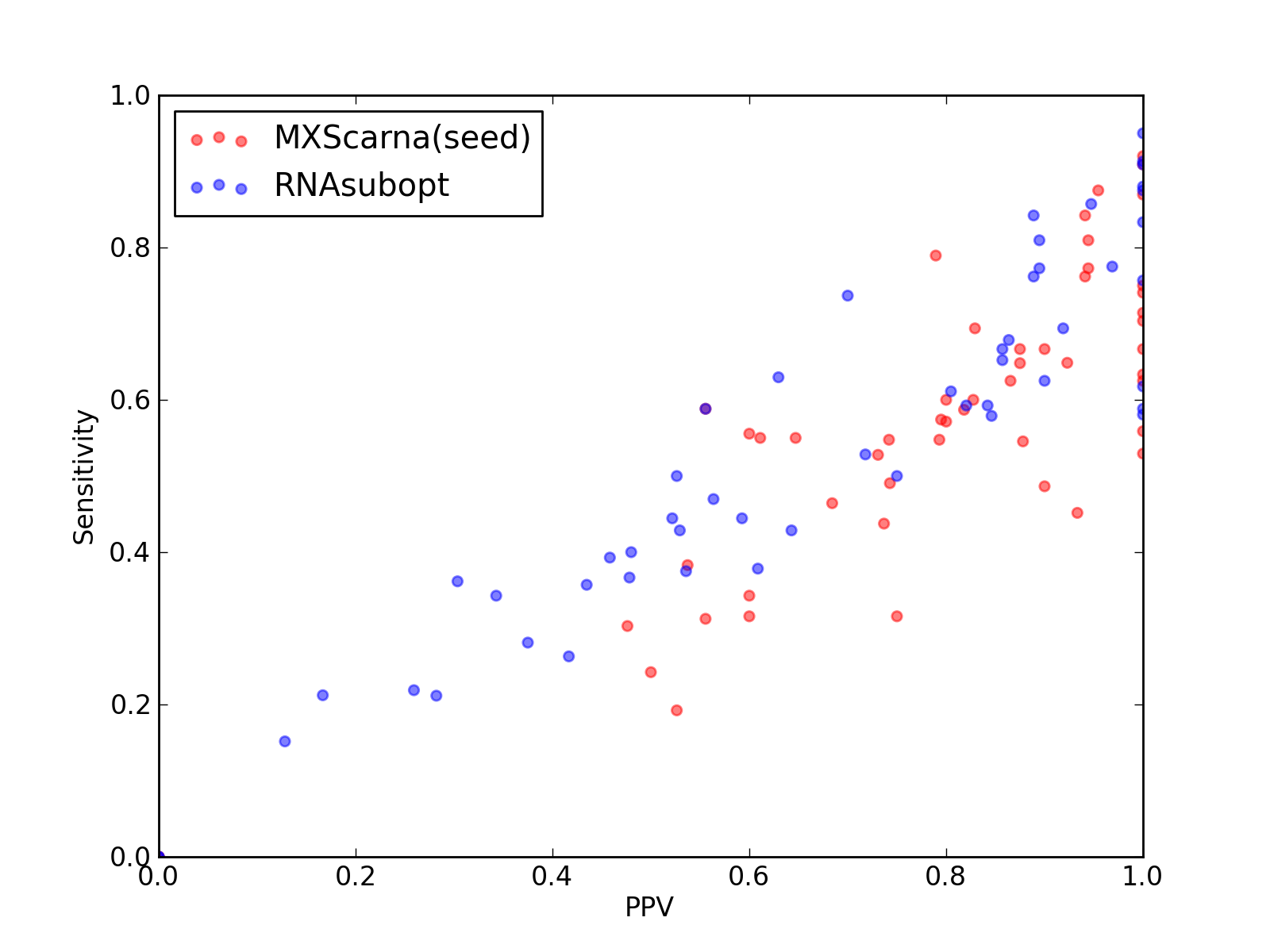

Comparison of performance of MXScarna(seed) and RNAsubopt. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and RNAsubopt. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and RNAsubopt).

^top

Performance of MXScarna(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for MXScarna(seed)

Total Base Pair Counts
Total TP	1013
Total TN	344313
Total FP	344
Total FP CONTRA	45
Total FP INCONS	202
Total FP COMP	97
Total FN	815

Total Scores
MCC	0.666
Average MCC ± 95% Confidence Intervals	0.663 ± 0.058
Sensitivity	0.554
Positive Predictive Value	0.804
Nr of predictions	52

^top

2. Individual counts for MXScarna(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.89	0.84	0.94	16	1111	2	0	1	1	3
2KUR_A	K10_TLS links to Rfam database...	0.87	0.81	0.94	17	1110	1	0	1	0	4
2KUU_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	2	0	1	1	5
2KUV_A	K10_TLS links to Rfam database...	0.85	0.77	0.94	17	1110	1	0	1	0	5
2KUW_A	K10_TLS links to Rfam database...	0.76	0.67	0.88	14	1112	2	0	2	0	7
2KX8_A	7SK links to Rfam database...	-0.01	0.00	0.00	0	859	2	0	2	0	18
2L1F_A	Gammaretro_CES links to Rfam database...	0.91	0.88	0.95	21	2058	1	0	1	0	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.96	0.92	1.00	23	2122	0	0	0	0	2
2L94_A	HIV_FE links to Rfam database...	0.57	0.55	0.61	11	972	7	0	7	0	9
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1530	12	0	10	2	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2WWQ_V	tRNA links to Rfam database...	0.56	0.46	0.68	13	2907	7	0	6	1	15
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.59	0.55	0.65	11	4543	18	0	6	12	9
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.67	0.57	0.80	24	5121	7	0	6	1	18
2ZZM_B	tRNA links to Rfam database...	0.56	0.44	0.74	14	3467	5	4	1	0	18
2ZZN_D	tRNA links to Rfam database...	0.86	0.74	1.00	20	2465	0	0	0	0	7
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.77	0.65	0.92	24	3629	3	0	2	1	13
3AKZ_H	tRNA links to Rfam database...	0.86	0.75	1.00	21	2680	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.84	0.70	1.00	19	2984	1	0	0	1	8
3GX2_A	SAM links to Rfam database...	0.70	0.60	0.83	24	4342	6	0	5	1	16
3IVN_B	Purine links to Rfam database...	0.65	0.45	0.93	14	2331	1	1	0	0	17
3IYQ_A	tmRNA links to Rfam database...	0.45	0.38	0.54	36	60659	37	4	27	6	58
3IZ4_A	tmRNA links to Rfam database...	0.69	0.55	0.88	72	70794	11	3	7	1	60
3IZF_C	5S_rRNA links to Rfam database...	0.67	0.57	0.79	31	6864	9	1	7	1	23
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_1	tRNA links to Rfam database...	0.93	0.87	1.00	20	2906	0	0	0	0	3
3J20_0	tRNA links to Rfam database...	0.79	0.63	1.00	19	2831	0	0	0	0	11
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	1	8	2	27
3JYV_7	tRNA links to Rfam database...	0.79	0.63	1.00	20	2830	0	0	0	0	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.38	0.30	0.48	10	12225	21	3	8	10	23
3JYX_3	5S_rRNA links to Rfam database...	0.58	0.56	0.60	15	6303	21	1	9	11	12
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.69	0.59	0.82	27	6988	9	2	4	3	19
3O58_2	5S_rRNA links to Rfam database...	0.79	0.79	0.79	30	7222	10	4	4	2	8
3O58_3	5_8S_rRNA links to Rfam database...	0.45	0.34	0.60	12	12383	19	2	6	11	23
3PDR_A	ykoK links to Rfam database...	0.73	0.63	0.87	45	12828	9	2	5	2	27
3RKF_A	Purine links to Rfam database...	0.72	0.53	1.00	18	2193	0	0	0	0	16
3SD1_A	THF links to Rfam database...	0.63	0.55	0.74	23	3885	8	1	7	0	19
3UZL_B	tRNA links to Rfam database...	0.66	0.49	0.90	18	3550	2	1	1	0	19
3W3S_B	tRNA-Sec links to Rfam database...	0.69	0.60	0.80	24	4723	6	0	6	0	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.19	0.53	10	14177	20	2	7	11	42
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.69	0.83	34	6980	7	1	6	0	15
4A1C_3	5S_rRNA links to Rfam database...	0.75	0.65	0.88	35	7100	5	1	4	0	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.35	0.24	0.50	8	11765	20	1	7	12	25
4AOB_A	SAM links to Rfam database...	0.66	0.55	0.79	23	4342	7	0	6	1	19
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	1	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.41	0.31	0.56	10	3468	8	2	6	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.62	0.53	0.73	19	5125	7	2	5	0	17

^top

Performance of RNAsubopt - scored lower in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	951
Total TN	344071
Total FP	641
Total FP CONTRA	77
Total FP INCONS	474
Total FP COMP	90
Total FN	877

Total Scores
MCC	0.572
Average MCC ± 95% Confidence Intervals	0.603 ± 0.072
Sensitivity	0.520
Positive Predictive Value	0.633
Nr of predictions	52

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.86	0.84	0.89	16	1110	3	0	2	1	3
2KUR_A	K10_TLS links to Rfam database...	0.85	0.81	0.89	17	1109	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.76	0.89	16	1110	3	0	2	1	5
2KUV_A	K10_TLS links to Rfam database...	0.83	0.77	0.89	17	1109	2	0	2	0	5
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.88	1.00	21	2059	0	0	0	0	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.94	0.88	1.00	22	2123	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.47	0.43	0.53	18	5117	16	1	15	0	24
2ZZM_B	tRNA links to Rfam database...	0.23	0.22	0.26	7	3459	20	2	18	0	25
2ZZN_D	tRNA links to Rfam database...	0.48	0.44	0.52	12	2462	11	1	10	0	15
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3AKZ_H	tRNA links to Rfam database...	0.39	0.36	0.43	10	2678	13	2	11	0	18
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.44	0.38	0.54	15	4343	14	1	12	1	25
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IYQ_A	tmRNA links to Rfam database...	0.33	0.36	0.30	34	60614	82	17	61	4	60
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.56	62	70766	49	8	40	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J16_L	tRNA links to Rfam database...	0.41	0.37	0.48	11	2752	12	1	11	0	19
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.61	0.53	0.72	28	7836	13	0	11	2	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2829	21	0	21	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.19	0.21	0.17	7	12204	38	11	24	3	26
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.75	0.65	0.86	30	6986	7	1	4	2	16
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	28	7220	13	4	8	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4AOB_A	SAM links to Rfam database...	0.52	0.43	0.64	18	4343	11	2	8	1	24
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	0	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.44	0.59	16	5124	11	3	8	0	20

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
