Overview

Metric	MaxExpect		McQFold
MCC	0.551	>	0.454
Average MCC ± 95% Confidence Intervals	0.658 ± 0.055	>	0.636 ± 0.058
Sensitivity	0.479	>	0.388
Positive Predictive Value	0.634	>	0.533
Total TP	2728	>	2208
Total TN	6830555	<	6830717
Total FP	1738	<	2046
Total FP CONTRA	156	<	183
Total FP INCONS	1417	<	1748
Total FP COMP	165	>	115
Total FN	2966	<	3486
P-value	3.56938820447e-08

^top

Performance plots

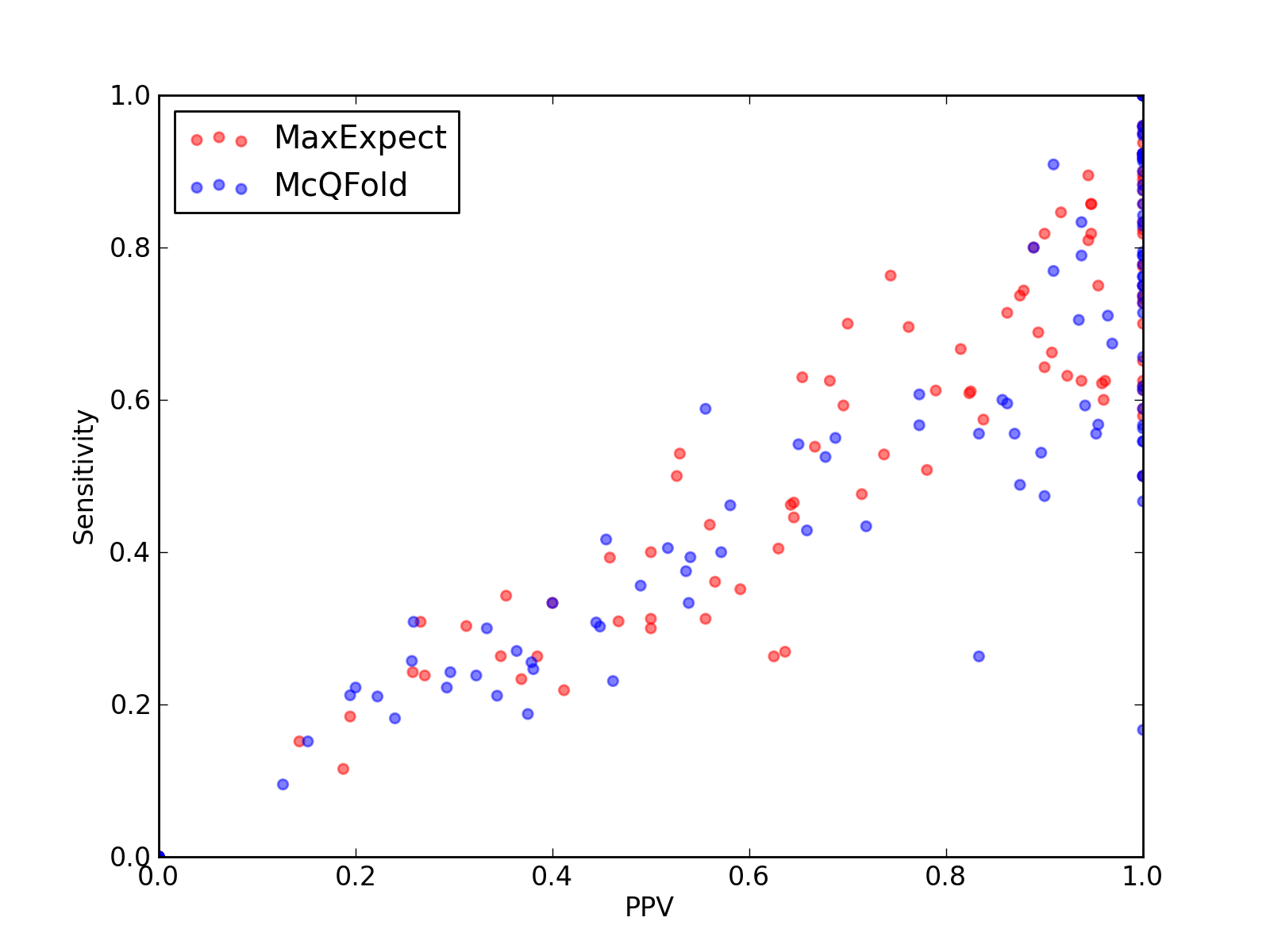

Comparison of performance of MaxExpect and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and McQFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and McQFold).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	2728
Total TN	6830555
Total FP	1738
Total FP CONTRA	156
Total FP INCONS	1417
Total FP COMP	165
Total FN	2966

Total Scores
MCC	0.551
Average MCC ± 95% Confidence Intervals	0.658 ± 0.055
Sensitivity	0.479
Positive Predictive Value	0.634
Nr of predictions	117

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	1110	2	0	1	1	2
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KU0_A	-	-0.02	0.00	0.00	0	694	9	0	9	0	16
2KUR_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KUU_A	K10_TLS links to Rfam database...	0.87	0.81	0.94	17	1110	2	0	1	1	4
2KUV_A	K10_TLS links to Rfam database...	0.88	0.82	0.95	18	1109	1	0	1	0	4
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.81	0.74	0.88	29	6072	6	0	4	2	10
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.88	0.85	0.92	11	484	1	0	1	0	2
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WWQ_V	tRNA links to Rfam database...	0.76	0.64	0.90	18	2906	3	0	2	1	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.25	0.24	0.27	10	5114	27	1	26	0	32
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3ADB_C	-	0.80	0.74	0.88	28	4154	4	0	4	0	10
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.78	0.71	0.86	25	3211	4	0	4	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.59	0.70	16	2980	9	0	7	2	11
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.74	0.67	0.81	22	4251	6	0	5	1	11
3IYQ_A	tmRNA links to Rfam database...	0.29	0.31	0.27	29	60617	84	19	61	4	65
3IZ4_A	tmRNA links to Rfam database...	0.54	0.46	0.64	61	70781	39	3	31	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	1	6	0	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_h	-	0.81	0.65	1.00	28	6077	2	0	0	2	15
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J16_L	tRNA links to Rfam database...	0.29	0.23	0.37	7	2756	12	0	12	0	23
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.49	0.44	0.56	276	1116272	221	10	207	4	357
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	5	0	5	0	7
3J2C_O	-	0.63	0.51	0.78	32	10255	10	0	9	1	31
3J2C_M	-	0.38	0.31	0.47	64	106354	76	10	63	3	143
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	0.41	0.31	0.56	10	2832	8	0	8	0	22
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.63	0.65	17	6302	19	1	8	10	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	34	4	18	12	23
3KIY_A	-	0.54	0.45	0.65	553	4053271	314	23	281	10	688
3KTW_C	-	0.54	0.47	0.65	20	4529	12	2	9	1	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.78	0.69	0.89	42	9133	6	0	5	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	-0.01	0.00	0.00	0	553	10	1	7	2	6
3NPB_A	SAM links to Rfam database...	0.71	0.61	0.82	28	6987	9	0	6	3	18
3O58_2	5S_rRNA links to Rfam database...	0.75	0.76	0.74	29	7221	11	3	7	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	35	2	20	13	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.77	0.62	0.96	23	3546	1	0	1	0	14
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.88	0.78	1.00	31	4722	1	0	0	1	9
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_G	-	0.77	0.66	0.91	49	16417	11	0	5	6	25
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	2	50	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.69	0.61	0.79	30	6983	8	1	7	0	19
3ZEX_B	-	0.30	0.26	0.35	147	1071957	289	29	247	13	411
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	5	24	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.27	0.64	14	14174	16	2	6	8	38
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	4	26	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	0	6	0	23
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.38	0.30	0.50	3	522	3	0	3	0	7
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.31	0.26	0.38	5	1313	8	1	7	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.30	0.22	0.41	7	3469	10	1	9	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.45	0.36	0.57	13	5128	10	2	8	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	2208
Total TN	6830717
Total FP	2046
Total FP CONTRA	183
Total FP INCONS	1748
Total FP COMP	115
Total FN	3486

Total Scores
MCC	0.454
Average MCC ± 95% Confidence Intervals	0.636 ± 0.058
Sensitivity	0.388
Positive Predictive Value	0.533
Nr of predictions	117

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	222	1	0	0	1	0
2KE6_A	K10_TLS links to Rfam database...	0.89	0.79	1.00	15	1113	1	0	0	1	4
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.59	0.53	0.68	21	5120	13	3	7	3	19
2KU0_A	-	0.75	0.56	1.00	9	694	0	0	0	0	7
2KUR_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KUU_A	K10_TLS links to Rfam database...	0.84	0.71	1.00	15	1113	1	0	0	1	6
2KUV_A	K10_TLS links to Rfam database...	0.85	0.73	1.00	16	1112	0	0	0	0	6
2KUW_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KX8_A	7SK links to Rfam database...	0.88	0.83	0.94	15	845	1	0	1	0	3
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.86	0.74	1.00	14	1471	1	0	0	1	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.97	0.95	1.00	18	843	0	0	0	0	1
2L3C_B	-	0.94	0.88	1.00	15	546	0	0	0	0	2
2L3E_A	-	1.00	1.00	1.00	13	582	1	0	0	1	0
2L3J_B	mir-2985-2 links to Rfam database...	0.89	0.79	1.00	27	2458	0	0	0	0	7
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	1	0	0	1	0
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.73	0.55	1.00	6	345	0	0	0	0	5
2LDT_A	-	0.68	0.47	1.00	7	458	0	0	0	0	8
2LHP_A	-	1.00	1.00	1.00	16	650	0	0	0	0	0
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.51	0.46	0.58	18	6074	13	2	11	0	21
2LQZ_A	-	0.91	0.91	0.91	10	340	1	1	0	0	1
2LWK_A	-	0.83	0.77	0.91	10	485	2	0	1	1	3
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_D	-	0.32	0.23	0.46	6	1940	7	2	5	0	20
2WW9_F	-	0.71	0.60	0.86	6	293	1	0	1	0	4
2WWQ_V	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	28
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.31	0.30	0.33	6	4542	25	1	11	13	14
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.27	0.24	0.32	10	5120	21	0	21	0	32
2Y8W_B	-	1.00	1.00	1.00	6	184	2	0	0	2	0
2Y9C_V	-	0.59	0.54	0.65	13	2258	8	1	6	1	11
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3ADB_C	-	0.92	0.84	1.00	32	4154	1	0	0	1	6
3AKZ_H	tRNA links to Rfam database...	0.68	0.61	0.77	17	2679	6	1	4	1	11
3AM1_B	-	0.91	0.83	1.00	29	3211	1	0	0	1	6
3AMU_B	tRNA links to Rfam database...	0.75	0.59	0.94	16	2986	3	0	1	2	11
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.57	16	4343	13	1	11	1	24
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.20	0.18	0.24	6	4253	19	2	17	0	27
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60614	87	19	64	4	65
3IZ4_A	tmRNA links to Rfam database...	0.42	0.36	0.49	47	70780	53	6	43	4	85
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.56	0.83	30	6867	6	0	6	0	24
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_2	-	0.26	0.24	0.30	8	6189	21	0	19	2	25
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1215	10	0	10	0	17
3J0L_h	-	0.65	0.49	0.88	21	6081	3	0	3	0	22
3J0L_1	-	0.65	0.47	0.90	9	1215	3	0	1	2	10
3J0L_a	-	0.26	0.19	0.38	3	1120	5	1	4	0	13
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.46	0.39	0.54	249	1116304	216	8	204	4	384
3J20_0	tRNA links to Rfam database...	0.66	0.57	0.77	17	2828	6	1	4	1	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2C_O	-	0.53	0.43	0.66	27	10255	15	1	13	1	36
3J2C_M	-	0.31	0.25	0.38	51	106357	86	12	71	3	156
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.21	0.22	0.20	6	6298	24	9	15	0	21
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.19	7	12210	33	8	21	4	26
3KIY_A	-	0.31	0.26	0.38	317	4053291	529	22	498	9	924
3KTW_C	-	0.36	0.30	0.45	13	4531	17	1	15	1	30
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.81	0.70	0.93	43	9134	4	1	2	1	18
3NKB_B	-	0.36	0.31	0.44	8	1998	10	1	9	0	18
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3NPB_A	SAM links to Rfam database...	0.81	0.67	0.97	31	6989	4	1	0	3	15
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.26	0.26	0.26	9	12368	26	10	16	0	26
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.87	40	12834	9	0	6	3	32
3R4F_A	-	0.96	0.92	1.00	23	2122	1	0	0	1	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.71	0.60	0.86	25	3887	4	0	4	0	17
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	2	0	0	2	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.73	0.57	0.95	21	3138	1	0	1	0	16
3UZL_B	tRNA links to Rfam database...	0.45	0.41	0.52	15	3541	14	0	14	0	22
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.44	0.38	0.54	15	4725	14	0	13	1	25
3ZEX_F	-	0.00	0.00	0.00	0	2619	9	2	7	0	12
3ZEX_G	-	0.31	0.27	0.36	20	16416	38	1	34	3	54
3ZEX_E	-	0.00	0.00	0.00	0	21894	53	4	47	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.69	0.53	0.90	26	6992	3	1	2	0	23
3ZEX_B	-	0.11	0.09	0.13	53	1071960	373	32	335	6	505
3ZEX_H	-	0.21	0.21	0.22	8	9009	29	6	22	1	30
3ZEX_C	5_8S_rRNA links to Rfam database...	0.27	0.21	0.34	11	14164	24	2	19	3	41
4A1C_2	5_8S_rRNA links to Rfam database...	0.15	0.15	0.15	5	11748	33	5	23	5	28
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ATO_G	-	-0.01	0.00	0.00	0	523	5	0	5	0	10
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	-0.02	0.00	0.00	0	588	7	0	7	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.66	1.00	21	3465	0	0	0	0	11
4FRN_A	AdoCbl-variant links to Rfam database...	0.73	0.56	0.95	20	5130	1	1	0	0	16
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

2. Individual counts for MaxExpect [ download as .csv ]

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

2. Individual counts for McQFold [ download as .csv ]
