Overview

Metric	MaxExpect		Pknots
MCC	0.659	>	0.598
Average MCC ± 95% Confidence Intervals	0.680 ± 0.057	>	0.651 ± 0.059
Sensitivity	0.584	>	0.544
Positive Predictive Value	0.750	>	0.664
Total TP	1580	>	1471
Total TN	319637	>	319530
Total FP	651	<	838
Total FP CONTRA	60	<	99
Total FP INCONS	468	<	645
Total FP COMP	123	>	94
Total FN	1125	<	1234
P-value	3.56938820447e-08

^top

Performance plots

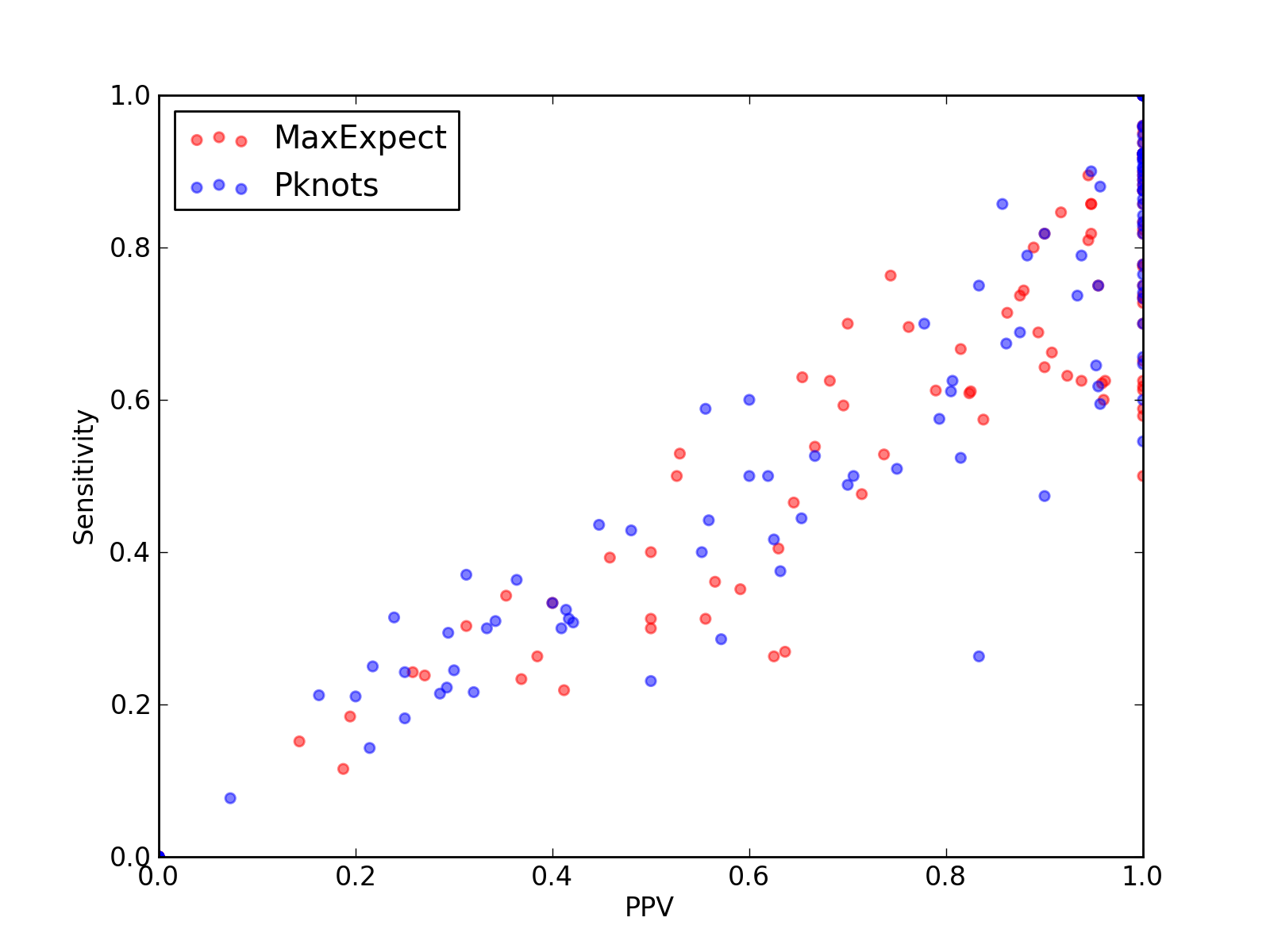

Comparison of performance of MaxExpect and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MaxExpect and Pknots).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MaxExpect and Pknots).

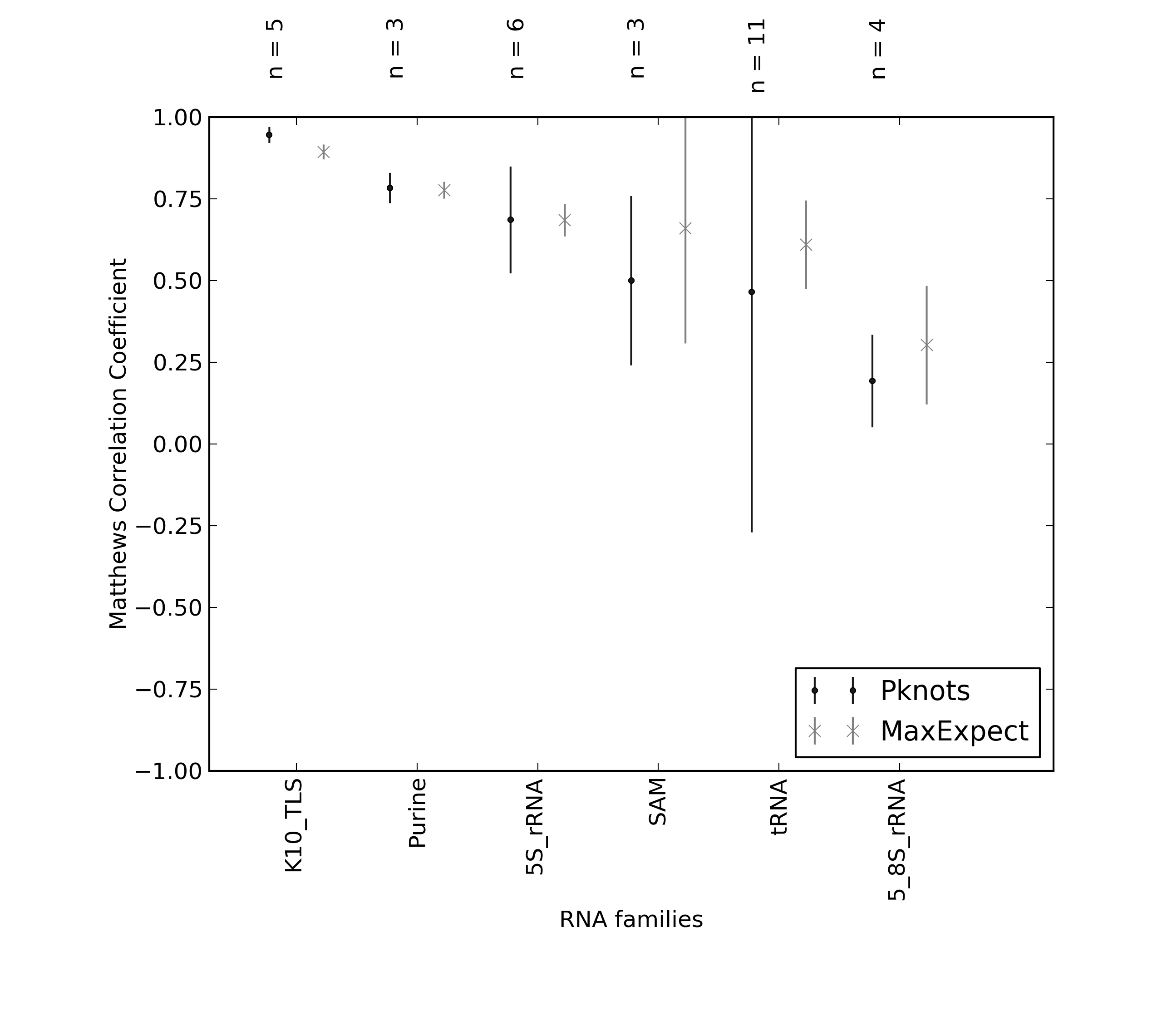

Comparison of average Matthews Correlation Coefficients (MCCs) for MaxExpect and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MaxExpect and Pknots).

^top

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

Total Base Pair Counts
Total TP	1580
Total TN	319637
Total FP	651
Total FP CONTRA	60
Total FP INCONS	468
Total FP COMP	123
Total FN	1125

Total Scores
MCC	0.659
Average MCC ± 95% Confidence Intervals	0.680 ± 0.057
Sensitivity	0.584
Positive Predictive Value	0.750
Nr of predictions	110

^top

2. Individual counts for MaxExpect [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.92	0.89	0.94	17	1110	2	0	1	1	2
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KU0_A	-	-0.02	0.00	0.00	0	694	9	0	9	0	16
2KUR_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KUU_A	K10_TLS links to Rfam database...	0.87	0.81	0.94	17	1110	2	0	1	1	4
2KUV_A	K10_TLS links to Rfam database...	0.88	0.82	0.95	18	1109	1	0	1	0	4
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.81	0.74	0.88	29	6072	6	0	4	2	10
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.88	0.85	0.92	11	484	1	0	1	0	2
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WWQ_V	tRNA links to Rfam database...	0.76	0.64	0.90	18	2906	3	0	2	1	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.25	0.24	0.27	10	5114	27	1	26	0	32
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3ADB_C	-	0.80	0.74	0.88	28	4154	4	0	4	0	10
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.78	0.71	0.86	25	3211	4	0	4	0	10
3AMU_B	tRNA links to Rfam database...	0.64	0.59	0.70	16	2980	9	0	7	2	11
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.74	0.67	0.81	22	4251	6	0	5	1	11
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	1	6	0	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.81	0.65	1.00	28	6077	2	0	0	2	15
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J16_L	tRNA links to Rfam database...	0.29	0.23	0.37	7	2756	12	0	12	0	23
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	5	0	5	0	7
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	0.41	0.31	0.56	10	2832	8	0	8	0	22
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.63	0.65	17	6302	19	1	8	10	10
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	34	4	18	12	23
3KTW_C	-	0.54	0.47	0.65	20	4529	12	2	9	1	23
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.78	0.69	0.89	42	9133	6	0	5	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	-0.01	0.00	0.00	0	553	10	1	7	2	6
3NPB_A	SAM links to Rfam database...	0.71	0.61	0.82	28	6987	9	0	6	3	18
3O58_2	5S_rRNA links to Rfam database...	0.75	0.76	0.74	29	7221	11	3	7	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	35	2	20	13	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.76	0.63	0.94	45	12832	5	0	3	2	27
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.58	0.48	0.71	20	3888	8	1	7	0	22
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.77	0.62	0.96	23	3546	1	0	1	0	14
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.88	0.78	1.00	31	4722	1	0	0	1	9
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_G	-	0.77	0.66	0.91	49	16417	11	0	5	6	25
3ZEX_D	5S_rRNA links to Rfam database...	0.69	0.61	0.79	30	6983	8	1	7	0	19
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	5	24	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.27	0.64	14	14174	16	2	6	8	38
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	0	6	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11746	41	4	26	11	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.38	0.30	0.50	3	522	3	0	3	0	7
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.31	0.26	0.38	5	1313	8	1	7	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.30	0.22	0.41	7	3469	10	1	9	0	25
4FRN_A	AdoCbl-variant links to Rfam database...	0.45	0.36	0.57	13	5128	10	2	8	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	1471
Total TN	319530
Total FP	838
Total FP CONTRA	99
Total FP INCONS	645
Total FP COMP	94
Total FN	1234

Total Scores
MCC	0.598
Average MCC ± 95% Confidence Intervals	0.651 ± 0.059
Sensitivity	0.544
Positive Predictive Value	0.664
Nr of predictions	110

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.67	0.58	0.79	23	5122	9	2	4	3	17
2KU0_A	-	-0.02	0.00	0.00	0	693	10	0	10	0	16
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	-0.02	0.00	0.00	0	346	5	0	5	0	10
2KZL_A	-	0.59	0.53	0.67	10	1470	5	1	4	0	9
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.87	0.76	1.00	13	548	0	0	0	0	4
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.79	0.75	0.83	15	1522	3	1	2	0	5
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.44	0.44	0.45	17	6067	22	4	17	1	22
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.33	0.23	0.50	3	490	3	0	3	0	10
2RRC_A	-	0.77	0.60	1.00	6	225	0	0	0	0	4
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_D	-	0.35	0.31	0.42	8	1934	11	2	9	0	18
2WW9_E	-	0.39	0.29	0.57	4	554	3	0	3	0	10
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.24	0.21	0.29	6	2905	16	1	14	1	22
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.23	0.25	0.22	5	4537	31	1	17	13	15
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.32	0.31	0.34	13	5113	25	1	24	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.59	0.50	0.71	12	2261	6	1	4	1	12
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
3A2K_C	tRNA links to Rfam database...	0.45	0.43	0.48	12	2901	13	2	11	0	16
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.84	0.75	0.95	21	2679	1	1	0	0	7
3AM1_B	-	0.91	0.83	1.00	29	3211	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	2	0	0	2	7
3GX2_A	SAM links to Rfam database...	0.47	0.40	0.55	16	4342	14	1	12	1	24
3IAB_R	-	0.86	0.86	0.86	12	1021	4	1	1	2	2
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.18	0.25	6	4254	18	1	17	0	27
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_h	-	0.58	0.49	0.70	21	6075	11	0	9	2	22
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_g	-	-0.01	0.00	0.00	0	460	5	2	3	0	4
3J0L_2	-	0.36	0.36	0.36	12	6183	23	3	18	2	21
3J16_L	tRNA links to Rfam database...	0.34	0.30	0.41	9	2753	13	0	13	0	21
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.51	0.75	27	7839	12	0	9	3	26
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_3	5S_rRNA links to Rfam database...	0.34	0.37	0.31	10	6296	24	9	13	2	17
3JYX_4	5_8S_rRNA links to Rfam database...	0.18	0.21	0.16	7	12203	41	13	23	5	26
3KTW_C	-	0.49	0.44	0.56	19	4526	16	2	13	1	24
3LA5_A	Purine links to Rfam database...	0.80	0.65	1.00	22	2463	0	0	0	0	12
3NDB_M	-	0.77	0.69	0.88	42	9132	7	1	5	1	19
3NKB_B	-	0.55	0.50	0.62	13	1995	8	0	8	0	13
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.76	0.67	0.86	31	6985	8	1	4	3	15
3O58_2	5S_rRNA links to Rfam database...	0.83	0.74	0.93	28	7230	3	0	2	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.27	0.31	0.24	11	12357	38	11	24	3	24
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.54	0.44	0.65	32	12831	19	0	17	2	40
3R4F_A	-	0.92	0.88	0.96	22	2122	1	0	1	0	3
3R9X_C	-	0.73	0.70	0.78	7	586	5	0	2	3	3
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.65	0.52	0.81	22	3889	5	0	5	0	20
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.26	0.22	0.32	8	3135	17	0	17	0	29
3UZL_B	tRNA links to Rfam database...	0.75	0.59	0.96	22	3547	1	0	1	0	15
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.63	0.81	25	4722	7	0	6	1	15
3ZEX_F	-	0.00	0.00	0.00	0	2619	12	2	7	3	12
3ZEX_G	-	0.36	0.32	0.41	24	16413	37	3	31	3	50
3ZEX_D	5S_rRNA links to Rfam database...	0.27	0.24	0.30	12	6981	28	0	28	0	37
3ZEX_H	-	0.20	0.21	0.20	8	9005	32	5	27	0	30
3ZEX_C	5_8S_rRNA links to Rfam database...	0.07	0.08	0.07	4	14141	54	4	47	3	48
4A1C_3	5S_rRNA links to Rfam database...	0.25	0.22	0.29	12	7099	29	1	28	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.25	8	11749	36	3	21	12	25
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.17	0.14	0.21	6	4343	23	1	21	1	36
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENB_A	crcB links to Rfam database...	0.83	0.79	0.88	15	1258	2	1	1	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	-0.02	0.00	0.00	0	585	10	0	10	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.48	0.38	0.63	12	3467	7	0	7	0	20
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.42	0.63	15	5127	9	1	8	0	21
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of MaxExpect - scored higher in this pairwise comparison

1. Total counts & total scores for MaxExpect

2. Individual counts for MaxExpect [ download as .csv ]

Performance of Pknots - scored lower in this pairwise comparison

1. Total counts & total scores for Pknots

2. Individual counts for Pknots [ download as .csv ]
