Overview

Metric	Murlet(20)		Contrafold
MCC	0.577	>	0.551
Average MCC ± 95% Confidence Intervals	0.577 ± 0.062	>	0.572 ± 0.087
Sensitivity	0.423	<	0.486
Positive Predictive Value	0.791	>	0.630
Total TP	552	<	634
Total TN	247762	>	247454
Total FP	182	<	436
Total FP CONTRA	16	<	51
Total FP INCONS	130	<	321
Total FP COMP	36	<	64
Total FN	753	>	671
P-value	3.56938820447e-08

^top

Performance plots

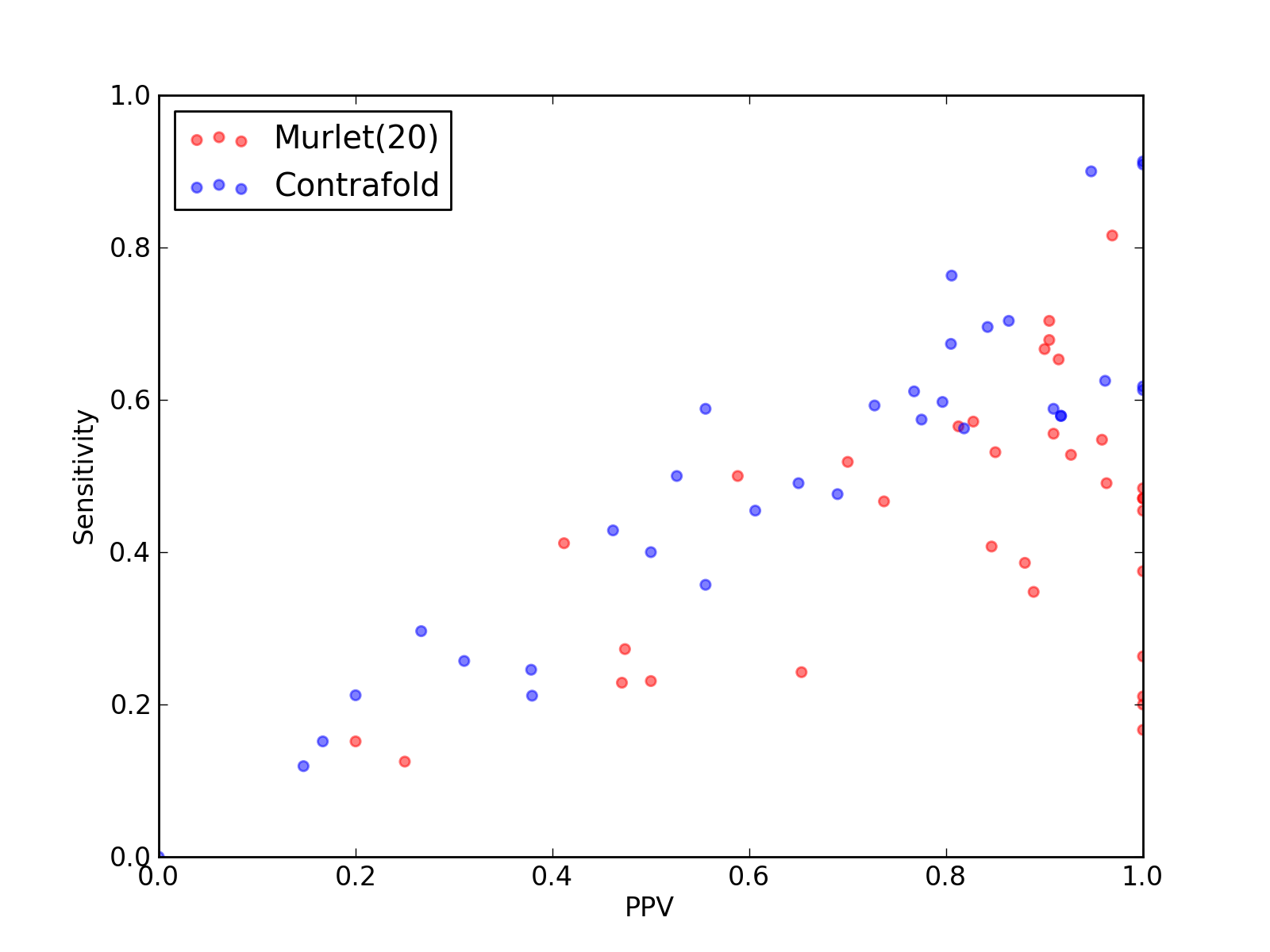

Comparison of performance of Murlet(20) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(20) and Contrafold).
Comparison of performance of Murlet(20) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(20) and Contrafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(20) and Contrafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(20) and Contrafold).

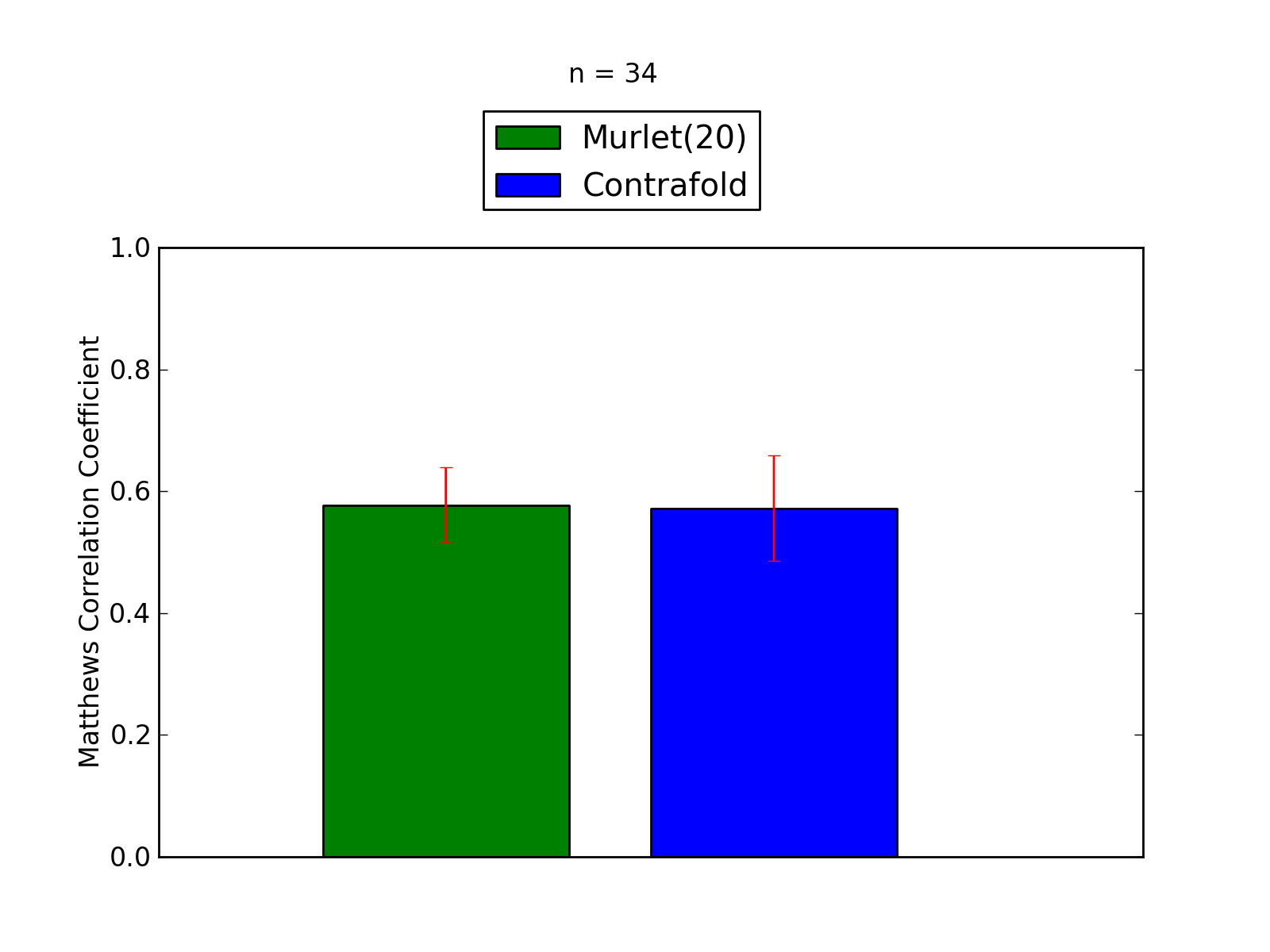

Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(20) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(20) and Contrafold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(20) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(20) and Contrafold).

^top

Performance of Murlet(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	552
Total TN	247762
Total FP	182
Total FP CONTRA	16
Total FP INCONS	130
Total FP COMP	36
Total FN	753

Total Scores
MCC	0.577
Average MCC ± 95% Confidence Intervals	0.577 ± 0.062
Sensitivity	0.423
Positive Predictive Value	0.791
Nr of predictions	34

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.67	0.45	1.00	5	401	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2WRQ_Y	tRNA links to Rfam database...	0.41	0.41	0.41	7	2833	12	6	4	2	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	3	0	0	3	16
2XQD_Y	tRNA links to Rfam database...	0.80	0.70	0.90	19	2829	2	0	2	0	8
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	7	5144	0	0	0	0	35
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.77	0.67	0.90	18	2983	3	0	2	1	9
3G4S_9	5S_rRNA links to Rfam database...	0.58	0.39	0.88	22	7356	3	1	2	0	35
3GX2_A	SAM links to Rfam database...	0.61	0.38	1.00	15	4356	1	0	0	1	25
3IVN_B	Purine links to Rfam database...	0.69	0.48	1.00	15	2331	0	0	0	0	16
3IZ4_A	tmRNA links to Rfam database...	0.40	0.24	0.65	32	70827	21	1	16	4	100
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.56	0.91	30	6870	4	0	3	1	24
3J20_0	tRNA links to Rfam database...	0.58	0.47	0.74	14	2831	5	0	5	0	16
3J20_1	tRNA links to Rfam database...	0.68	0.57	0.81	13	2910	3	0	3	0	10
3J2L_3	5S_rRNA links to Rfam database...	0.69	0.49	0.96	26	7848	3	0	1	2	27
3JYV_7	tRNA links to Rfam database...	0.67	0.53	0.85	17	2830	3	0	3	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.27	0.47	9	12227	15	0	10	5	24
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	11	0	6	5	13
3LA5_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2469	0	0	0	0	18
3NPB_A	SAM links to Rfam database...	0.55	0.35	0.89	16	7003	2	1	1	0	30
3O58_2	5S_rRNA links to Rfam database...	0.89	0.82	0.97	31	7228	2	0	1	1	7
3O58_3	5_8S_rRNA links to Rfam database...	0.33	0.23	0.47	8	12386	12	2	7	3	27
3PDR_A	ykoK links to Rfam database...	0.70	0.53	0.93	38	12839	3	0	3	0	34
3RKF_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2195	0	0	0	0	18
3SD1_A	THF links to Rfam database...	0.68	0.57	0.83	24	3887	5	1	4	0	18
3ZEX_C	5_8S_rRNA links to Rfam database...	0.34	0.23	0.50	12	14172	15	1	11	3	40
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
4A1C_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	22	7114	4	0	4	0	32
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.20	5	11756	24	2	18	4	28
4AOB_A	SAM links to Rfam database...	0.72	0.55	0.96	23	4347	2	0	1	1	19
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.13	0.25	4	3470	12	1	11	0	28

^top

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	634
Total TN	247454
Total FP	436
Total FP CONTRA	51
Total FP INCONS	321
Total FP COMP	64
Total FN	671

Total Scores
MCC	0.551
Average MCC ± 95% Confidence Intervals	0.572 ± 0.087
Sensitivity	0.486
Positive Predictive Value	0.630
Nr of predictions	34

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	25	0	9	16	10
2XQD_Y	tRNA links to Rfam database...	0.78	0.70	0.86	19	2828	3	0	3	0	8
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.12	0.15	5	5117	29	1	28	0	37
3A2K_C	tRNA links to Rfam database...	0.44	0.43	0.46	12	2900	14	2	12	0	16
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.30	0.25	0.38	14	7344	23	1	22	0	43
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.61	60	70777	44	4	35	5	72
3IZF_C	5S_rRNA links to Rfam database...	0.68	0.61	0.77	33	6860	10	1	9	0	21
3J20_0	tRNA links to Rfam database...	0.44	0.40	0.50	12	2826	13	0	12	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	4	0	0	4	2
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.49	0.65	26	7835	16	0	14	2	27
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.20	7	12211	35	6	22	7	26
3JYX_3	5S_rRNA links to Rfam database...	0.28	0.30	0.27	8	6298	23	8	14	1	19
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	32	6983	8	1	5	2	14
3O58_2	5S_rRNA links to Rfam database...	0.78	0.76	0.81	29	7224	10	2	5	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.26	0.31	9	12374	20	3	17	0	26
3PDR_A	ykoK links to Rfam database...	0.69	0.60	0.80	43	12826	13	0	11	2	29
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.57	0.48	0.69	20	3887	9	2	7	0	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.28	0.21	0.38	11	14167	22	3	15	4	41
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.67	0.80	33	6980	8	1	7	0	16
4A1C_3	5S_rRNA links to Rfam database...	0.66	0.57	0.78	31	7100	9	1	8	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	33	5	20	8	28
4AOB_A	SAM links to Rfam database...	0.44	0.36	0.56	15	4344	13	1	11	1	27
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.68	0.56	0.82	18	3464	4	1	3	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
