Overview

Metric	Murlet(20)		RSpredict(20)
MCC	0.581	>	0.544
Average MCC ± 95% Confidence Intervals	0.576 ± 0.059	>	0.531 ± 0.081
Sensitivity	0.431	>	0.425
Positive Predictive Value	0.789	>	0.701
Total TP	634	>	625
Total TN	280202	>	280115
Total FP	217	<	314
Total FP CONTRA	16	<	52
Total FP INCONS	154	<	214
Total FP COMP	47	<	48
Total FN	838	<	847
P-value	3.56938820447e-08

^top

Performance plots

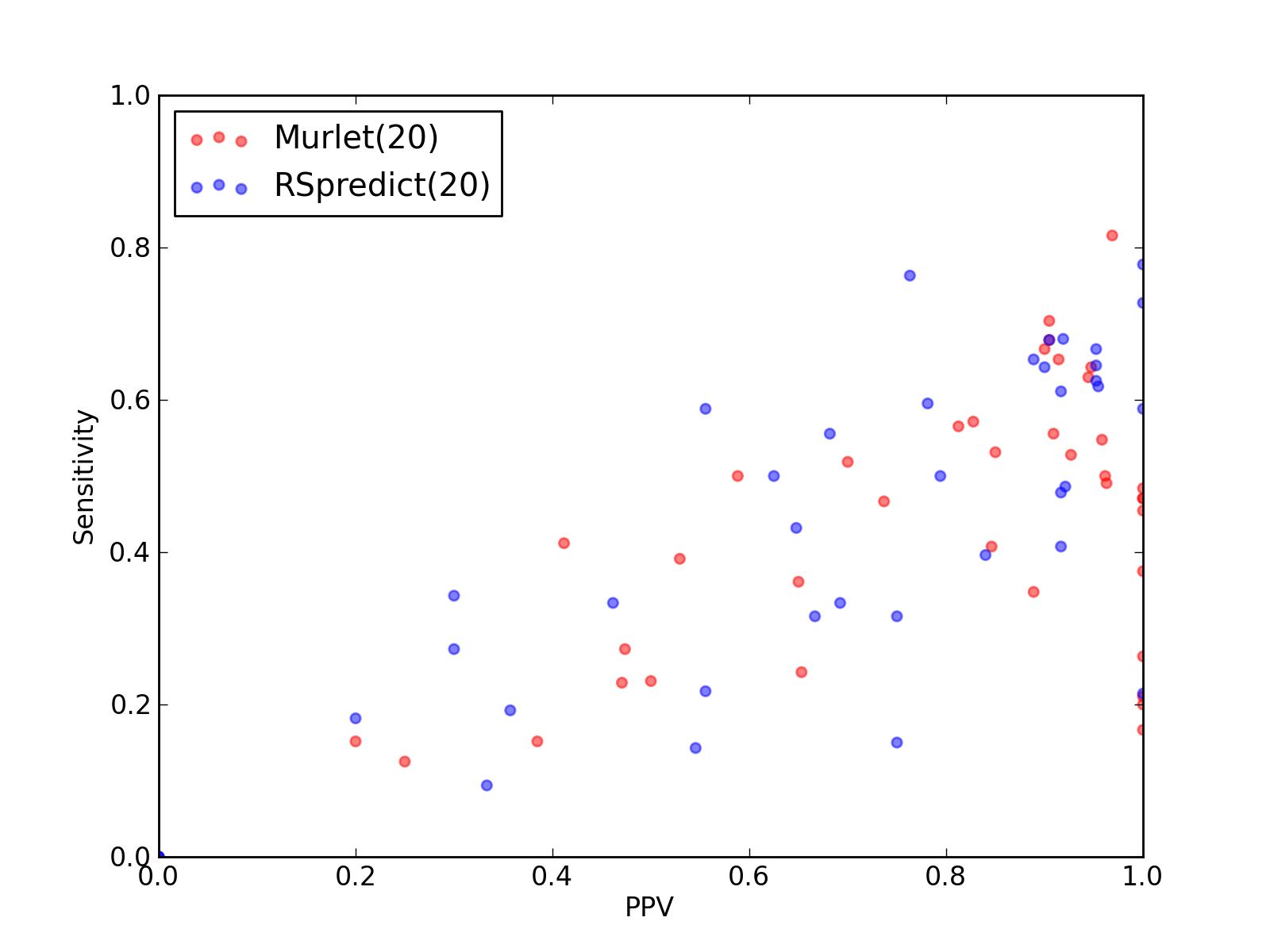

Comparison of performance of Murlet(20) and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Murlet(20) and RSpredict(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Murlet(20) and RSpredict(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Murlet(20) and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Murlet(20) and RSpredict(20)).

^top

Performance of Murlet(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	634
Total TN	280202
Total FP	217
Total FP CONTRA	16
Total FP INCONS	154
Total FP COMP	47
Total FN	838

Total Scores
MCC	0.581
Average MCC ± 95% Confidence Intervals	0.576 ± 0.059
Sensitivity	0.431
Positive Predictive Value	0.789
Nr of predictions	39

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.67	0.45	1.00	5	401	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2WRQ_Y	tRNA links to Rfam database...	0.41	0.41	0.41	7	2833	12	6	4	2	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	3	0	0	3	16
2XQD_Y	tRNA links to Rfam database...	0.80	0.70	0.90	19	2829	2	0	2	0	8
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	7	5144	0	0	0	0	35
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.77	0.67	0.90	18	2983	3	0	2	1	9
3GX2_A	SAM links to Rfam database...	0.61	0.38	1.00	15	4356	1	0	0	1	25
3IVN_B	Purine links to Rfam database...	0.69	0.48	1.00	15	2331	0	0	0	0	16
3IZ4_A	tmRNA links to Rfam database...	0.40	0.24	0.65	32	70827	21	1	16	4	100
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.56	0.91	30	6870	4	0	3	1	24
3J20_0	tRNA links to Rfam database...	0.58	0.47	0.74	14	2831	5	0	5	0	16
3J20_1	tRNA links to Rfam database...	0.68	0.57	0.81	13	2910	3	0	3	0	10
3J2L_3	5S_rRNA links to Rfam database...	0.69	0.49	0.96	26	7848	3	0	1	2	27
3J3D_C	tRNA links to Rfam database...	0.78	0.64	0.95	18	2756	1	0	1	0	10
3J3E_7	5S_rRNA links to Rfam database...	0.77	0.63	0.94	34	7104	2	0	2	0	20
3J3E_8	5_8S_rRNA links to Rfam database...	0.24	0.15	0.38	5	7490	13	1	7	5	28
3J3F_7	5S_rRNA links to Rfam database...	0.69	0.50	0.96	25	7234	1	0	1	0	25
3J3F_8	5_8S_rRNA links to Rfam database...	0.48	0.36	0.65	13	12226	10	0	7	3	23
3JYV_7	tRNA links to Rfam database...	0.67	0.53	0.85	17	2830	3	0	3	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.27	0.47	9	12227	15	0	10	5	24
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	11	0	6	5	13
3LA5_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2469	0	0	0	0	18
3NPB_A	SAM links to Rfam database...	0.55	0.35	0.89	16	7003	2	1	1	0	30
3O58_3	5_8S_rRNA links to Rfam database...	0.33	0.23	0.47	8	12386	12	2	7	3	27
3O58_2	5S_rRNA links to Rfam database...	0.89	0.82	0.97	31	7228	2	0	1	1	7
3PDR_A	ykoK links to Rfam database...	0.70	0.53	0.93	38	12839	3	0	3	0	34
3RKF_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2195	0	0	0	0	18
3SD1_A	THF links to Rfam database...	0.68	0.57	0.83	24	3887	5	1	4	0	18
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.34	0.23	0.50	12	14172	15	1	11	3	40
3ZND_W	tRNA links to Rfam database...	0.45	0.39	0.53	9	2986	11	0	8	3	14
4A1C_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	22	7114	4	0	4	0	32
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.20	5	11756	24	2	18	4	28
4AOB_A	SAM links to Rfam database...	0.72	0.55	0.96	23	4347	2	0	1	1	19
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.13	0.25	4	3470	12	1	11	0	28

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	625
Total TN	280115
Total FP	314
Total FP CONTRA	52
Total FP INCONS	214
Total FP COMP	48
Total FN	847

Total Scores
MCC	0.544
Average MCC ± 95% Confidence Intervals	0.531 ± 0.081
Sensitivity	0.425
Positive Predictive Value	0.701
Nr of predictions	39

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.63	10	974	6	0	6	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4556	4	0	4	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	9	5142	0	0	0	0	33
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.61	0.41	0.92	11	2991	1	0	1	0	16
3GX2_A	SAM links to Rfam database...	0.33	0.15	0.75	6	4363	2	0	2	0	34
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZ4_A	tmRNA links to Rfam database...	0.53	0.43	0.65	57	70788	35	8	23	4	75
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	3	1	2	0	21
3J20_0	tRNA links to Rfam database...	0.80	0.67	0.95	20	2829	2	0	1	1	10
3J20_1	tRNA links to Rfam database...	0.66	0.48	0.92	11	2914	1	0	1	0	12
3J2L_3	5S_rRNA links to Rfam database...	0.58	0.40	0.84	21	7850	5	0	4	1	32
3J3D_C	tRNA links to Rfam database...	0.76	0.64	0.90	18	2755	2	0	2	0	10
3J3E_7	5S_rRNA links to Rfam database...	0.63	0.50	0.79	27	7106	7	1	6	0	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7484	19	4	15	0	33
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.68	0.92	34	7223	3	0	3	0	16
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.33	0.46	12	12220	23	2	12	9	24
3JYV_7	tRNA links to Rfam database...	0.77	0.63	0.95	20	2829	1	0	1	0	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.28	0.27	0.30	9	12216	33	5	16	12	24
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	13	0	7	6	12
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7015	6	1	5	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.34	0.30	12	12363	28	12	16	0	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.67	0.49	0.92	35	12842	5	0	3	2	37
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.68	0.60	0.78	25	3884	7	1	6	0	17
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.65	0.89	32	6985	4	1	3	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.26	0.19	0.36	10	14168	18	2	16	0	42
3ZND_W	tRNA links to Rfam database...	0.34	0.22	0.56	5	2994	7	0	4	3	18
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.33	0.69	18	7114	8	0	8	0	36
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.18	0.20	6	11751	30	6	18	6	27
4AOB_A	SAM links to Rfam database...	0.28	0.14	0.55	6	4360	5	0	5	0	36
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.45	0.32	0.67	6	1317	3	0	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.09	0.33	3	3477	6	0	6	0	29

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
