Overview

Metric	PETfold_pre2.0(seed)		PPfold(seed)
MCC	0.720	>	0.156
Average MCC ± 95% Confidence Intervals	0.696 ± 0.064	>	0.071 ± 0.074
Sensitivity	0.594	>	0.036
Positive Predictive Value	0.875	>	0.689
Total TP	512	>	31
Total TN	128414	<	128954
Total FP	103	>	75
Total FP CONTRA	8	>	0
Total FP INCONS	65	>	14
Total FP COMP	30	<	61
Total FN	350	<	831
P-value	5.19332990918e-08

^top

Performance plots

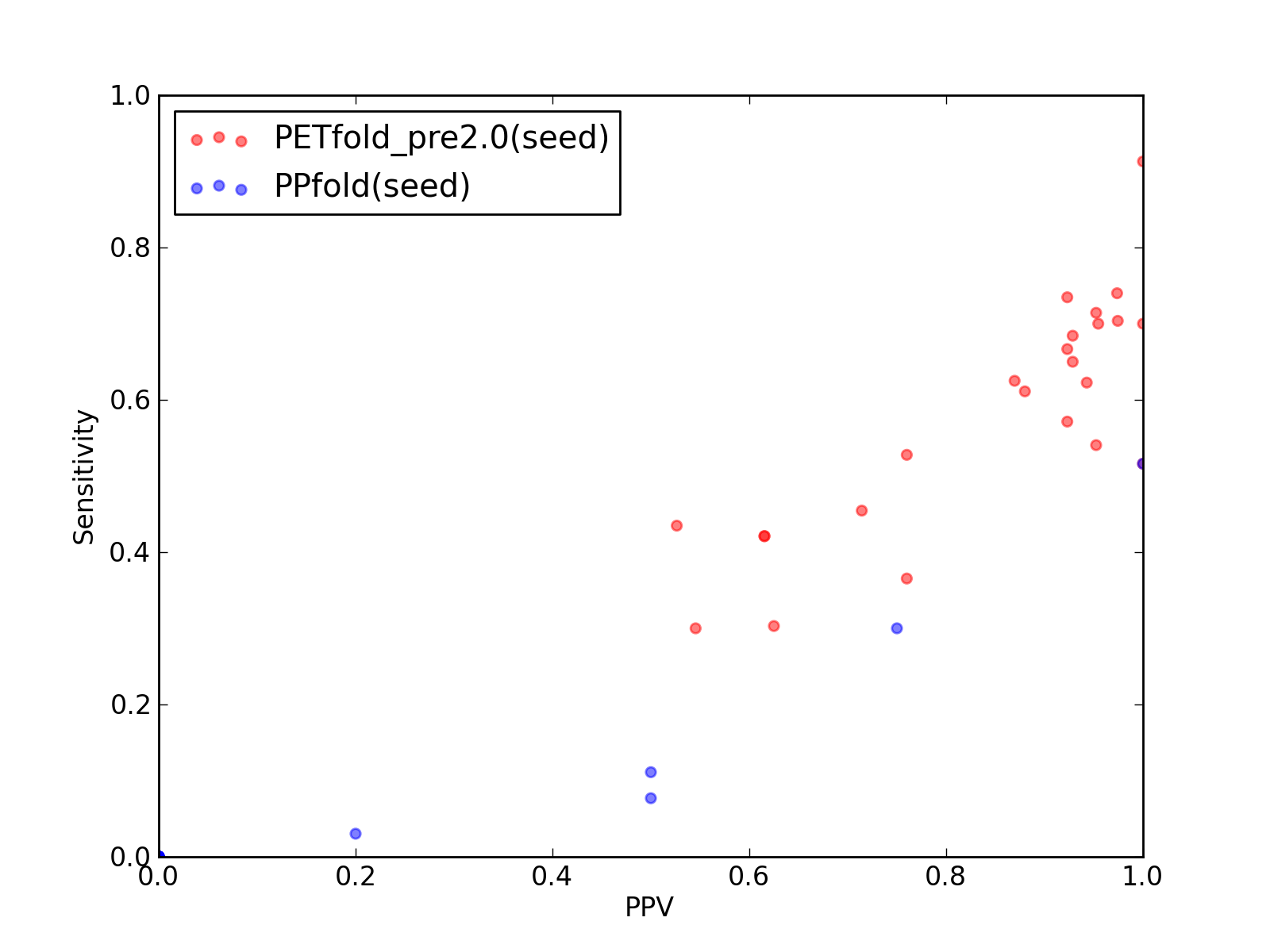

Comparison of performance of PETfold_pre2.0(seed) and PPfold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and PPfold(seed)).

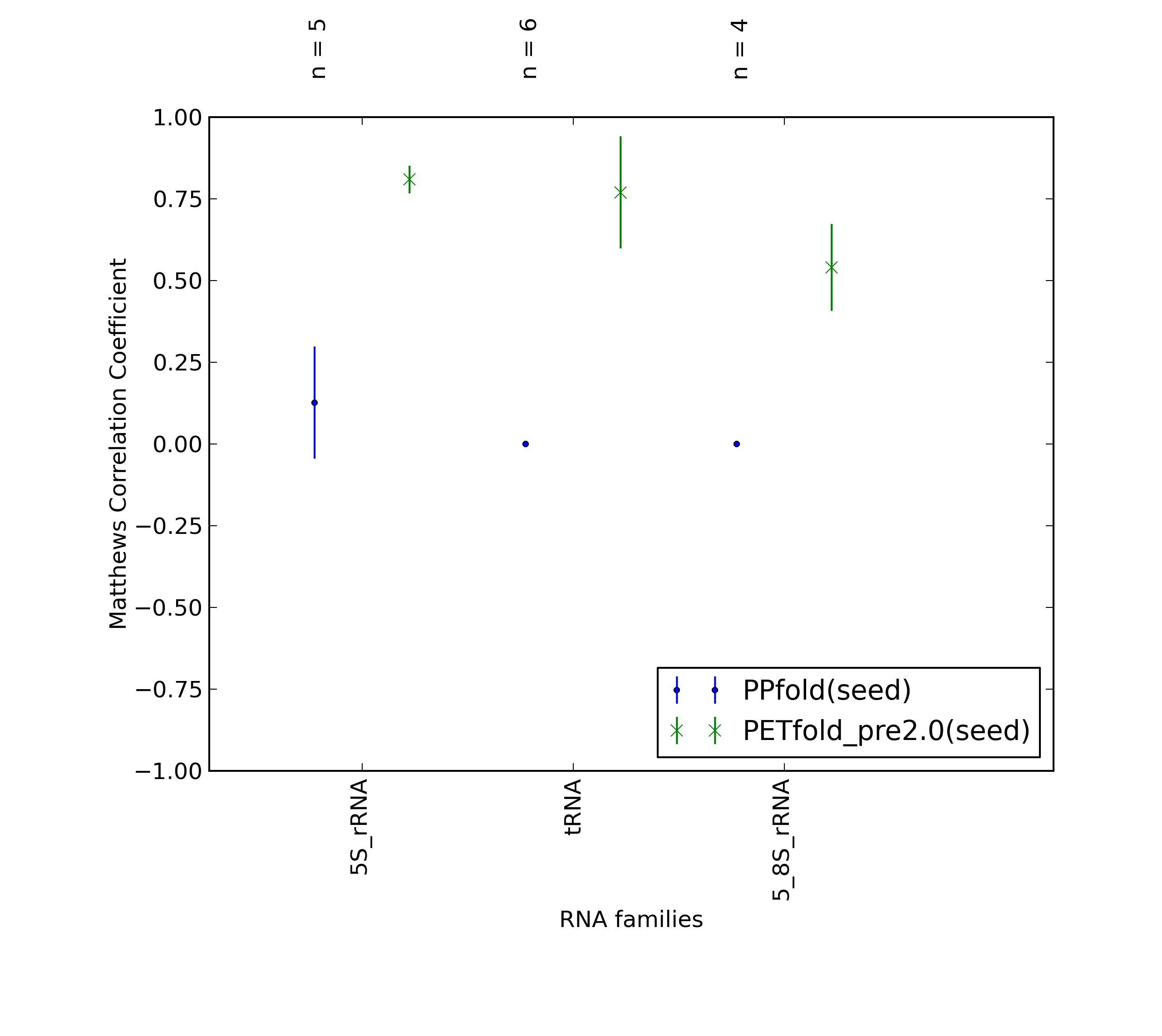

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and PPfold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and PPfold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and PPfold(seed)).

^top

Performance of PETfold_pre2.0(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for PETfold_pre2.0(seed)

Total Base Pair Counts
Total TP	512
Total TN	128414
Total FP	103
Total FP CONTRA	8
Total FP INCONS	65
Total FP COMP	30
Total FN	350

Total Scores
MCC	0.720
Average MCC ± 95% Confidence Intervals	0.696 ± 0.064
Sensitivity	0.594
Positive Predictive Value	0.875
Nr of predictions	24

^top

2. Individual counts for PETfold_pre2.0(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.40	0.30	0.55	6	1529	5	0	5	0	14
3J16_L	tRNA links to Rfam database...	0.82	0.70	0.95	21	2753	1	0	1	0	9
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	1	0	0	1	2
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	1	0	0	1	9
3J2L_3	5S_rRNA links to Rfam database...	0.77	0.62	0.94	33	7840	4	0	2	2	20
3J3D_C	tRNA links to Rfam database...	0.82	0.71	0.95	20	2754	2	0	1	1	8
3J3E_7	5S_rRNA links to Rfam database...	0.78	0.67	0.92	36	7101	3	0	3	0	18
3J3E_8	5_8S_rRNA links to Rfam database...	0.43	0.30	0.63	10	7487	8	0	6	2	23
3J3F_7	5S_rRNA links to Rfam database...	0.85	0.74	0.97	37	7222	2	0	1	1	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.63	0.53	0.76	19	12221	10	0	6	4	17
3UZL_B	tRNA links to Rfam database...	0.72	0.54	0.95	20	3549	2	1	0	1	17
3W1K_J	tRNA-Sec links to Rfam database...	0.80	0.68	0.93	26	4158	3	1	1	1	12
3W3S_B	tRNA-Sec links to Rfam database...	0.78	0.65	0.93	26	4725	4	0	2	2	14
3ZEX_D	5S_rRNA links to Rfam database...	0.82	0.73	0.92	36	6982	3	0	3	0	13
3ZEX_C	5_8S_rRNA links to Rfam database...	0.53	0.37	0.76	19	14171	10	1	5	4	33
3ZND_W	tRNA links to Rfam database...	0.47	0.43	0.53	10	2984	12	0	9	3	13
4A1C_3	5S_rRNA links to Rfam database...	0.83	0.70	0.97	38	7101	1	0	1	0	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.57	0.45	0.71	15	11760	12	0	6	6	18
4AOB_A	SAM links to Rfam database...	0.72	0.57	0.92	24	4345	3	0	2	1	18
4ENB_A	crcB links to Rfam database...	0.50	0.42	0.62	8	1262	5	1	4	0	11
4ENC_A	crcB links to Rfam database...	0.50	0.42	0.62	8	1313	5	1	4	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.74	0.63	0.87	20	3463	3	1	2	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.73	0.61	0.88	22	5126	3	2	1	0	14
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Performance of PPfold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for PPfold(seed)

Total Base Pair Counts
Total TP	31
Total TN	128954
Total FP	75
Total FP CONTRA	0
Total FP INCONS	14
Total FP COMP	61
Total FN	831

Total Scores
MCC	0.156
Average MCC ± 95% Confidence Intervals	0.071 ± 0.074
Sensitivity	0.036
Positive Predictive Value	0.689
Nr of predictions	24

^top

2. Individual counts for PPfold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.30	0.75	6	1532	2	0	2	0	14
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	30
3J20_1	tRNA links to Rfam database...	0.00	0.00	0.00	0	2926	0	0	0	0	23
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2850	0	0	0	0	30
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7875	0	0	0	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2775	0	0	0	0	28
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	6	0	0	6	33
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	50
3J3F_8	5_8S_rRNA links to Rfam database...	0.23	0.11	0.50	4	12238	22	0	4	18	32
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3570	0	0	0	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	49
3ZEX_C	5_8S_rRNA links to Rfam database...	0.20	0.08	0.50	4	14188	22	0	4	18	48
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3003	0	0	0	0	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.08	0.03	0.20	1	11776	23	0	4	19	32
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.72	0.52	1.00	16	2834	0	0	0	0	15

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
