Overview

Metric	ProbKnot		RDfolder
MCC	0.708	>	0.602
Average MCC ± 95% Confidence Intervals	0.719 ± 0.082	>	0.643 ± 0.090
Sensitivity	0.653	>	0.506
Positive Predictive Value	0.776	>	0.726
Total TP	646	>	500
Total TN	75166	<	75310
Total FP	223	>	203
Total FP CONTRA	28	>	24
Total FP INCONS	159	<	165
Total FP COMP	36	>	14
Total FN	343	<	489
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of ProbKnot and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and RDfolder).

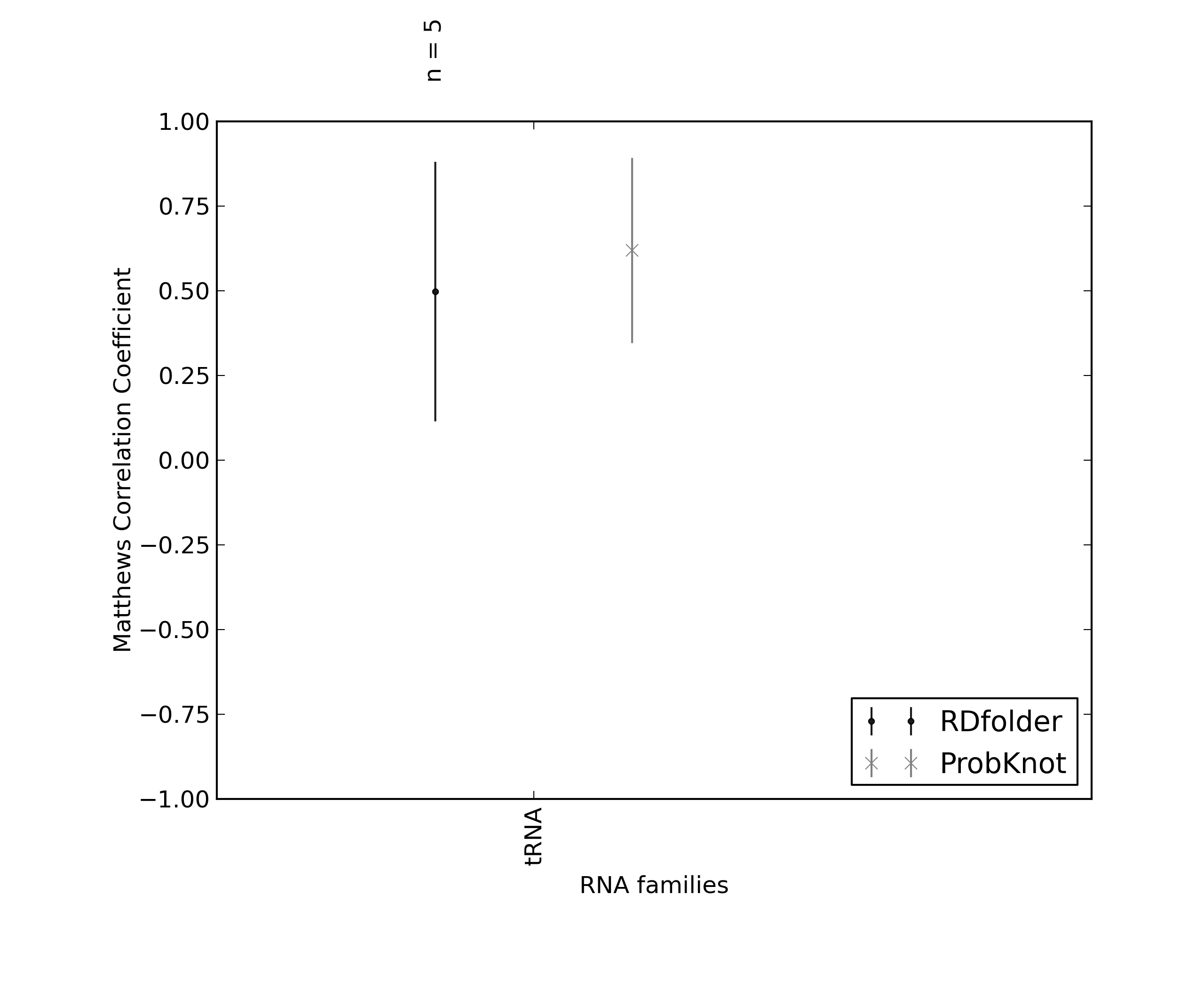

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and RDfolder).

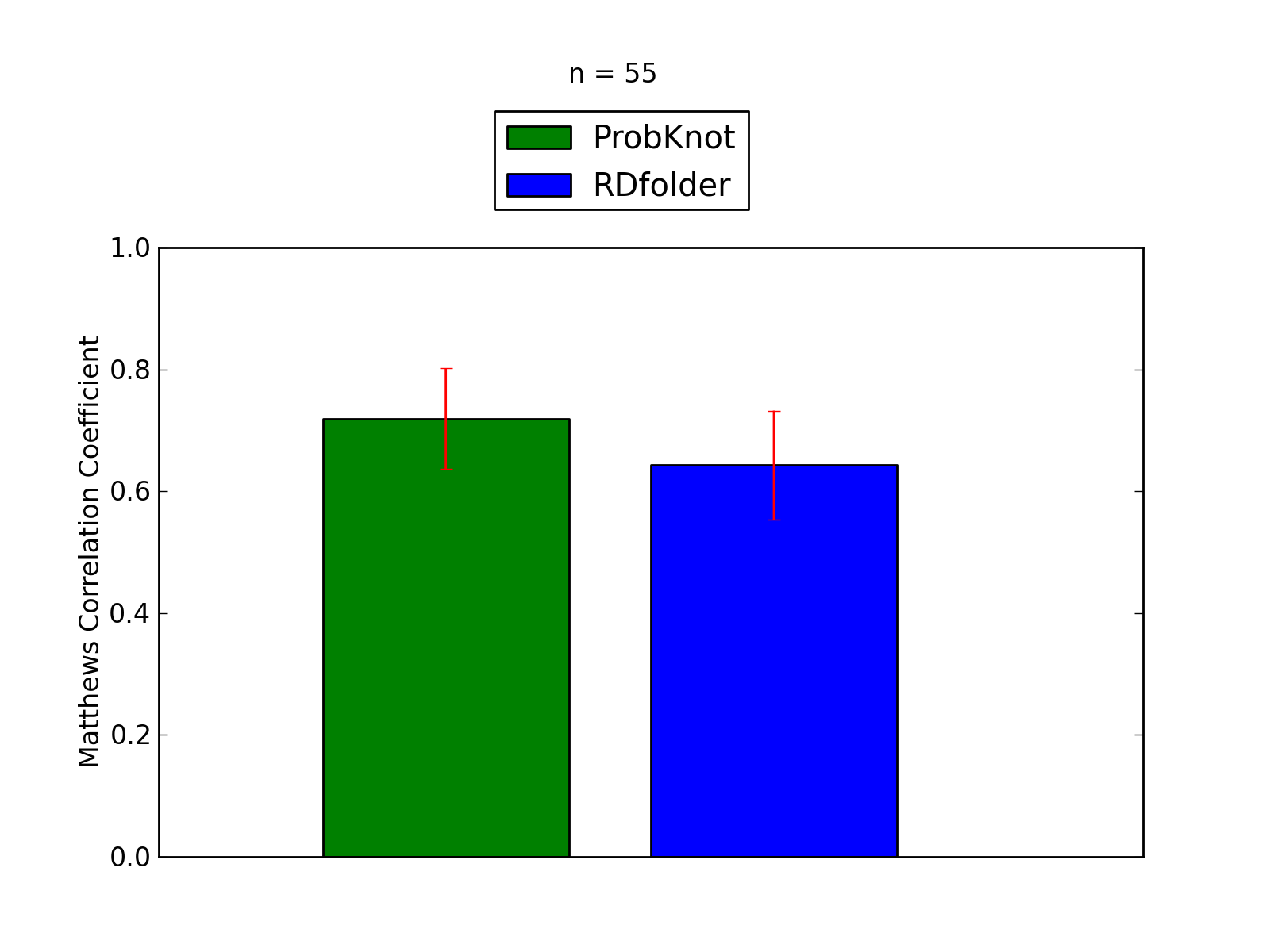

Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and RDfolder).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	646
Total TN	75166
Total FP	223
Total FP CONTRA	28
Total FP INCONS	159
Total FP COMP	36
Total FN	343

Total Scores
MCC	0.708
Average MCC ± 95% Confidence Intervals	0.719 ± 0.082
Sensitivity	0.653
Positive Predictive Value	0.776
Nr of predictions	55

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.78	0.70	0.88	7	343	1	0	1	0	3
2KZL_A	-	0.83	0.74	0.93	14	1470	1	0	1	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.45	0.32	0.67	6	621	3	0	3	0	13
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_X	-	0.34	0.33	0.36	4	1367	7	2	5	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AM1_B	-	0.74	0.71	0.78	25	3208	7	1	6	0	10
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_g	-	-0.01	0.00	0.00	0	458	7	2	5	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1212	13	0	13	0	17
3J0L_1	-	0.76	0.63	0.92	12	1212	3	0	1	2	7
3J0L_a	-	0.55	0.50	0.62	8	1115	5	2	3	0	8
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	-0.01	0.00	0.00	0	552	11	2	7	2	6
3OVB_D	-	1.00	1.00	1.00	11	584	2	0	0	2	0
3OVS_D	-	0.92	0.92	0.92	12	548	1	0	1	0	1
3P22_G	-	0.96	0.92	1.00	11	730	1	0	0	1	1
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	2	0	0	2	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	500
Total TN	75310
Total FP	203
Total FP CONTRA	24
Total FP INCONS	165
Total FP COMP	14
Total FN	489

Total Scores
MCC	0.602
Average MCC ± 95% Confidence Intervals	0.643 ± 0.090
Sensitivity	0.506
Positive Predictive Value	0.726
Nr of predictions	55

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.88	0.78	1.00	14	847	0	0	0	0	4
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.78	0.74	0.82	14	1468	3	1	2	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	-0.01	0.00	0.00	0	2067	13	2	11	0	24
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1526	14	2	12	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	0	0	0	0	2
2LDT_A	-	0.68	0.47	1.00	7	458	0	0	0	0	8
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4538	22	5	17	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.57	0.50	0.67	12	2260	7	1	5	1	12
2YIE_X	-	0.38	0.33	0.44	4	1369	5	1	4	0	8
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
3AKZ_H	tRNA links to Rfam database...	0.48	0.43	0.55	12	2679	11	1	9	1	16
3AM1_B	-	0.47	0.43	0.54	15	3212	13	1	12	0	20
3AMU_B	tRNA links to Rfam database...	0.18	0.15	0.22	4	2985	16	2	12	2	23
3J0L_8	-	0.86	0.75	1.00	6	184	0	0	0	0	2
3J0L_g	-	-0.01	0.00	0.00	0	462	3	1	2	0	4
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_a	-	-0.01	0.00	0.00	0	1124	4	1	3	0	16
3J16_L	tRNA links to Rfam database...	0.22	0.17	0.31	5	2759	11	0	11	0	25
3J20_0	tRNA links to Rfam database...	0.73	0.57	0.94	17	2832	2	0	1	1	13
3NKB_B	-	0.37	0.31	0.47	8	1999	9	0	9	0	18
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.91	0.83	1.00	10	731	0	0	0	0	2
3R4F_A	-	0.76	0.68	0.85	17	2125	3	1	2	0	8
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.30	0.17	0.54	7	3903	6	0	6	0	35
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	0	0	0	0	1
3TS0_U	-	0.91	0.83	1.00	5	248	0	0	0	0	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.27	0.23	0.33	9	4726	18	1	17	0	31
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ATO_G	-	0.63	0.40	1.00	4	524	0	0	0	0	6
4ENB_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1265	4	0	4	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	0	4	0	13
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
