Overview

Metric	ProbKnot		RSpredict(seed)
MCC	0.545	>	0.356
Average MCC ± 95% Confidence Intervals	0.579 ± 0.080	>	0.160 ± 0.076
Sensitivity	0.487	>	0.208
Positive Predictive Value	0.610	<	0.612
Total TP	1108	>	472
Total TN	1452484	<	1453530
Total FP	807	>	309
Total FP CONTRA	89	>	22
Total FP INCONS	620	>	277
Total FP COMP	98	>	10
Total FN	1165	<	1801
P-value	3.56938820447e-08

^top

Performance plots

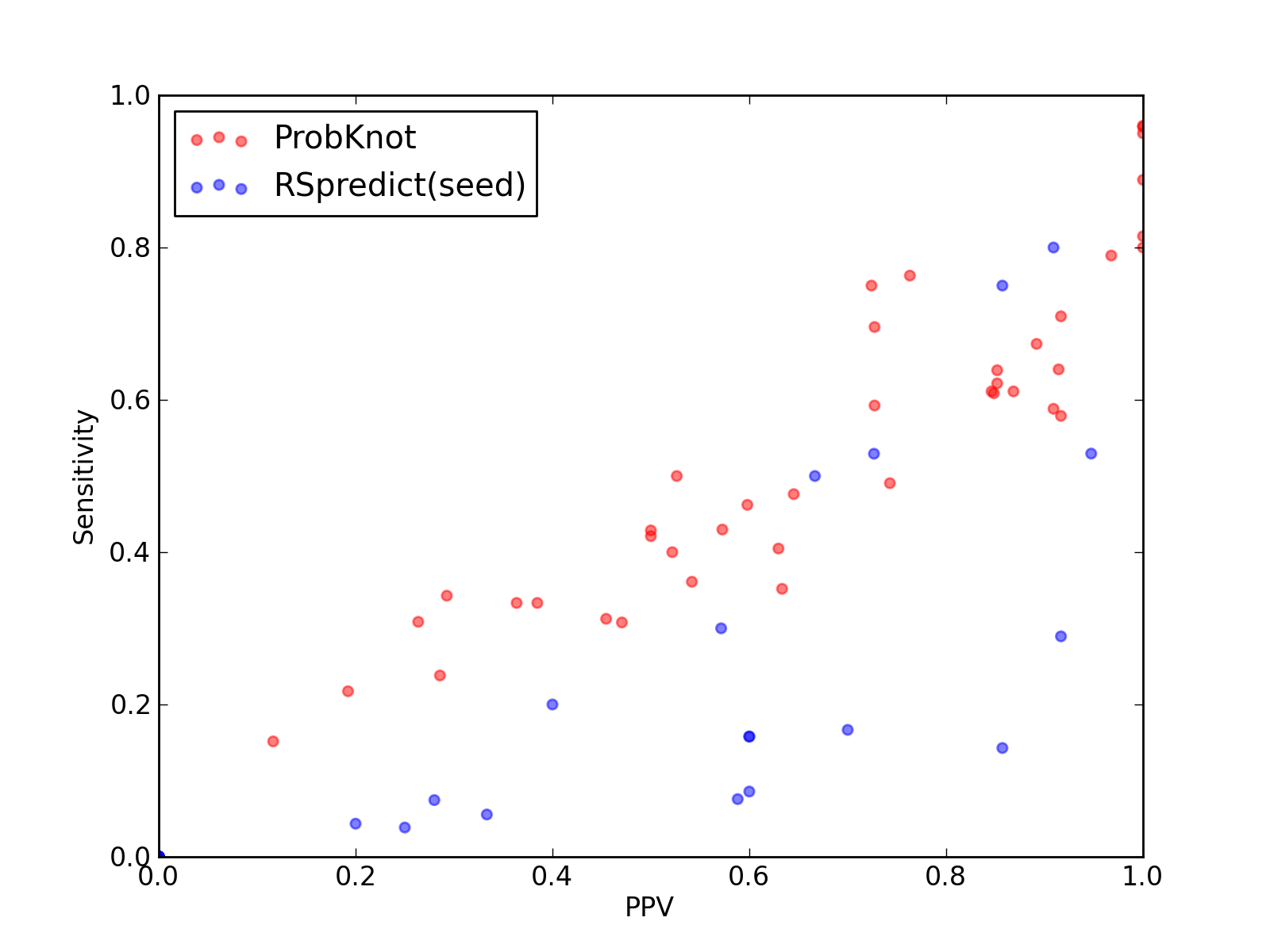

Comparison of performance of ProbKnot and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for ProbKnot and RSpredict(seed)).

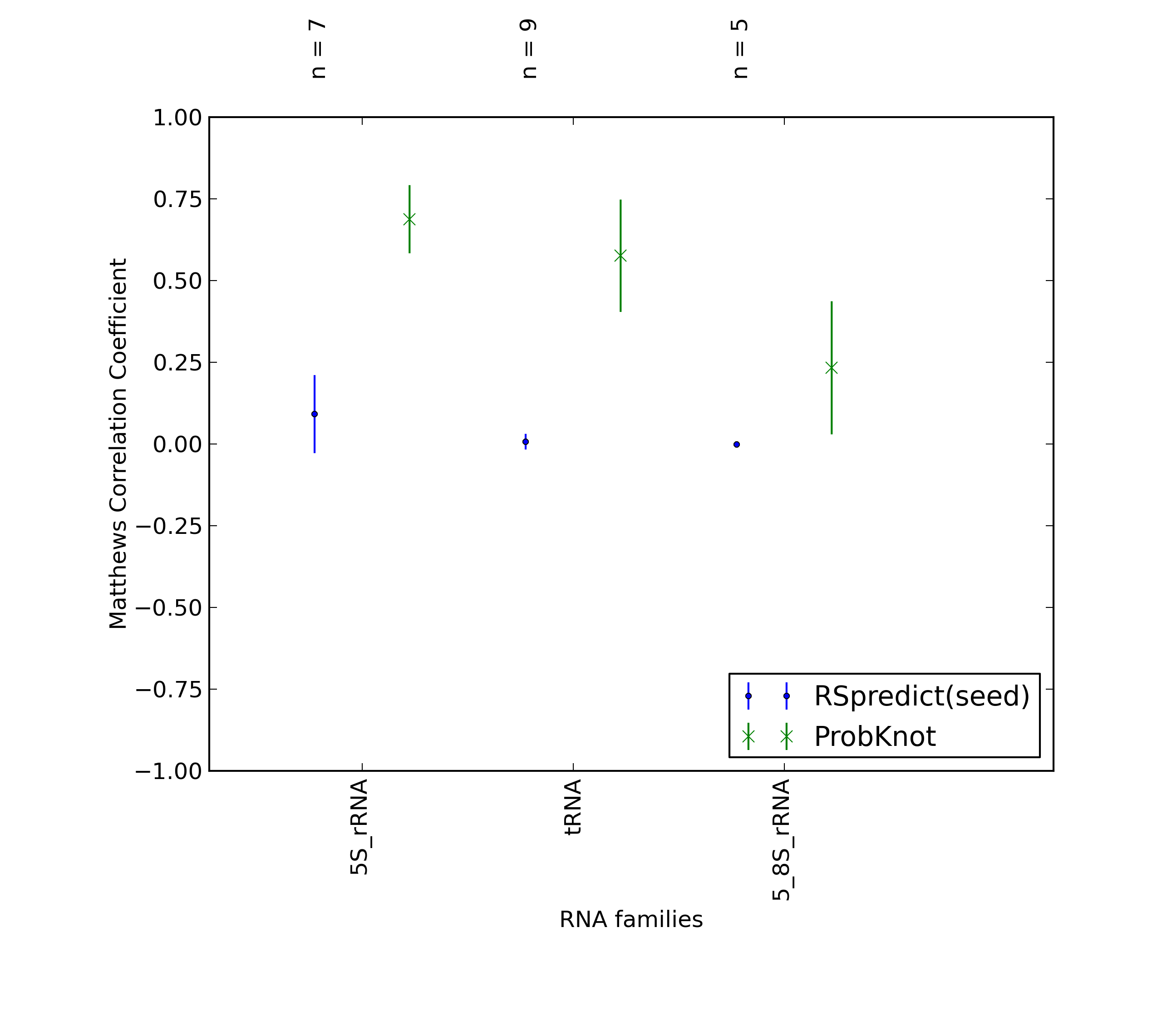

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for ProbKnot and RSpredict(seed)).

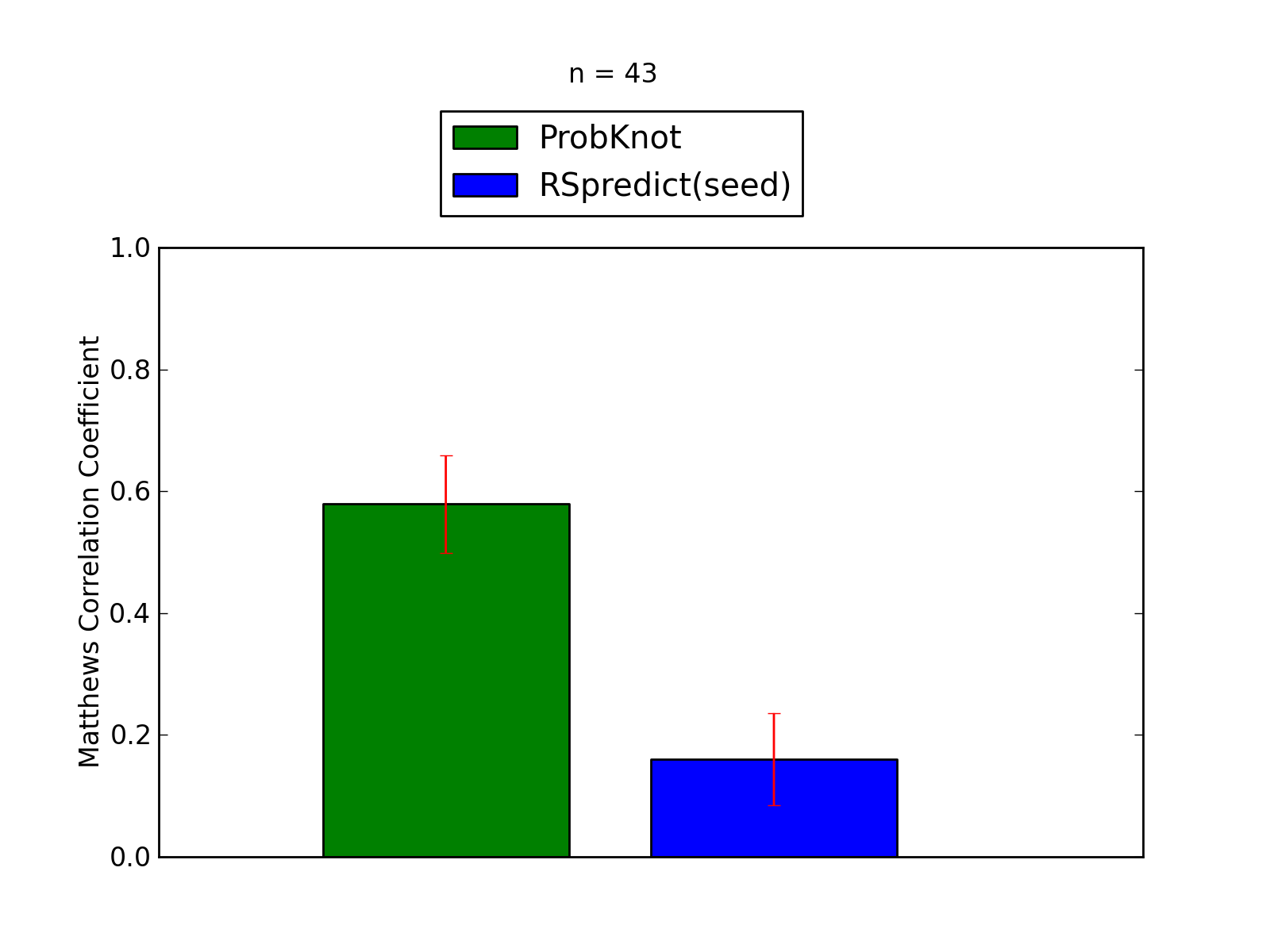

Comparison of average Matthews Correlation Coefficients (MCCs) for ProbKnot and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for ProbKnot and RSpredict(seed)).

^top

Performance of ProbKnot - scored higher in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1108
Total TN	1452484
Total FP	807
Total FP CONTRA	89
Total FP INCONS	620
Total FP COMP	98
Total FN	1165

Total Scores
MCC	0.545
Average MCC ± 95% Confidence Intervals	0.579 ± 0.080
Sensitivity	0.487
Positive Predictive Value	0.610
Nr of predictions	43

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.26	0.24	0.29	10	5116	25	1	24	0	32
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60616	85	22	59	4	65
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.50	0.43	0.57	272	1116290	208	11	192	5	361
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3J3D_C	tRNA links to Rfam database...	0.46	0.43	0.50	12	2751	12	1	11	0	16
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7476	37	3	24	10	33
3J3E_7	5S_rRNA links to Rfam database...	0.47	0.35	0.63	19	7110	11	0	11	0	35
3J3F_7	5S_rRNA links to Rfam database...	0.76	0.64	0.91	32	7225	3	0	3	0	18
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.36	12	12213	35	3	18	14	24
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3UZL_B	tRNA links to Rfam database...	0.73	0.62	0.85	23	3543	4	0	4	0	14
3W1K_J	tRNA-Sec links to Rfam database...	0.87	0.79	0.97	30	4155	1	1	0	0	8
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	24	1	20	3	18
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.44	0.36	0.54	13	5127	11	2	9	0	23
4JF2_A	preQ1-II links to Rfam database...	0.80	0.71	0.92	22	2826	2	2	0	0	9

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	472
Total TN	1453530
Total FP	309
Total FP CONTRA	22
Total FP INCONS	277
Total FP COMP	10
Total FN	1801

Total Scores
MCC	0.356
Average MCC ± 95% Confidence Intervals	0.160 ± 0.076
Sensitivity	0.208
Positive Predictive Value	0.612
Nr of predictions	43

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	860	1	0	1	0	18
2L1F_A	Gammaretro_CES links to Rfam database...	0.80	0.75	0.86	18	2059	3	0	3	0	6
2L1F_B	Gammaretro_CES links to Rfam database...	0.85	0.80	0.91	20	2123	2	0	2	0	5
2L94_A	HIV_FE links to Rfam database...	0.57	0.50	0.67	10	975	5	0	5	0	10
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.28	0.20	0.40	4	4550	8	2	4	2	16
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.17	0.70	7	5141	3	0	3	0	35
3AKZ_H	tRNA links to Rfam database...	0.00	0.00	0.00	0	2699	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3IYQ_A	tmRNA links to Rfam database...	0.14	0.07	0.28	7	60701	19	5	13	1	87
3IZ4_A	tmRNA links to Rfam database...	0.21	0.08	0.59	10	70859	7	0	7	0	122
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J16_L	tRNA links to Rfam database...	0.00	0.00	0.00	0	2774	1	0	1	0	30
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	30
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.62	0.53	0.73	335	1116304	129	9	117	3	298
3J20_1	tRNA links to Rfam database...	0.09	0.04	0.20	1	2921	4	0	4	0	22
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7870	5	0	5	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2771	4	1	3	0	28
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7132	8	0	8	0	54
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7256	4	0	4	0	50
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.06	0.33	2	12240	5	1	3	1	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7017	4	0	4	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3UZL_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3564	6	0	6	0	37
3W1K_J	tRNA-Sec links to Rfam database...	0.51	0.29	0.92	11	4174	1	0	1	0	27
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.30	0.57	12	4732	10	1	8	1	28
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.04	0.25	2	14188	6	1	5	0	50
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7019	2	0	2	0	49
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3000	4	0	3	1	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5148	3	0	3	0	36
4JF2_A	preQ1-II links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	31

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
