Overview

Metric	RNASLOpt		NanoFolder
MCC	0.530	>	0.339
Average MCC ± 95% Confidence Intervals	0.645 ± 0.129	>	0.536 ± 0.139
Sensitivity	0.424	>	0.350
Positive Predictive Value	0.669	>	0.338
Total TP	313	>	258
Total TN	106381	>	106086
Total FP	168	<	523
Total FP CONTRA	18	<	60
Total FP INCONS	137	<	445
Total FP COMP	13	<	18
Total FN	425	<	480
P-value	5.19332990918e-08

^top

Performance plots

Comparison of performance of RNASLOpt and NanoFolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).
Comparison of performance of RNASLOpt and NanoFolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).

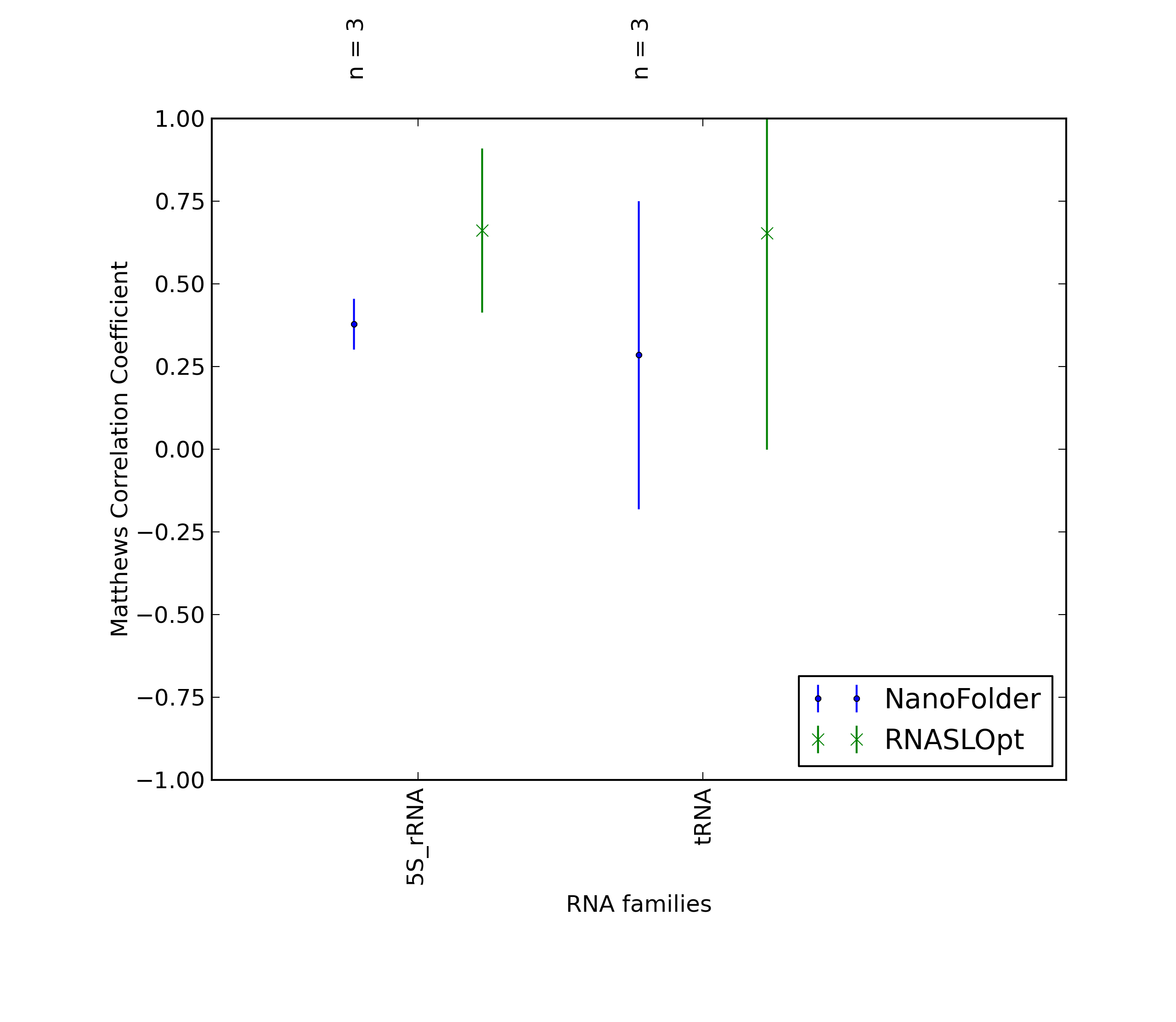

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and NanoFolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASLOpt and NanoFolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASLOpt and NanoFolder).

^top

Performance of RNASLOpt - scored higher in this pairwise comparison

1. Total counts & total scores for RNASLOpt

Total Base Pair Counts
Total TP	313
Total TN	106381
Total FP	168
Total FP CONTRA	18
Total FP INCONS	137
Total FP COMP	13
Total FN	425

Total Scores
MCC	0.530
Average MCC ± 95% Confidence Intervals	0.645 ± 0.129
Sensitivity	0.424
Positive Predictive Value	0.669
Nr of predictions	25

^top

2. Individual counts for RNASLOpt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.47	0.35	0.64	7	1529	4	0	4	0	13
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.68	0.62	0.75	24	6073	9	0	8	1	15
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
3J16_L	tRNA links to Rfam database...	0.53	0.40	0.71	12	2758	5	0	5	0	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.43	0.72	23	7843	11	0	9	2	30
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.32	0.71	12	3553	5	0	5	0	25
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.82	0.70	0.97	28	4724	2	0	1	1	12
3ZEX_G	-	0.00	0.00	0.00	0	16471	0	0	0	0	74
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.59	0.97	29	6991	1	0	1	0	20
3ZEX_E	-	0.00	0.00	0.00	0	21892	55	4	49	2	77
4A1C_2	5_8S_rRNA links to Rfam database...	0.23	0.24	0.22	8	11744	35	8	21	6	25
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.52	0.88	28	7108	4	0	4	0	26
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.26	0.19	0.38	8	4350	13	2	11	0	34
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENC_A	crcB links to Rfam database...	0.65	0.47	0.90	9	1316	1	1	0	0	10
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of NanoFolder - scored lower in this pairwise comparison

1. Total counts & total scores for NanoFolder

Total Base Pair Counts
Total TP	258
Total TN	106086
Total FP	523
Total FP CONTRA	60
Total FP INCONS	445
Total FP COMP	18
Total FN	480

Total Scores
MCC	0.339
Average MCC ± 95% Confidence Intervals	0.536 ± 0.139
Sensitivity	0.350
Positive Predictive Value	0.338
Nr of predictions	25

^top

2. Individual counts for NanoFolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.52	0.55	0.50	11	1518	11	0	11	0	9
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.29	0.33	0.25	13	6054	38	8	30	0	26
2LQZ_A	-	0.91	0.91	0.91	10	340	1	1	0	0	1
2LWK_A	-	0.83	0.77	0.91	10	485	2	0	1	1	3
3J16_L	tRNA links to Rfam database...	0.36	0.37	0.37	11	2745	19	3	16	0	19
3J20_1	tRNA links to Rfam database...	0.41	0.48	0.37	11	2896	19	5	14	0	12
3J2L_3	5S_rRNA links to Rfam database...	0.11	0.11	0.12	6	7824	46	3	42	1	47
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3U4M_B	-	0.61	0.57	0.66	21	3128	11	1	10	0	16
3UZL_B	tRNA links to Rfam database...	0.36	0.35	0.38	13	3536	21	3	18	0	24
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.17	0.18	0.18	7	4713	34	1	32	1	33
3ZEX_G	-	0.05	0.05	0.05	4	16393	76	5	69	2	70
3ZEX_D	5S_rRNA links to Rfam database...	0.26	0.27	0.27	13	6972	36	1	35	0	36
3ZEX_E	-	0.03	0.04	0.03	3	21859	85	9	74	2	74
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11728	61	12	41	8	33
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.46	0.51	25	7091	24	2	22	0	29
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.33	0.29	0.39	12	4340	20	1	18	1	30
4ATO_G	-	0.61	0.70	0.54	7	515	6	2	4	0	3
4ENC_A	crcB links to Rfam database...	0.57	0.58	0.58	11	1307	9	0	8	1	8
4HXH_A	-	0.81	1.00	0.67	6	316	3	3	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
