Overview

Metric	RNASampler(20)		IPknot
MCC	0.609	>	0.601
Average MCC ± 95% Confidence Intervals	0.631 ± 0.123	>	0.609 ± 0.114
Sensitivity	0.460	<	0.485
Positive Predictive Value	0.813	>	0.751
Total TP	234	<	247
Total TN	73089	>	73048
Total FP	77	<	96
Total FP CONTRA	2	<	8
Total FP INCONS	52	<	74
Total FP COMP	23	>	14
Total FN	275	>	262
P-value	3.63100176799e-05

^top

Performance plots

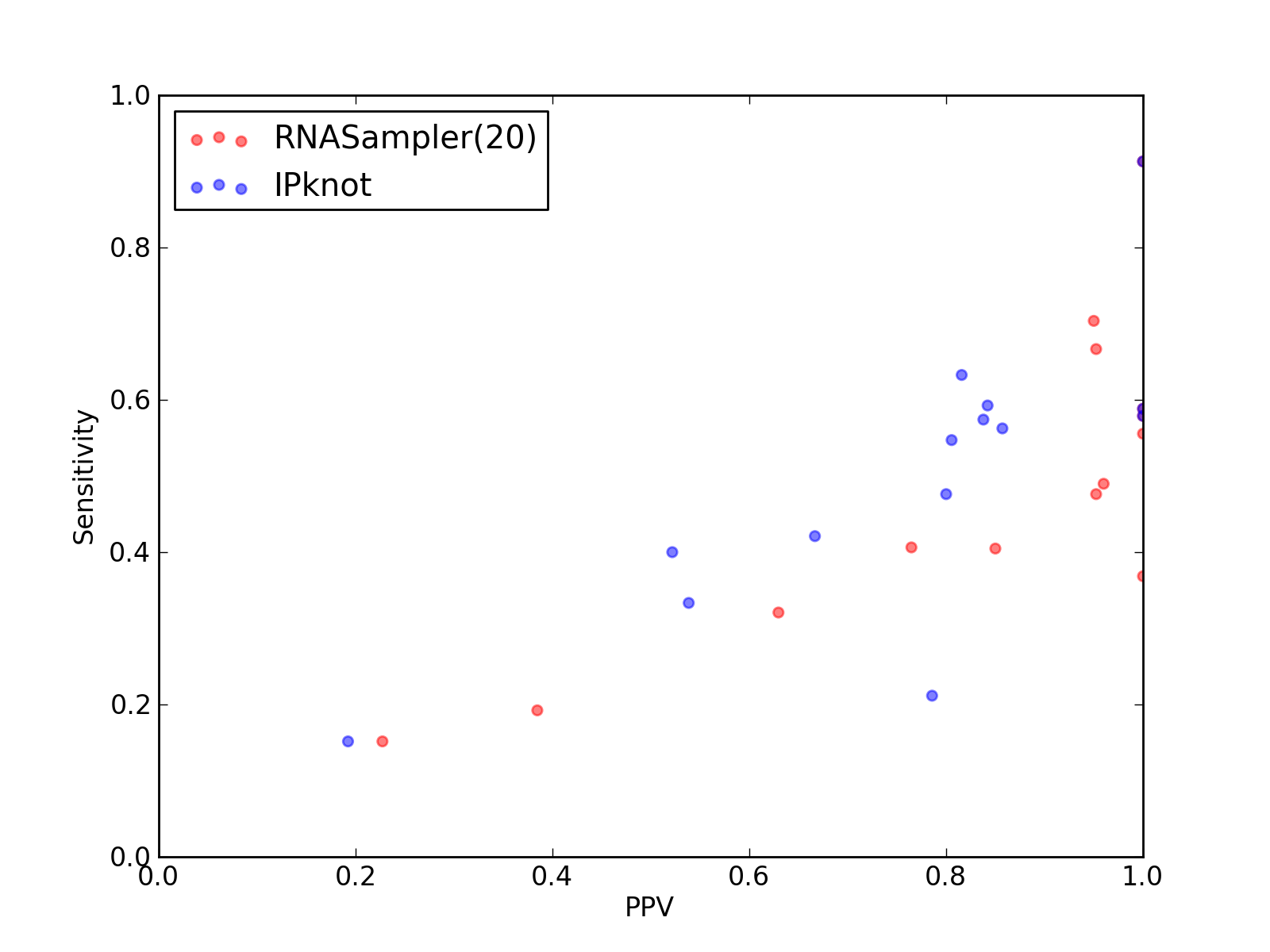

Comparison of performance of RNASampler(20) and IPknot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and IPknot).
Comparison of performance of RNASampler(20) and IPknot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and IPknot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and IPknot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and IPknot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and IPknot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and IPknot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and IPknot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and IPknot).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	234
Total TN	73089
Total FP	77
Total FP CONTRA	2
Total FP INCONS	52
Total FP COMP	23
Total FN	275

Total Scores
MCC	0.609
Average MCC ± 95% Confidence Intervals	0.631 ± 0.123
Sensitivity	0.460
Positive Predictive Value	0.813
Nr of predictions	14

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.80	0.67	0.95	20	2829	2	0	1	1	10
3J2L_3	5S_rRNA links to Rfam database...	0.45	0.32	0.63	17	7848	12	1	9	2	36
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.67	0.48	0.95	20	3895	1	0	1	0	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.27	0.19	0.38	10	14170	20	1	15	4	42
3ZEX_D	5S_rRNA links to Rfam database...	0.68	0.49	0.96	24	6996	1	0	1	0	25
4A1C_3	5S_rRNA links to Rfam database...	0.74	0.56	1.00	30	7110	0	0	0	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.15	0.23	5	11759	30	0	17	13	28
4AOB_A	SAM links to Rfam database...	0.58	0.40	0.85	17	4351	4	0	3	1	25
4ENB_A	crcB links to Rfam database...	0.60	0.37	1.00	7	1268	0	0	0	0	12
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.41	0.76	13	3469	4	0	4	0	19

^top

Performance of IPknot - scored lower in this pairwise comparison

1. Total counts & total scores for IPknot

Total Base Pair Counts
Total TP	247
Total TN	73048
Total FP	96
Total FP CONTRA	8
Total FP INCONS	74
Total FP COMP	14
Total FN	262

Total Scores
MCC	0.601
Average MCC ± 95% Confidence Intervals	0.609 ± 0.114
Sensitivity	0.485
Positive Predictive Value	0.751
Nr of predictions	14

^top

2. Individual counts for IPknot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2L_3	5S_rRNA links to Rfam database...	0.66	0.55	0.81	29	7839	9	0	7	2	24
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.48	0.80	20	3891	5	0	5	0	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.21	0.79	11	14182	6	1	2	3	41
3ZEX_D	5S_rRNA links to Rfam database...	0.72	0.63	0.82	31	6983	7	0	7	0	18
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	11755	26	4	17	5	28
4AOB_A	SAM links to Rfam database...	0.42	0.33	0.54	14	4345	13	1	11	1	28
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.52	0.42	0.67	8	1314	4	0	4	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.69	0.56	0.86	18	3465	3	1	2	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
