Overview

Metric	RNASampler(20)		NanoFolder
MCC	0.604	>	0.276
Average MCC ± 95% Confidence Intervals	0.622 ± 0.230	>	0.309 ± 0.189
Sensitivity	0.458	>	0.286
Positive Predictive Value	0.801	>	0.277
Total TP	125	>	78
Total TN	42284	>	42158
Total FP	47	<	215
Total FP CONTRA	1	<	24
Total FP INCONS	30	<	180
Total FP COMP	16	>	11
Total FN	148	<	195
P-value	0.0

^top

Performance plots

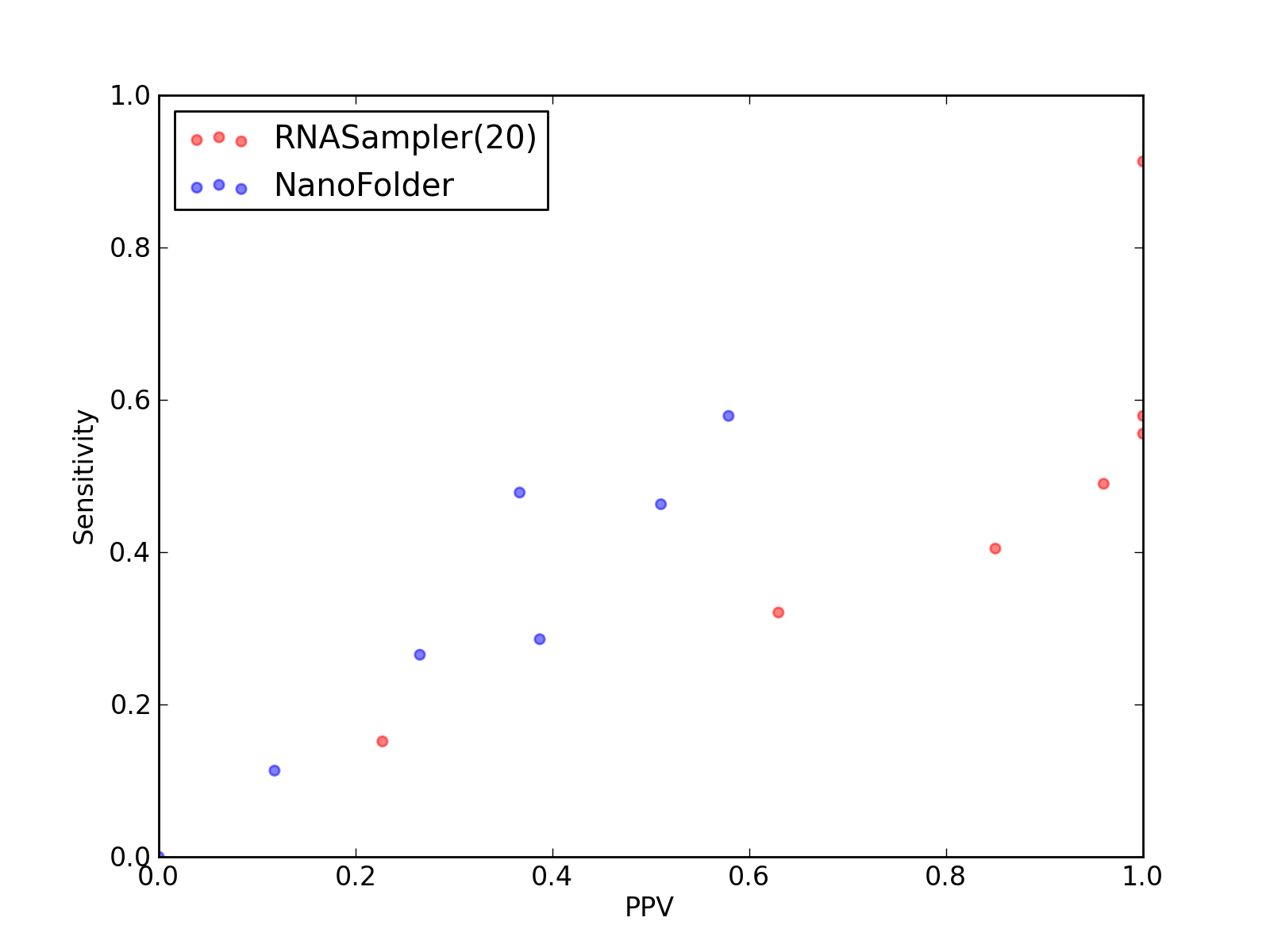

Comparison of performance of RNASampler(20) and NanoFolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).
Comparison of performance of RNASampler(20) and NanoFolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and NanoFolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and NanoFolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and NanoFolder).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	125
Total TN	42284
Total FP	47
Total FP CONTRA	1
Total FP INCONS	30
Total FP COMP	16
Total FN	148

Total Scores
MCC	0.604
Average MCC ± 95% Confidence Intervals	0.622 ± 0.230
Sensitivity	0.458
Positive Predictive Value	0.801
Nr of predictions	7

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.45	0.32	0.63	17	7848	12	1	9	2	36
3ZEX_D	5S_rRNA links to Rfam database...	0.68	0.49	0.96	24	6996	1	0	1	0	25
4A1C_3	5S_rRNA links to Rfam database...	0.74	0.56	1.00	30	7110	0	0	0	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.15	0.23	5	11759	30	0	17	13	28
4AOB_A	SAM links to Rfam database...	0.58	0.40	0.85	17	4351	4	0	3	1	25
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8

^top

Performance of NanoFolder - scored lower in this pairwise comparison

1. Total counts & total scores for NanoFolder

Total Base Pair Counts
Total TP	78
Total TN	42158
Total FP	215
Total FP CONTRA	24
Total FP INCONS	180
Total FP COMP	11
Total FN	195

Total Scores
MCC	0.276
Average MCC ± 95% Confidence Intervals	0.309 ± 0.189
Sensitivity	0.286
Positive Predictive Value	0.277
Nr of predictions	7

^top

2. Individual counts for NanoFolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3J20_1	tRNA links to Rfam database...	0.41	0.48	0.37	11	2896	19	5	14	0	12
3J2L_3	5S_rRNA links to Rfam database...	0.11	0.11	0.12	6	7824	46	3	42	1	47
3ZEX_D	5S_rRNA links to Rfam database...	0.26	0.27	0.27	13	6972	36	1	35	0	36
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.46	0.51	25	7091	24	2	22	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11728	61	12	41	8	33
4AOB_A	SAM links to Rfam database...	0.33	0.29	0.39	12	4340	20	1	18	1	30
4ENC_A	crcB links to Rfam database...	0.57	0.58	0.58	11	1307	9	0	8	1	8

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
