Overview

Metric	RNASampler(20)		ProbKnot
MCC	0.613	>	0.578
Average MCC ± 95% Confidence Intervals	0.633 ± 0.087	>	0.590 ± 0.087
Sensitivity	0.455	<	0.516
Positive Predictive Value	0.830	>	0.653
Total TP	453	<	513
Total TN	203725	>	203485
Total FP	136	<	334
Total FP CONTRA	13	<	36
Total FP INCONS	80	<	237
Total FP COMP	43	<	61
Total FN	542	>	482
P-value	5.19332990918e-08

^top

Performance plots

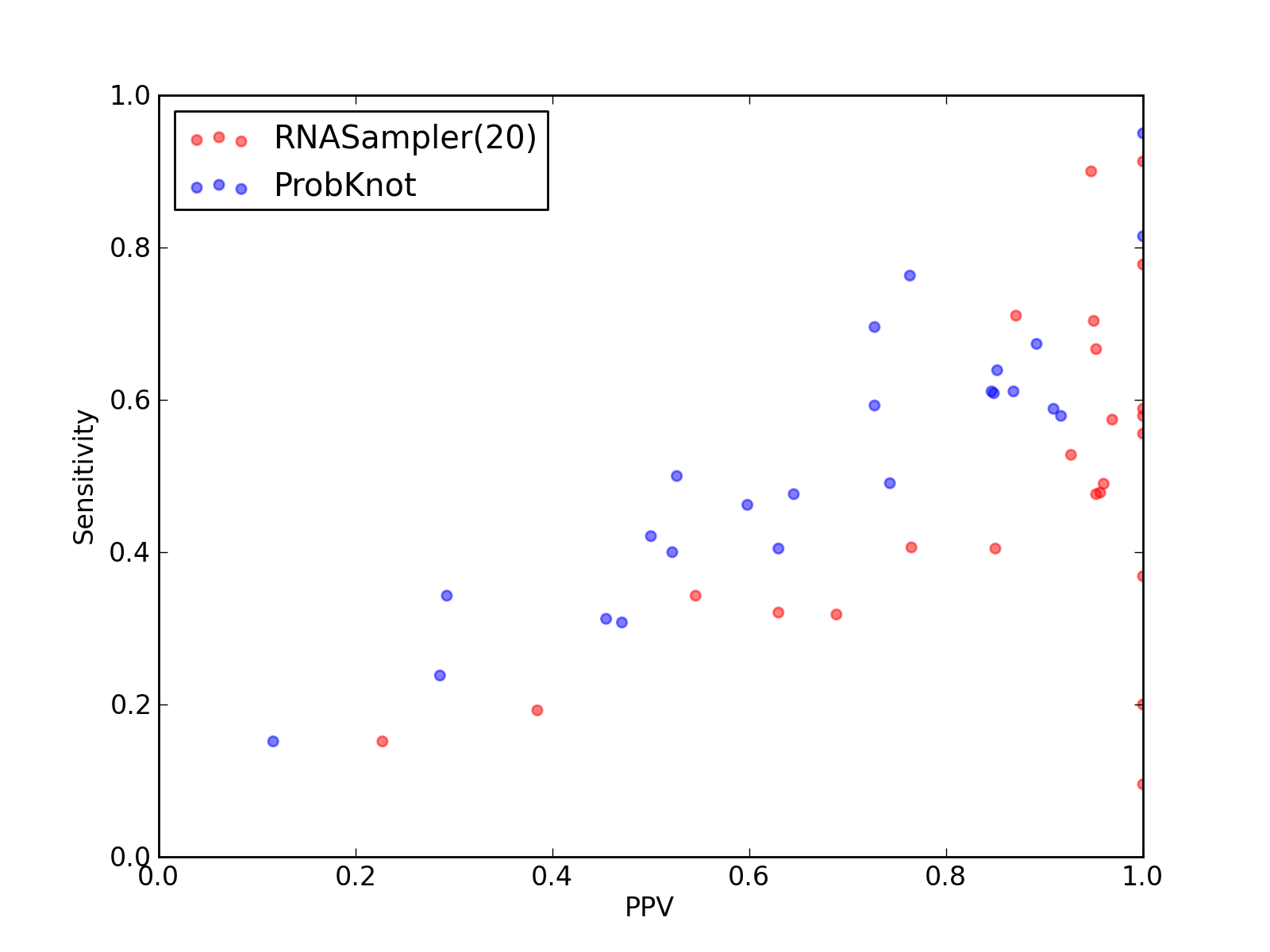

Comparison of performance of RNASampler(20) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).
Comparison of performance of RNASampler(20) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNASampler(20) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNASampler(20) and ProbKnot).

^top

Performance of RNASampler(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNASampler(20)

Total Base Pair Counts
Total TP	453
Total TN	203725
Total FP	136
Total FP CONTRA	13
Total FP INCONS	80
Total FP COMP	43
Total FN	542

Total Scores
MCC	0.613
Average MCC ± 95% Confidence Intervals	0.633 ± 0.087
Sensitivity	0.455
Positive Predictive Value	0.830
Nr of predictions	24

^top

2. Individual counts for RNASampler(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	2	0	0	2	16
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.31	0.10	1.00	4	5147	0	0	0	0	38
3AMU_B	tRNA links to Rfam database...	0.82	0.70	0.95	19	2983	3	0	1	2	8
3IZ4_A	tmRNA links to Rfam database...	0.47	0.32	0.69	42	70815	23	6	13	4	90
3IZF_C	5S_rRNA links to Rfam database...	0.74	0.57	0.97	31	6871	1	0	1	0	23
3J20_0	tRNA links to Rfam database...	0.80	0.67	0.95	20	2829	2	0	1	1	10
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.45	0.32	0.63	17	7848	12	1	9	2	36
3NPB_A	SAM links to Rfam database...	0.68	0.48	0.96	22	6998	4	1	0	3	24
3O58_3	5_8S_rRNA links to Rfam database...	0.43	0.34	0.55	12	12381	18	2	8	8	23
3O58_2	5S_rRNA links to Rfam database...	0.79	0.71	0.87	27	7229	5	2	2	1	11
3PDR_A	ykoK links to Rfam database...	0.70	0.53	0.93	38	12839	5	0	3	2	34
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.67	0.48	0.95	20	3895	1	0	1	0	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.27	0.19	0.38	10	14170	20	1	15	4	42
3ZEX_D	5S_rRNA links to Rfam database...	0.68	0.49	0.96	24	6996	1	0	1	0	25
4A1C_3	5S_rRNA links to Rfam database...	0.74	0.56	1.00	30	7110	0	0	0	0	24
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.15	0.23	5	11759	30	0	17	13	28
4AOB_A	SAM links to Rfam database...	0.58	0.40	0.85	17	4351	4	0	3	1	25
4ENB_A	crcB links to Rfam database...	0.60	0.37	1.00	7	1268	0	0	0	0	12
4ENC_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1315	0	0	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.41	0.76	13	3469	4	0	4	0	19

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	513
Total TN	203485
Total FP	334
Total FP CONTRA	36
Total FP INCONS	237
Total FP COMP	61
Total FN	482

Total Scores
MCC	0.578
Average MCC ± 95% Confidence Intervals	0.590 ± 0.087
Sensitivity	0.516
Positive Predictive Value	0.653
Nr of predictions	24

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.26	0.24	0.29	10	5116	25	1	24	0	32
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
