Table of contents:
- Overview
- Performance Plots
- Performance of RNAalifold(20)
- scored higher in this pairwise comparison
- Performance of Contrafold
- scored lower in this pairwise comparison
- Compile and download dataset for RNAalifold(20) & Contrafold [.zip] - may take several seconds...
Overview
| Metric |
RNAalifold(20) |
|
Contrafold |
|---|
| MCC |
0.656 |
>
|
0.551 |
| Average MCC ± 95% Confidence Intervals |
0.652
±
0.062
|
>
|
0.572
±
0.087
|
| Sensitivity |
0.502 |
>
|
0.486 |
| Positive Predictive Value |
0.860 |
>
|
0.630 |
| Total TP |
655 |
>
|
634 |
| Total TN |
247698 |
>
|
247454 |
| Total FP |
150 |
<
|
436 |
| Total FP CONTRA |
22 |
<
|
51 |
| Total FP INCONS |
85 |
<
|
321 |
| Total FP COMP |
43 |
<
|
64 |
| Total FN |
650 |
<
|
671 |
| P-value |
3.56938820447e-08 |
Performance plots
-

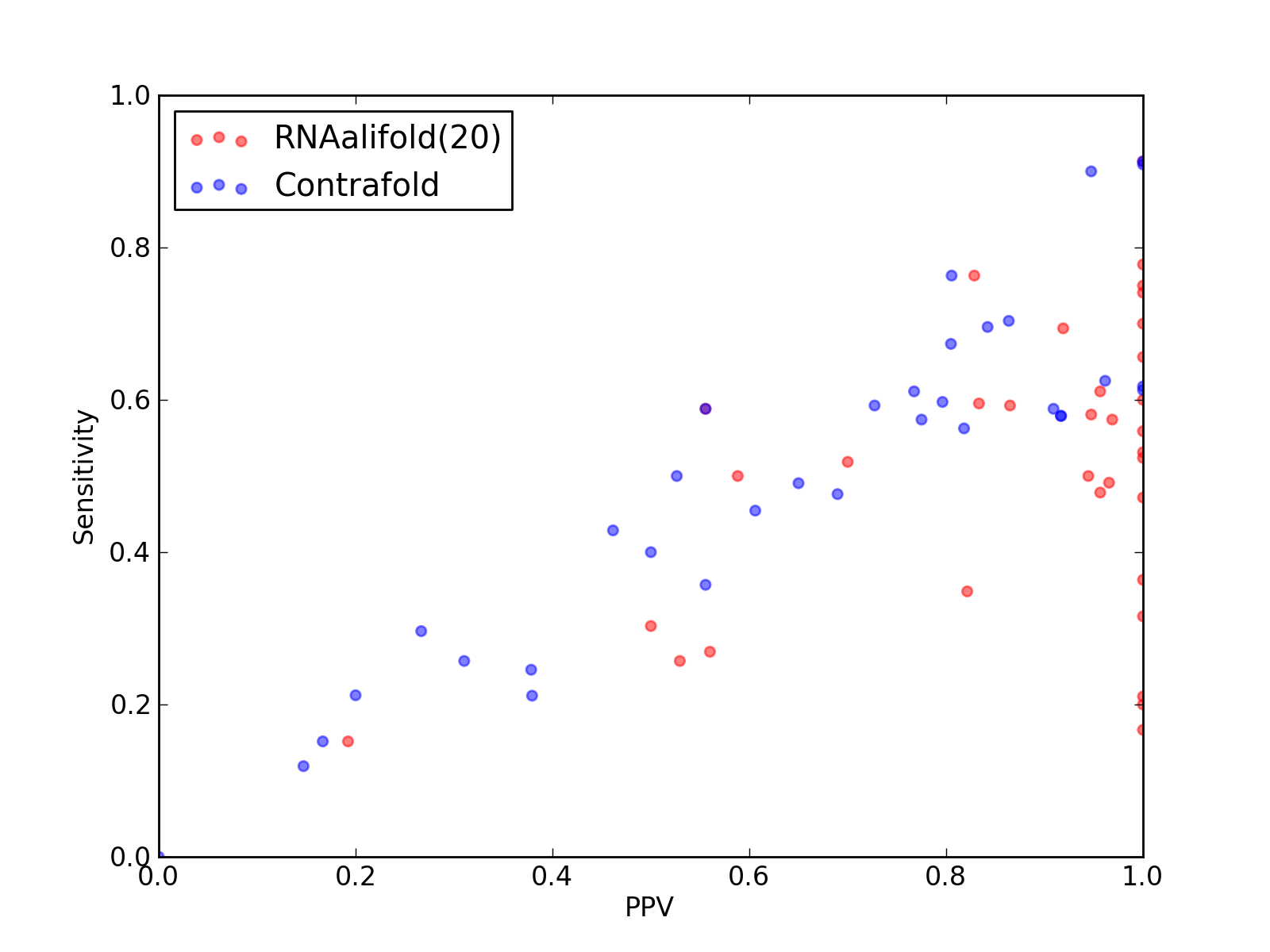

Comparison of performance of RNAalifold(20) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
-
Comparison of performance of RNAalifold(20) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
-
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
-
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
-

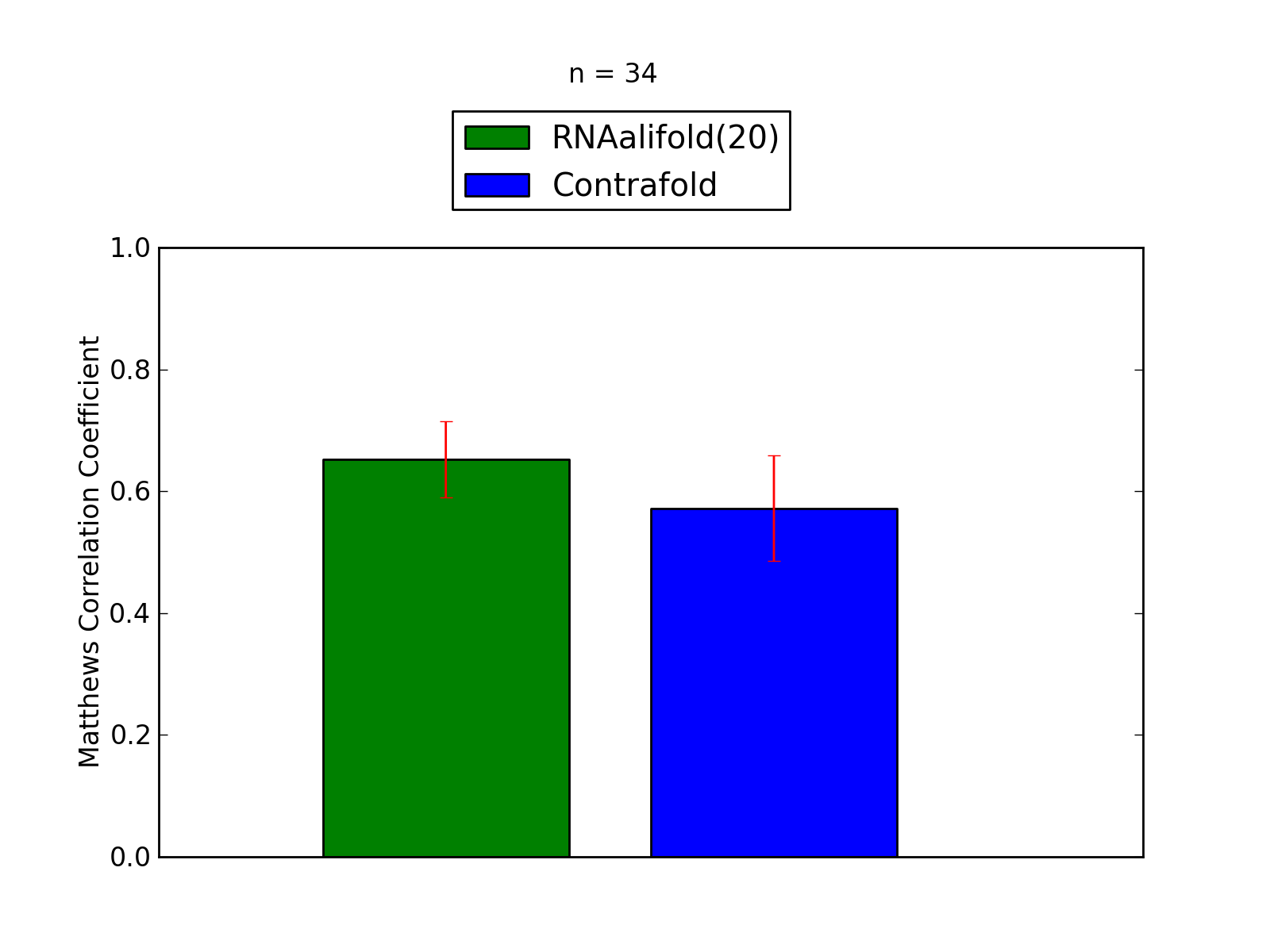

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
-
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data
(individual counts for RNAalifold(20)
and Contrafold).
Performance of RNAalifold(20)
- scored higher in this pairwise comparison
1. Total counts & total scores for RNAalifold(20)
| Total Base Pair Counts |
|---|
| Total TP |
655 |
| Total TN |
247698 |
| Total FP |
150 |
| Total FP CONTRA |
22 |
| Total FP INCONS |
85 |
| Total FP COMP |
43 |
| Total FN |
650 |
| Total Scores |
|---|
| MCC |
0.656 |
| Average MCC ± 95% Confidence Intervals |
0.652
±
0.062
|
| Sensitivity |
0.502 |
| Positive Predictive Value |
0.860 |
| Nr of predictions |
34 |
Performance of Contrafold
- scored lower in this pairwise comparison
1. Total counts & total scores for Contrafold
| Total Base Pair Counts |
|---|
| Total TP |
634 |
| Total TN |
247454 |
| Total FP |
436 |
| Total FP CONTRA |
51 |
| Total FP INCONS |
321 |
| Total FP COMP |
64 |
| Total FN |
671 |
| Total Scores |
|---|
| MCC |
0.551 |
| Average MCC ± 95% Confidence Intervals |
0.572
±
0.087
|
| Sensitivity |
0.486 |
| Positive Predictive Value |
0.630 |
| Nr of predictions |
34 |
Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based
on the paper by Gardener & Giegerich, 2004.
|
