Overview

Metric	RNAalifold(20)		Murlet(20)
MCC	0.656	>	0.577
Average MCC ± 95% Confidence Intervals	0.652 ± 0.062	>	0.577 ± 0.062
Sensitivity	0.502	>	0.423
Positive Predictive Value	0.860	>	0.791
Total TP	655	>	552
Total TN	247698	<	247762
Total FP	150	<	182
Total FP CONTRA	22	>	16
Total FP INCONS	85	<	130
Total FP COMP	43	>	36
Total FN	650	<	753
P-value	5.23657817852e-08

^top

Performance plots

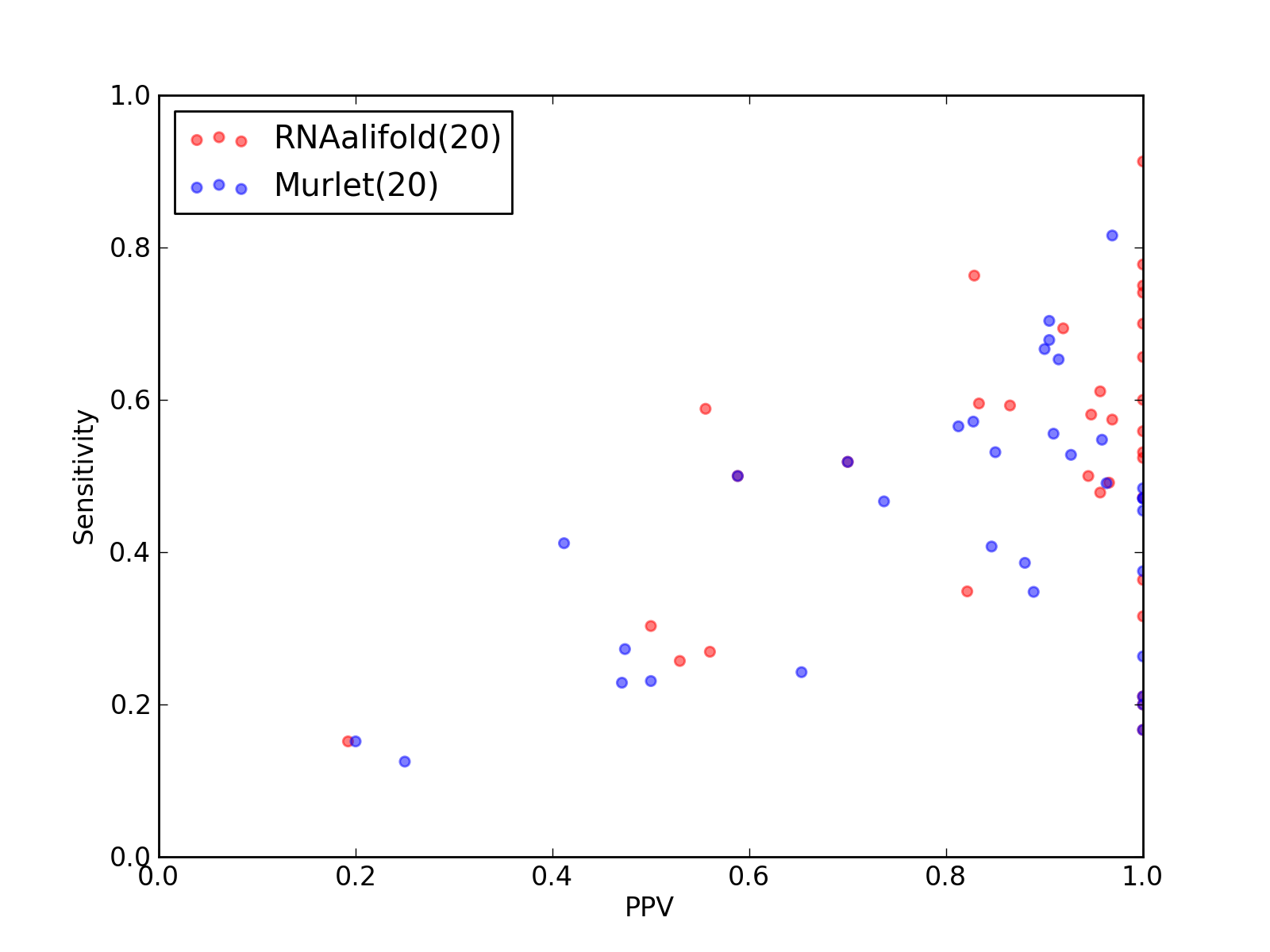

Comparison of performance of RNAalifold(20) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).
Comparison of performance of RNAalifold(20) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(20) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(20) and Murlet(20)).

^top

Performance of RNAalifold(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(20)

Total Base Pair Counts
Total TP	655
Total TN	247698
Total FP	150
Total FP CONTRA	22
Total FP INCONS	85
Total FP COMP	43
Total FN	650

Total Scores
MCC	0.656
Average MCC ± 95% Confidence Intervals	0.652 ± 0.062
Sensitivity	0.502
Positive Predictive Value	0.860
Nr of predictions	34

^top

2. Individual counts for RNAalifold(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.60	0.36	1.00	4	402	0	0	0	0	7
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	3	0	0	3	16
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	7	5144	0	0	0	0	35
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3AMU_B	tRNA links to Rfam database...	0.86	0.74	1.00	20	2983	1	0	0	1	7
3G4S_9	5S_rRNA links to Rfam database...	0.69	0.49	0.97	28	7352	3	1	0	2	29
3GX2_A	SAM links to Rfam database...	0.77	0.60	1.00	24	4347	1	0	0	1	16
3IVN_B	Purine links to Rfam database...	0.74	0.58	0.95	18	2327	1	1	0	0	13
3IZ4_A	tmRNA links to Rfam database...	0.53	0.35	0.82	46	70820	15	4	6	5	86
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.59	0.86	32	6866	5	1	4	0	22
3J20_0	tRNA links to Rfam database...	0.84	0.70	1.00	21	2829	0	0	0	0	9
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J2L_3	5S_rRNA links to Rfam database...	0.69	0.47	1.00	25	7850	2	0	0	2	28
3JYV_7	tRNA links to Rfam database...	0.81	0.66	1.00	21	2829	0	0	0	0	11
3JYX_4	5_8S_rRNA links to Rfam database...	0.39	0.30	0.50	10	12226	15	0	10	5	23
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	17	0	6	11	13
3LA5_A	Purine links to Rfam database...	0.75	0.56	1.00	19	2466	0	0	0	0	15
3NPB_A	SAM links to Rfam database...	0.68	0.48	0.96	22	6998	3	1	0	2	24
3O58_2	5S_rRNA links to Rfam database...	0.79	0.76	0.83	29	7225	7	3	3	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.26	0.53	9	12386	8	2	6	0	26
3PDR_A	ykoK links to Rfam database...	0.76	0.61	0.96	44	12834	3	0	2	1	28
3RKF_A	Purine links to Rfam database...	0.68	0.50	0.94	17	2193	1	0	1	0	17
3SD1_A	THF links to Rfam database...	0.70	0.60	0.83	25	3886	5	1	4	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.39	0.27	0.56	14	14171	14	1	10	3	38
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
4A1C_3	5S_rRNA links to Rfam database...	0.74	0.57	0.97	31	7108	1	0	1	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.19	5	11755	23	2	19	2	28
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.53	1.00	17	3469	0	0	0	0	15

^top

Performance of Murlet(20) - scored lower in this pairwise comparison

1. Total counts & total scores for Murlet(20)

Total Base Pair Counts
Total TP	552
Total TN	247762
Total FP	182
Total FP CONTRA	16
Total FP INCONS	130
Total FP COMP	36
Total FN	753

Total Scores
MCC	0.577
Average MCC ± 95% Confidence Intervals	0.577 ± 0.062
Sensitivity	0.423
Positive Predictive Value	0.791
Nr of predictions	34

^top

2. Individual counts for Murlet(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.67	0.45	1.00	5	401	0	0	0	0	6
2L94_A	HIV_FE links to Rfam database...	0.53	0.50	0.59	10	973	7	0	7	0	10
2WRQ_Y	tRNA links to Rfam database...	0.41	0.41	0.41	7	2833	12	6	4	2	10
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.45	0.20	1.00	4	4556	3	0	0	3	16
2XQD_Y	tRNA links to Rfam database...	0.80	0.70	0.90	19	2829	2	0	2	0	8
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.41	0.17	1.00	7	5144	0	0	0	0	35
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.77	0.67	0.90	18	2983	3	0	2	1	9
3G4S_9	5S_rRNA links to Rfam database...	0.58	0.39	0.88	22	7356	3	1	2	0	35
3GX2_A	SAM links to Rfam database...	0.61	0.38	1.00	15	4356	1	0	0	1	25
3IVN_B	Purine links to Rfam database...	0.69	0.48	1.00	15	2331	0	0	0	0	16
3IZ4_A	tmRNA links to Rfam database...	0.40	0.24	0.65	32	70827	21	1	16	4	100
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.56	0.91	30	6870	4	0	3	1	24
3J20_0	tRNA links to Rfam database...	0.58	0.47	0.74	14	2831	5	0	5	0	16
3J20_1	tRNA links to Rfam database...	0.68	0.57	0.81	13	2910	3	0	3	0	10
3J2L_3	5S_rRNA links to Rfam database...	0.69	0.49	0.96	26	7848	3	0	1	2	27
3JYV_7	tRNA links to Rfam database...	0.67	0.53	0.85	17	2830	3	0	3	0	15
3JYX_4	5_8S_rRNA links to Rfam database...	0.36	0.27	0.47	9	12227	15	0	10	5	24
3JYX_3	5S_rRNA links to Rfam database...	0.60	0.52	0.70	14	6308	11	0	6	5	13
3LA5_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2469	0	0	0	0	18
3NPB_A	SAM links to Rfam database...	0.55	0.35	0.89	16	7003	2	1	1	0	30
3O58_2	5S_rRNA links to Rfam database...	0.89	0.82	0.97	31	7228	2	0	1	1	7
3O58_3	5_8S_rRNA links to Rfam database...	0.33	0.23	0.47	8	12386	12	2	7	3	27
3PDR_A	ykoK links to Rfam database...	0.70	0.53	0.93	38	12839	3	0	3	0	34
3RKF_A	Purine links to Rfam database...	0.68	0.47	1.00	16	2195	0	0	0	0	18
3SD1_A	THF links to Rfam database...	0.68	0.57	0.83	24	3887	5	1	4	0	18
3ZEX_C	5_8S_rRNA links to Rfam database...	0.34	0.23	0.50	12	14172	15	1	11	3	40
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
4A1C_3	5S_rRNA links to Rfam database...	0.59	0.41	0.85	22	7114	4	0	4	0	32
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.15	0.20	5	11756	24	2	18	4	28
4AOB_A	SAM links to Rfam database...	0.72	0.55	0.96	23	4347	2	0	1	1	19
4ENB_A	crcB links to Rfam database...	0.46	0.21	1.00	4	1271	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.13	0.25	4	3470	12	1	11	0	28

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
