Overview

Metric	RNAalifold(seed)		Contrafold
MCC	0.631	>	0.598
Average MCC ± 95% Confidence Intervals	0.603 ± 0.076	<	0.677 ± 0.092
Sensitivity	0.460	<	0.532
Positive Predictive Value	0.866	>	0.673
Total TP	838	<	969
Total TN	1380645	>	1380174
Total FP	151	<	528
Total FP CONTRA	18	<	64
Total FP INCONS	112	<	406
Total FP COMP	21	<	58
Total FN	982	>	851
P-value	7.5939721025e-08

^top

Performance plots

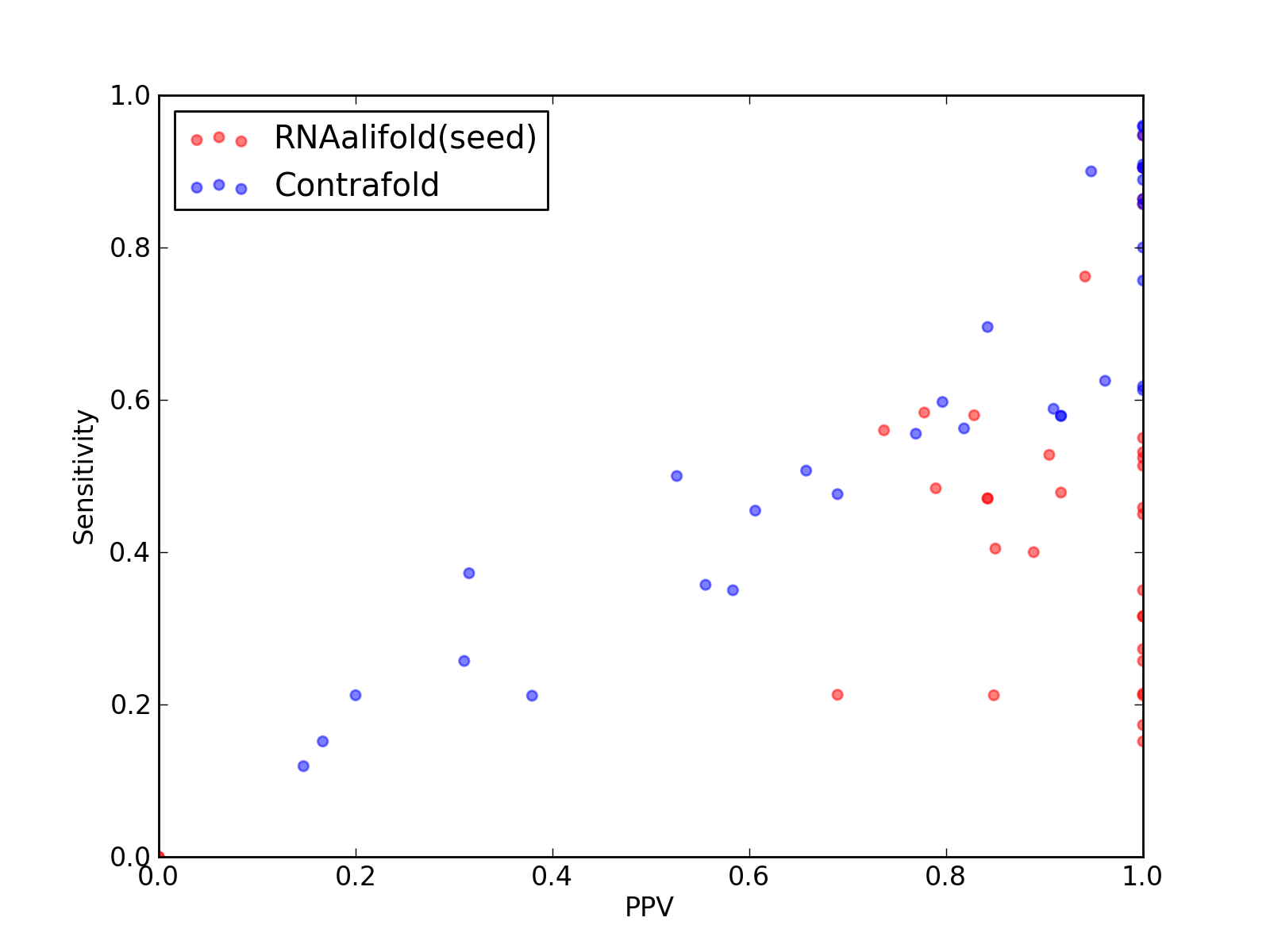

Comparison of performance of RNAalifold(seed) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Comparison of performance of RNAalifold(seed) and Contrafold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and Contrafold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and Contrafold).

^top

Performance of RNAalifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	838
Total TN	1380645
Total FP	151
Total FP CONTRA	18
Total FP INCONS	112
Total FP COMP	21
Total FN	982

Total Scores
MCC	0.631
Average MCC ± 95% Confidence Intervals	0.603 ± 0.076
Sensitivity	0.460
Positive Predictive Value	0.866
Nr of predictions	34

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.52	0.27	1.00	3	403	0	0	0	0	8
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.84	0.76	0.94	16	1111	1	0	1	0	5
2KX8_A	7SK links to Rfam database...	0.00	0.00	0.00	0	861	0	0	0	0	18
2L1F_A	Gammaretro_CES links to Rfam database...	0.67	0.58	0.78	14	2062	4	0	4	0	10
2L1F_B	Gammaretro_CES links to Rfam database...	0.64	0.56	0.74	14	2126	5	0	5	0	11
2L94_A	HIV_FE links to Rfam database...	0.59	0.40	0.89	8	981	1	0	1	0	12
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1528	12	0	12	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.59	0.35	1.00	7	4553	2	0	0	2	13
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	9	5142	0	0	0	0	33
3A3A_A	tRNA-Sec links to Rfam database...	0.71	0.51	1.00	19	3636	0	0	0	0	18
3GX2_A	SAM links to Rfam database...	0.74	0.55	1.00	22	4349	1	0	0	1	18
3IVN_B	Purine links to Rfam database...	0.61	0.48	0.79	15	2327	4	2	2	0	16
3IYQ_A	tmRNA links to Rfam database...	0.38	0.21	0.69	20	60697	13	5	4	4	74
3IZ4_A	tmRNA links to Rfam database...	0.42	0.21	0.85	28	70843	5	1	4	0	104
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.69	0.58	0.83	367	1116322	80	5	71	4	266
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3LA5_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2466	3	1	2	0	18
3NPB_A	SAM links to Rfam database...	0.66	0.48	0.92	22	6997	3	1	1	1	24
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.68	0.46	1.00	33	12847	1	0	0	1	39
3RKF_A	Purine links to Rfam database...	0.63	0.47	0.84	16	2192	3	1	2	0	18
3SD1_A	THF links to Rfam database...	0.58	0.40	0.85	17	3896	3	1	2	0	25
3W3S_B	tRNA-Sec links to Rfam database...	0.67	0.45	1.00	18	4735	1	0	0	1	22
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.17	1.00	9	14187	0	0	0	0	43
4A1C_2	5_8S_rRNA links to Rfam database...	0.39	0.15	1.00	5	11776	2	0	0	2	28
4AOB_A	SAM links to Rfam database...	0.72	0.52	1.00	22	4349	1	0	0	1	20
4ENB_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1269	0	0	0	0	13
4ENC_A	crcB links to Rfam database...	0.56	0.32	1.00	6	1320	0	0	0	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.53	1.00	17	3469	0	0	0	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.69	0.53	0.90	19	5130	2	1	1	0	17

^top

Performance of Contrafold - scored lower in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	969
Total TN	1380174
Total FP	528
Total FP CONTRA	64
Total FP INCONS	406
Total FP COMP	58
Total FN	851

Total Scores
MCC	0.598
Average MCC ± 95% Confidence Intervals	0.677 ± 0.092
Sensitivity	0.532
Positive Predictive Value	0.673
Nr of predictions	34

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.92	0.90	0.95	18	971	1	0	1	0	2
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	2	3	0	13
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	25	0	9	16	10
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.13	0.12	0.15	5	5117	29	1	28	0	37
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3GX2_A	SAM links to Rfam database...	0.77	0.63	0.96	25	4345	2	0	1	1	15
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IYQ_A	tmRNA links to Rfam database...	0.34	0.37	0.32	35	60615	80	21	55	4	59
3IZ4_A	tmRNA links to Rfam database...	0.52	0.45	0.61	60	70777	44	4	35	5	72
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.58	0.51	0.66	321	1116277	172	10	157	5	312
3JYX_4	5_8S_rRNA links to Rfam database...	0.20	0.21	0.20	7	12211	35	6	22	7	26
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	32	6983	8	1	5	2	14
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.26	0.31	9	12374	20	3	17	0	26
3PDR_A	ykoK links to Rfam database...	0.69	0.60	0.80	43	12826	13	0	11	2	29
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.57	0.48	0.69	20	3887	9	2	7	0	22
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.28	0.21	0.38	11	14167	22	3	15	4	41
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	33	5	20	8	28
4AOB_A	SAM links to Rfam database...	0.44	0.36	0.56	15	4344	13	1	11	1	27
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1314	1	1	0	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.68	0.56	0.82	18	3464	4	1	3	0	14
4FRN_A	AdoCbl-variant links to Rfam database...	0.65	0.56	0.77	20	5125	6	1	5	0	16

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
