Overview

Metric	RNAfold		RDfolder
MCC	0.697	>	0.592
Average MCC ± 95% Confidence Intervals	0.723 ± 0.059	>	0.624 ± 0.069
Sensitivity	0.623	>	0.491
Positive Predictive Value	0.788	>	0.724
Total TP	1128	>	889
Total TN	138538	<	138742
Total FP	362	<	372
Total FP CONTRA	29	<	37
Total FP INCONS	275	<	302
Total FP COMP	58	>	33
Total FN	682	<	921
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of RNAfold and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and RDfolder).
Comparison of performance of RNAfold and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and RDfolder).

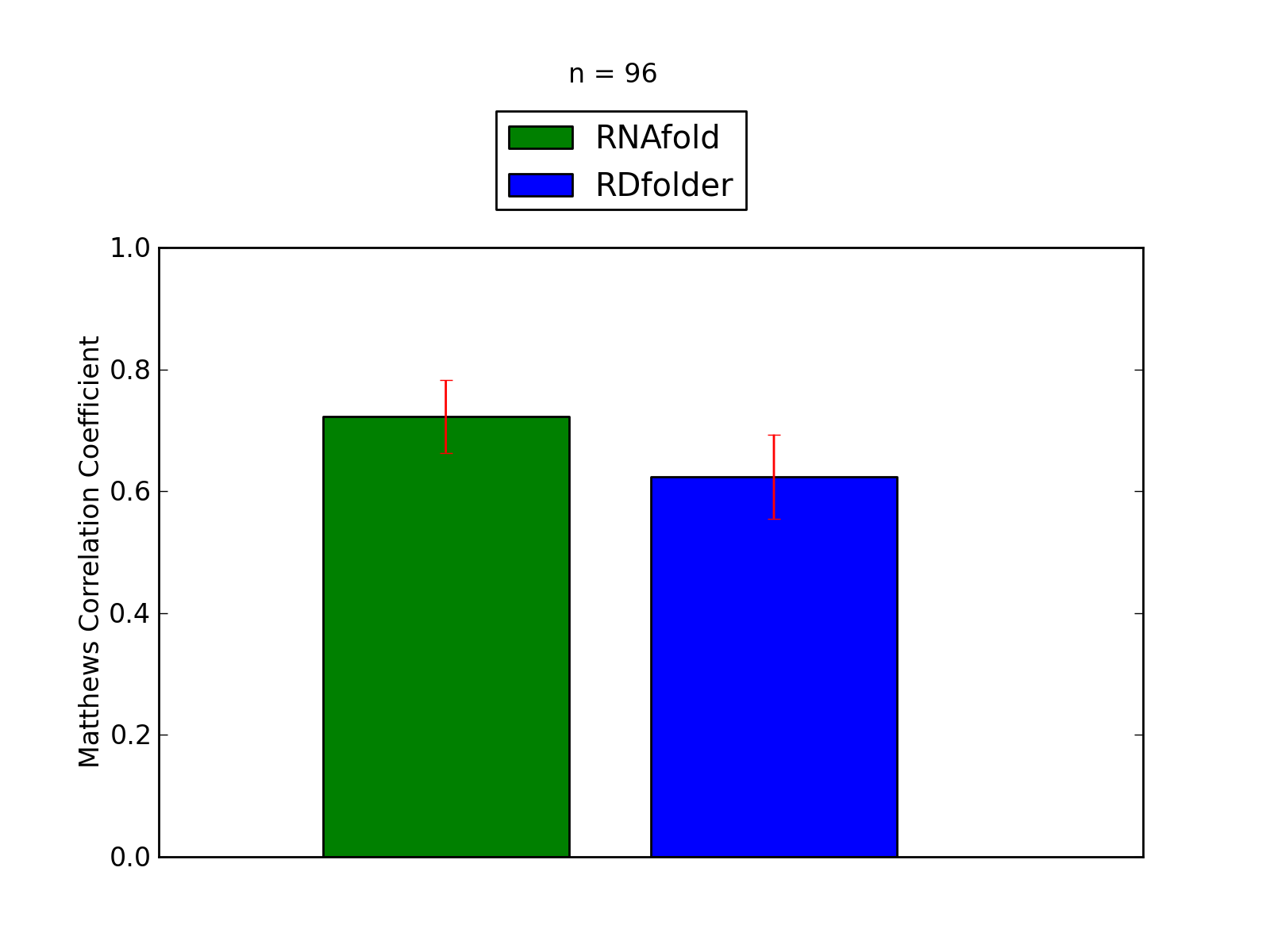

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and RDfolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and RDfolder).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	1128
Total TN	138538
Total FP	362
Total FP CONTRA	29
Total FP INCONS	275
Total FP COMP	58
Total FN	682

Total Scores
MCC	0.697
Average MCC ± 95% Confidence Intervals	0.723 ± 0.059
Sensitivity	0.623
Positive Predictive Value	0.788
Nr of predictions	96

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	395	0	0	0	0	0
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KGP_A	-	1.00	1.00	1.00	9	291	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KU0_A	-	0.86	0.75	1.00	12	691	0	0	0	0	4
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.89	0.80	1.00	8	343	0	0	0	0	2
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.61	0.55	0.69	11	1524	5	0	5	0	9
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.83	0.70	1.00	7	224	0	0	0	0	3
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_X	-	0.25	0.25	0.27	3	1367	11	1	7	3	9
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.82	0.78	0.88	21	2461	3	0	3	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.33	0.32	0.35	12	4152	22	0	22	0	26
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	-0.02	0.00	0.00	0	345	6	0	6	0	10
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.94	0.89	1.00	16	1637	2	0	0	2	2
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.44	0.33	0.60	3	491	5	0	2	3	6
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3KTW_C	-	0.73	0.63	0.84	27	4528	6	2	3	1	16
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.50	0.61	20	4720	14	1	12	1	20
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

Total Base Pair Counts
Total TP	889
Total TN	138742
Total FP	372
Total FP CONTRA	37
Total FP INCONS	302
Total FP COMP	33
Total FN	921

Total Scores
MCC	0.592
Average MCC ± 95% Confidence Intervals	0.624 ± 0.069
Sensitivity	0.491
Positive Predictive Value	0.724
Nr of predictions	96

^top

2. Individual counts for RDfolder [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.79	0.64	1.00	7	399	0	0	0	0	4
2K63_A	-	0.89	0.80	1.00	8	398	0	0	0	0	2
2K66_A	-	0.89	0.80	1.00	8	223	0	0	0	0	2
2KD8_A	-	0.94	0.89	1.00	8	223	0	0	0	0	1
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.89	0.79	1.00	15	1113	1	0	0	1	4
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	0.49	0.25	1.00	5	625	0	0	0	0	15
2KGP_A	-	1.00	1.00	1.00	9	291	0	0	0	0	0
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KU0_A	-	-0.01	0.00	0.00	0	696	7	0	7	0	16
2KUR_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KUU_A	K10_TLS links to Rfam database...	0.84	0.71	1.00	15	1113	1	0	0	1	6
2KUV_A	K10_TLS links to Rfam database...	0.85	0.73	1.00	16	1112	0	0	0	0	6
2KUW_A	K10_TLS links to Rfam database...	0.87	0.76	1.00	16	1112	0	0	0	0	5
2KX8_A	7SK links to Rfam database...	0.88	0.78	1.00	14	847	0	0	0	0	4
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.78	0.74	0.82	14	1468	3	1	2	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	-0.01	0.00	0.00	0	2067	13	2	11	0	24
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.46	0.26	0.83	5	624	1	0	1	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1526	14	2	12	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	0	0	0	0	2
2LDT_A	-	0.68	0.47	1.00	7	458	0	0	0	0	8
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	-0.03	0.00	0.00	0	186	4	1	3	0	7
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_D	-	0.29	0.12	0.75	3	1949	1	0	1	0	23
2WW9_F	-	0.71	0.60	0.86	6	293	1	0	1	0	4
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4538	22	5	17	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.57	0.50	0.67	12	2260	7	1	5	1	12
2YIE_X	-	0.38	0.33	0.44	4	1369	5	1	4	0	8
2YIE_Z	-	0.43	0.42	0.45	5	1529	6	3	3	0	7
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.10	0.09	0.13	3	3462	21	1	20	0	29
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.86	0.75	1.00	21	2905	0	0	0	0	7
3A3A_A	tRNA-Sec links to Rfam database...	0.53	0.41	0.71	15	3634	6	0	6	0	22
3ADB_C	-	0.46	0.39	0.54	15	4158	13	0	13	0	23
3AKZ_H	tRNA links to Rfam database...	0.48	0.43	0.55	12	2679	11	1	9	1	16
3AM1_B	-	0.47	0.43	0.54	15	3212	13	1	12	0	20
3AMU_B	tRNA links to Rfam database...	0.18	0.15	0.22	4	2985	16	2	12	2	23
3DW4_A	-	-0.02	0.00	0.00	0	347	4	0	4	0	10
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.50	0.40	0.64	16	4346	10	1	8	1	24
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.85	0.78	0.93	14	1638	3	0	1	2	4
3IAB_R	-	0.86	0.86	0.86	12	1021	4	1	1	2	2
3ID5_D	-	-0.01	0.00	0.00	0	490	6	3	3	0	9
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.00	0.00	0.00	0	4268	10	0	10	0	33
3J0L_8	-	0.86	0.75	1.00	6	184	0	0	0	0	2
3J0L_a	-	-0.01	0.00	0.00	0	1124	4	1	3	0	16
3J0L_1	-	0.65	0.47	0.90	9	1215	2	0	1	1	10
3J0L_7	-	-0.01	0.00	0.00	0	1220	5	0	5	0	17
3J0L_g	-	-0.01	0.00	0.00	0	462	3	1	2	0	4
3J16_L	tRNA links to Rfam database...	0.22	0.17	0.31	5	2759	11	0	11	0	25
3J20_0	tRNA links to Rfam database...	0.73	0.57	0.94	17	2832	2	0	1	1	13
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2830	20	0	20	0	32
3KTW_C	-	0.08	0.07	0.12	3	4535	23	0	22	1	40
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NKB_B	-	0.37	0.31	0.47	8	1999	9	0	9	0	18
3NMU_E	-	0.41	0.17	1.00	1	560	3	0	0	3	5
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.91	0.83	1.00	10	731	0	0	0	0	2
3R4F_A	-	0.76	0.68	0.85	17	2125	3	1	2	0	8
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.30	0.17	0.54	7	3903	6	0	6	0	35
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	0	0	0	0	1
3TS0_U	-	0.91	0.83	1.00	5	248	0	0	0	0	1
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3W3S_B	tRNA-Sec links to Rfam database...	0.27	0.23	0.33	9	4726	18	1	17	0	31
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.35	0.26	0.48	11	4348	13	1	11	1	31
4ATO_G	-	0.63	0.40	1.00	4	524	0	0	0	0	6
4ENB_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1265	4	0	4	0	13
4ENC_A	crcB links to Rfam database...	0.43	0.32	0.60	6	1316	4	0	4	0	13
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

2. Individual counts for RNAfold [ download as .csv ]

Performance of RDfolder - scored lower in this pairwise comparison

1. Total counts & total scores for RDfolder

2. Individual counts for RDfolder [ download as .csv ]
