Overview

Metric	RNAsubopt		Vsfold5
MCC	0.619	>	0.510
Average MCC ± 95% Confidence Intervals	0.676 ± 0.052	>	0.601 ± 0.058
Sensitivity	0.557	>	0.441
Positive Predictive Value	0.693	>	0.596
Total TP	1788	>	1415
Total TN	465986	<	466193
Total FP	912	<	1045
Total FP CONTRA	101	<	110
Total FP INCONS	692	<	849
Total FP COMP	119	>	86
Total FN	1422	<	1795
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of RNAsubopt and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAsubopt and Vsfold5).

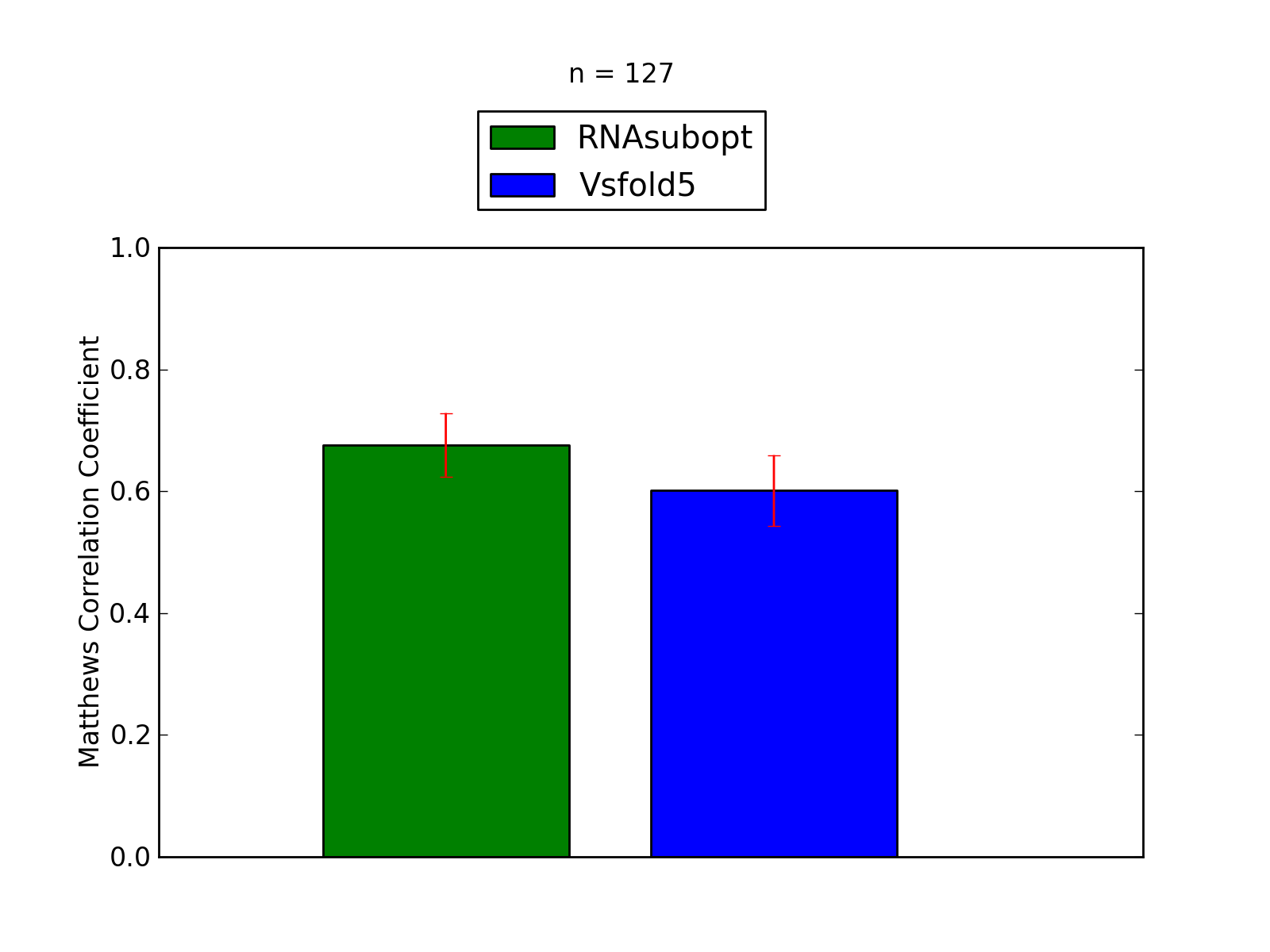

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAsubopt and Vsfold5).

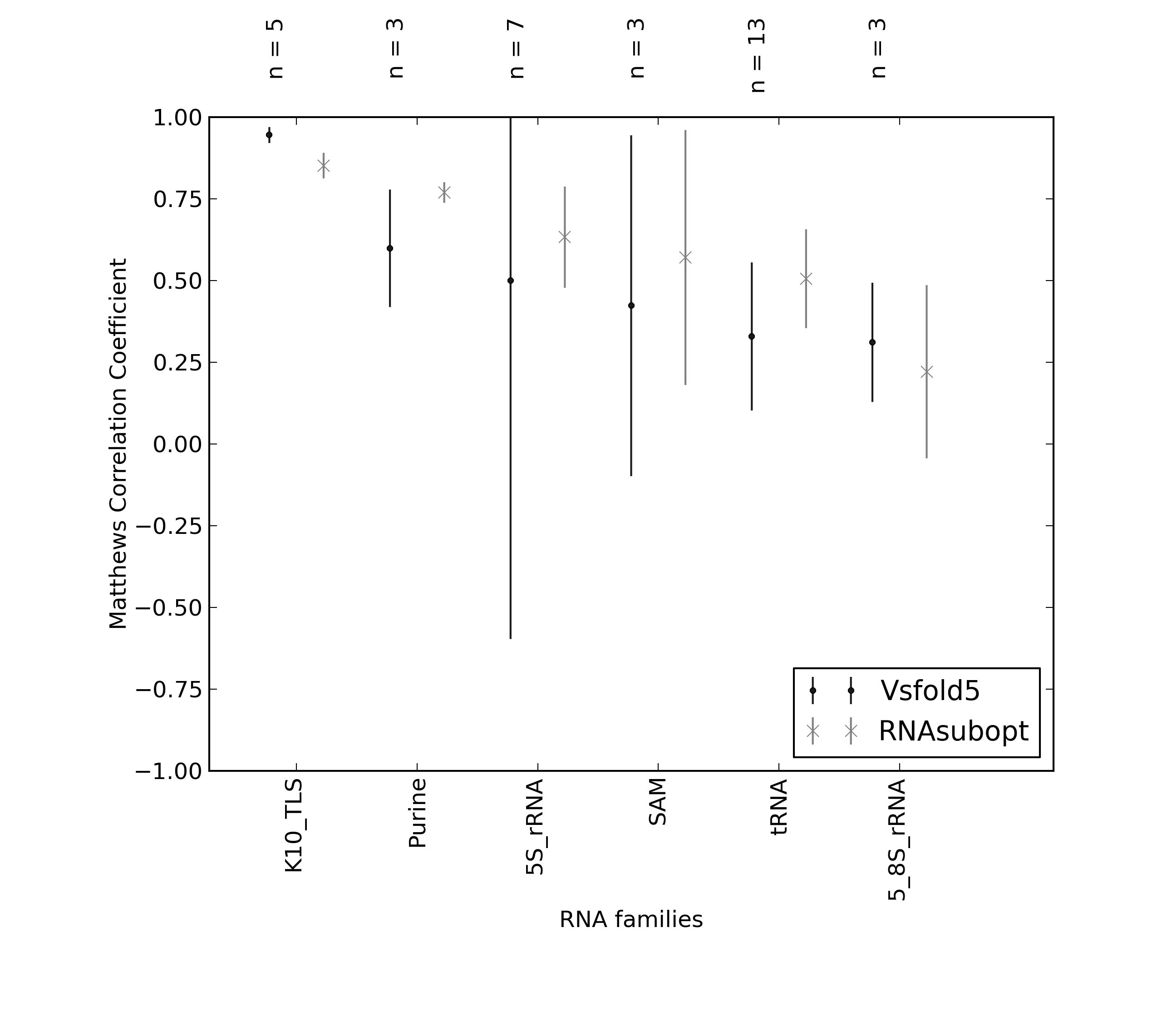

Comparison of average Matthews Correlation Coefficients (MCCs) for RNAsubopt and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAsubopt and Vsfold5).

^top

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

Total Base Pair Counts
Total TP	1788
Total TN	465986
Total FP	912
Total FP CONTRA	101
Total FP INCONS	692
Total FP COMP	119
Total FN	1422

Total Scores
MCC	0.619
Average MCC ± 95% Confidence Intervals	0.676 ± 0.052
Sensitivity	0.557
Positive Predictive Value	0.693
Nr of predictions	127

^top

2. Individual counts for RNAsubopt [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.95	0.91	1.00	10	396	0	0	0	0	1
2K63_A	-	0.89	0.80	1.00	8	398	0	0	0	0	2
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	0.88	0.78	1.00	7	224	0	0	0	0	2
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.86	0.84	0.89	16	1110	3	0	2	1	3
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KGP_A	-	1.00	1.00	1.00	9	291	0	0	0	0	0
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.52	0.43	0.65	17	5125	12	3	6	3	23
2KU0_A	-	0.83	0.69	1.00	11	692	0	0	0	0	5
2KUR_A	K10_TLS links to Rfam database...	0.85	0.81	0.89	17	1109	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.76	0.89	16	1110	3	0	2	1	5
2KUV_A	K10_TLS links to Rfam database...	0.83	0.77	0.89	17	1109	2	0	2	0	5
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2KXM_A	-	0.89	0.80	1.00	8	343	0	0	0	0	2
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.93	0.88	1.00	21	2059	0	0	0	0	3
2L1F_B	Gammaretro_CES links to Rfam database...	0.94	0.88	1.00	22	2123	0	0	0	0	3
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.87	0.76	1.00	13	548	0	0	0	0	4
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.81	0.77	0.86	30	6070	9	0	5	4	9
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.83	0.70	1.00	7	224	0	0	0	0	3
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	12	5	3	4	7
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_D	-	0.15	0.12	0.21	3	1939	11	4	7	0	23
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.75	0.67	0.86	18	2829	3	0	3	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.47	0.43	0.53	18	5117	16	1	15	0	24
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.66	0.63	0.71	15	2257	8	1	5	2	9
2YIE_X	-	0.82	0.67	1.00	8	1370	3	0	0	3	4
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.23	0.22	0.26	7	3459	20	2	18	0	25
2ZZN_D	tRNA links to Rfam database...	0.48	0.44	0.52	12	2462	11	1	10	0	15
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.92	0.84	1.00	32	4154	0	0	0	0	6
3AKZ_H	tRNA links to Rfam database...	0.39	0.36	0.43	10	2678	13	2	11	0	18
3AM1_B	-	0.91	0.83	1.00	29	3211	0	0	0	0	6
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	-0.02	0.00	0.00	0	345	6	0	6	0	10
3G4S_9	5S_rRNA links to Rfam database...	0.28	0.23	0.35	13	7344	24	1	23	0	44
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.44	0.38	0.54	15	4343	14	1	12	1	25
3HAY_E	-	0.91	0.83	1.00	15	2263	3	0	0	3	3
3HJW_D	-	0.91	0.83	1.00	15	1638	2	0	0	2	3
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.40	0.33	0.50	3	490	5	0	3	2	6
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IWN_A	c-di-GMP-I links to Rfam database...	0.63	0.58	0.70	19	4251	9	0	8	1	14
3IYQ_A	tmRNA links to Rfam database...	0.33	0.36	0.30	34	60614	82	17	61	4	60
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.56	62	70766	49	8	40	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J0L_2	-	0.25	0.24	0.28	8	6187	25	0	21	4	25
3J0L_7	-	-0.01	0.00	0.00	0	1213	12	0	12	0	17
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_a	-	0.35	0.31	0.42	5	1116	7	1	6	0	11
3J16_L	tRNA links to Rfam database...	0.41	0.37	0.48	11	2752	12	1	11	0	19
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J2C_O	-	0.56	0.49	0.65	31	10248	17	1	16	0	32
3J2L_3	5S_rRNA links to Rfam database...	0.61	0.53	0.72	28	7836	13	0	11	2	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2829	21	0	21	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.19	0.21	0.17	7	12204	38	11	24	3	26
3JYX_3	5S_rRNA links to Rfam database...	0.63	0.63	0.63	17	6301	21	1	9	11	10
3KTW_C	-	0.75	0.65	0.88	28	4528	5	2	2	1	15
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.57	0.50	0.65	13	1996	7	0	7	0	13
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.75	0.65	0.86	30	6986	7	1	4	2	16
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3O58_2	5S_rRNA links to Rfam database...	0.72	0.74	0.70	28	7220	13	4	8	1	10
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.87	0.78	0.97	31	4721	2	0	1	1	9
3ZEX_D	5S_rRNA links to Rfam database...	0.80	0.69	0.92	34	6984	3	0	3	0	15
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	4	48	2	77
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.52	0.43	0.64	18	4343	11	2	8	1	24
4ATO_G	-	0.30	0.30	0.33	3	519	6	2	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	0	7	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.44	0.59	16	5124	11	3	8	0	20

^top

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

Total Base Pair Counts
Total TP	1415
Total TN	466193
Total FP	1045
Total FP CONTRA	110
Total FP INCONS	849
Total FP COMP	86
Total FN	1795

Total Scores
MCC	0.510
Average MCC ± 95% Confidence Intervals	0.601 ± 0.058
Sensitivity	0.441
Positive Predictive Value	0.596
Nr of predictions	127

^top

2. Individual counts for Vsfold5 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	395	0	0	0	0	0
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.90	0.82	1.00	9	397	0	0	0	0	2
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KEZ_A	-	0.70	0.50	1.00	5	271	0	0	0	0	5
2KFC_A	-	0.48	0.35	0.70	7	620	3	0	3	0	13
2KGP_A	-	0.81	0.67	1.00	6	294	1	0	0	1	3
2KMJ_A	-	0.95	0.91	1.00	10	368	0	0	0	0	1
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.57	0.50	0.65	20	5120	11	5	6	0	20
2KU0_A	-	-0.02	0.00	0.00	0	692	11	0	11	0	16
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.91	0.83	1.00	15	846	0	0	0	0	3
2KXM_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.69	0.58	0.82	14	2063	3	0	3	0	10
2L1F_B	Gammaretro_CES links to Rfam database...	0.70	0.60	0.83	15	2127	3	0	3	0	10
2L2K_A	-	0.89	0.79	1.00	15	846	0	0	0	0	4
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.87	0.76	1.00	26	2459	0	0	0	0	8
2L5Z_A	-	0.60	0.50	0.75	6	317	2	0	2	0	6
2L94_A	HIV_FE links to Rfam database...	0.95	0.90	1.00	18	972	0	0	0	0	2
2LA5_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	19
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2LDL_A	-	0.85	0.73	1.00	8	343	1	0	0	1	3
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2LKR_A	-	0.27	0.23	0.32	9	6077	19	2	17	0	30
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	0.70	0.71	0.71	5	183	2	0	2	0	2
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	12	5	3	4	8
2WW9_E	-	-0.01	0.00	0.00	0	556	5	0	5	0	14
2WW9_D	-	0.15	0.12	0.21	3	1939	11	1	10	0	23
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WWQ_V	tRNA links to Rfam database...	0.64	0.50	0.82	14	2909	4	0	3	1	14
2XKV_B	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	4528	32	12	20	0	20
2XQD_Y	tRNA links to Rfam database...	0.86	0.74	1.00	20	2830	0	0	0	0	7
2XXA_G	Bacteria_small_SRP links to Rfam database...	-0.01	0.00	0.00	0	5120	31	2	29	0	42
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.61	0.54	0.68	13	2259	7	1	5	1	11
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1529	11	3	8	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.19	0.19	0.21	6	3458	22	1	21	0	26
2ZZN_D	tRNA links to Rfam database...	0.86	0.78	0.95	21	2463	1	0	1	0	6
3A2K_C	tRNA links to Rfam database...	0.84	0.71	1.00	20	2906	0	0	0	0	8
3A3A_A	tRNA-Sec links to Rfam database...	0.85	0.73	1.00	27	3628	0	0	0	0	10
3ADB_C	-	0.67	0.53	0.87	20	4163	3	0	3	0	18
3AKZ_H	tRNA links to Rfam database...	0.84	0.71	1.00	20	2681	0	0	0	0	8
3AM1_B	-	0.78	0.71	0.86	25	3211	4	1	3	0	10
3AMU_B	tRNA links to Rfam database...	0.67	0.59	0.76	16	2982	7	0	5	2	11
3DW4_A	-	0.70	0.50	1.00	5	346	0	0	0	0	5
3G4S_9	5S_rRNA links to Rfam database...	0.08	0.07	0.11	4	7344	33	0	33	0	53
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.51	0.40	0.67	16	4347	9	0	8	1	24
3HAY_E	-	0.91	0.83	1.00	15	2263	3	0	0	3	3
3HJW_D	-	0.48	0.50	0.47	9	1634	10	0	10	0	9
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.44	0.33	0.60	3	491	4	0	2	2	6
3IVN_B	Purine links to Rfam database...	0.76	0.58	1.00	18	2328	0	0	0	0	13
3IWN_A	c-di-GMP-I links to Rfam database...	0.25	0.21	0.30	7	4255	16	1	15	0	26
3IYQ_A	tmRNA links to Rfam database...	0.33	0.31	0.35	29	60642	61	15	40	6	65
3IZ4_A	tmRNA links to Rfam database...	0.29	0.24	0.36	32	70787	62	8	49	5	100
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.56	0.88	30	6869	4	0	4	0	24
3J0L_8	-	0.70	0.50	1.00	4	186	0	0	0	0	4
3J0L_1	-	0.27	0.21	0.36	4	1214	7	1	6	0	15
3J0L_h	-	0.18	0.14	0.24	6	6080	19	1	18	0	37
3J0L_2	-	0.35	0.33	0.37	11	6186	21	3	16	2	22
3J0L_7	-	-0.01	0.00	0.00	0	1212	13	0	13	0	17
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_a	-	0.39	0.31	0.50	5	1118	5	2	3	0	11
3J16_L	tRNA links to Rfam database...	0.82	0.67	1.00	20	2755	0	0	0	0	10
3J20_0	tRNA links to Rfam database...	0.67	0.57	0.81	17	2829	5	1	3	1	13
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	6	0	6	0	7
3J2C_O	-	0.30	0.24	0.39	15	10258	24	0	23	1	48
3J2L_3	5S_rRNA links to Rfam database...	0.56	0.45	0.71	24	7841	13	1	9	3	29
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2831	19	0	19	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.31	10	12214	32	3	19	10	23
3JYX_3	5S_rRNA links to Rfam database...	0.17	0.15	0.20	4	6308	18	4	12	2	23
3KTW_C	-	0.38	0.30	0.50	13	4534	13	3	10	0	30
3LA5_A	Purine links to Rfam database...	-0.01	0.00	0.00	0	2469	16	0	16	0	34
3NDB_M	-	0.06	0.05	0.08	3	9144	33	1	32	0	58
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.20	0.17	0.25	1	557	5	0	3	2	5
3NPB_A	SAM links to Rfam database...	0.57	0.46	0.72	21	6992	9	1	7	1	25
3O58_3	5_8S_rRNA links to Rfam database...	0.39	0.37	0.41	13	12371	28	7	12	9	22
3O58_2	5S_rRNA links to Rfam database...	0.45	0.42	0.48	16	7227	19	3	14	2	22
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.57	0.44	0.74	32	12837	13	0	11	2	40
3R4F_A	-	0.94	0.88	1.00	22	2123	0	0	0	0	3
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.75	0.65	0.88	22	2186	3	0	3	0	12
3SD1_A	THF links to Rfam database...	0.11	0.10	0.15	4	3890	22	0	22	0	38
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.16	0.14	0.20	5	3545	20	1	19	0	32
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.76	0.70	0.82	28	4719	7	1	5	1	12
3ZEX_D	5S_rRNA links to Rfam database...	0.08	0.06	0.11	3	6994	24	0	24	0	46
3ZEX_E	-	0.07	0.06	0.08	5	21886	54	5	49	0	72
4A1C_3	5S_rRNA links to Rfam database...	0.26	0.22	0.32	12	7103	25	2	23	0	42
4A1C_2	5_8S_rRNA links to Rfam database...	0.24	0.24	0.24	8	11748	37	3	22	12	25
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.18	0.14	0.25	6	4347	19	1	17	1	36
4ATO_G	-	0.56	0.60	0.55	6	517	5	1	4	0	4
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.56	0.47	0.68	15	3464	7	1	6	0	17
4FRN_A	AdoCbl-variant links to Rfam database...	0.13	0.11	0.17	4	5128	19	2	17	0	32

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of RNAsubopt - scored higher in this pairwise comparison

1. Total counts & total scores for RNAsubopt

2. Individual counts for RNAsubopt [ download as .csv ]

Performance of Vsfold5 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold5

2. Individual counts for Vsfold5 [ download as .csv ]
