Overview

Metric	RSpredict(20)		RSpredict(seed)
MCC	0.535	>	0.280
Average MCC ± 95% Confidence Intervals	0.531 ± 0.079	>	0.166 ± 0.079
Sensitivity	0.408	>	0.133
Positive Predictive Value	0.703	>	0.594
Total TP	787	>	256
Total TN	709088	<	709776
Total FP	381	>	182
Total FP CONTRA	57	>	12
Total FP INCONS	275	>	163
Total FP COMP	49	>	7
Total FN	1142	<	1673
P-value	3.56938820447e-08

^top

Performance plots

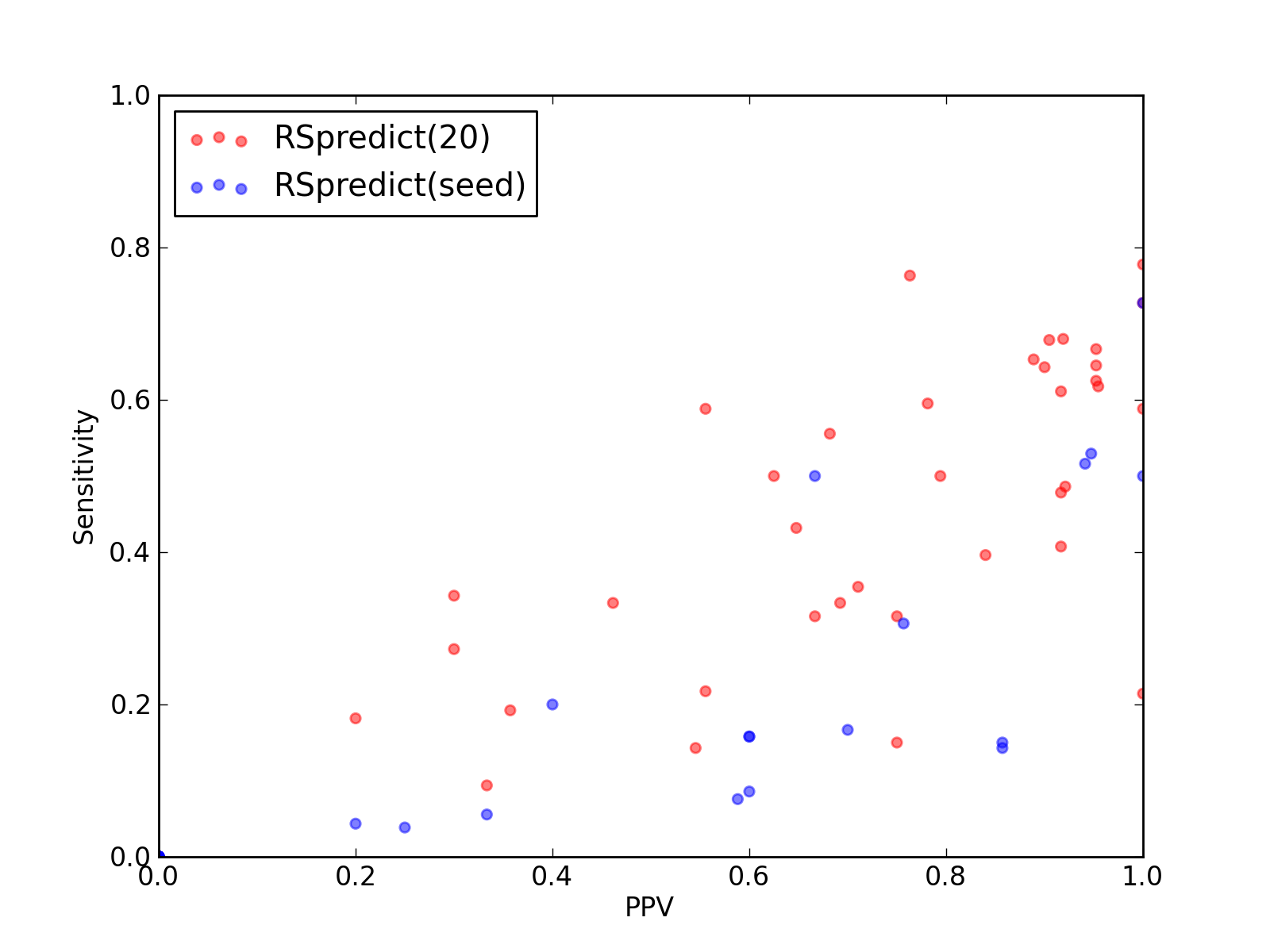

Comparison of performance of RSpredict(20) and RSpredict(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(20) and RSpredict(seed)).

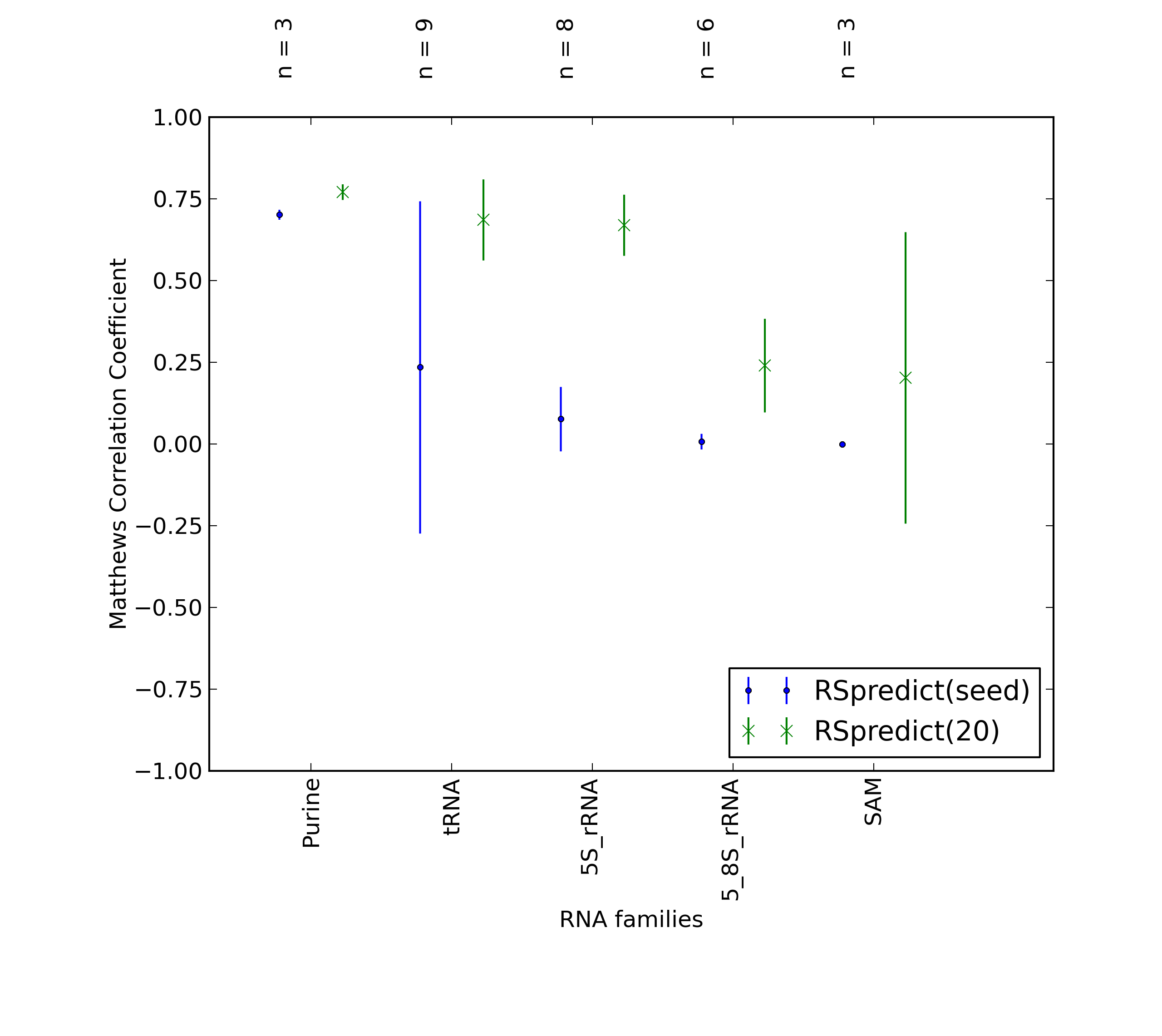

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(20) and RSpredict(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(20) and RSpredict(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(20) and RSpredict(seed)).

^top

Performance of RSpredict(20) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	787
Total TN	709088
Total FP	381
Total FP CONTRA	57
Total FP INCONS	275
Total FP COMP	49
Total FN	1142

Total Scores
MCC	0.535
Average MCC ± 95% Confidence Intervals	0.531 ± 0.079
Sensitivity	0.408
Positive Predictive Value	0.703
Nr of predictions	40

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.63	10	974	6	0	6	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4556	4	0	4	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	9	5142	0	0	0	0	33
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.61	0.41	0.92	11	2991	1	0	1	0	16
3GX2_A	SAM links to Rfam database...	0.33	0.15	0.75	6	4363	2	0	2	0	34
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZ4_A	tmRNA links to Rfam database...	0.53	0.43	0.65	57	70788	35	8	23	4	75
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	3	1	2	0	21
3J20_1	tRNA links to Rfam database...	0.66	0.48	0.92	11	2914	1	0	1	0	12
3J20_0	tRNA links to Rfam database...	0.80	0.67	0.95	20	2829	2	0	1	1	10
3J2C_N	SSU_rRNA_bacteria links to Rfam database...	0.50	0.35	0.71	162	428973	67	5	61	1	295
3J2L_3	5S_rRNA links to Rfam database...	0.58	0.40	0.84	21	7850	5	0	4	1	32
3J3D_C	tRNA links to Rfam database...	0.76	0.64	0.90	18	2755	2	0	2	0	10
3J3E_7	5S_rRNA links to Rfam database...	0.63	0.50	0.79	27	7106	7	1	6	0	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7484	19	4	15	0	33
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.68	0.92	34	7223	3	0	3	0	16
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.33	0.46	12	12220	23	2	12	9	24
3JYV_7	tRNA links to Rfam database...	0.77	0.63	0.95	20	2829	1	0	1	0	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.28	0.27	0.30	9	12216	33	5	16	12	24
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	13	0	7	6	12
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7015	6	1	5	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.34	0.30	12	12363	28	12	16	0	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.67	0.49	0.92	35	12842	5	0	3	2	37
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.68	0.60	0.78	25	3884	7	1	6	0	17
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.65	0.89	32	6985	4	1	3	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.26	0.19	0.36	10	14168	18	2	16	0	42
3ZND_W	tRNA links to Rfam database...	0.34	0.22	0.56	5	2994	7	0	4	3	18
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.33	0.69	18	7114	8	0	8	0	36
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.18	0.20	6	11751	30	6	18	6	27
4AOB_A	SAM links to Rfam database...	0.28	0.14	0.55	6	4360	5	0	5	0	36
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.45	0.32	0.67	6	1317	3	0	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.09	0.33	3	3477	6	0	6	0	29

^top

Performance of RSpredict(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	256
Total TN	709776
Total FP	182
Total FP CONTRA	12
Total FP INCONS	163
Total FP COMP	7
Total FN	1673

Total Scores
MCC	0.280
Average MCC ± 95% Confidence Intervals	0.166 ± 0.079
Sensitivity	0.133
Positive Predictive Value	0.594
Nr of predictions	40

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.57	0.50	0.67	10	975	5	0	5	0	10
2WRQ_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2848	3	1	1	1	17
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.28	0.20	0.40	4	4550	8	2	4	2	16
2XQD_Y	tRNA links to Rfam database...	0.00	0.00	0.00	0	2845	5	0	5	0	27
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.17	0.70	7	5141	3	0	3	0	35
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2924	2	0	2	0	28
3AMU_B	tRNA links to Rfam database...	0.00	0.00	0.00	0	3001	2	0	2	0	27
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3IZ4_A	tmRNA links to Rfam database...	0.21	0.08	0.59	10	70859	7	0	7	0	122
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J20_1	tRNA links to Rfam database...	0.09	0.04	0.20	1	2921	4	0	4	0	22
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	30
3J2C_N	SSU_rRNA_bacteria links to Rfam database...	0.48	0.31	0.76	140	429016	46	3	42	1	317
3J2L_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7870	5	0	5	0	53
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	2771	4	1	3	0	28
3J3E_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7132	8	0	8	0	54
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_7	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7256	4	0	4	0	50
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.06	0.33	2	12240	5	1	3	1	34
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12241	5	0	5	0	33
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6323	5	1	4	0	27
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7017	4	0	4	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3ZEX_D	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7019	2	0	2	0	49
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.04	0.25	2	14188	6	1	5	0	50
3ZND_W	tRNA links to Rfam database...	0.00	0.00	0.00	0	3000	4	0	3	1	23
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
