Overview

Metric	RSpredict(seed)		Carnac(seed)
MCC	0.466	>	0.401
Average MCC ± 95% Confidence Intervals	0.346 ± 0.106	>	0.158 ± 0.099
Sensitivity	0.309	>	0.178
Positive Predictive Value	0.705	<	0.908
Total TP	583	>	335
Total TN	1302739	<	1303197
Total FP	254	>	36
Total FP CONTRA	17	>	3
Total FP INCONS	227	>	31
Total FP COMP	10	>	2
Total FN	1304	<	1552
P-value	3.56938820447e-08

^top

Performance plots

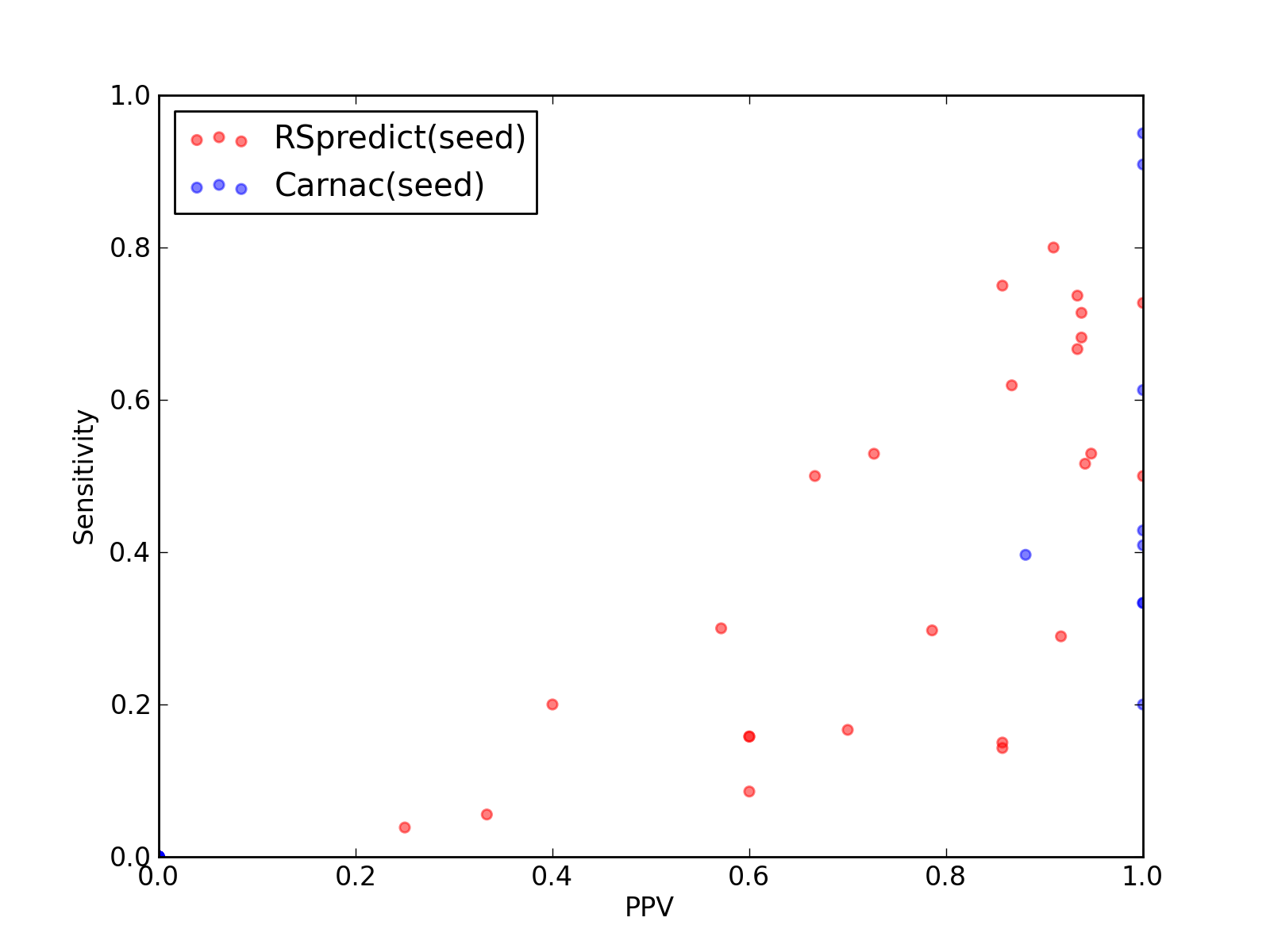

Comparison of performance of RSpredict(seed) and Carnac(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RSpredict(seed) and Carnac(seed)).

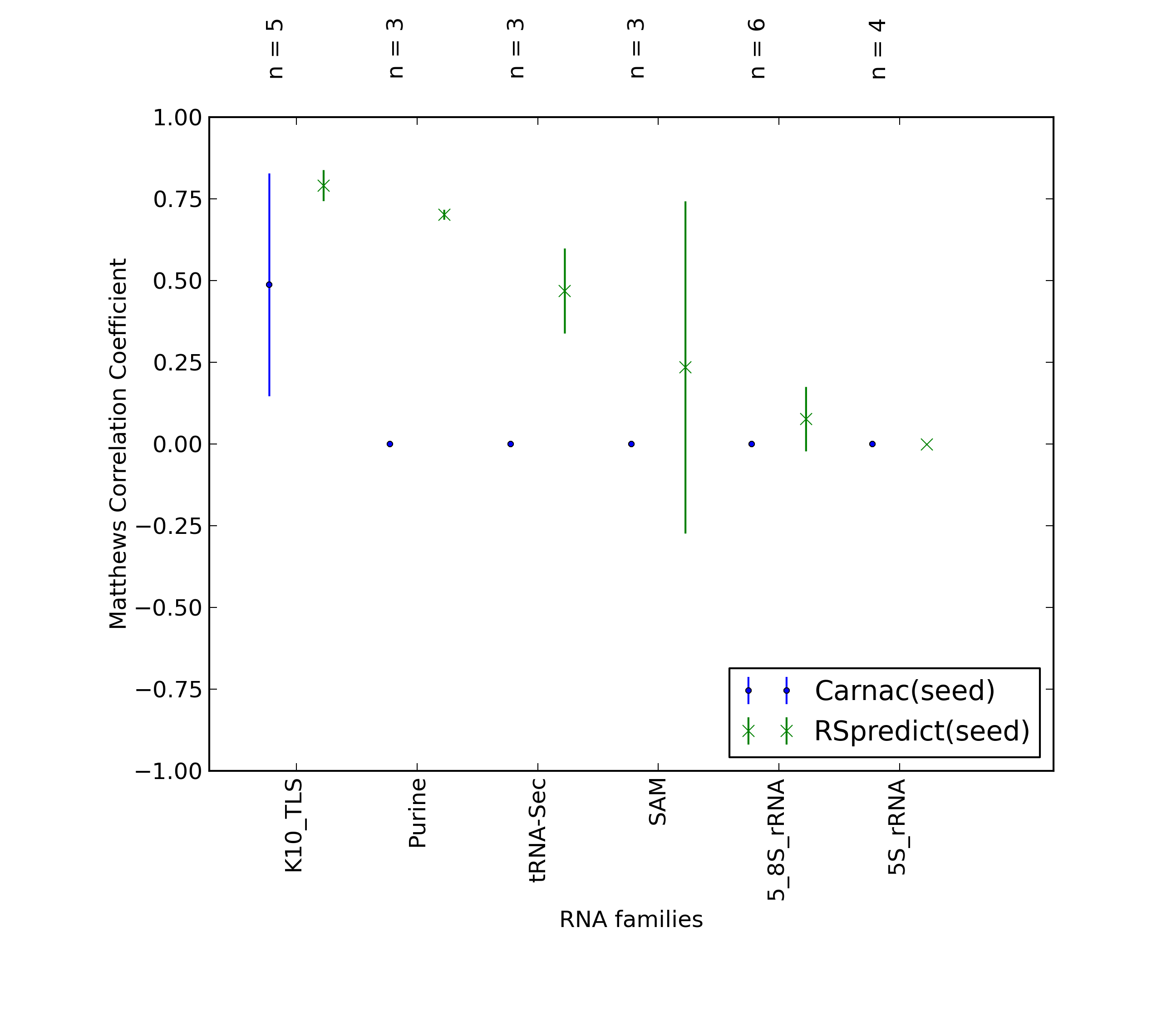

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RSpredict(seed) and Carnac(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RSpredict(seed) and Carnac(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RSpredict(seed) and Carnac(seed)).

^top

Performance of RSpredict(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for RSpredict(seed)

Total Base Pair Counts
Total TP	583
Total TN	1302739
Total FP	254
Total FP CONTRA	17
Total FP INCONS	227
Total FP COMP	10
Total FN	1304

Total Scores
MCC	0.466
Average MCC ± 95% Confidence Intervals	0.346 ± 0.106
Sensitivity	0.309
Positive Predictive Value	0.705
Nr of predictions	39

^top

2. Individual counts for RSpredict(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2KE6_A	K10_TLS links to Rfam database...	0.83	0.74	0.93	14	1113	2	0	1	1	5
2KUR_A	K10_TLS links to Rfam database...	0.82	0.71	0.94	15	1112	1	0	1	0	6
2KUU_A	K10_TLS links to Rfam database...	0.79	0.67	0.93	14	1113	2	0	1	1	7
2KUV_A	K10_TLS links to Rfam database...	0.80	0.68	0.94	15	1112	1	0	1	0	7
2KUW_A	K10_TLS links to Rfam database...	0.73	0.62	0.87	13	1113	2	0	2	0	8
2L1F_A	Gammaretro_CES links to Rfam database...	0.80	0.75	0.86	18	2059	3	0	3	0	6
2L1F_B	Gammaretro_CES links to Rfam database...	0.85	0.80	0.91	20	2123	2	0	2	0	5
2L94_A	HIV_FE links to Rfam database...	0.57	0.50	0.67	10	975	5	0	5	0	10
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1527	13	0	13	0	20
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.28	0.20	0.40	4	4550	8	2	4	2	16
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.17	0.70	7	5141	3	0	3	0	35
3A3A_A	tRNA-Sec links to Rfam database...	0.48	0.30	0.79	11	3641	3	0	3	0	26
3GX2_A	SAM links to Rfam database...	0.36	0.15	0.86	6	4364	1	0	1	0	34
3IVN_B	Purine links to Rfam database...	0.69	0.52	0.94	16	2329	1	0	1	0	15
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6898	5	0	5	0	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.62	0.53	0.73	335	1116304	129	9	117	3	298
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.14	0.06	0.33	2	12240	5	1	3	1	34
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6323	5	1	4	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12241	5	0	5	0	33
3LA5_A	Purine links to Rfam database...	0.70	0.50	1.00	17	2468	0	0	0	0	17
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7017	4	0	4	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7257	3	0	3	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.23	0.09	0.60	3	12398	2	0	2	0	32
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12872	8	0	8	0	72
3RKF_A	Purine links to Rfam database...	0.71	0.53	0.95	18	2192	1	0	1	0	16
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3W1K_J	tRNA-Sec links to Rfam database...	0.51	0.29	0.92	11	4174	1	0	1	0	27
3W3S_B	tRNA-Sec links to Rfam database...	0.41	0.30	0.57	12	4732	10	1	8	1	28
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.04	0.25	2	14188	6	1	5	0	50
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7136	4	1	3	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11777	5	1	3	1	33
4AOB_A	SAM links to Rfam database...	0.35	0.14	0.86	6	4364	1	0	1	0	36
4ENB_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1270	2	0	2	0	16
4ENC_A	crcB links to Rfam database...	0.30	0.16	0.60	3	1321	2	0	2	0	16
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3484	2	0	2	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5148	3	0	3	0	36
4JF2_A	preQ1-II links to Rfam database...	0.00	0.00	0.00	0	2846	4	0	4	0	31

^top

Performance of Carnac(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Carnac(seed)

Total Base Pair Counts
Total TP	335
Total TN	1303197
Total FP	36
Total FP CONTRA	3
Total FP INCONS	31
Total FP COMP	2
Total FN	1552

Total Scores
MCC	0.401
Average MCC ± 95% Confidence Intervals	0.158 ± 0.099
Sensitivity	0.178
Positive Predictive Value	0.908
Nr of predictions	39

^top

2. Individual counts for Carnac(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.00	0.00	0.00	0	1128	0	0	0	0	19
2KUR_A	K10_TLS links to Rfam database...	0.57	0.33	1.00	7	1121	0	0	0	0	14
2KUU_A	K10_TLS links to Rfam database...	0.57	0.33	1.00	7	1121	0	0	0	0	14
2KUV_A	K10_TLS links to Rfam database...	0.64	0.41	1.00	9	1119	0	0	0	0	13
2KUW_A	K10_TLS links to Rfam database...	0.65	0.43	1.00	9	1119	0	0	0	0	12
2L1F_A	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	2080	0	0	0	0	24
2L1F_B	Gammaretro_CES links to Rfam database...	0.00	0.00	0.00	0	2145	0	0	0	0	25
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.20	1.00	4	1536	0	0	0	0	16
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4560	0	0	0	0	20
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	42
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	3655	0	0	0	0	37
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	40
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	2346	0	0	0	0	31
3IZF_C	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6903	0	0	0	0	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.59	0.40	0.88	251	1116480	36	3	31	2	382
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	36
3JYX_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	6328	0	0	0	0	27
3JYX_4	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12246	0	0	0	0	33
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2485	0	0	0	0	34
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7021	0	0	0	0	46
3O58_2	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7260	0	0	0	0	38
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	12403	0	0	0	0	35
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	12880	0	0	0	0	72
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	2211	0	0	0	0	34
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	3916	0	0	0	0	42
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4186	0	0	0	0	38
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	4753	0	0	0	0	40
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	14196	0	0	0	0	52
4A1C_3	5S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7140	0	0	0	0	54
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	11781	0	0	0	0	33
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	4371	0	0	0	0	42
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	3486	0	0	0	0	32
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	5151	0	0	0	0	36
4JF2_A	preQ1-II links to Rfam database...	0.78	0.61	1.00	19	2831	0	0	0	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
