Overview

Metric	Sfold		ProbKnot
MCC	0.557	>	0.536
Average MCC ± 95% Confidence Intervals	0.683 ± 0.057	>	0.661 ± 0.062
Sensitivity	0.480	<	0.480
Positive Predictive Value	0.649	>	0.601
Total TP	1860	<	1862
Total TN	2715023	>	2714788
Total FP	1122	<	1364
Total FP CONTRA	109	<	149
Total FP INCONS	896	<	1089
Total FP COMP	117	<	126
Total FN	2019	>	2017
P-value	3.56938820447e-08

^top

Performance plots

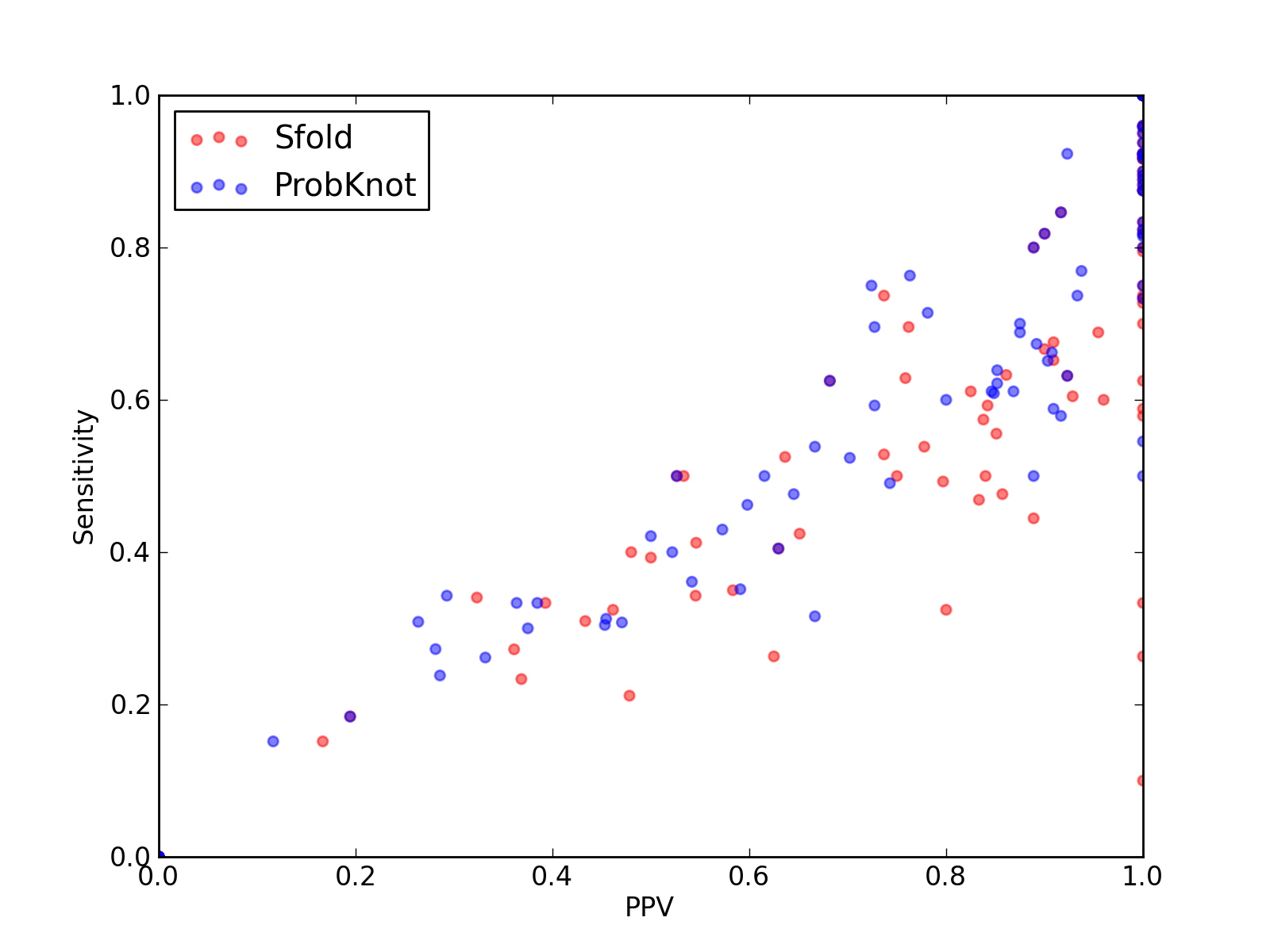

Comparison of performance of Sfold and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and ProbKnot).
Comparison of performance of Sfold and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and ProbKnot).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	1860
Total TN	2715023
Total FP	1122
Total FP CONTRA	109
Total FP INCONS	896
Total FP COMP	117
Total FN	2019

Total Scores
MCC	0.557
Average MCC ± 95% Confidence Intervals	0.683 ± 0.057
Sensitivity	0.480
Positive Predictive Value	0.649
Nr of predictions	93

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.89	0.80	1.00	8	343	0	0	0	0	2
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.45	0.35	0.58	7	1528	5	0	5	0	13
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.89	0.79	1.00	31	6074	1	0	0	1	8
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.88	0.85	0.92	11	484	1	0	1	0	2
2RRC_A	-	0.83	0.70	1.00	7	224	0	0	0	0	3
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.36	0.31	0.43	13	5121	17	1	16	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.58	0.33	1.00	4	1374	0	0	0	0	8
3AKZ_H	tRNA links to Rfam database...	0.44	0.39	0.50	11	2679	11	2	9	0	17
3AM1_B	-	0.69	0.63	0.76	22	3211	7	1	6	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3IYQ_A	tmRNA links to Rfam database...	0.33	0.34	0.32	32	60627	71	19	48	4	62
3IZ4_A	tmRNA links to Rfam database...	0.52	0.42	0.65	56	70790	31	3	27	1	76
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	0	7	0	21
3J0L_g	-	-0.01	0.00	0.00	0	460	5	1	4	0	4
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J0L_1	-	0.76	0.63	0.92	12	1212	3	0	1	2	7
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J0L_7	-	-0.01	0.00	0.00	0	1222	3	0	3	0	17
3J0L_2	-	0.36	0.33	0.39	11	6188	19	2	15	2	22
3J16_L	tRNA links to Rfam database...	0.29	0.23	0.37	7	2756	12	0	12	0	23
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.47	0.41	0.55	261	1116287	220	14	203	3	372
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	6	0	5	1	7
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2C_O	-	0.64	0.48	0.86	30	10261	6	0	5	1	33
3J2C_M	-	0.63	0.49	0.80	102	106363	31	3	23	5	105
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3NDB_M	-	0.81	0.69	0.95	42	9136	3	0	2	1	19
3NKB_B	-	0.64	0.54	0.78	14	1998	4	0	4	0	12
3NMU_E	-	0.61	0.50	0.75	3	557	4	0	1	3	3
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.91	30	6988	6	1	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.74	0.74	0.74	28	7222	11	3	7	1	10
3O58_3	5_8S_rRNA links to Rfam database...	0.43	0.34	0.55	12	12381	17	0	10	7	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.85	40	12833	9	0	7	2	32
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.65	0.50	0.84	21	3891	4	1	3	0	21
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	2	0	0	2	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.51	0.32	0.80	12	3555	3	2	1	0	25
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.57	0.53	0.64	21	4720	13	1	11	1	19
3ZEX_F	-	0.00	0.00	0.00	0	2623	7	2	3	2	12
3ZEX_G	-	0.78	0.68	0.91	50	16416	9	0	5	4	24
3ZEX_E	-	0.00	0.00	0.00	0	21891	56	3	51	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.74	0.63	0.86	31	6985	5	0	5	0	18
3ZEX_B	-	0.31	0.27	0.36	152	1071959	280	27	242	11	406
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	5	24	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.21	0.48	11	14173	26	1	11	14	41
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	34	2	23	9	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.31	0.10	1.00	1	527	0	0	0	0	9
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.62	0.47	0.83	15	3468	3	1	2	0	17
4FRN_A	AdoCbl-variant links to Rfam database...	0.63	0.44	0.89	16	5133	2	2	0	0	20
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	1862
Total TN	2714788
Total FP	1364
Total FP CONTRA	149
Total FP INCONS	1089
Total FP COMP	126
Total FN	2017

Total Scores
MCC	0.536
Average MCC ± 95% Confidence Intervals	0.661 ± 0.062
Sensitivity	0.480
Positive Predictive Value	0.601
Nr of predictions	93

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KRL_A	-	0.69	0.60	0.80	24	5121	11	2	4	5	16
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.78	0.70	0.88	7	343	1	0	1	0	3
2KZL_A	-	0.83	0.74	0.93	14	1470	1	0	1	0	5
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.45	0.32	0.67	6	621	3	0	3	0	13
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.85	0.77	0.94	30	6073	4	0	2	2	9
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.88	0.85	0.92	11	484	1	0	1	0	2
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	24	0	9	15	10
2XQD_Y	tRNA links to Rfam database...	0.90	0.81	1.00	22	2828	1	0	0	1	5
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.26	0.24	0.29	10	5116	25	1	24	0	32
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.65	0.63	0.68	15	2256	8	1	6	1	9
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2YIE_X	-	0.34	0.33	0.36	4	1367	7	2	5	0	8
3AKZ_H	tRNA links to Rfam database...	0.73	0.75	0.72	21	2672	8	4	4	0	7
3AM1_B	-	0.74	0.71	0.78	25	3208	7	1	6	0	10
3AMU_B	tRNA links to Rfam database...	0.65	0.59	0.73	16	2981	8	0	6	2	11
3IYQ_A	tmRNA links to Rfam database...	0.28	0.31	0.26	29	60616	85	22	59	4	65
3IZ4_A	tmRNA links to Rfam database...	0.52	0.46	0.60	61	70774	46	6	35	5	71
3IZF_C	5S_rRNA links to Rfam database...	0.72	0.61	0.85	33	6864	6	0	6	0	21
3J0L_g	-	-0.01	0.00	0.00	0	458	7	2	5	0	4
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_a	-	0.55	0.50	0.62	8	1115	5	2	3	0	8
3J0L_1	-	0.76	0.63	0.92	12	1212	3	0	1	2	7
3J0L_h	-	0.77	0.65	0.90	28	6074	3	0	3	0	15
3J0L_7	-	-0.01	0.00	0.00	0	1212	13	0	13	0	17
3J0L_2	-	0.27	0.27	0.28	9	6184	26	2	21	3	24
3J16_L	tRNA links to Rfam database...	0.35	0.33	0.38	10	2749	16	1	15	0	20
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.50	0.43	0.57	272	1116290	208	11	192	5	361
3J20_1	tRNA links to Rfam database...	0.71	0.70	0.73	16	2904	7	0	6	1	7
3J20_0	tRNA links to Rfam database...	0.45	0.40	0.52	12	2827	12	0	11	1	18
3J2C_O	-	0.60	0.52	0.70	33	10249	15	0	14	1	30
3J2C_M	-	0.37	0.30	0.45	63	106352	79	9	67	3	144
3J2L_3	5S_rRNA links to Rfam database...	0.60	0.49	0.74	26	7840	11	0	9	2	27
3NDB_M	-	0.77	0.69	0.88	42	9132	7	0	6	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	-0.01	0.00	0.00	0	552	11	2	7	2	6
3NPB_A	SAM links to Rfam database...	0.72	0.61	0.85	28	6988	8	1	4	3	18
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3O58_3	5_8S_rRNA links to Rfam database...	0.31	0.34	0.29	12	12362	41	4	25	12	23
3OVB_D	-	1.00	1.00	1.00	11	584	2	0	0	2	0
3OVS_D	-	0.92	0.92	0.92	12	548	1	0	1	0	1
3P22_G	-	0.96	0.92	1.00	11	730	1	0	0	1	1
3PDR_A	ykoK links to Rfam database...	0.74	0.64	0.85	46	12826	10	1	7	2	26
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.73	0.59	0.91	20	2189	2	1	1	0	14
3SD1_A	THF links to Rfam database...	0.55	0.48	0.65	20	3885	11	2	9	0	22
3SIU_F	-	0.73	0.55	1.00	6	372	0	0	0	0	5
3SN2_B	IRE_II links to Rfam database...	1.00	1.00	1.00	12	394	0	0	0	0	0
3TRZ_Z	-	0.91	0.83	1.00	5	205	2	0	0	2	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.45	0.35	0.59	13	3138	9	1	8	0	24
3UZL_B	tRNA links to Rfam database...	0.73	0.62	0.85	23	3543	4	0	4	0	14
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.89	0.80	1.00	32	4721	1	0	0	1	8
3ZEX_F	-	0.00	0.00	0.00	0	2620	11	2	6	3	12
3ZEX_G	-	0.77	0.66	0.91	49	16417	10	0	5	5	25
3ZEX_E	-	0.00	0.00	0.00	0	21886	61	2	57	2	77
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.67	0.89	33	6984	4	0	4	0	16
3ZEX_B	-	0.29	0.26	0.33	146	1071940	307	34	260	13	412
3ZEX_H	-	0.19	0.18	0.19	7	9009	29	4	25	0	31
3ZEX_C	5_8S_rRNA links to Rfam database...	0.38	0.31	0.47	16	14162	21	2	16	3	36
4A1C_3	5S_rRNA links to Rfam database...	0.73	0.61	0.87	33	7102	6	1	4	1	21
4A1C_2	5_8S_rRNA links to Rfam database...	0.13	0.15	0.12	5	11738	49	7	31	11	28
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.73	0.58	0.92	11	1263	1	1	0	0	8
4ENC_A	crcB links to Rfam database...	0.45	0.42	0.50	8	1310	8	1	7	0	11
4FNJ_A	-	0.66	0.50	0.89	8	586	1	0	1	0	8
4FRG_B	AdoCbl-variant links to Rfam database...	0.37	0.31	0.45	10	3464	12	3	9	0	22
4FRN_A	AdoCbl-variant links to Rfam database...	0.44	0.36	0.54	13	5127	11	2	9	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

2. Individual counts for Sfold [ download as .csv ]

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

2. Individual counts for ProbKnot [ download as .csv ]
