Overview

Metric	Sfold		RSpredict(20)
MCC	0.563	>	0.544
Average MCC ± 95% Confidence Intervals	0.566 ± 0.074	>	0.531 ± 0.081
Sensitivity	0.476	>	0.425
Positive Predictive Value	0.671	<	0.701
Total TP	700	>	625
Total TN	279963	<	280115
Total FP	447	>	314
Total FP CONTRA	35	<	52
Total FP INCONS	308	>	214
Total FP COMP	104	>	48
Total FN	772	<	847
P-value	5.62644058675e-08

^top

Performance plots

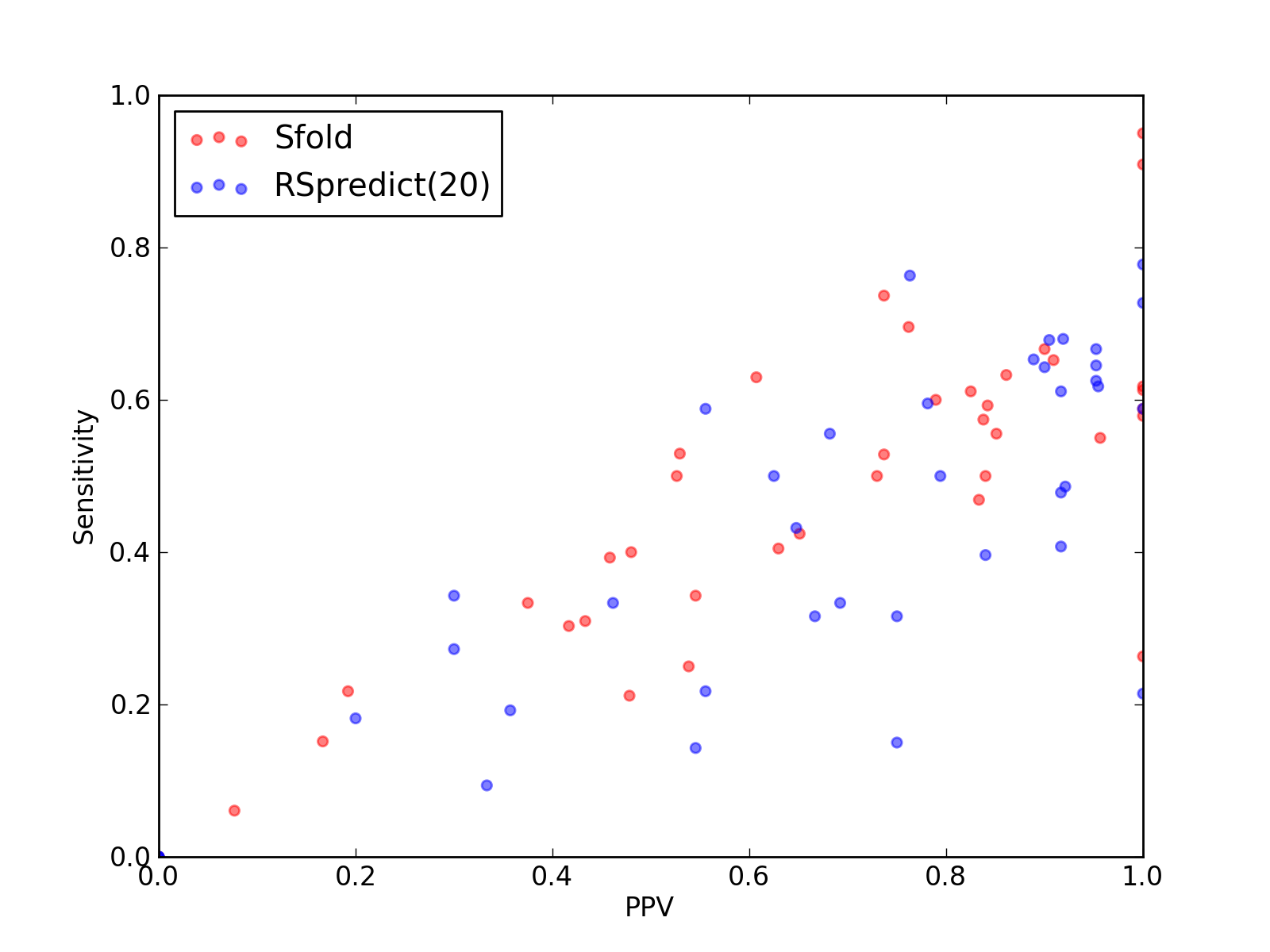

Comparison of performance of Sfold and RSpredict(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and RSpredict(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and RSpredict(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and RSpredict(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and RSpredict(20)).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	700
Total TN	279963
Total FP	447
Total FP CONTRA	35
Total FP INCONS	308
Total FP COMP	104
Total FN	772

Total Scores
MCC	0.563
Average MCC ± 95% Confidence Intervals	0.566 ± 0.074
Sensitivity	0.476
Positive Predictive Value	0.671
Nr of predictions	39

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	23	0	9	14	10
2XQD_Y	tRNA links to Rfam database...	0.77	0.67	0.90	18	2830	2	0	2	0	9
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.36	0.31	0.43	13	5121	17	1	16	0	29
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3GX2_A	SAM links to Rfam database...	0.72	0.55	0.96	22	4348	2	0	1	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.52	0.42	0.65	56	70790	31	3	27	1	76
3IZF_C	5S_rRNA links to Rfam database...	0.71	0.61	0.83	33	6863	7	0	7	0	21
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	6	0	5	1	7
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3J3D_C	tRNA links to Rfam database...	0.36	0.25	0.54	7	2762	6	0	6	0	21
3J3E_7	5S_rRNA links to Rfam database...	0.60	0.50	0.73	27	7103	10	1	9	0	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.06	0.06	0.08	2	7477	32	2	22	8	31
3J3F_7	5S_rRNA links to Rfam database...	0.69	0.60	0.79	30	7222	8	1	7	0	20
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.38	12	12214	34	3	17	14	24
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2834	16	0	16	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.35	0.30	0.42	10	12222	23	3	11	9	23
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	19	1	10	8	10
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.77	0.65	0.91	30	6988	6	1	2	3	16
3O58_3	5_8S_rRNA links to Rfam database...	0.43	0.34	0.55	12	12381	17	0	10	7	23
3O58_2	5S_rRNA links to Rfam database...	0.74	0.74	0.74	28	7222	11	3	7	1	10
3PDR_A	ykoK links to Rfam database...	0.69	0.56	0.85	40	12833	9	0	7	2	32
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.65	0.50	0.84	21	3891	4	1	3	0	21
3ZEX_D	5S_rRNA links to Rfam database...	0.74	0.63	0.86	31	6985	5	0	5	0	18
3ZEX_C	5_8S_rRNA links to Rfam database...	0.32	0.21	0.48	11	14173	26	1	11	14	41
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	22	1	20	1	18
4A1C_3	5S_rRNA links to Rfam database...	0.69	0.57	0.84	31	7103	6	1	5	0	23
4A1C_2	5_8S_rRNA links to Rfam database...	0.16	0.15	0.17	5	11751	34	2	23	9	28
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.76	0.58	1.00	11	1264	0	0	0	0	8
4ENC_A	crcB links to Rfam database...	0.51	0.26	1.00	5	1321	0	0	0	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.62	0.47	0.83	15	3468	3	1	2	0	17

^top

Performance of RSpredict(20) - scored lower in this pairwise comparison

1. Total counts & total scores for RSpredict(20)

Total Base Pair Counts
Total TP	625
Total TN	280115
Total FP	314
Total FP CONTRA	52
Total FP INCONS	214
Total FP COMP	48
Total FN	847

Total Scores
MCC	0.544
Average MCC ± 95% Confidence Intervals	0.531 ± 0.081
Sensitivity	0.425
Positive Predictive Value	0.701
Nr of predictions	39

^top

2. Individual counts for RSpredict(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.85	0.73	1.00	8	398	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.55	0.50	0.63	10	974	6	0	6	0	10
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	11	5	3	3	7
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.00	0.00	0.00	0	4556	4	0	4	0	20
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.46	0.21	1.00	9	5142	0	0	0	0	33
3A2K_C	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	2	0	2	0	9
3AMU_B	tRNA links to Rfam database...	0.61	0.41	0.92	11	2991	1	0	1	0	16
3GX2_A	SAM links to Rfam database...	0.33	0.15	0.75	6	4363	2	0	2	0	34
3IVN_B	Purine links to Rfam database...	0.78	0.65	0.95	20	2325	1	0	1	0	11
3IZ4_A	tmRNA links to Rfam database...	0.53	0.43	0.65	57	70788	35	8	23	4	75
3IZF_C	5S_rRNA links to Rfam database...	0.75	0.61	0.92	33	6867	3	1	2	0	21
3J20_0	tRNA links to Rfam database...	0.80	0.67	0.95	20	2829	2	0	1	1	10
3J20_1	tRNA links to Rfam database...	0.66	0.48	0.92	11	2914	1	0	1	0	12
3J2L_3	5S_rRNA links to Rfam database...	0.58	0.40	0.84	21	7850	5	0	4	1	32
3J3D_C	tRNA links to Rfam database...	0.76	0.64	0.90	18	2755	2	0	2	0	10
3J3E_7	5S_rRNA links to Rfam database...	0.63	0.50	0.79	27	7106	7	1	6	0	27
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7484	19	4	15	0	33
3J3F_7	5S_rRNA links to Rfam database...	0.79	0.68	0.92	34	7223	3	0	3	0	16
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.33	0.46	12	12220	23	2	12	9	24
3JYV_7	tRNA links to Rfam database...	0.77	0.63	0.95	20	2829	1	0	1	0	12
3JYX_4	5_8S_rRNA links to Rfam database...	0.28	0.27	0.30	9	12216	33	5	16	12	24
3JYX_3	5S_rRNA links to Rfam database...	0.61	0.56	0.68	15	6306	13	0	7	6	12
3LA5_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2465	0	0	0	0	14
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	7015	6	1	5	0	46
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.34	0.30	12	12363	28	12	16	0	23
3O58_2	5S_rRNA links to Rfam database...	0.76	0.76	0.76	29	7222	10	3	6	1	9
3PDR_A	ykoK links to Rfam database...	0.67	0.49	0.92	35	12842	5	0	3	2	37
3RKF_A	Purine links to Rfam database...	0.77	0.62	0.95	21	2189	1	0	1	0	13
3SD1_A	THF links to Rfam database...	0.68	0.60	0.78	25	3884	7	1	6	0	17
3ZEX_D	5S_rRNA links to Rfam database...	0.76	0.65	0.89	32	6985	4	1	3	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.26	0.19	0.36	10	14168	18	2	16	0	42
3ZND_W	tRNA links to Rfam database...	0.34	0.22	0.56	5	2994	7	0	4	3	18
4A1C_3	5S_rRNA links to Rfam database...	0.48	0.33	0.69	18	7114	8	0	8	0	36
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.18	0.20	6	11751	30	6	18	6	27
4AOB_A	SAM links to Rfam database...	0.28	0.14	0.55	6	4360	5	0	5	0	36
4ENB_A	crcB links to Rfam database...	0.48	0.32	0.75	6	1267	2	0	2	0	13
4ENC_A	crcB links to Rfam database...	0.45	0.32	0.67	6	1317	3	0	3	0	13
4FRG_B	AdoCbl-variant links to Rfam database...	0.17	0.09	0.33	3	3477	6	0	6	0	29

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
