Overview

Metric	UNAFold		PknotsRG
MCC	0.490	>	0.478
Average MCC ± 95% Confidence Intervals	0.679 ± 0.047	>	0.674 ± 0.047
Sensitivity	0.436	>	0.430
Positive Predictive Value	0.551	>	0.532
Total TP	3283	>	3232
Total TN	14700310	>	14700190
Total FP	2926	<	3084
Total FP CONTRA	358	<	371
Total FP INCONS	2312	<	2470
Total FP COMP	256	>	243
Total FN	4239	<	4290
P-value	3.56938820447e-08

^top

Performance plots

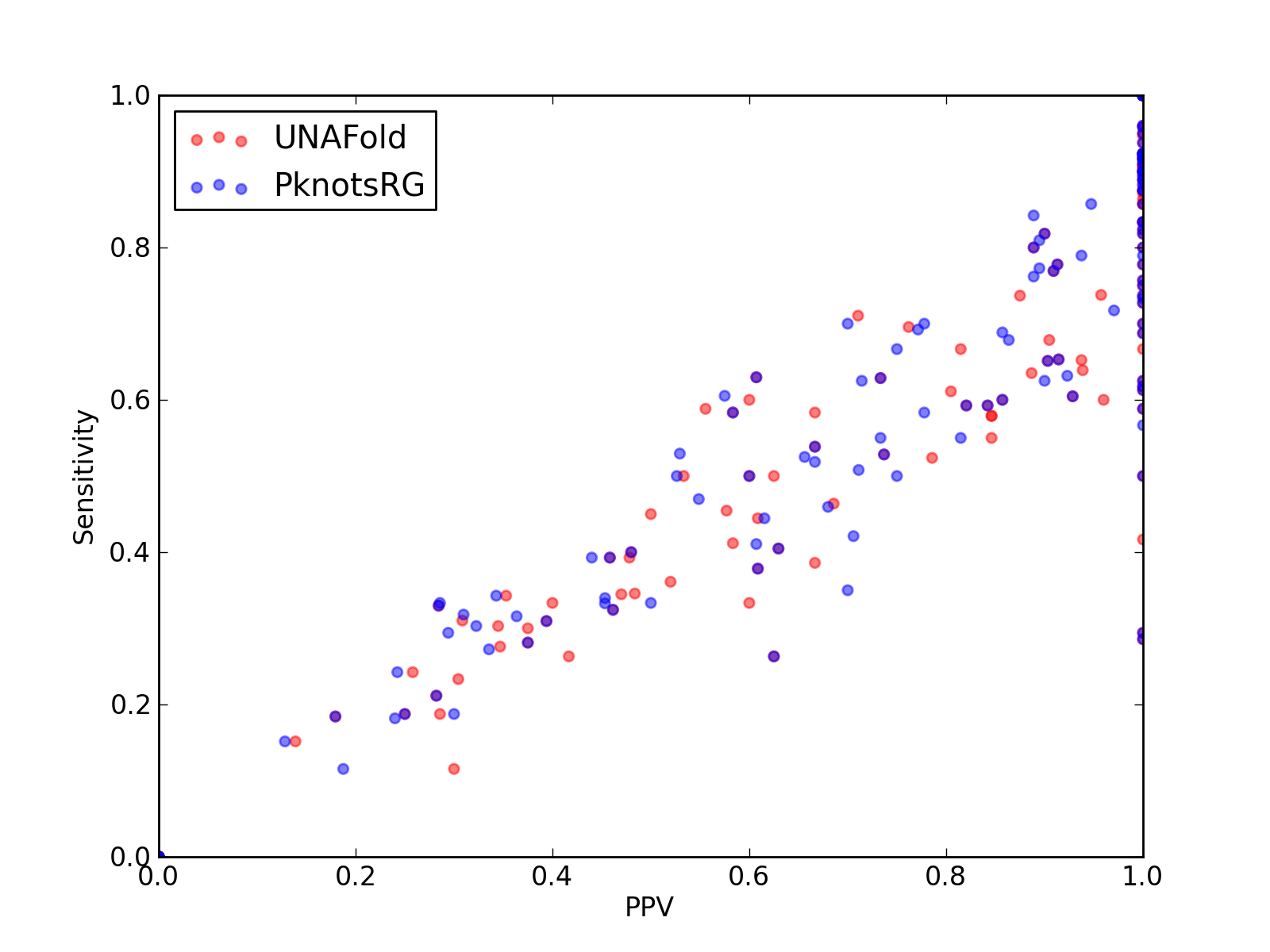

Comparison of performance of UNAFold and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and PknotsRG).
Comparison of performance of UNAFold and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and PknotsRG).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and PknotsRG).

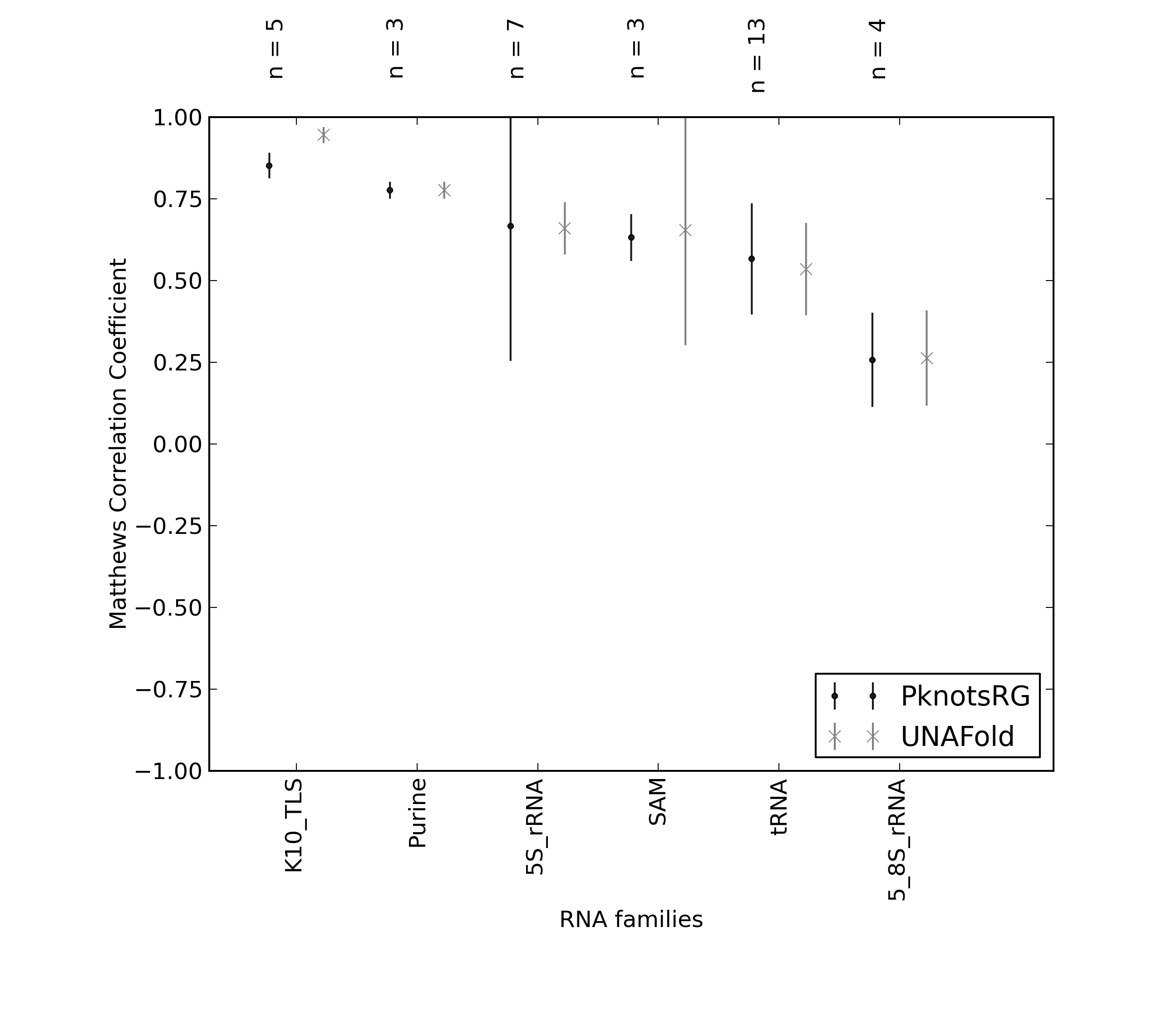

Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and PknotsRG).
Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and PknotsRG).

^top

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	3283
Total TN	14700310
Total FP	2926
Total FP CONTRA	358
Total FP INCONS	2312
Total FP COMP	256
Total FN	4239

Total Scores
MCC	0.490
Average MCC ± 95% Confidence Intervals	0.679 ± 0.047
Sensitivity	0.436
Positive Predictive Value	0.551
Nr of predictions	139

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	0.95	0.91	1.00	10	396	0	0	0	0	1
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.97	0.95	1.00	18	1110	1	0	0	1	1
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	-0.02	0.00	0.00	0	623	7	0	7	0	20
2KGP_A	-	1.00	1.00	1.00	9	291	1	0	0	1	0
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.76	0.60	0.96	24	5126	5	0	1	4	16
2KU0_A	-	0.83	0.69	1.00	11	692	0	0	0	0	5
2KUR_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KUU_A	K10_TLS links to Rfam database...	0.92	0.86	1.00	18	1110	1	0	0	1	3
2KUV_A	K10_TLS links to Rfam database...	0.93	0.86	1.00	19	1109	0	0	0	0	3
2KUW_A	K10_TLS links to Rfam database...	0.95	0.90	1.00	19	1109	0	0	0	0	2
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	-0.01	0.00	0.00	0	1525	15	2	13	0	20
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.81	0.67	1.00	10	455	0	0	0	0	5
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.93	0.87	1.00	34	6071	1	0	0	1	5
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.64	0.42	1.00	5	346	0	0	0	0	7
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WDL_A	-	0.40	0.34	0.47	415	3937338	469	30	438	1	789
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2WW9_F	-	0.59	0.60	0.60	6	290	4	0	4	0	4
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.18	0.12	0.30	3	1943	7	3	4	0	23
2WWQ_V	tRNA links to Rfam database...	0.78	0.68	0.90	19	2905	3	0	2	1	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.47	0.45	0.50	9	4542	21	0	9	12	11
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.31	0.39	13	5118	20	1	19	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.62	0.58	0.67	14	2257	8	1	6	1	10
2YIE_X	-	0.36	0.33	0.40	4	1368	6	2	4	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.80	0.74	0.88	28	4154	4	0	4	0	10
3AKZ_H	tRNA links to Rfam database...	0.43	0.39	0.48	11	2678	12	2	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	0.71	0.60	0.86	6	344	1	0	1	0	4
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.39	0.67	22	7348	11	1	10	0	35
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.91	0.83	1.00	15	1638	2	0	0	2	3
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.44	0.33	0.60	3	491	5	0	2	3	6
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.74	0.67	0.81	22	4251	6	0	5	1	11
3IYQ_A	tmRNA links to Rfam database...	0.31	0.33	0.28	31	60617	82	22	56	4	63
3IZ4_A	tmRNA links to Rfam database...	0.51	0.45	0.58	60	70772	50	4	40	6	72
3IZF_C	5S_rRNA links to Rfam database...	0.70	0.61	0.80	33	6862	8	1	7	0	21
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_1	-	0.70	0.58	0.85	11	1212	2	0	2	0	8
3J0L_a	-	0.51	0.50	0.53	8	1113	7	3	4	0	8
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_2	-	0.25	0.24	0.26	8	6185	25	2	21	2	25
3J0L_7	-	0.48	0.41	0.58	7	1213	5	0	5	0	10
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J16_L	tRNA links to Rfam database...	0.26	0.23	0.30	7	2752	16	1	15	0	23
3J20_1	tRNA links to Rfam database...	0.73	0.70	0.76	16	2905	5	0	5	0	7
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2C_M	-	0.56	0.46	0.69	96	106351	49	7	37	5	111
3J2C_O	-	0.52	0.44	0.61	28	10250	19	0	18	1	35
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	0.22	0.19	0.29	6	2829	15	0	15	0	26
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_5	-	0.31	0.31	0.31	277	5021967	702	167	454	81	616
3JYX_4	5_8S_rRNA links to Rfam database...	0.32	0.30	0.34	10	12217	31	3	16	12	23
3KIY_A	-	0.41	0.35	0.48	429	4053241	467	22	436	9	812
3KTW_C	-	0.77	0.65	0.90	28	4529	4	2	1	1	15
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.84	0.74	0.96	45	9133	3	0	2	1	16
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.78	0.65	0.94	30	6989	5	0	2	3	16
3O58_2	5S_rRNA links to Rfam database...	0.71	0.71	0.71	27	7222	12	4	7	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.35	0.34	0.35	12	12369	33	1	21	11	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.77	0.64	0.94	46	12831	5	0	3	2	26
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.56	0.50	0.63	20	4721	13	1	11	1	20
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZEX_H	-	0.18	0.18	0.18	7	9006	32	6	26	0	31
3ZEX_E	-	0.00	0.00	0.00	0	21893	54	4	48	2	77
3ZEX_G	-	0.75	0.64	0.89	47	16418	12	0	6	6	27
3ZEX_B	-	0.31	0.28	0.35	154	1071936	301	33	257	11	404
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11745	42	5	26	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.32	0.30	0.38	3	520	5	1	4	0	7
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.43	0.36	0.52	13	5126	12	2	10	0	23
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

Total Base Pair Counts
Total TP	3232
Total TN	14700190
Total FP	3084
Total FP CONTRA	371
Total FP INCONS	2470
Total FP COMP	243
Total FN	4290

Total Scores
MCC	0.478
Average MCC ± 95% Confidence Intervals	0.674 ± 0.047
Sensitivity	0.430
Positive Predictive Value	0.532
Nr of predictions	139

^top

2. Individual counts for PknotsRG [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2K5Z_A	-	1.00	1.00	1.00	11	395	0	0	0	0	0
2K63_A	-	0.95	0.90	1.00	9	397	0	0	0	0	1
2K66_A	-	0.95	0.90	1.00	9	222	0	0	0	0	1
2KD8_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2KE6_A	K10_TLS links to Rfam database...	0.86	0.84	0.89	16	1110	3	0	2	1	3
2KEZ_A	-	0.89	0.80	1.00	8	268	0	0	0	0	2
2KFC_A	-	0.48	0.35	0.70	7	620	3	0	3	0	13
2KGP_A	-	0.70	0.67	0.75	6	292	2	0	2	0	3
2KMJ_A	-	1.00	1.00	1.00	11	367	0	0	0	0	0
2KPV_A	-	0.96	0.92	1.00	12	549	0	0	0	0	1
2KRL_A	-	0.72	0.60	0.86	24	5123	8	2	2	4	16
2KU0_A	-	0.83	0.69	1.00	11	692	0	0	0	0	5
2KUR_A	K10_TLS links to Rfam database...	0.85	0.81	0.89	17	1109	2	0	2	0	4
2KUU_A	K10_TLS links to Rfam database...	0.82	0.76	0.89	16	1110	3	0	2	1	5
2KUV_A	K10_TLS links to Rfam database...	0.83	0.77	0.89	17	1109	2	0	2	0	5
2KUW_A	K10_TLS links to Rfam database...	0.90	0.86	0.95	18	1109	1	0	1	0	3
2KX8_A	7SK links to Rfam database...	0.94	0.89	1.00	16	845	0	0	0	0	2
2KXM_A	-	0.83	0.70	1.00	7	344	0	0	0	0	3
2KZL_A	-	0.86	0.74	1.00	14	1471	0	0	0	0	5
2L1F_A	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	23	2057	0	0	0	0	1
2L1F_B	Gammaretro_CES links to Rfam database...	0.98	0.96	1.00	24	2121	0	0	0	0	1
2L2K_A	-	0.94	0.89	1.00	17	844	0	0	0	0	2
2L3C_B	-	0.91	0.82	1.00	14	547	0	0	0	0	3
2L3E_A	-	0.96	0.92	1.00	12	583	1	0	0	1	1
2L3J_B	mir-2985-2 links to Rfam database...	0.94	0.88	1.00	30	2455	0	0	0	0	4
2L5Z_A	-	0.86	0.75	1.00	9	316	0	0	0	0	3
2L94_A	HIV_FE links to Rfam database...	0.97	0.95	1.00	19	971	0	0	0	0	1
2LA5_A	-	0.39	0.26	0.63	5	622	3	1	2	0	14
2LBS_A	-	1.00	1.00	1.00	14	482	0	0	0	0	0
2LC8_A	GP_knot1 links to Rfam database...	0.63	0.55	0.73	11	1525	4	1	3	0	9
2LDL_A	-	0.90	0.82	1.00	9	342	1	0	0	1	2
2LDT_A	-	0.85	0.73	1.00	11	454	0	0	0	0	4
2LHP_A	-	0.97	0.94	1.00	15	651	0	0	0	0	1
2LI4_A	-	0.93	0.88	1.00	14	482	0	0	0	0	2
2LJJ_A	-	1.00	1.00	1.00	8	343	2	0	0	2	0
2LK3_A	-	0.95	0.90	1.00	9	267	0	0	0	0	1
2LKR_A	-	0.73	0.69	0.77	27	6070	8	2	6	0	12
2LQZ_A	-	0.85	0.82	0.90	9	341	1	1	0	0	2
2LWK_A	-	0.83	0.77	0.91	10	485	1	0	1	0	3
2RP0_A	-	0.66	0.58	0.78	7	342	2	1	1	0	5
2RPT_A	-	1.00	1.00	1.00	7	183	0	0	0	0	0
2RRC_A	-	0.70	0.50	1.00	5	226	0	0	0	0	5
2WDL_A	-	0.39	0.34	0.45	409	3937319	494	25	468	1	795
2WRQ_Y	tRNA links to Rfam database...	0.53	0.53	0.53	9	2833	13	5	3	5	8
2WW9_F	-	0.69	0.70	0.70	7	290	3	0	3	0	3
2WW9_E	-	0.53	0.29	1.00	4	557	0	0	0	0	10
2WW9_D	-	0.14	0.12	0.19	3	1937	13	0	13	0	23
2WWQ_V	tRNA links to Rfam database...	0.76	0.68	0.86	19	2904	5	0	3	2	9
2XKV_B	Bacteria_small_SRP links to Rfam database...	0.51	0.50	0.53	10	4541	22	0	9	13	10
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
2XXA_G	Bacteria_small_SRP links to Rfam database...	0.34	0.31	0.39	13	5118	20	1	19	0	29
2Y8W_B	-	1.00	1.00	1.00	6	184	1	0	0	1	0
2Y9C_V	-	0.66	0.63	0.71	15	2257	8	1	5	2	9
2YIE_X	-	0.30	0.33	0.29	4	1364	10	2	8	0	8
2YIE_Z	-	-0.01	0.00	0.00	0	1525	15	3	12	0	12
2ZY6_A	-	0.58	0.58	0.58	7	691	5	1	4	0	5
2ZZM_B	tRNA links to Rfam database...	0.21	0.19	0.25	6	3462	18	0	18	0	26
2ZZN_D	tRNA links to Rfam database...	0.84	0.78	0.91	21	2462	2	0	2	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3A3A_A	tRNA-Sec links to Rfam database...	0.87	0.76	1.00	28	3627	0	0	0	0	9
3ADB_C	-	0.33	0.32	0.36	12	4153	21	0	21	0	26
3AKZ_H	tRNA links to Rfam database...	0.41	0.39	0.44	11	2676	14	4	10	0	17
3AM1_B	-	0.68	0.63	0.73	22	3210	8	1	7	0	13
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3DW4_A	-	-0.02	0.00	0.00	0	348	3	0	3	0	10
3G4S_9	5S_rRNA links to Rfam database...	0.54	0.42	0.71	24	7347	10	1	9	0	33
3GCA_A	-	0.54	0.29	1.00	5	523	0	0	0	0	12
3GX2_A	SAM links to Rfam database...	0.67	0.55	0.81	22	4344	6	0	5	1	18
3HAY_E	-	0.91	0.83	1.00	15	2263	6	0	0	6	3
3HJW_D	-	0.94	0.89	1.00	16	1637	2	0	0	2	2
3IAB_R	-	0.92	0.86	1.00	12	1023	0	0	0	0	2
3ID5_D	-	0.40	0.33	0.50	3	490	6	0	3	3	6
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.20	0.18	0.24	6	4253	19	1	18	0	27
3IYQ_A	tmRNA links to Rfam database...	0.31	0.33	0.28	31	60617	80	24	54	2	63
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3J0L_g	-	-0.01	0.00	0.00	0	461	4	1	3	0	4
3J0L_1	-	0.76	0.63	0.92	12	1212	2	0	1	1	7
3J0L_a	-	0.23	0.19	0.30	3	1118	7	1	6	0	13
3J0L_8	-	0.93	0.88	1.00	7	183	0	0	0	0	1
3J0L_2	-	0.24	0.24	0.24	8	6183	27	2	23	2	25
3J0L_7	-	0.28	0.29	0.29	5	1208	12	0	12	0	12
3J0L_h	-	0.75	0.60	0.93	26	6077	4	0	2	2	17
3J16_L	tRNA links to Rfam database...	0.75	0.57	1.00	17	2758	0	0	0	0	13
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	0	0	0	0	2
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J2C_M	-	0.50	0.41	0.61	85	106351	58	9	46	3	122
3J2C_O	-	0.60	0.51	0.71	32	10251	14	0	13	1	31
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3JYX_5	-	0.31	0.32	0.31	284	5021948	714	166	467	81	609
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3KIY_A	-	0.39	0.33	0.45	413	4053217	505	24	474	7	828
3KTW_C	-	0.77	0.65	0.90	28	4529	4	2	1	1	15
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NDB_M	-	0.77	0.69	0.86	42	9131	8	0	7	1	19
3NKB_B	-	0.59	0.54	0.67	14	1995	7	0	7	0	12
3NMU_E	-	0.54	0.50	0.60	3	556	5	0	2	3	3
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	3	0	1	2	13
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3OVB_D	-	1.00	1.00	1.00	11	584	1	0	0	1	0
3OVS_D	-	0.96	0.92	1.00	12	549	0	0	0	0	1
3P22_G	-	0.96	0.92	1.00	11	730	0	0	0	0	1
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3R4F_A	-	0.96	0.92	1.00	23	2122	0	0	0	0	2
3R9X_C	-	0.84	0.80	0.89	8	586	2	0	1	1	2
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.61	0.50	0.75	21	3888	7	1	6	0	21
3SIU_F	-	0.85	0.73	1.00	8	370	0	0	0	0	3
3SN2_B	IRE_II links to Rfam database...	0.96	0.92	1.00	11	395	0	0	0	0	1
3TRZ_Z	-	0.91	0.83	1.00	5	205	1	0	0	1	1
3TS0_U	-	1.00	1.00	1.00	6	247	1	0	0	1	0
3TS2_V	-	1.00	1.00	1.00	5	271	0	0	0	0	0
3U4M_B	-	0.38	0.32	0.46	12	3134	14	0	14	0	25
3UZL_B	tRNA links to Rfam database...	0.48	0.38	0.61	14	3547	9	0	9	0	23
3VJR_D	-	0.96	0.92	1.00	12	618	0	0	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.58	0.53	0.66	21	4721	12	1	10	1	19
3ZEX_F	-	0.00	0.00	0.00	0	2617	11	2	9	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	43	1	27	15	41
3ZEX_H	-	0.18	0.18	0.18	7	9006	32	6	26	0	31
3ZEX_E	-	0.00	0.00	0.00	0	21892	55	4	49	2	77
3ZEX_G	-	0.56	0.46	0.68	34	16421	21	1	15	5	40
3ZEX_B	-	0.30	0.27	0.34	152	1071927	311	34	267	10	406
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.13	5	11742	43	5	29	9	28
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4A4U_A	-	1.00	1.00	1.00	9	222	0	0	0	0	0
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ATO_G	-	0.73	0.70	0.78	7	519	2	1	1	0	3
4ENB_A	crcB links to Rfam database...	0.89	0.79	1.00	15	1260	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.86	0.79	0.94	15	1310	1	1	0	0	4
4FNJ_A	-	0.79	0.63	1.00	10	585	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23
4FRN_A	AdoCbl-variant links to Rfam database...	0.52	0.44	0.62	16	5125	10	2	8	0	20
4HXH_A	-	1.00	1.00	1.00	6	319	0	0	0	0	0

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.

Table of contents:

Overview

Performance plots

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

2. Individual counts for UNAFold [ download as .csv ]

Performance of PknotsRG - scored lower in this pairwise comparison

1. Total counts & total scores for PknotsRG

2. Individual counts for PknotsRG [ download as .csv ]
