Metric	Afold		MCFold
MCC	0.559	>	0.472
Average MCC ± 95% Confidence Intervals	0.520 ± 0.151	>	0.459 ± 0.125
Sensitivity	0.582	>	0.520
Positive Predictive Value	0.549	>	0.444
Total TP	223	>	199
Total TN	25421	>	25379
Total FP	235	<	303
Total FP CONTRA	44	<	72
Total FP INCONS	139	<	177
Total FP COMP	52	<	54
Total FN	160	<	184
P-value	5.10776592382e-08

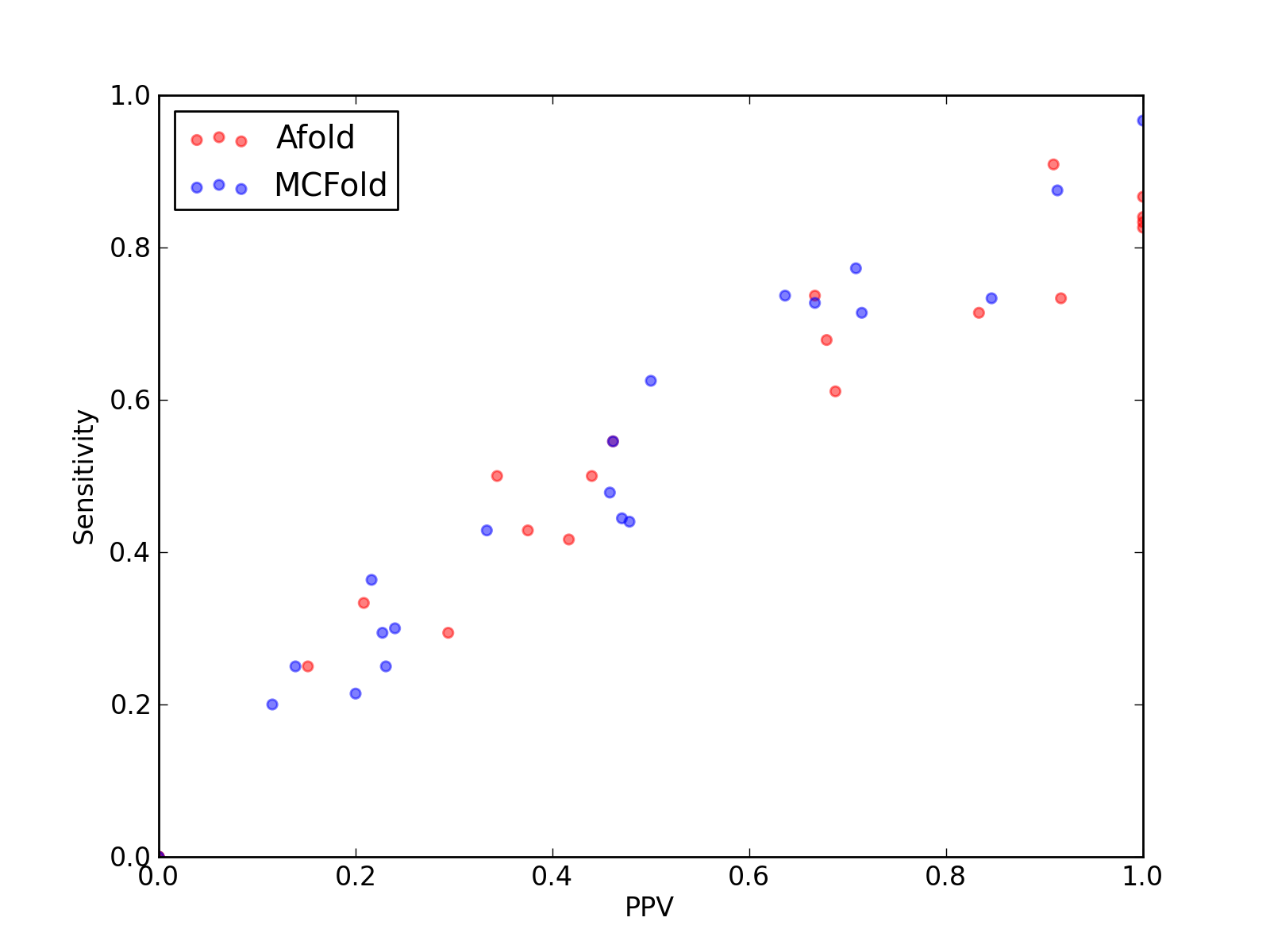

Comparison of performance of Afold and MCFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Afold and MCFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Afold and MCFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for Afold and MCFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Afold and MCFold).

Total Scores
MCC	0.559
Average MCC ± 95% Confidence Intervals	0.520 ± 0.151
Sensitivity	0.582
Positive Predictive Value	0.549
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	228	8	1	7	0	8
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	6	0	5	1	7
2M58_A	-	0.40	0.42	0.42	5	532	8	1	6	1	7
2RP0_A	-	0.76	0.71	0.83	5	110	1	0	1	0	2
2ZZN_D	tRNA links to Rfam database...	0.91	0.91	0.91	20	962	3	2	0	1	2
3A2K_C	tRNA links to Rfam database...	0.46	0.50	0.44	11	1083	14	3	11	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.93	0.87	1.00	26	1474	0	0	0	0	4
3GCA_A	-	-0.04	0.00	0.00	0	151	9	1	6	2	7
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.67	0.68	0.68	19	1444	9	1	8	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.33	0.21	5	2718	31	6	13	12	10
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1088	23	4	19	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	38	6	15	17	11
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	43	11	17	15	15
4ATO_G	-	0.38	0.43	0.38	3	212	6	5	0	1	4
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	3	0	1	2	4
4JRC_A	-	0.27	0.29	0.29	5	605	12	0	12	0	12

Total Scores
MCC	0.472
Average MCC ± 95% Confidence Intervals	0.459 ± 0.125
Sensitivity	0.520
Positive Predictive Value	0.444
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.54	0.63	0.50	5	226	5	2	3	0	3
2LC8_A	GP_knot1 links to Rfam database...	0.44	0.44	0.47	8	511	10	0	9	1	10
2M58_A	-	0.22	0.25	0.23	3	531	13	1	9	3	9
2RP0_A	-	0.70	0.71	0.71	5	109	2	1	1	0	2
2ZZN_D	tRNA links to Rfam database...	0.69	0.73	0.67	16	960	11	1	7	3	6
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	29	1471	0	0	0	0	1
3GCA_A	-	-0.05	0.00	0.00	0	150	8	4	4	0	7
3IVN_B	Purine links to Rfam database...	0.45	0.48	0.46	11	879	14	5	8	1	12
3IWN_A	c-di-GMP-I links to Rfam database...	0.19	0.21	0.20	6	1442	24	5	19	0	22
3J3E_8	5_8S_rRNA links to Rfam database...	0.15	0.20	0.12	3	2716	36	11	12	13	12
3JYV_7	tRNA links to Rfam database...	0.25	0.30	0.24	6	1086	20	8	11	1	14
3LA5_A	Purine links to Rfam database...	0.44	0.44	0.48	11	931	12	2	10	0	14
3NKB_B	-	0.68	0.74	0.64	14	713	8	2	6	0	5
3O58_3	5_8S_rRNA links to Rfam database...	0.28	0.36	0.22	8	4727	39	14	15	10	14
3RKF_A	Purine links to Rfam database...	0.89	0.88	0.91	21	843	3	0	2	1	3
3U4M_B	-	0.74	0.77	0.71	17	1252	10	1	6	3	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.18	0.25	0.14	5	4480	45	12	19	14	15
4ATO_G	-	0.36	0.43	0.33	3	211	8	0	6	2	4
4ENB_A	crcB links to Rfam database...	0.78	0.73	0.85	11	459	4	0	2	2	4
4JRC_A	-	0.24	0.29	0.23	5	600	17	0	17	0	12

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
