Metric	Afold		RDfolder
MCC	0.651	>	0.583
Average MCC ± 95% Confidence Intervals	0.586 ± 0.171	<	0.612 ± 0.176
Sensitivity	0.645	>	0.528
Positive Predictive Value	0.672	>	0.663
Total TP	231	>	189
Total TN	15449	<	15508
Total FP	122	>	96
Total FP CONTRA	21	>	15
Total FP INCONS	92	>	81
Total FP COMP	9	>	0
Total FN	127	<	169
P-value	3.02344513449e-08

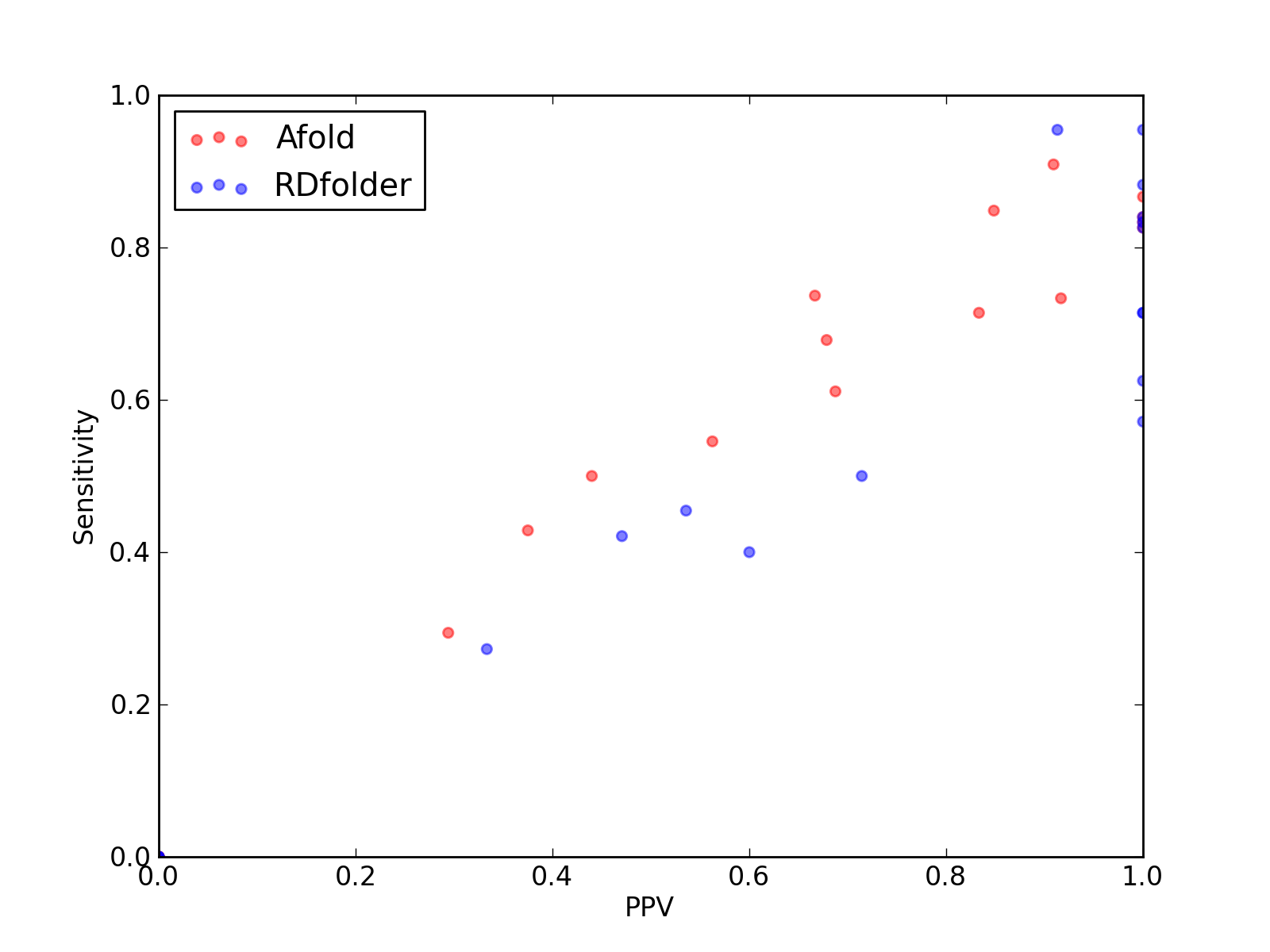

Comparison of performance of Afold and RDfolder. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Afold and RDfolder).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Afold and RDfolder).
Comparison of average Matthews Correlation Coefficients (MCCs) for Afold and RDfolder. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Afold and RDfolder).

Total Scores
MCC	0.651
Average MCC ± 95% Confidence Intervals	0.586 ± 0.171
Sensitivity	0.645
Positive Predictive Value	0.672
Nr of predictions	18

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	228	8	1	7	0	8
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	6	0	5	1	7
2RP0_A	-	0.76	0.71	0.83	5	110	1	0	1	0	2
2ZZN_D	tRNA links to Rfam database...	0.91	0.91	0.91	20	962	3	2	0	1	2
3A2K_C	tRNA links to Rfam database...	0.46	0.50	0.44	11	1083	14	3	11	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.93	0.87	1.00	26	1474	0	0	0	0	4
3ADB_C	-	0.85	0.85	0.85	28	1786	6	0	5	1	5
3GCA_A	-	-0.04	0.00	0.00	0	151	9	1	6	2	7
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.67	0.68	0.68	19	1444	9	1	8	0	9
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1088	23	4	19	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3W3S_B	tRNA-Sec links to Rfam database...	0.55	0.55	0.56	18	1957	15	4	10	1	15
4ATO_G	-	0.38	0.43	0.38	3	212	6	5	0	1	4
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	3	0	1	2	4
4JRC_A	-	0.27	0.29	0.29	5	605	12	0	12	0	12

Total Scores
MCC	0.583
Average MCC ± 95% Confidence Intervals	0.612 ± 0.176
Sensitivity	0.528
Positive Predictive Value	0.663
Nr of predictions	18

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	514	14	3	11	0	18
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3A3A_A	tRNA-Sec links to Rfam database...	0.59	0.50	0.71	15	1479	6	0	6	0	15
3ADB_C	-	0.48	0.45	0.54	15	1791	13	1	12	0	18
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	-0.01	0.00	0.00	0	1462	10	1	9	0	28
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.43	0.42	0.47	8	718	9	2	7	0	11
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3W3S_B	tRNA-Sec links to Rfam database...	0.29	0.27	0.33	9	1962	18	2	16	0	24
4ATO_G	-	0.75	0.57	1.00	4	216	0	0	0	0	3
4ENB_A	crcB links to Rfam database...	0.48	0.40	0.60	6	462	4	0	4	0	9
4JRC_A	-	0.94	0.88	1.00	15	607	0	0	0	0	2

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
