Metric	CentroidAlifold(seed)		Murlet(20)
MCC	0.730	>	0.625
Average MCC ± 95% Confidence Intervals	0.705 ± 0.076	>	0.627 ± 0.101
Sensitivity	0.575	>	0.530
Positive Predictive Value	0.930	>	0.744
Total TP	334	>	308
Total TN	68170	>	68115
Total FP	48	<	142
Total FP CONTRA	21	<	28
Total FP INCONS	4	<	78
Total FP COMP	23	<	36
Total FN	247	<	273
P-value	4.77766983502e-08

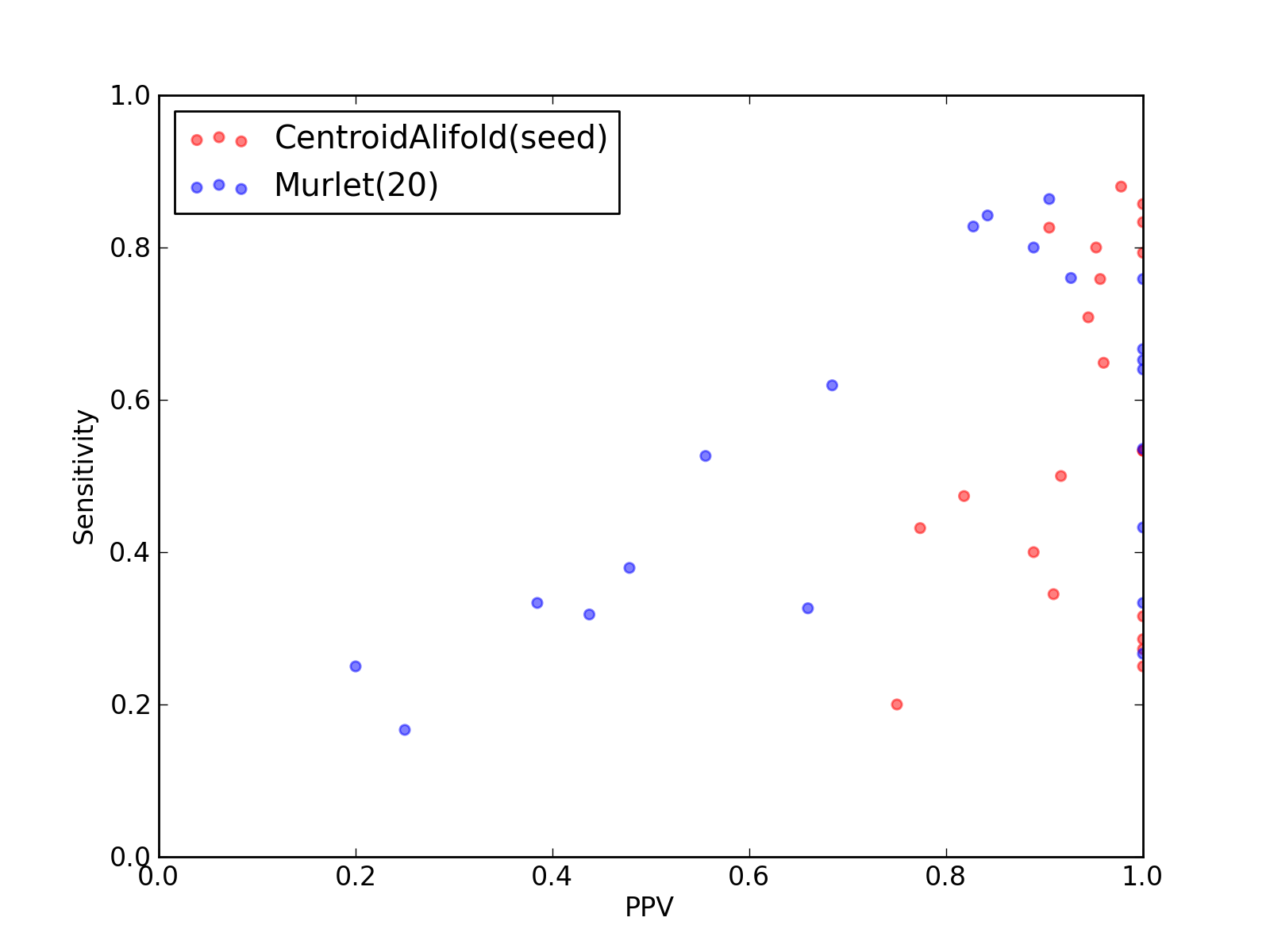

Comparison of performance of CentroidAlifold(seed) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and Murlet(20)).

Total Scores
MCC	0.730
Average MCC ± 95% Confidence Intervals	0.705 ± 0.076
Sensitivity	0.575
Positive Predictive Value	0.930
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3A2K_C	tRNA links to Rfam database...	0.52	0.27	1.00	6	1102	0	0	0	0	16
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3J20_0	tRNA links to Rfam database...	0.53	0.29	1.00	6	1213	0	0	0	0	15
3J3D_C	tRNA links to Rfam database...	0.56	0.32	1.00	6	962	0	0	0	0	13
3J3E_8	5_8S_rRNA links to Rfam database...	0.39	0.20	0.75	3	2738	1	1	0	0	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.62	0.47	0.82	9	4750	4	2	0	2	10
3JYV_7	tRNA links to Rfam database...	0.50	0.25	1.00	5	1106	1	0	0	1	15
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3ZEX_C	5_8S_rRNA links to Rfam database...	0.56	0.34	0.91	10	5363	3	1	0	2	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.71	0.94	17	1184	2	0	1	1	7

Total Scores
MCC	0.625
Average MCC ± 95% Confidence Intervals	0.627 ± 0.101
Sensitivity	0.530
Positive Predictive Value	0.744
Nr of predictions	21

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3GX2_A	SAM links to Rfam database...	0.73	0.54	1.00	15	1434	1	0	0	1	13
3IVN_B	Purine links to Rfam database...	0.80	0.65	1.00	15	888	0	0	0	0	8
3IZ4_A	tmRNA links to Rfam database...	0.46	0.33	0.66	31	25489	22	3	13	6	64
3J20_0	tRNA links to Rfam database...	0.65	0.62	0.68	13	1200	6	1	5	0	8
3J3D_C	tRNA links to Rfam database...	0.84	0.84	0.84	16	949	3	3	0	0	3
3J3E_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.38	5	2729	13	2	6	5	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.54	0.53	0.56	10	4743	13	2	6	5	9
3JYV_7	tRNA links to Rfam database...	0.84	0.80	0.89	16	1093	4	0	2	2	4
3LA5_A	Purine links to Rfam database...	0.80	0.64	1.00	16	938	0	0	0	0	9
3NPB_A	SAM links to Rfam database...	0.65	0.43	1.00	16	2262	2	0	0	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.32	0.44	7	4748	13	4	5	4	15
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	3	1	2	0	12
3RKF_A	Purine links to Rfam database...	0.81	0.67	1.00	16	850	0	0	0	0	8
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	4	1	0	5
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.38	0.48	11	5351	16	2	10	4	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.20	5	4491	24	5	15	4	15
4AOB_A	SAM links to Rfam database...	0.87	0.76	1.00	22	1415	3	0	0	3	7
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.19	0.17	0.25	4	1186	12	1	11	0	20

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
