Overview

Metric	CentroidAlifold(seed)		ProbKnot
MCC	0.781	>	0.580
Average MCC ± 95% Confidence Intervals	0.687 ± 0.091	>	0.552 ± 0.125
Sensitivity	0.679	>	0.608
Positive Predictive Value	0.899	>	0.554
Total TP	720	>	645
Total TN	514136	>	513773
Total FP	184	<	682
Total FP CONTRA	49	<	177
Total FP INCONS	32	<	342
Total FP COMP	103	<	163
Total FN	340	<	415
P-value	5.19332990918e-08

^top

Performance plots

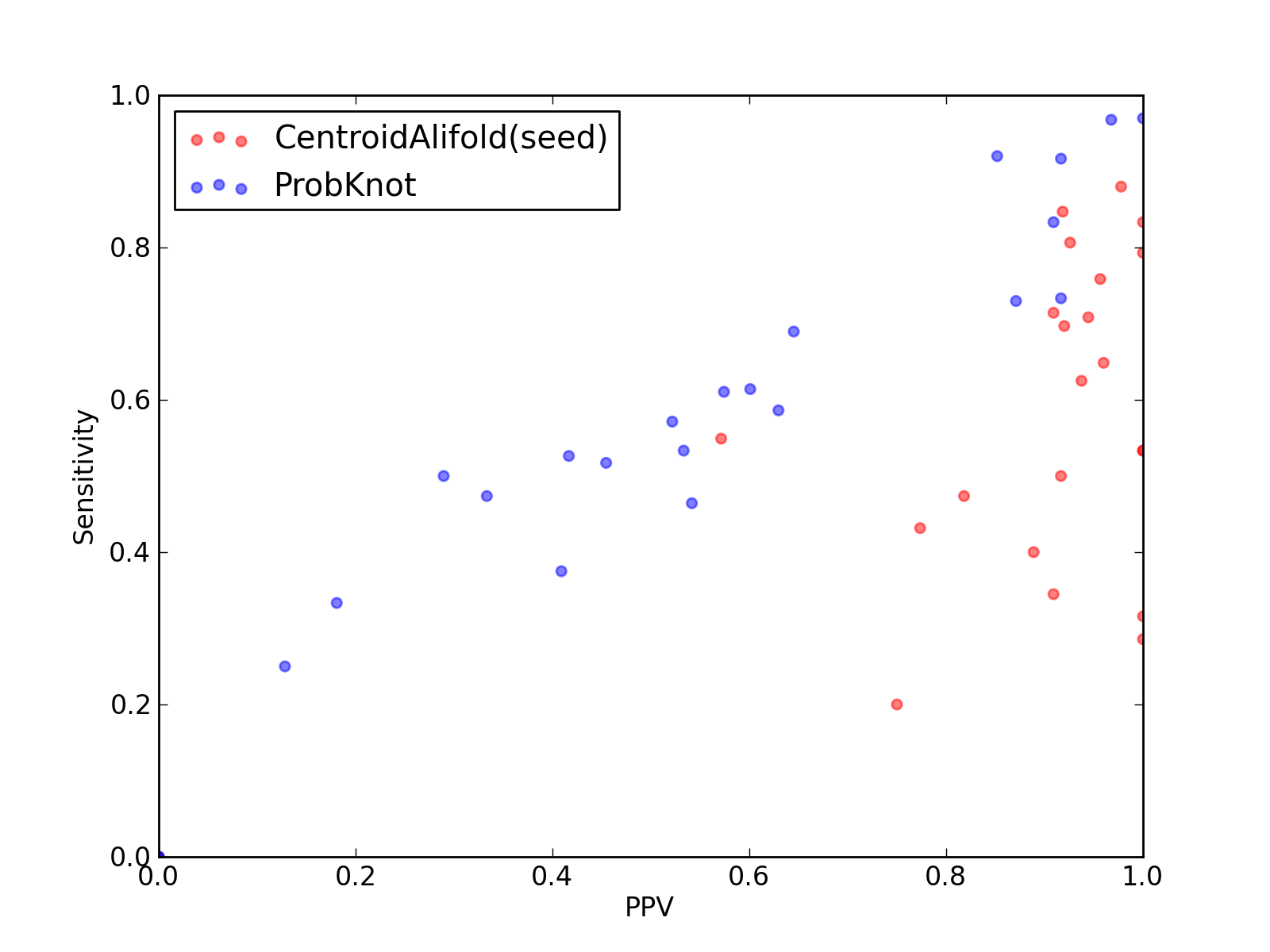

Comparison of performance of CentroidAlifold(seed) and ProbKnot. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).
Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and ProbKnot. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and ProbKnot).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	720
Total TN	514136
Total FP	184
Total FP CONTRA	49
Total FP INCONS	32
Total FP COMP	103
Total FN	340

Total Scores
MCC	0.781
Average MCC ± 95% Confidence Intervals	0.687 ± 0.091
Sensitivity	0.679
Positive Predictive Value	0.899
Nr of predictions	23

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
3IYQ_A	tmRNA links to Rfam database...	0.56	0.55	0.57	28	22391	30	19	2	9	23
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3J20_0	tRNA links to Rfam database...	0.53	0.29	1.00	6	1213	0	0	0	0	15
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.88	0.85	0.92	349	421988	102	9	22	71	63
3J3D_C	tRNA links to Rfam database...	0.56	0.32	1.00	6	962	0	0	0	0	13
3J3E_8	5_8S_rRNA links to Rfam database...	0.39	0.20	0.75	3	2738	1	1	0	0	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.62	0.47	0.82	9	4750	4	2	0	2	10
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3W1K_J	tRNA-Sec links to Rfam database...	0.86	0.81	0.93	25	1651	2	1	1	0	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.70	0.92	23	1964	4	0	2	2	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.56	0.34	0.91	10	5363	3	1	0	2	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.71	0.94	17	1184	2	0	1	1	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.80	0.71	0.91	20	1826	2	1	1	0	8
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of ProbKnot - scored lower in this pairwise comparison

1. Total counts & total scores for ProbKnot

Total Base Pair Counts
Total TP	645
Total TN	513773
Total FP	682
Total FP CONTRA	177
Total FP INCONS	342
Total FP COMP	163
Total FN	415

Total Scores
MCC	0.580
Average MCC ± 95% Confidence Intervals	0.552 ± 0.125
Sensitivity	0.608
Positive Predictive Value	0.554
Nr of predictions	23

^top

2. Individual counts for ProbKnot [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.18	17	22346	97	41	36	20	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.61	0.57	58	25435	49	17	26	6	37
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.61	0.61	0.60	253	421947	227	32	136	59	159
3J3D_C	tRNA links to Rfam database...	0.46	0.53	0.42	10	944	14	6	8	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	2718	37	6	18	13	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.47	0.33	9	4734	38	9	9	20	10
3NPB_A	SAM links to Rfam database...	0.79	0.73	0.87	27	2247	9	0	4	5	10
3O58_3	5_8S_rRNA links to Rfam database...	0.38	0.50	0.29	11	4726	42	10	17	15	11
3PDR_A	ykoK links to Rfam database...	0.88	0.92	0.85	46	4786	10	5	3	2	4
3RKF_A	Purine links to Rfam database...	0.87	0.83	0.91	20	844	2	2	0	0	4
3SD1_A	THF links to Rfam database...	0.66	0.69	0.65	20	1502	11	6	5	0	9
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	32	1957	1	0	0	1	1
3ZEX_C	5_8S_rRNA links to Rfam database...	0.48	0.52	0.45	15	5341	22	4	14	4	14
4A1C_2	5_8S_rRNA links to Rfam database...	0.17	0.25	0.13	5	4477	49	13	21	15	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.81	0.73	0.92	11	460	1	1	0	0	4
4ENC_A	crcB links to Rfam database...	0.52	0.53	0.53	8	481	8	0	7	1	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.38	0.38	0.41	9	1180	13	6	7	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.49	0.46	0.54	13	1824	11	6	5	0	15
4JF2_A	preQ1-II links to Rfam database...	0.91	0.92	0.92	22	1058	2	2	0	0	2

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
