Overview

Metric	CentroidAlifold(seed)		RNAalifold(seed)
MCC	0.800	>	0.728
Average MCC ± 95% Confidence Intervals	0.732 ± 0.087	>	0.632 ± 0.097
Sensitivity	0.709	>	0.607
Positive Predictive Value	0.905	>	0.872
Total TP	798	>	684
Total TN	516674	<	516772
Total FP	188	>	175
Total FP CONTRA	52	>	38
Total FP INCONS	32	<	62
Total FP COMP	104	>	75
Total FN	328	<	442
P-value	5.23657817852e-08

^top

Performance plots

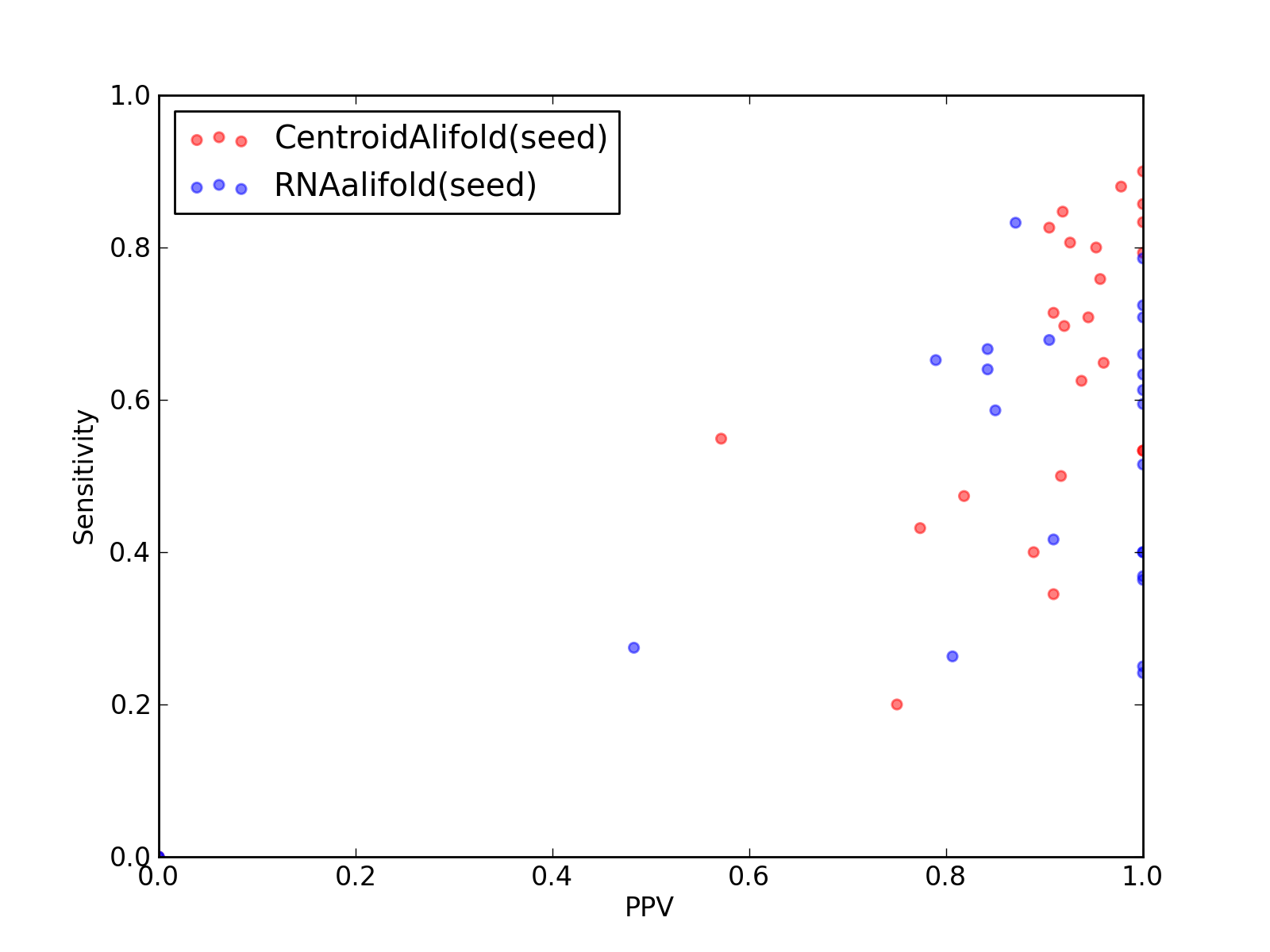

Comparison of performance of CentroidAlifold(seed) and RNAalifold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

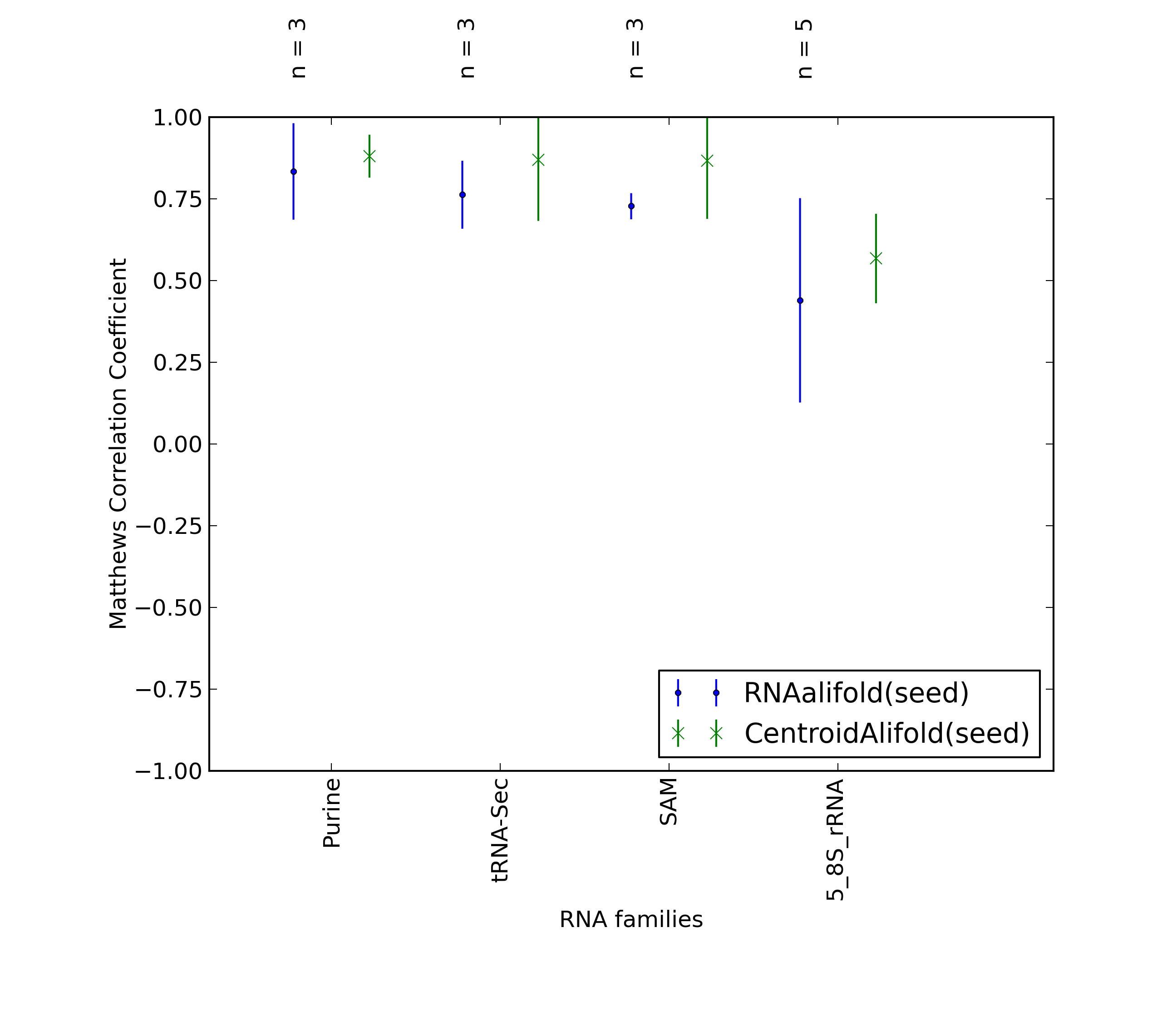

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

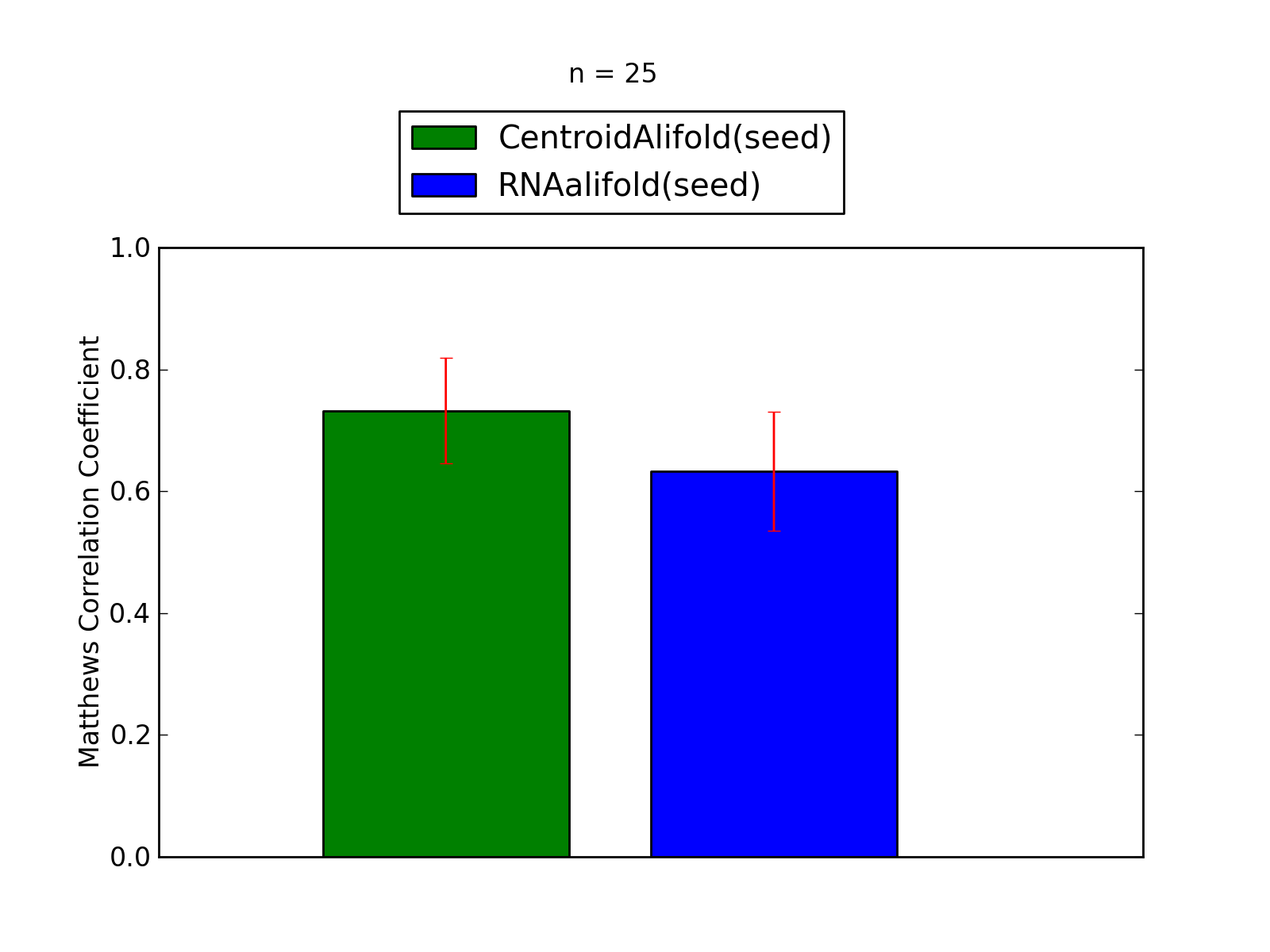

Comparison of average Matthews Correlation Coefficients (MCCs) for CentroidAlifold(seed) and RNAalifold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for CentroidAlifold(seed) and RNAalifold(seed)).

^top

Performance of CentroidAlifold(seed) - scored higher in this pairwise comparison

1. Total counts & total scores for CentroidAlifold(seed)

Total Base Pair Counts
Total TP	798
Total TN	516674
Total FP	188
Total FP CONTRA	52
Total FP INCONS	32
Total FP COMP	104
Total FN	328

Total Scores
MCC	0.800
Average MCC ± 95% Confidence Intervals	0.732 ± 0.087
Sensitivity	0.709
Positive Predictive Value	0.905
Nr of predictions	25

^top

2. Individual counts for CentroidAlifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3GX2_A	SAM links to Rfam database...	0.92	0.86	1.00	24	1425	1	0	0	1	4
3IVN_B	Purine links to Rfam database...	0.86	0.83	0.90	19	882	2	2	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.56	0.55	0.57	28	22391	30	19	2	9	23
3IZ4_A	tmRNA links to Rfam database...	0.58	0.43	0.77	41	25483	17	12	0	5	54
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.88	0.85	0.92	349	421988	102	9	22	71	63
3J3E_8	5_8S_rRNA links to Rfam database...	0.39	0.20	0.75	3	2738	1	1	0	0	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.62	0.47	0.82	9	4750	4	2	0	2	10
3LA5_A	Purine links to Rfam database...	0.87	0.80	0.95	20	933	1	1	0	0	5
3NPB_A	SAM links to Rfam database...	0.79	0.65	0.96	24	2253	5	0	1	4	13
3O58_3	5_8S_rRNA links to Rfam database...	0.68	0.50	0.92	11	4752	2	1	0	1	11
3PDR_A	ykoK links to Rfam database...	0.93	0.88	0.98	44	4795	3	0	1	2	6
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.85	0.76	0.96	22	1510	1	0	1	0	7
3W1K_J	tRNA-Sec links to Rfam database...	0.86	0.81	0.93	25	1651	2	1	1	0	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.70	0.92	23	1964	4	0	2	2	10
3ZEX_C	5_8S_rRNA links to Rfam database...	0.56	0.34	0.91	10	5363	3	1	0	2	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.60	0.40	0.89	8	4507	3	1	0	2	12
4AOB_A	SAM links to Rfam database...	0.89	0.79	1.00	23	1414	2	0	0	2	6
4ENB_A	crcB links to Rfam database...	0.72	0.53	1.00	8	464	0	0	0	0	7
4ENC_A	crcB links to Rfam database...	0.73	0.53	1.00	8	488	0	0	0	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.81	0.71	0.94	17	1184	2	0	1	1	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.80	0.71	0.91	20	1826	2	1	1	0	8
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

^top

Performance of RNAalifold(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for RNAalifold(seed)

Total Base Pair Counts
Total TP	684
Total TN	516772
Total FP	175
Total FP CONTRA	38
Total FP INCONS	62
Total FP COMP	75
Total FN	442

Total Scores
MCC	0.728
Average MCC ± 95% Confidence Intervals	0.632 ± 0.097
Sensitivity	0.607
Positive Predictive Value	0.872
Nr of predictions	25

^top

2. Individual counts for RNAalifold(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
3A3A_A	tRNA-Sec links to Rfam database...	0.79	0.63	1.00	19	1481	0	0	0	0	11
3GX2_A	SAM links to Rfam database...	0.88	0.79	1.00	22	1427	1	0	0	1	6
3IVN_B	Purine links to Rfam database...	0.71	0.65	0.79	15	884	4	2	2	0	8
3IYQ_A	tmRNA links to Rfam database...	0.36	0.27	0.48	14	22411	19	13	2	4	37
3IZ4_A	tmRNA links to Rfam database...	0.46	0.26	0.81	25	25505	8	6	0	2	70
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.85	0.83	0.87	343	421974	104	11	40	53	69
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.61	0.37	1.00	7	4754	2	0	0	2	12
3LA5_A	Purine links to Rfam database...	0.73	0.64	0.84	16	935	3	1	2	0	9
3NPB_A	SAM links to Rfam database...	0.77	0.59	1.00	22	2256	3	0	0	3	15
3O58_3	5_8S_rRNA links to Rfam database...	0.60	0.36	1.00	8	4756	1	0	0	1	14
3PDR_A	ykoK links to Rfam database...	0.81	0.66	1.00	33	4807	1	0	0	1	17
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.61	1.00	19	1659	0	0	0	0	12
3W3S_B	tRNA-Sec links to Rfam database...	0.71	0.52	1.00	17	1972	2	0	0	2	16
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.24	1.00	7	5367	2	0	0	2	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	5	4511	2	0	0	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.84	0.71	1.00	17	1185	0	0	0	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.78	0.68	0.90	19	1827	2	1	1	0	9
4JF2_A	preQ1-II links to Rfam database...	0.61	0.42	0.91	10	1071	1	1	0	0	14

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
