Overview

Metric	Contrafold		Mastr(seed)
MCC	0.634	>	0.036
Average MCC ± 95% Confidence Intervals	0.648 ± 0.110	>	0.007 ± 0.015
Sensitivity	0.658	>	0.004
Positive Predictive Value	0.618	>	0.375
Total TP	538	>	3
Total TN	99707	<	100570
Total FP	423	>	5
Total FP CONTRA	140	>	0
Total FP INCONS	193	>	5
Total FP COMP	90	>	0
Total FN	280	<	815
P-value	5.19332990918e-08

^top

Performance plots

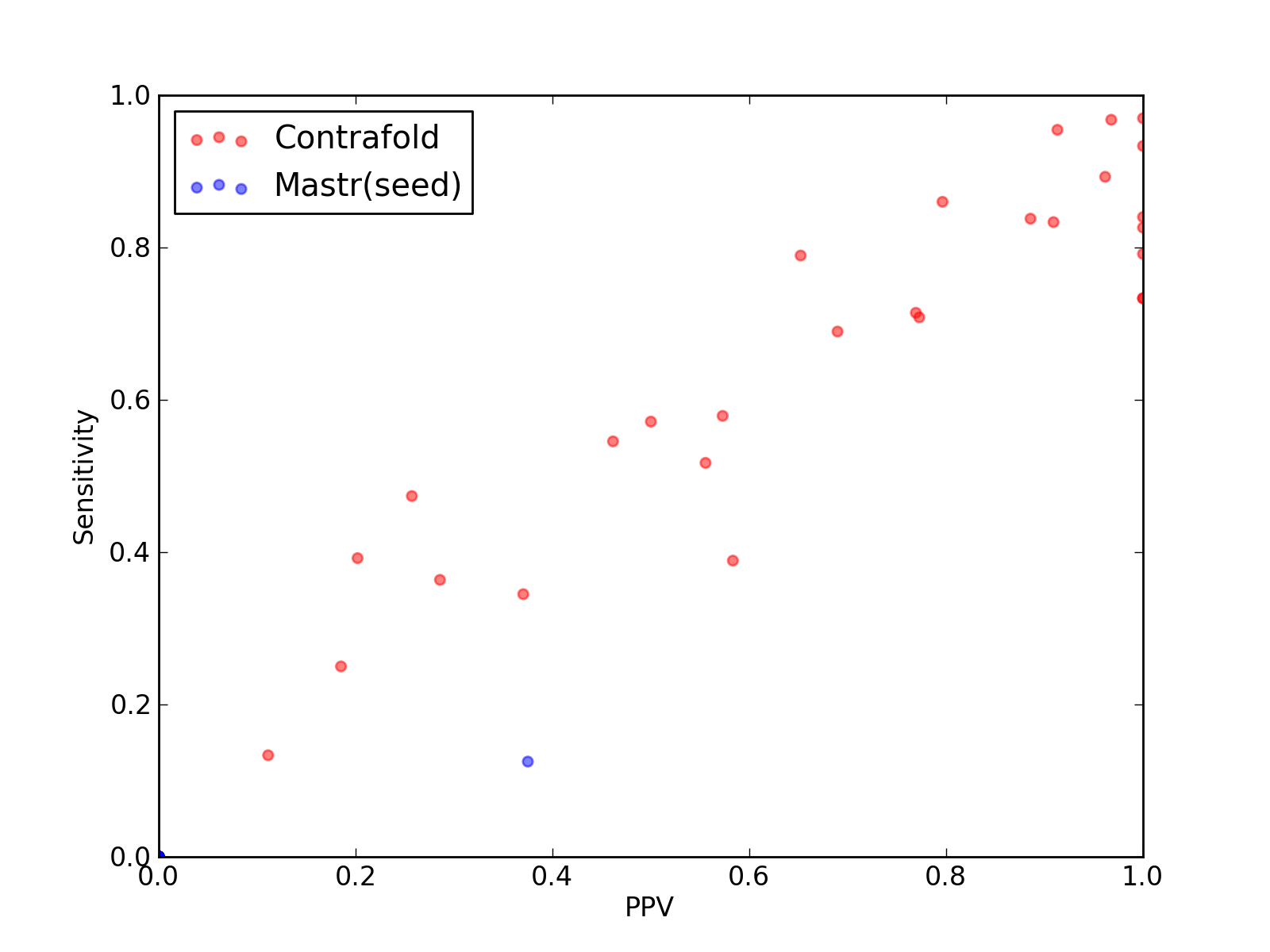

Comparison of performance of Contrafold and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Contrafold and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Contrafold and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Contrafold and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Contrafold and Mastr(seed)).

^top

Performance of Contrafold - scored higher in this pairwise comparison

1. Total counts & total scores for Contrafold

Total Base Pair Counts
Total TP	538
Total TN	99707
Total FP	423
Total FP CONTRA	140
Total FP INCONS	193
Total FP COMP	90
Total FN	280

Total Scores
MCC	0.634
Average MCC ± 95% Confidence Intervals	0.648 ± 0.110
Sensitivity	0.658
Positive Predictive Value	0.618
Nr of predictions	29

^top

2. Individual counts for Contrafold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.46	0.39	0.58	7	516	5	3	2	0	11
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.49	0.55	0.46	12	1082	14	3	11	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.93	0.89	0.96	25	1423	2	1	0	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.28	0.39	0.20	20	22341	95	44	35	16	31
3IZ4_A	tmRNA links to Rfam database...	0.57	0.58	0.57	55	25440	49	18	23	8	40
3J20_0	tRNA links to Rfam database...	0.53	0.57	0.50	12	1195	13	3	9	1	9
3J3D_C	tRNA links to Rfam database...	0.71	0.79	0.65	15	945	8	3	5	0	4
3J3E_8	5_8S_rRNA links to Rfam database...	0.12	0.13	0.11	2	2724	32	5	11	16	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.47	0.26	9	4726	44	13	13	18	10
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.86	0.84	0.89	31	2243	9	1	3	5	6
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.36	0.29	8	4736	21	7	13	1	14
3PDR_A	ykoK links to Rfam database...	0.83	0.86	0.80	43	4786	13	5	6	2	7
3RKF_A	Purine links to Rfam database...	0.87	0.83	0.91	20	844	2	2	0	0	4
3SD1_A	THF links to Rfam database...	0.68	0.69	0.69	20	1504	9	5	4	0	9
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.98	0.97	1.00	32	1957	1	0	0	1	1
3ZEX_C	5_8S_rRNA links to Rfam database...	0.35	0.34	0.37	10	5347	23	4	13	6	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.21	0.25	0.19	5	4489	33	9	13	11	15
4AOB_A	SAM links to Rfam database...	0.53	0.52	0.56	15	1410	13	3	9	1	14
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	1	0	0	1	4
4ENC_A	crcB links to Rfam database...	0.85	0.73	1.00	11	485	1	0	0	1	4
4FRG_B	AdoCbl-variant links to Rfam database...	0.73	0.71	0.77	17	1180	5	3	2	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.74	0.71	0.77	20	1822	6	1	5	0	8
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	100570
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	815

Total Scores
MCC	0.036
Average MCC ± 95% Confidence Intervals	0.007 ± 0.015
Sensitivity	0.004
Positive Predictive Value	0.375
Nr of predictions	29

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	984	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	1108	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	22440	0	0	0	0	51
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	25536	0	0	0	0	95
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	968	0	0	0	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4761	0	0	0	0	19
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	1111	0	0	0	0	20
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1678	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1989	0	0	0	0	33
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1848	0	0	0	0	28
4JF2_A	preQ1-II links to Rfam database...	0.21	0.13	0.38	3	1074	5	0	5	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
