Metric	IPknot		Pknots
MCC	0.637	>	0.597
Average MCC ± 95% Confidence Intervals	0.603 ± 0.121	<	0.610 ± 0.136
Sensitivity	0.613	<	0.632
Positive Predictive Value	0.672	>	0.574
Total TP	283	<	292
Total TN	35363	>	35275
Total FP	179	<	275
Total FP CONTRA	47	<	74
Total FP INCONS	91	<	143
Total FP COMP	41	<	58
Total FN	179	>	170
P-value	6.38150542963e-08

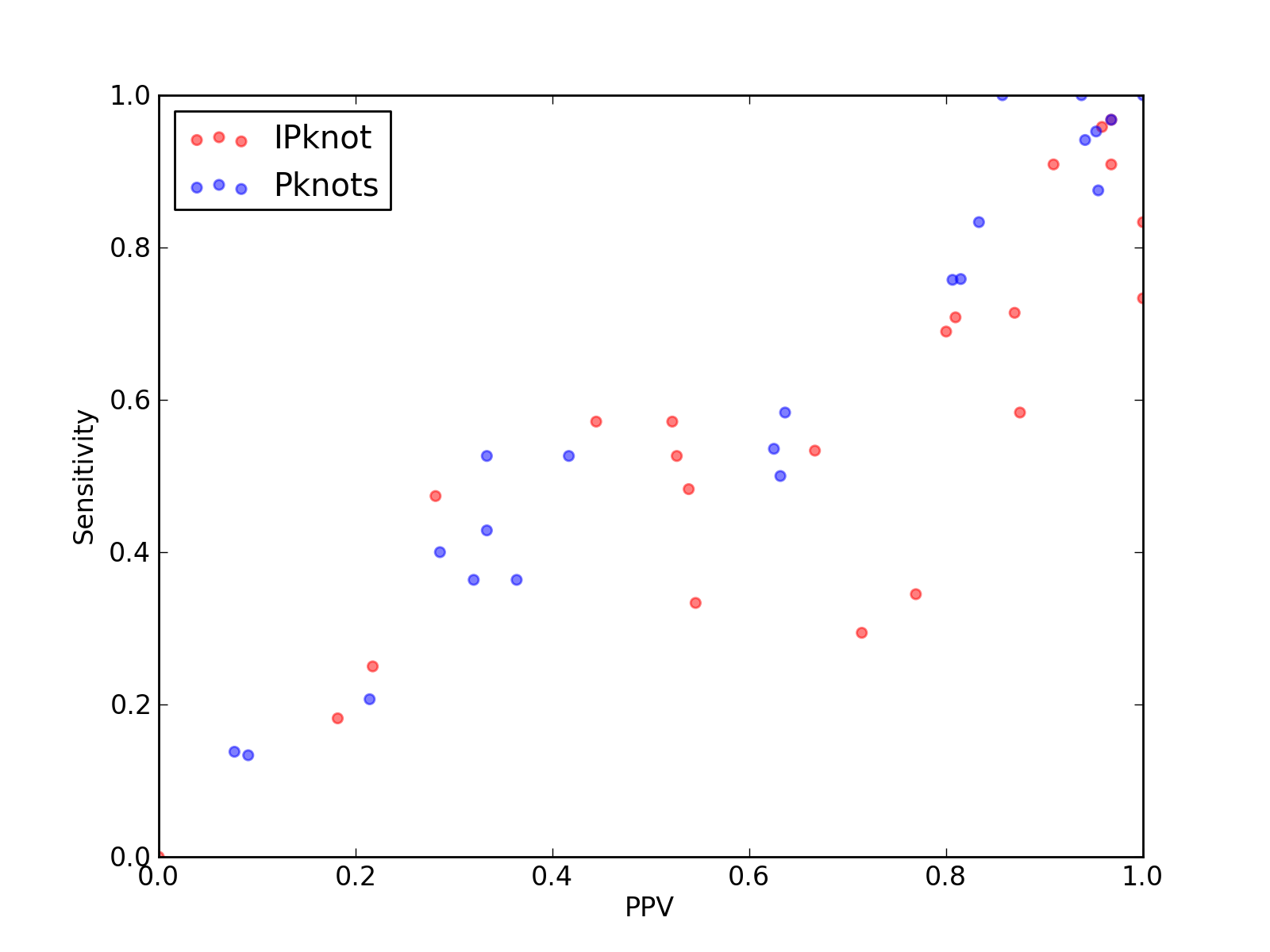

Comparison of performance of IPknot and Pknots. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for IPknot and Pknots).

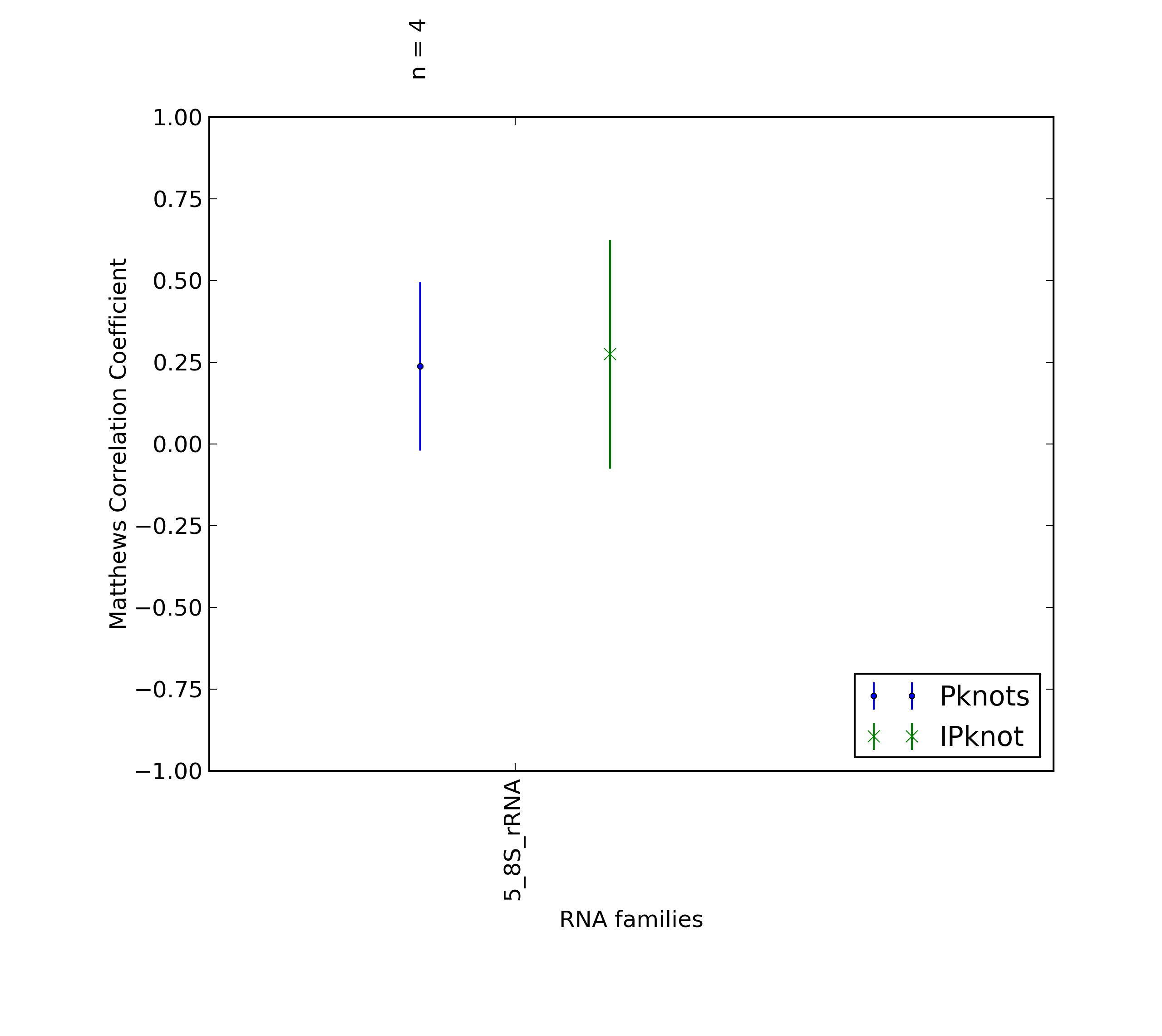

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for IPknot and Pknots).
Comparison of average Matthews Correlation Coefficients (MCCs) for IPknot and Pknots. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for IPknot and Pknots).

Total Scores
MCC	0.637
Average MCC ± 95% Confidence Intervals	0.603 ± 0.121
Sensitivity	0.613
Positive Predictive Value	0.672
Nr of predictions	22

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	1	4	0	12
2M58_A	-	0.71	0.58	0.88	7	536	1	1	0	0	5
3J0L_a	-	0.16	0.18	0.18	2	400	10	3	6	1	9
3J20_0	tRNA links to Rfam database...	0.54	0.57	0.52	12	1196	12	3	8	1	9
3J3D_C	tRNA links to Rfam database...	0.52	0.53	0.53	10	949	9	3	6	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	2723	25	5	14	6	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.47	0.28	9	4729	40	11	12	17	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.74	0.69	0.80	20	1508	5	0	5	0	9
3U4M_B	-	0.91	0.91	0.91	20	1254	3	2	0	1	2
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.94	0.91	0.97	30	1958	2	0	1	1	3
3ZEX_C	5_8S_rRNA links to Rfam database...	0.51	0.34	0.77	10	5361	7	1	2	4	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.23	0.25	0.22	5	4493	26	8	10	8	15
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ATO_G	-	0.49	0.57	0.44	4	211	6	0	5	1	3
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.59	0.53	0.67	8	484	4	0	4	0	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.75	0.71	0.81	17	1181	4	3	1	0	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.79	0.71	0.87	20	1825	3	1	2	0	8
4JF2_A	preQ1-II links to Rfam database...	0.96	0.96	0.96	23	1058	1	1	0	0	1
4JRC_A	-	0.45	0.29	0.71	5	615	2	0	2	0	12

Total Scores
MCC	0.597
Average MCC ± 95% Confidence Intervals	0.610 ± 0.136
Sensitivity	0.632
Positive Predictive Value	0.574
Nr of predictions	22

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.83	0.83	0.83	15	510	3	2	1	0	3
2M58_A	-	0.60	0.58	0.64	7	533	4	1	3	0	5
3J0L_a	-	0.35	0.36	0.36	4	400	8	3	4	1	7
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J3D_C	tRNA links to Rfam database...	0.46	0.53	0.42	10	944	14	5	9	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.09	2	2720	33	5	15	13	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.42	0.53	0.33	10	4731	37	10	10	17	9
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	0	1	0	3
3SD1_A	THF links to Rfam database...	0.78	0.76	0.81	22	1506	5	1	4	0	7
3U4M_B	-	0.33	0.36	0.32	8	1251	17	4	13	0	14
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.78	0.76	0.81	25	1958	7	1	5	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.14	0.08	4	5322	54	13	35	6	25
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.29	8	4488	36	9	11	16	12
4AOB_A	SAM links to Rfam database...	0.19	0.21	0.21	6	1409	23	3	19	1	23
4ATO_G	-	0.36	0.43	0.33	3	211	6	6	0	0	4
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	2	0	0	2	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.50	0.63	12	1183	7	0	7	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.57	0.54	0.63	15	1824	9	3	6	0	13
4JF2_A	preQ1-II links to Rfam database...	0.92	1.00	0.86	24	1054	4	4	0	0	0
4JRC_A	-	0.94	0.94	0.94	16	605	1	1	0	0	1

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
