Metric	MXScarna(seed)		Murlet(20)
MCC	0.707	>	0.617
Average MCC ± 95% Confidence Intervals	0.671 ± 0.097	>	0.617 ± 0.104
Sensitivity	0.646	>	0.520
Positive Predictive Value	0.779	>	0.739
Total TP	363	>	292
Total TN	67095	<	67166
Total FP	184	>	139
Total FP CONTRA	53	>	25
Total FP INCONS	50	<	78
Total FP COMP	81	>	36
Total FN	199	<	270
P-value	5.23657817852e-08

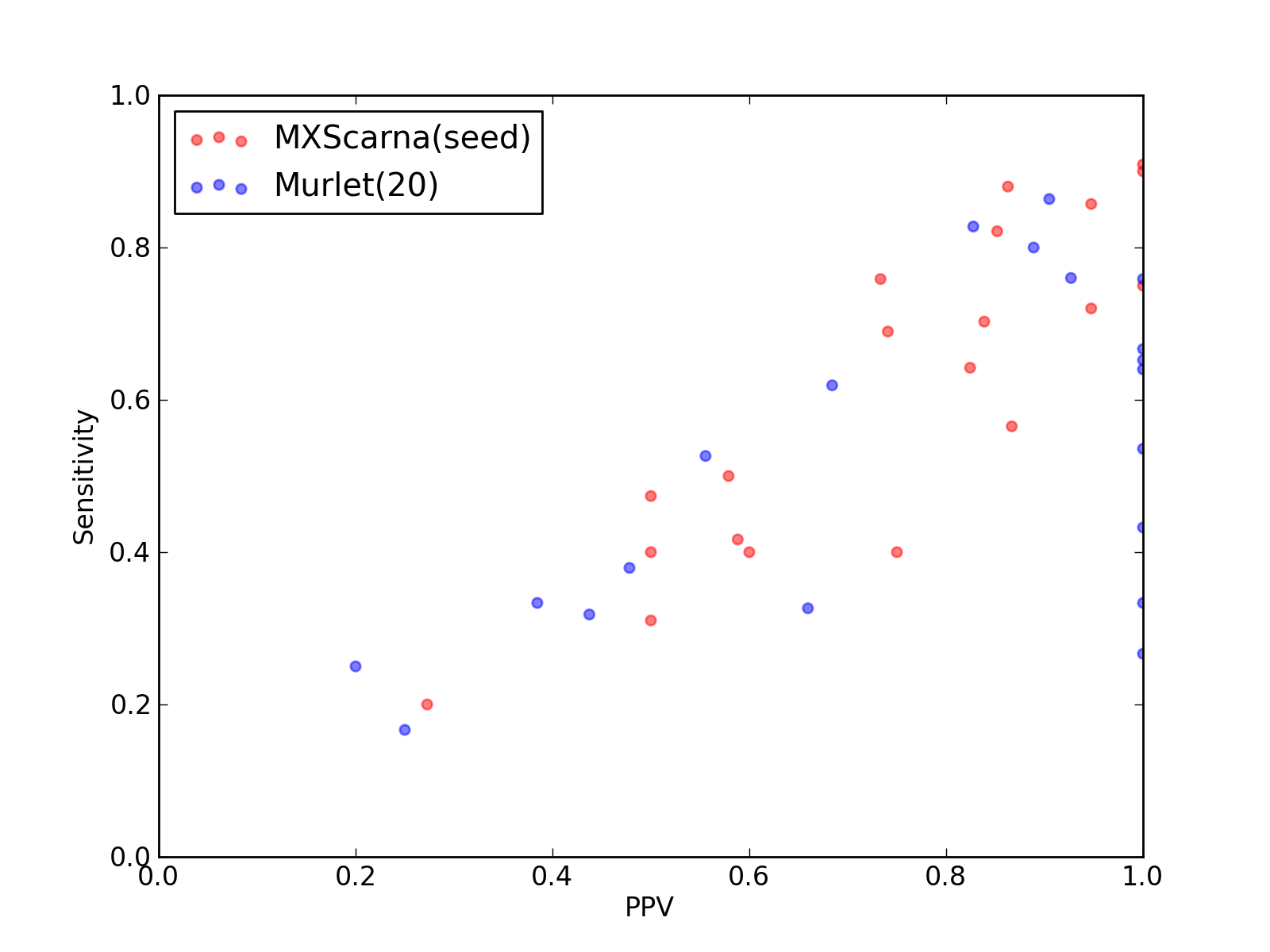

Comparison of performance of MXScarna(seed) and Murlet(20). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(20)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(20)).
Comparison of average Matthews Correlation Coefficients (MCCs) for MXScarna(seed) and Murlet(20). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for MXScarna(seed) and Murlet(20)).

Total Scores
MCC	0.707
Average MCC ± 95% Confidence Intervals	0.671 ± 0.097
Sensitivity	0.646
Positive Predictive Value	0.779
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.83	0.82	0.85	23	1422	7	2	2	3	5
3IVN_B	Purine links to Rfam database...	0.69	0.57	0.87	13	888	2	2	0	0	10
3IZ4_A	tmRNA links to Rfam database...	0.73	0.64	0.82	61	25462	22	12	1	9	34
3J20_0	tRNA links to Rfam database...	0.90	0.86	0.95	18	1200	1	1	0	0	3
3J3E_8	5_8S_rRNA links to Rfam database...	0.23	0.20	0.27	3	2731	14	3	5	6	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.48	0.47	0.50	9	4743	21	5	4	12	10
3JYV_7	tRNA links to Rfam database...	0.95	0.90	1.00	18	1093	2	0	0	2	2
3LA5_A	Purine links to Rfam database...	0.82	0.72	0.95	18	935	1	1	0	0	7
3NPB_A	SAM links to Rfam database...	0.76	0.70	0.84	26	2247	10	2	3	5	11
3O58_3	5_8S_rRNA links to Rfam database...	0.54	0.50	0.58	11	4745	20	5	3	12	11
3PDR_A	ykoK links to Rfam database...	0.87	0.88	0.86	44	4789	10	4	3	3	6
3RKF_A	Purine links to Rfam database...	0.86	0.75	1.00	18	848	0	0	0	0	6
3SD1_A	THF links to Rfam database...	0.74	0.76	0.73	22	1503	9	4	4	1	7
3ZEX_C	5_8S_rRNA links to Rfam database...	0.39	0.31	0.50	9	5356	21	3	6	12	20
4A1C_2	5_8S_rRNA links to Rfam database...	0.45	0.40	0.50	8	4500	20	4	4	12	12
4AOB_A	SAM links to Rfam database...	0.71	0.69	0.74	20	1410	10	2	5	3	9
4ENB_A	crcB links to Rfam database...	0.54	0.40	0.75	6	464	2	0	2	0	9
4ENC_A	crcB links to Rfam database...	0.48	0.40	0.60	6	486	4	1	3	0	9
4FRG_B	AdoCbl-variant links to Rfam database...	0.49	0.42	0.59	10	1185	8	2	5	1	14

Total Scores
MCC	0.617
Average MCC ± 95% Confidence Intervals	0.617 ± 0.104
Sensitivity	0.520
Positive Predictive Value	0.739
Nr of predictions	20

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
3A2K_C	tRNA links to Rfam database...	0.88	0.86	0.90	19	1087	2	0	2	0	3
3GX2_A	SAM links to Rfam database...	0.73	0.54	1.00	15	1434	1	0	0	1	13
3IVN_B	Purine links to Rfam database...	0.80	0.65	1.00	15	888	0	0	0	0	8
3IZ4_A	tmRNA links to Rfam database...	0.46	0.33	0.66	31	25489	22	3	13	6	64
3J20_0	tRNA links to Rfam database...	0.65	0.62	0.68	13	1200	6	1	5	0	8
3J3E_8	5_8S_rRNA links to Rfam database...	0.35	0.33	0.38	5	2729	13	2	6	5	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.54	0.53	0.56	10	4743	13	2	6	5	9
3JYV_7	tRNA links to Rfam database...	0.84	0.80	0.89	16	1093	4	0	2	2	4
3LA5_A	Purine links to Rfam database...	0.80	0.64	1.00	16	938	0	0	0	0	9
3NPB_A	SAM links to Rfam database...	0.65	0.43	1.00	16	2262	2	0	0	2	21
3O58_3	5_8S_rRNA links to Rfam database...	0.37	0.32	0.44	7	4748	13	4	5	4	15
3PDR_A	ykoK links to Rfam database...	0.84	0.76	0.93	38	4799	3	1	2	0	12
3RKF_A	Purine links to Rfam database...	0.81	0.67	1.00	16	850	0	0	0	0	8
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	4	1	0	5
3ZEX_C	5_8S_rRNA links to Rfam database...	0.42	0.38	0.48	11	5351	16	2	10	4	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.22	0.25	0.20	5	4491	24	5	15	4	15
4AOB_A	SAM links to Rfam database...	0.87	0.76	1.00	22	1415	3	0	0	3	7
4ENB_A	crcB links to Rfam database...	0.51	0.27	1.00	4	468	0	0	0	0	11
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.19	0.17	0.25	4	1186	12	1	11	0	20

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
