Metric	PETfold_pre2.0(seed)		MaxExpect
MCC	0.831	>	0.575
Average MCC ± 95% Confidence Intervals	0.774 ± 0.073	>	0.510 ± 0.161
Sensitivity	0.802	>	0.585
Positive Predictive Value	0.863	>	0.566
Total TP	603	>	440
Total TN	451981	>	451902
Total FP	216	<	451
Total FP CONTRA	35	<	79
Total FP INCONS	61	<	259
Total FP COMP	120	>	113
Total FN	149	<	312
P-value	2.57237423209e-08

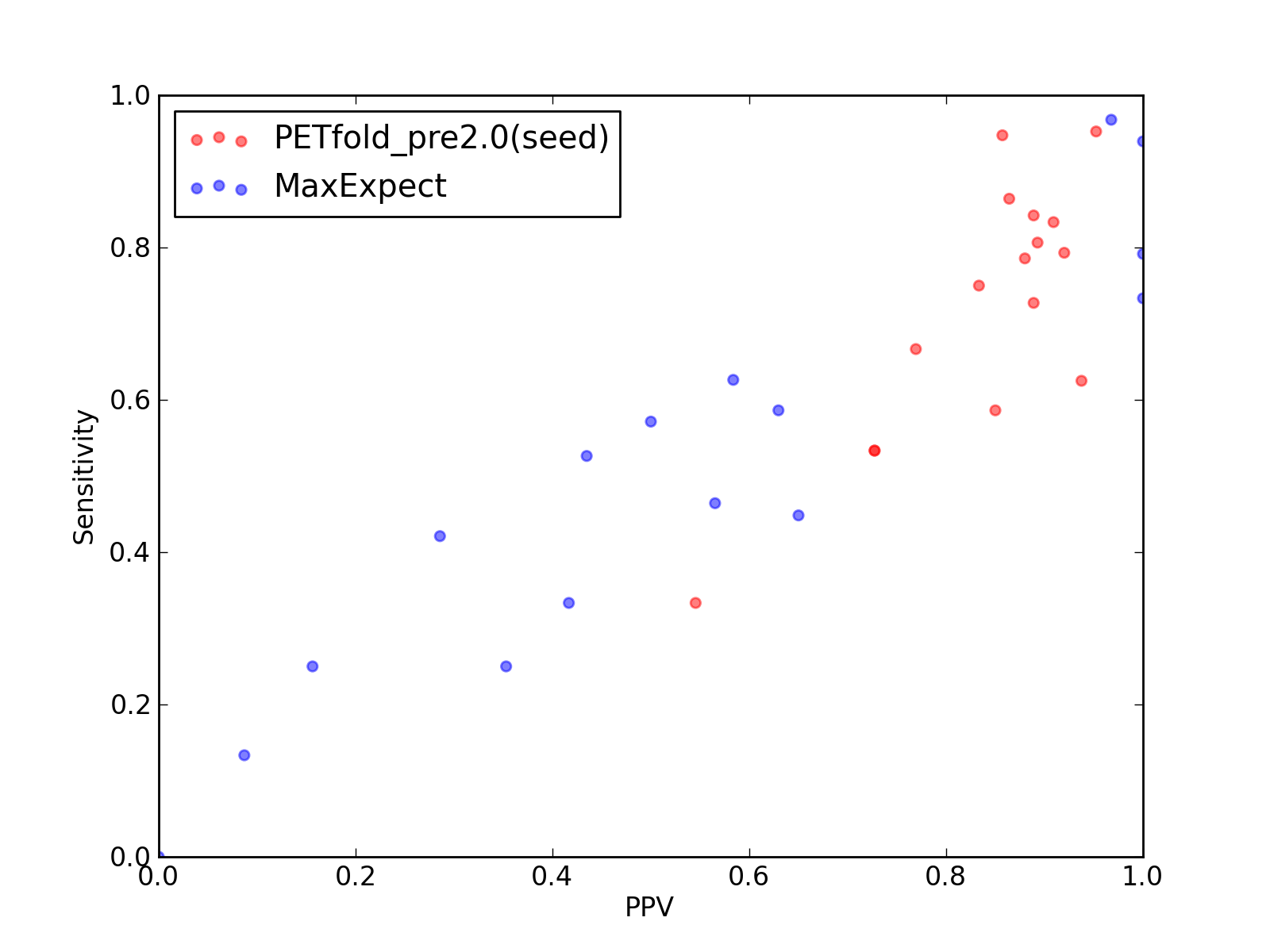

Comparison of performance of PETfold_pre2.0(seed) and MaxExpect. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and MaxExpect).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and MaxExpect).

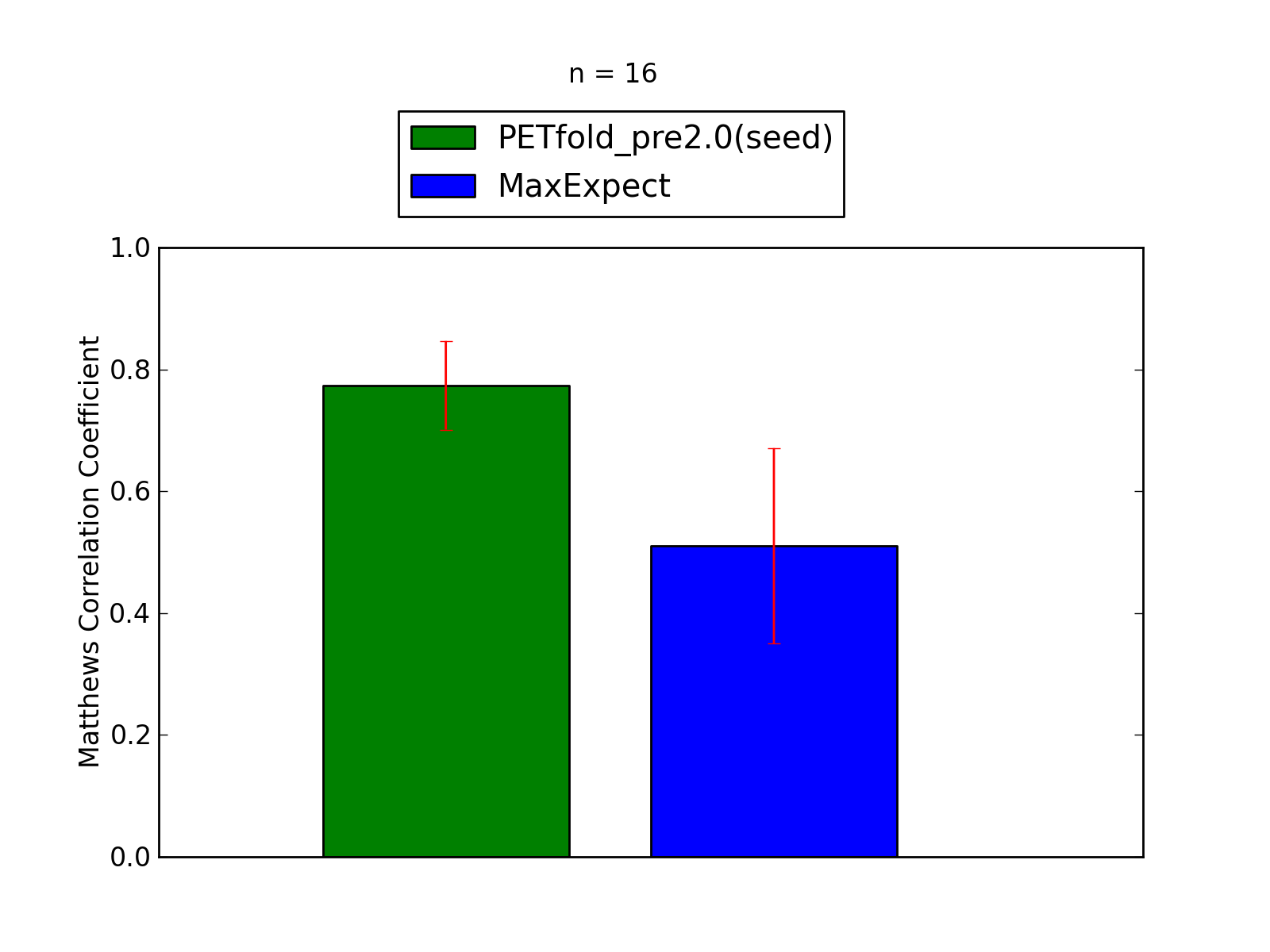

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and MaxExpect. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and MaxExpect).

Total Scores
MCC	0.831
Average MCC ± 95% Confidence Intervals	0.774 ± 0.073
Sensitivity	0.802
Positive Predictive Value	0.863
Nr of predictions	16

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.86	0.86	0.86	356	421956	129	18	38	73	56
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	4	3	0	1	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3W1K_J	tRNA-Sec links to Rfam database...	0.85	0.81	0.89	25	1650	4	2	1	1	6
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.73	0.89	24	1962	6	1	2	3	9
3ZEX_C	5_8S_rRNA links to Rfam database...	0.70	0.59	0.85	17	5354	12	1	2	9	12
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.87	0.83	0.91	20	1180	3	0	2	1	4
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

Total Scores
MCC	0.575
Average MCC ± 95% Confidence Intervals	0.510 ± 0.161
Sensitivity	0.585
Positive Predictive Value	0.566
Nr of predictions	16

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.60	0.63	0.58	258	421926	239	28	156	55	154
3J20_0	tRNA links to Rfam database...	0.53	0.57	0.50	12	1195	13	2	10	1	9
3J3D_C	tRNA links to Rfam database...	0.47	0.53	0.43	10	945	13	5	8	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.09	2	2719	32	5	16	11	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.34	0.42	0.29	8	4733	39	10	10	19	11
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.97	0.94	1.00	31	1958	1	0	0	1	2
3ZEX_C	5_8S_rRNA links to Rfam database...	0.54	0.45	0.65	13	5354	17	2	5	10	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	10	17	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.36	0.33	0.42	5	484	8	0	7	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.29	0.25	0.35	6	1185	11	4	7	0	18
4FRN_A	AdoCbl-variant links to Rfam database...	0.51	0.46	0.57	13	1825	10	5	5	0	15
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
