Table of contents:
- Overview
- Performance Plots
- Performance of PETfold_pre2.0(seed)
- scored higher in this pairwise comparison
- Performance of PknotsRG
- scored lower in this pairwise comparison
- Compile and download dataset for PETfold_pre2.0(seed) & PknotsRG [.zip] - may take several seconds...
Overview
| Metric |
PETfold_pre2.0(seed) |
|
PknotsRG |
|---|
| MCC |
0.789 |
>
|
0.569 |
| Average MCC ± 95% Confidence Intervals |
0.768
±
0.077
|
>
|
0.590
±
0.151
|
| Sensitivity |
0.726 |
>
|
0.615 |
| Positive Predictive Value |
0.861 |
>
|
0.536 |
| Total TP |
247 |
>
|
209 |
| Total TN |
30025 |
>
|
29922 |
| Total FP |
87 |
<
|
238 |
| Total FP CONTRA |
17 |
<
|
60 |
| Total FP INCONS |
23 |
<
|
121 |
| Total FP COMP |
47 |
<
|
57 |
| Total FN |
93 |
<
|
131 |
| P-value |
1.25253056981e-08 |
Performance plots
-

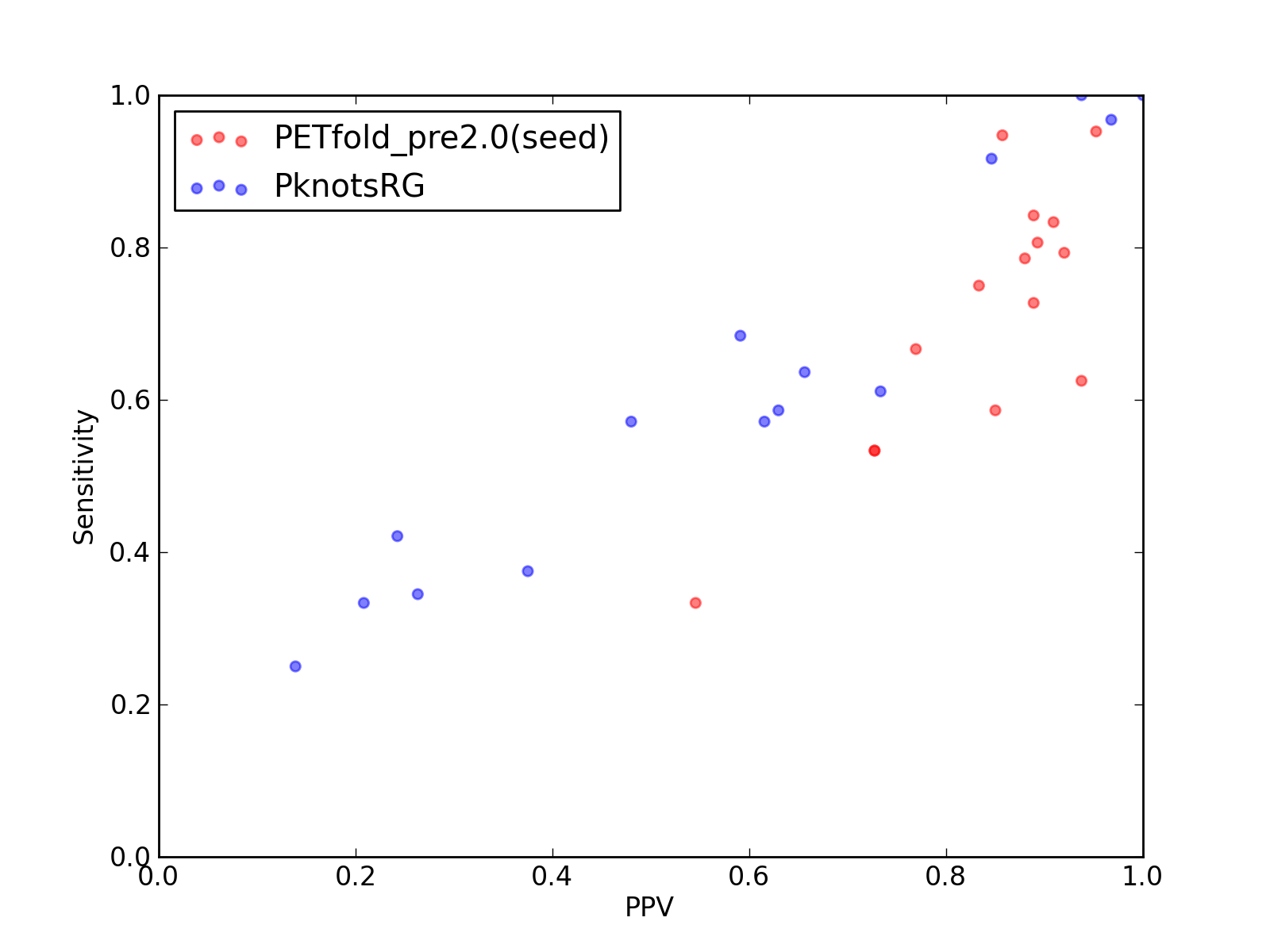

Comparison of performance of PETfold_pre2.0(seed) and PknotsRG. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and PknotsRG).
-
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and PknotsRG).
-
Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and PknotsRG. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data
(individual counts for PETfold_pre2.0(seed)
and PknotsRG).
Performance of PETfold_pre2.0(seed)
- scored higher in this pairwise comparison
1. Total counts & total scores for PETfold_pre2.0(seed)
| Total Base Pair Counts |
|---|
| Total TP |
247 |
| Total TN |
30025 |
| Total FP |
87 |
| Total FP CONTRA |
17 |
| Total FP INCONS |
23 |
| Total FP COMP |
47 |
| Total FN |
93 |
| Total Scores |
|---|
| MCC |
0.789 |
| Average MCC ± 95% Confidence Intervals |
0.768
±
0.077
|
| Sensitivity |
0.726 |
| Positive Predictive Value |
0.861 |
| Nr of predictions |
15 |
Performance of PknotsRG
- scored lower in this pairwise comparison
1. Total counts & total scores for PknotsRG
| Total Base Pair Counts |
|---|
| Total TP |
209 |
| Total TN |
29922 |
| Total FP |
238 |
| Total FP CONTRA |
60 |
| Total FP INCONS |
121 |
| Total FP COMP |
57 |
| Total FN |
131 |
| Total Scores |
|---|
| MCC |
0.569 |
| Average MCC ± 95% Confidence Intervals |
0.590
±
0.151
|
| Sensitivity |
0.615 |
| Positive Predictive Value |
0.536 |
| Nr of predictions |
15 |
Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based
on the paper by Gardener & Giegerich, 2004.
|
