CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	PETfold_pre2.0(seed)		TurboFold(seed)
MCC	0.754	>	0.570
Average MCC ± 95% Confidence Intervals	0.727 ± 0.093	>	0.560 ± 0.212
Sensitivity	0.679	>	0.564
Positive Predictive Value	0.842	>	0.585
Total TP	165	>	137
Total TN	24738	>	24700
Total FP	72	<	141
Total FP CONTRA	12	<	34
Total FP INCONS	19	<	63
Total FP COMP	41	<	44
Total FN	78	<	106
P-value	1.36849473644e-08

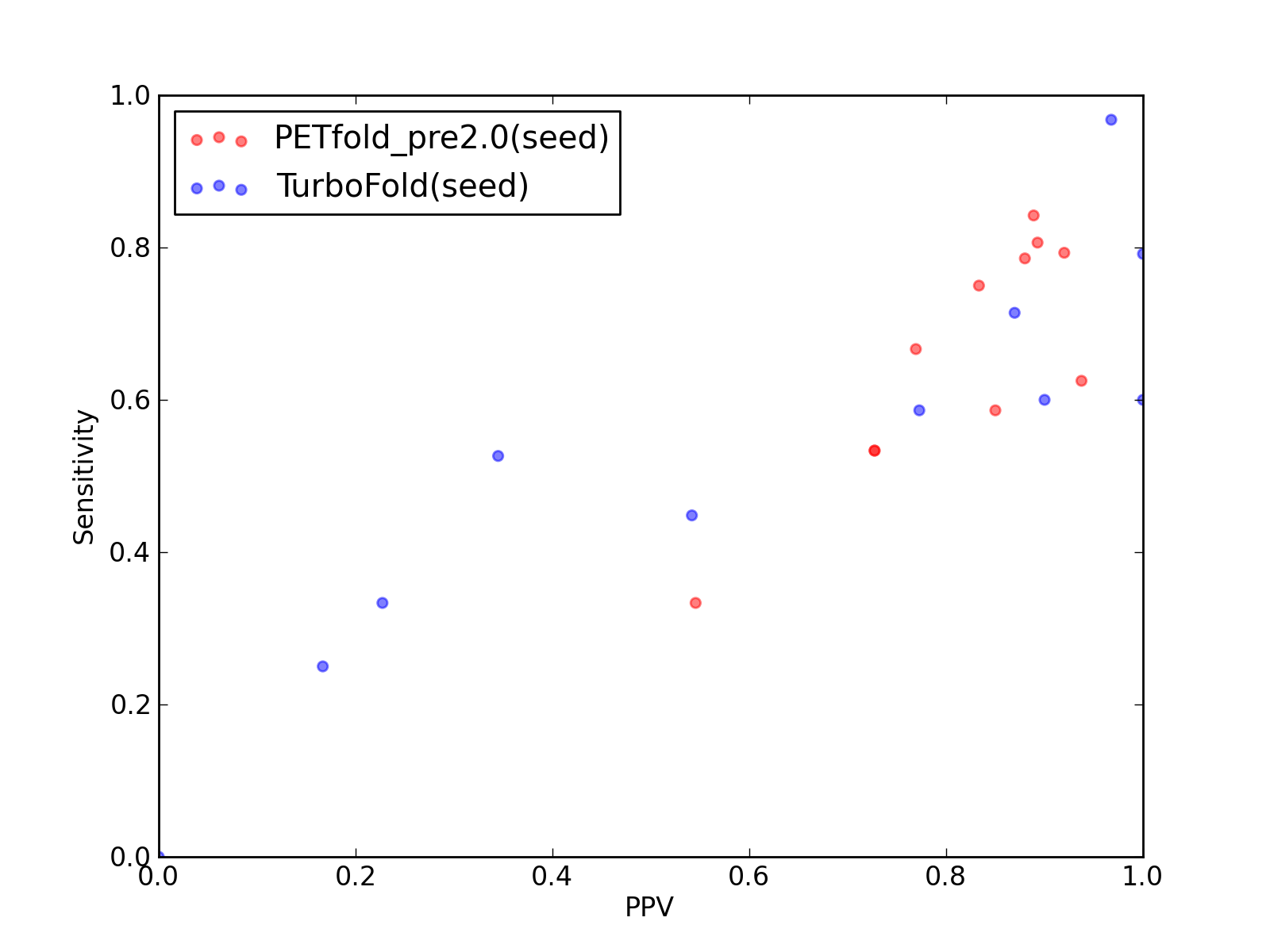

Comparison of performance of PETfold_pre2.0(seed) and TurboFold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and TurboFold(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and TurboFold(seed)).

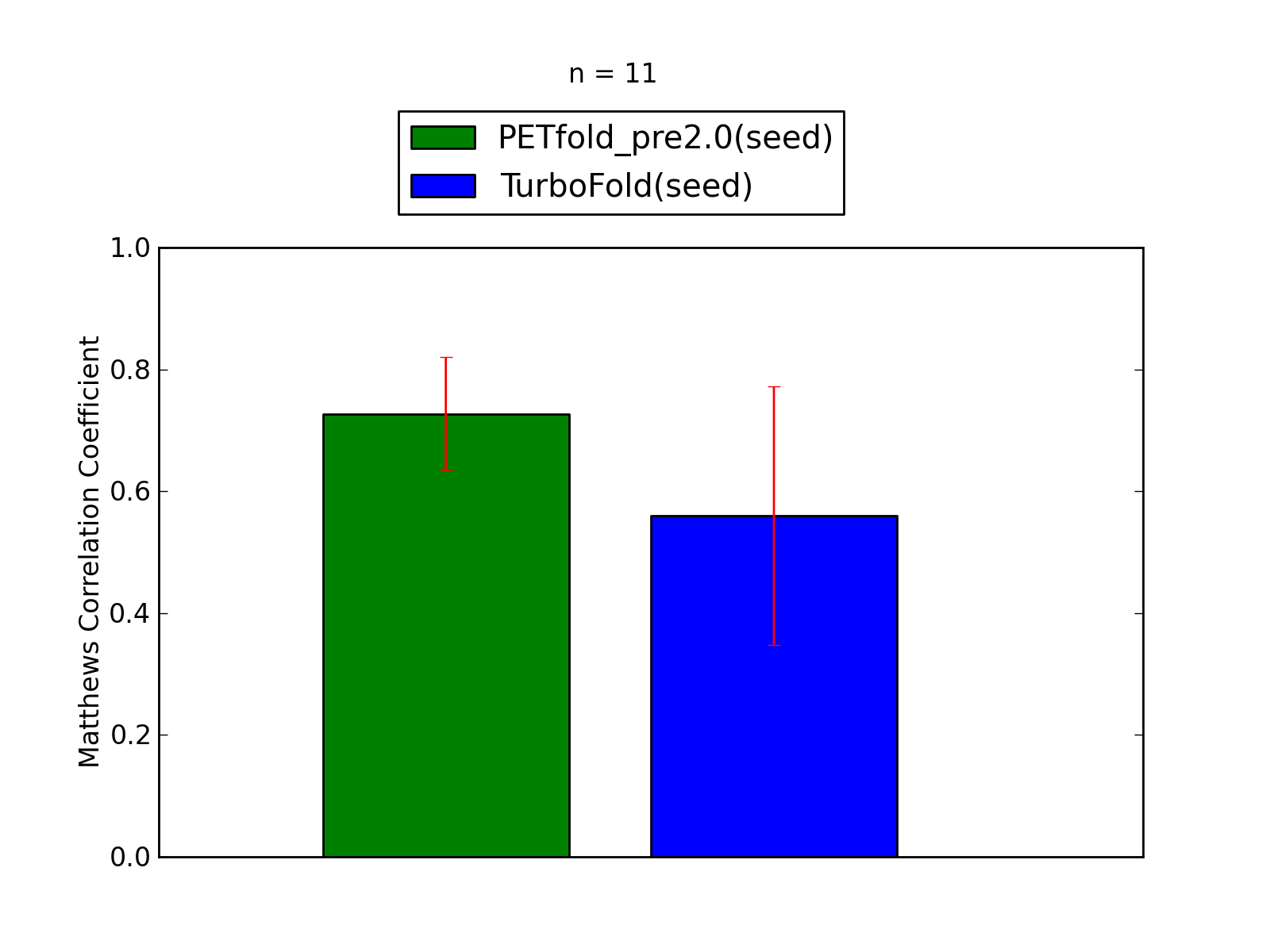

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and TurboFold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and TurboFold(seed)).

Total Scores
MCC	0.754
Average MCC ± 95% Confidence Intervals	0.727 ± 0.093
Sensitivity	0.679
Positive Predictive Value	0.842
Nr of predictions	11

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3W1K_J	tRNA-Sec links to Rfam database...	0.85	0.81	0.89	25	1650	4	2	1	1	6
3ZEX_C	5_8S_rRNA links to Rfam database...	0.70	0.59	0.85	17	5354	12	1	2	9	12
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

Total Scores
MCC	0.570
Average MCC ± 95% Confidence Intervals	0.560 ± 0.212
Sensitivity	0.564
Positive Predictive Value	0.585
Nr of predictions	11

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
3J3E_8	5_8S_rRNA links to Rfam database...	0.27	0.33	0.23	5	2720	28	6	11	11	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.42	0.53	0.34	10	4732	35	9	10	16	9
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.45	0.54	13	5350	15	2	9	4	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.20	0.25	0.17	5	4486	37	9	16	12	15
4AOB_A	SAM links to Rfam database...	0.67	0.59	0.77	17	1415	6	2	3	1	12
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FRN_A	AdoCbl-variant links to Rfam database...	0.79	0.71	0.87	20	1825	3	1	2	0	8
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
