Metric	PETfold_pre2.0(seed)		Vsfold5
MCC	0.790	>	0.524
Average MCC ± 95% Confidence Intervals	0.767 ± 0.089	>	0.528 ± 0.219
Sensitivity	0.732	>	0.550
Positive Predictive Value	0.858	>	0.510
Total TP	205	>	154
Total TN	23021	>	22958
Total FP	71	<	190
Total FP CONTRA	14	<	50
Total FP INCONS	20	<	98
Total FP COMP	37	<	42
Total FN	75	<	126
P-value	2.71568867205e-08

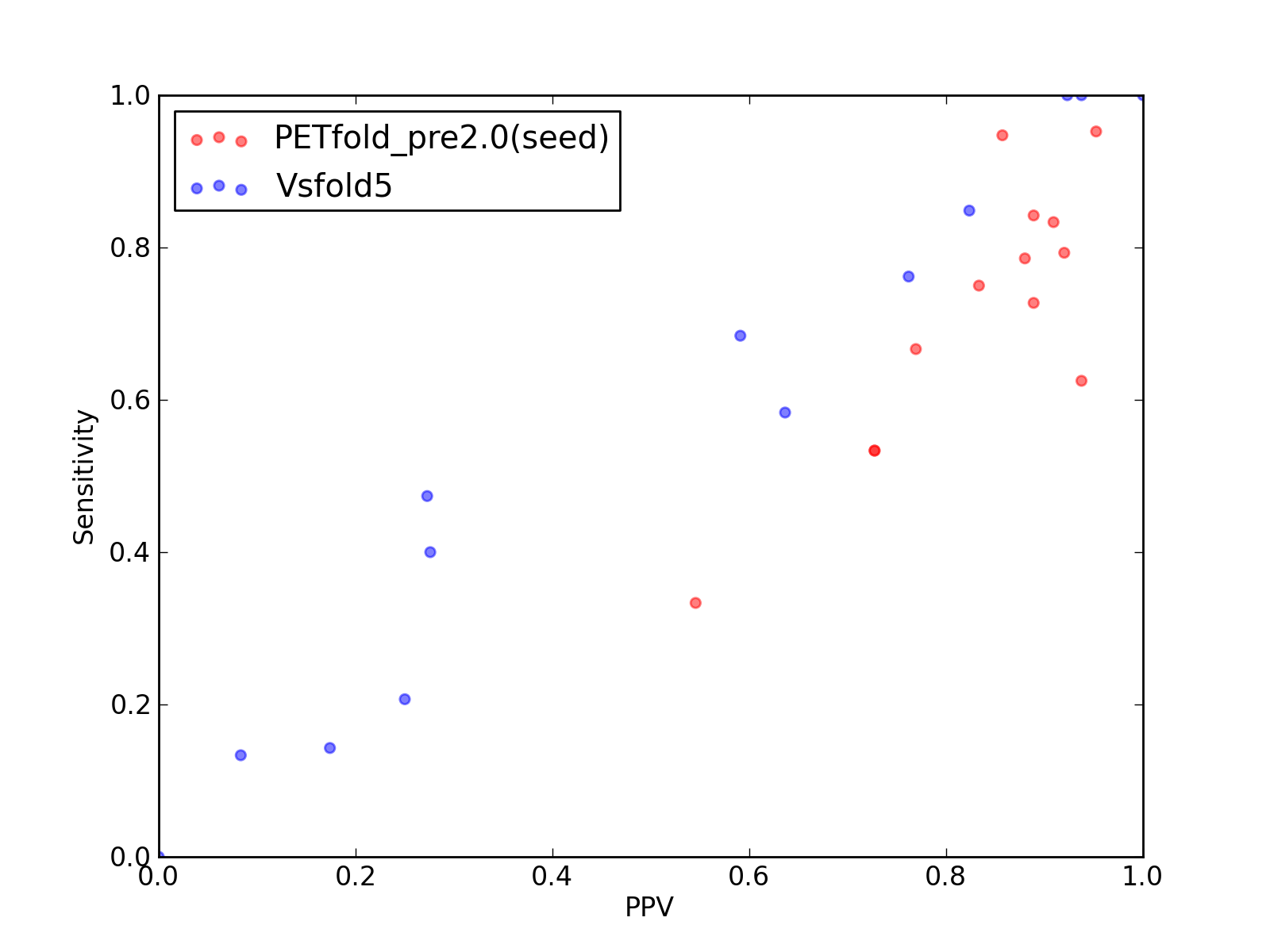

Comparison of performance of PETfold_pre2.0(seed) and Vsfold5. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Vsfold5).

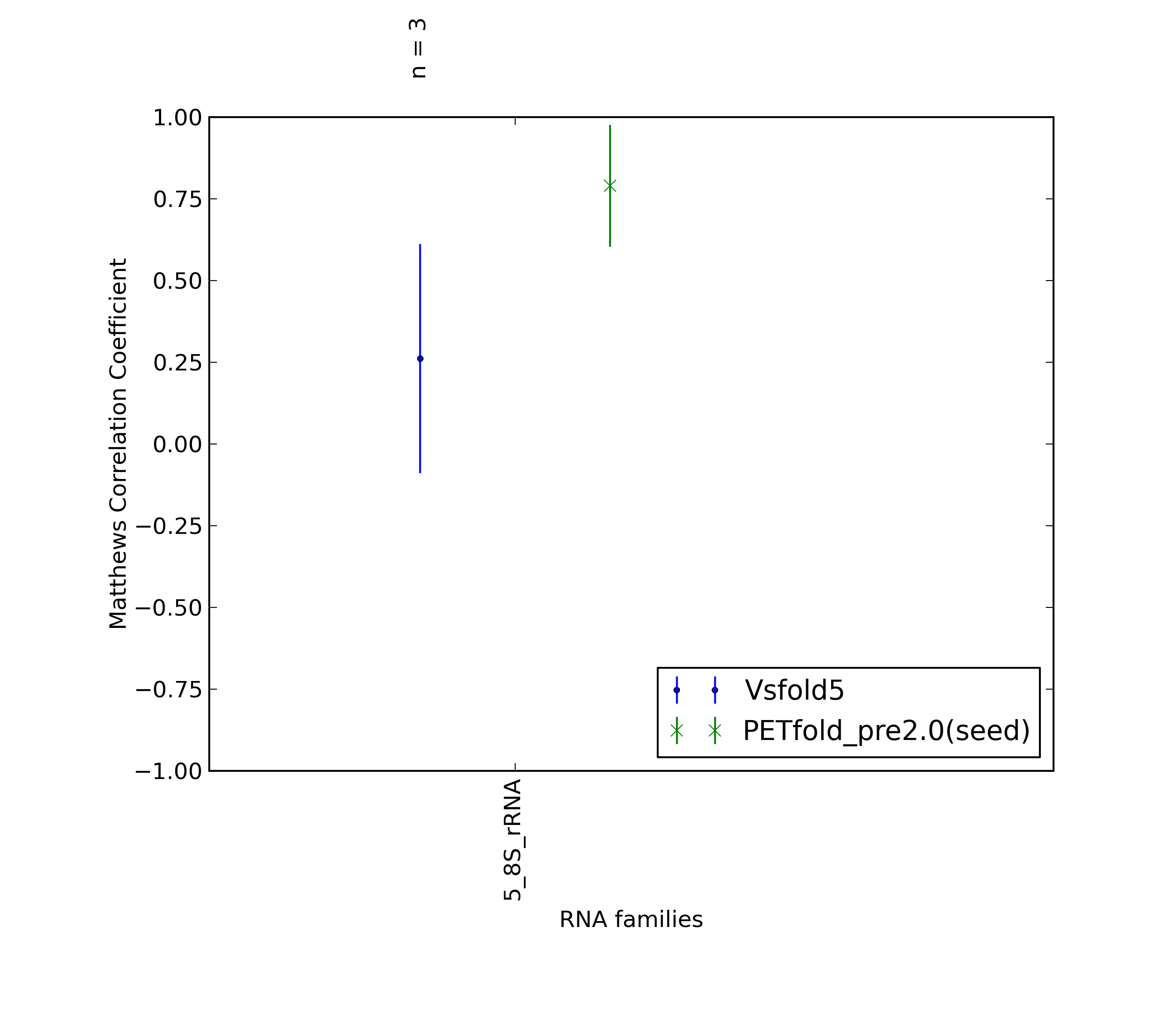

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Vsfold5).

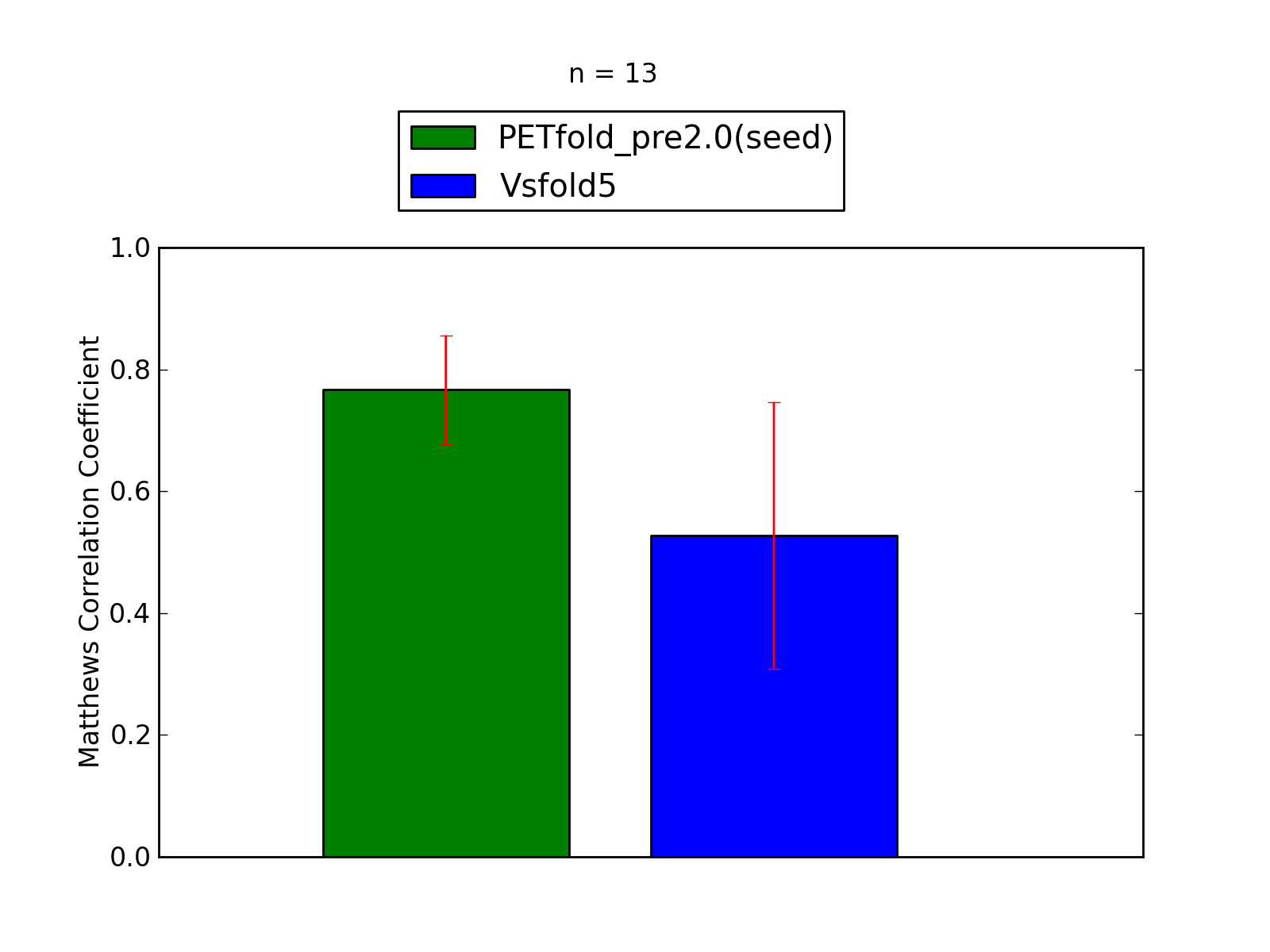

Comparison of average Matthews Correlation Coefficients (MCCs) for PETfold_pre2.0(seed) and Vsfold5. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for PETfold_pre2.0(seed) and Vsfold5).

Total Scores
MCC	0.790
Average MCC ± 95% Confidence Intervals	0.767 ± 0.089
Sensitivity	0.732
Positive Predictive Value	0.858
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.41	0.33	0.55	6	517	5	0	5	0	12
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	4	3	0	1	1
3J3E_8	5_8S_rRNA links to Rfam database...	0.71	0.67	0.77	10	2729	8	1	2	5	5
3J3F_8	5_8S_rRNA links to Rfam database...	0.86	0.84	0.89	16	4743	13	2	0	11	3
3W3S_B	tRNA-Sec links to Rfam database...	0.80	0.73	0.89	24	1962	6	1	2	3	9
4A1C_2	5_8S_rRNA links to Rfam database...	0.79	0.75	0.83	15	4498	12	1	2	9	5
4AOB_A	SAM links to Rfam database...	0.85	0.79	0.92	23	1412	4	0	2	2	6
4ENB_A	crcB links to Rfam database...	0.61	0.53	0.73	8	461	5	1	2	2	7
4ENC_A	crcB links to Rfam database...	0.61	0.53	0.73	8	485	5	1	2	2	7
4FRG_B	AdoCbl-variant links to Rfam database...	0.87	0.83	0.91	20	1180	3	0	2	1	4
4FRN_A	AdoCbl-variant links to Rfam database...	0.83	0.79	0.88	22	1823	3	2	1	0	6
4JF2_A	preQ1-II links to Rfam database...	0.76	0.63	0.94	15	1066	1	1	0	0	9

Total Scores
MCC	0.524
Average MCC ± 95% Confidence Intervals	0.528 ± 0.219
Sensitivity	0.550
Positive Predictive Value	0.510
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
3J20_0	tRNA links to Rfam database...	0.76	0.76	0.76	16	1198	6	3	2	1	5
3J3D_C	tRNA links to Rfam database...	0.63	0.68	0.59	13	946	9	3	6	0	6
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.08	2	2718	31	10	12	9	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.36	0.47	0.27	9	4728	38	13	11	14	10
3W3S_B	tRNA-Sec links to Rfam database...	0.83	0.85	0.82	28	1955	7	2	4	1	5
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.28	8	4487	37	8	13	16	12
4AOB_A	SAM links to Rfam database...	0.21	0.21	0.25	6	1413	19	2	16	1	23
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.15	0.14	0.17	4	1825	19	3	16	0	24
4JF2_A	preQ1-II links to Rfam database...	0.96	1.00	0.92	24	1056	2	2	0	0	0

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
