Overview

Metric	Pknots		Mastr(seed)
MCC	0.659	>	0.040
Average MCC ± 95% Confidence Intervals	0.683 ± 0.116	>	0.008 ± 0.016
Sensitivity	0.690	>	0.004
Positive Predictive Value	0.638	>	0.375
Total TP	464	>	3
Total TN	51875	<	52594
Total FP	337	>	5
Total FP CONTRA	89	>	0
Total FP INCONS	174	>	5
Total FP COMP	74	>	0
Total FN	208	<	669
P-value	5.19332990918e-08

^top

Performance plots

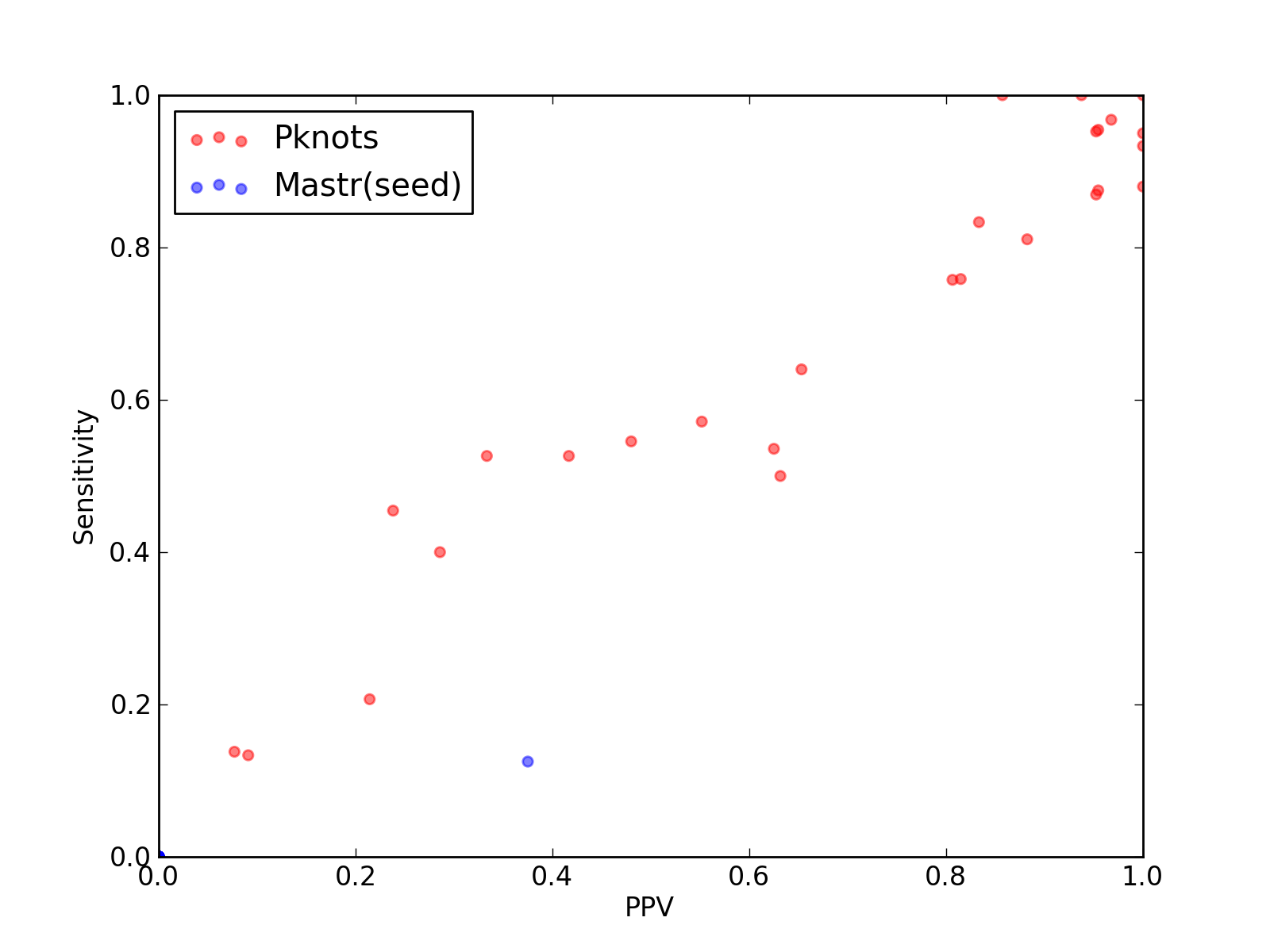

Comparison of performance of Pknots and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Pknots and Mastr(seed)).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Pknots and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for Pknots and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Pknots and Mastr(seed)).

^top

Performance of Pknots - scored higher in this pairwise comparison

1. Total counts & total scores for Pknots

Total Base Pair Counts
Total TP	464
Total TN	51875
Total FP	337
Total FP CONTRA	89
Total FP INCONS	174
Total FP COMP	74
Total FN	208

Total Scores
MCC	0.659
Average MCC ± 95% Confidence Intervals	0.683 ± 0.116
Sensitivity	0.690
Positive Predictive Value	0.638
Nr of predictions	27

^top

2. Individual counts for Pknots [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.83	0.83	0.83	15	510	3	2	1	0	3
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.50	0.55	0.48	12	1083	13	3	10	0	10
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.55	0.57	0.55	16	1420	14	4	9	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.87	0.95	20	882	1	0	1	0	3
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J3D_C	tRNA links to Rfam database...	0.46	0.53	0.42	10	944	14	5	9	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.09	2	2720	33	5	15	13	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.42	0.53	0.33	10	4731	37	10	10	17	9
3JYV_7	tRNA links to Rfam database...	0.97	0.95	1.00	19	1092	2	0	0	2	1
3LA5_A	Purine links to Rfam database...	0.94	0.88	1.00	22	932	0	0	0	0	3
3NPB_A	SAM links to Rfam database...	0.84	0.81	0.88	30	2244	9	0	4	5	7
3O58_3	5_8S_rRNA links to Rfam database...	0.32	0.45	0.24	10	4722	39	18	14	7	12
3PDR_A	ykoK links to Rfam database...	0.64	0.64	0.65	32	4791	19	4	13	2	18
3RKF_A	Purine links to Rfam database...	0.91	0.88	0.95	21	844	1	0	1	0	3
3SD1_A	THF links to Rfam database...	0.78	0.76	0.81	22	1506	5	1	4	0	7
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.78	0.76	0.81	25	1958	7	1	5	1	8
3ZEX_C	5_8S_rRNA links to Rfam database...	0.10	0.14	0.08	4	5322	54	13	35	6	25
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.40	0.29	8	4488	36	9	11	16	12
4AOB_A	SAM links to Rfam database...	0.19	0.21	0.21	6	1409	23	3	19	1	23
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	2	0	0	2	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.55	0.50	0.63	12	1183	7	0	7	0	12
4FRN_A	AdoCbl-variant links to Rfam database...	0.57	0.54	0.63	15	1824	9	3	6	0	13
4JF2_A	preQ1-II links to Rfam database...	0.92	1.00	0.86	24	1054	4	4	0	0	0

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	52594
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	669

Total Scores
MCC	0.040
Average MCC ± 95% Confidence Intervals	0.008 ± 0.016
Sensitivity	0.004
Positive Predictive Value	0.375
Nr of predictions	27

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	984	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	1108	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	968	0	0	0	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4761	0	0	0	0	19
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	1111	0	0	0	0	20
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1678	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1989	0	0	0	0	33
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1848	0	0	0	0	28
4JF2_A	preQ1-II links to Rfam database...	0.21	0.13	0.38	3	1074	5	0	5	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
