CompaRNA - on-line benchmarks of RNA structure prediction methods

FAQ

Metric	RNAalifold(seed)		TurboFold(seed)
MCC	0.620	>	0.610
Average MCC ± 95% Confidence Intervals	0.560 ± 0.167	<	0.598 ± 0.185
Sensitivity	0.449	<	0.598
Positive Predictive Value	0.864	>	0.630
Total TP	133	<	177
Total TN	27179	>	27052
Total FP	29	<	148
Total FP CONTRA	5	<	36
Total FP INCONS	16	<	68
Total FP COMP	8	<	44
Total FN	163	>	119
P-value	0.00115292248678

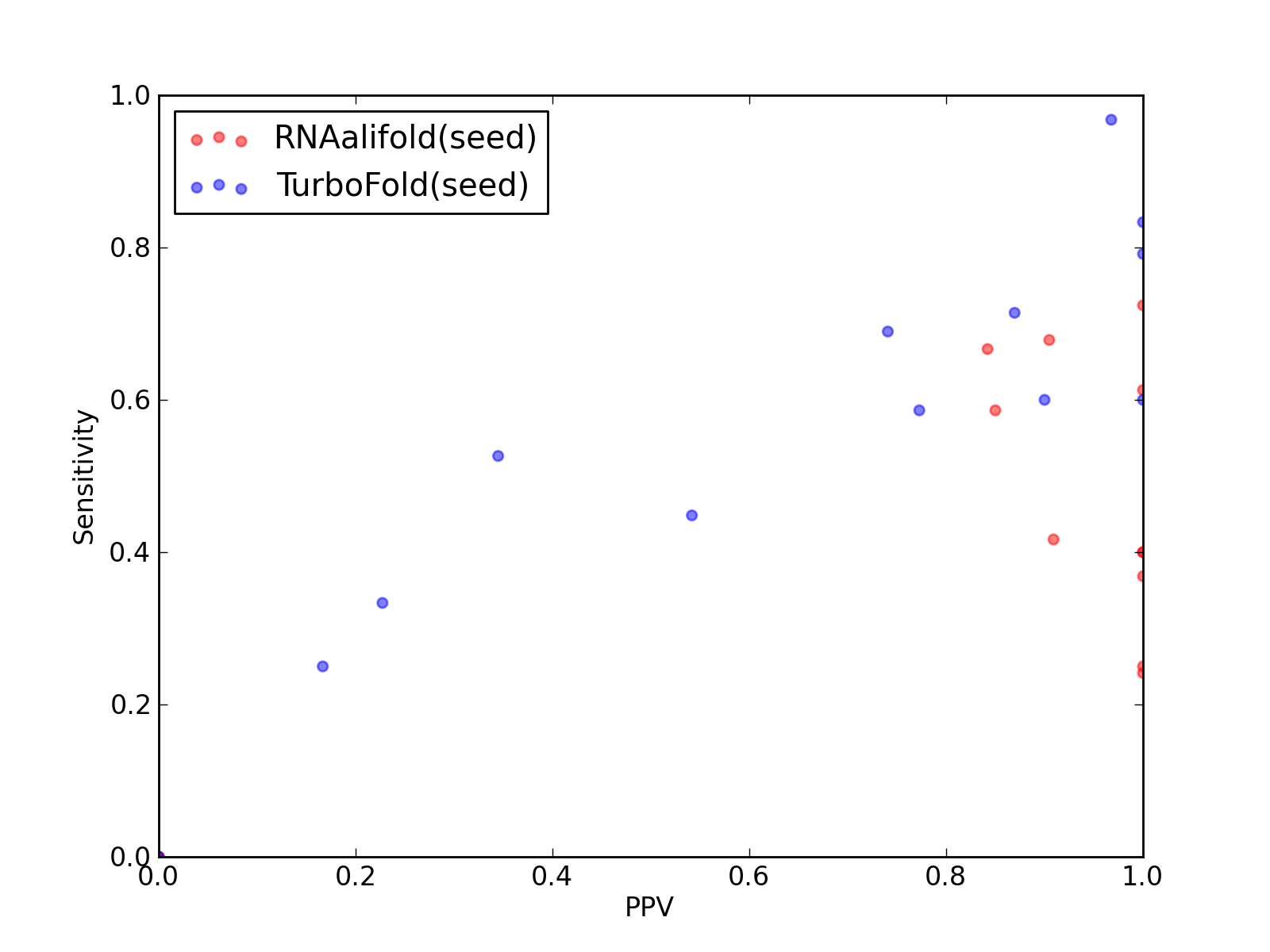

Comparison of performance of RNAalifold(seed) and TurboFold(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAalifold(seed) and TurboFold(seed)).

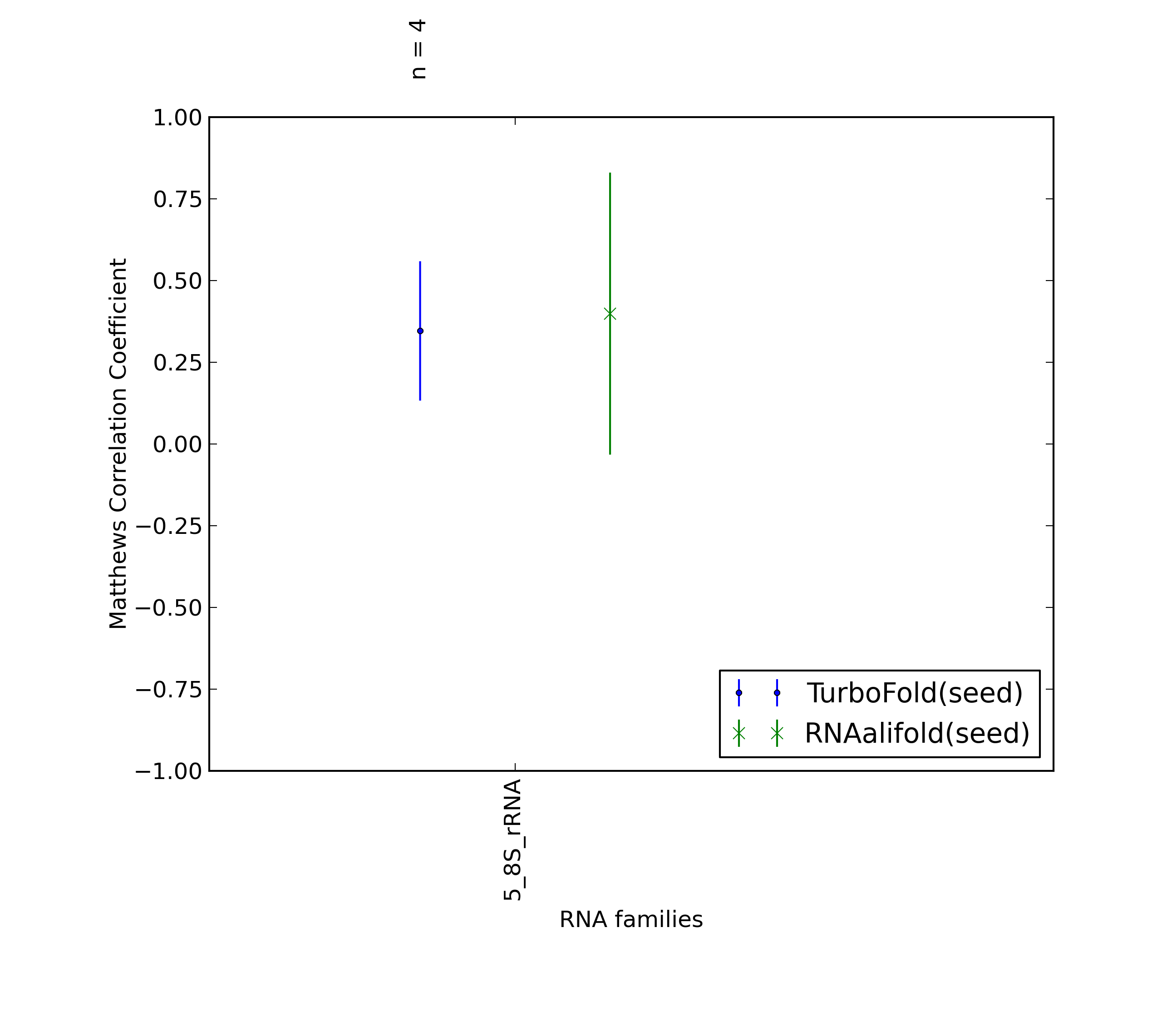

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAalifold(seed) and TurboFold(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAalifold(seed) and TurboFold(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAalifold(seed) and TurboFold(seed)).

Total Scores
MCC	0.620
Average MCC ± 95% Confidence Intervals	0.560 ± 0.167
Sensitivity	0.449
Positive Predictive Value	0.864
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	516	12	0	12	0	18
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.61	0.37	1.00	7	4754	2	0	0	2	12
3RKF_A	Purine links to Rfam database...	0.74	0.67	0.84	16	847	3	1	2	0	8
3SD1_A	THF links to Rfam database...	0.70	0.59	0.85	17	1513	3	2	1	0	12
3W1K_J	tRNA-Sec links to Rfam database...	0.78	0.61	1.00	19	1659	0	0	0	0	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.24	1.00	7	5367	2	0	0	2	22
4A1C_2	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	5	4511	2	0	0	2	15
4AOB_A	SAM links to Rfam database...	0.85	0.72	1.00	21	1416	2	0	0	2	8
4ENB_A	crcB links to Rfam database...	0.63	0.40	1.00	6	466	0	0	0	0	9
4ENC_A	crcB links to Rfam database...	0.63	0.40	1.00	6	490	0	0	0	0	9
4FRN_A	AdoCbl-variant links to Rfam database...	0.78	0.68	0.90	19	1827	2	1	1	0	9
4JF2_A	preQ1-II links to Rfam database...	0.61	0.42	0.91	10	1071	1	1	0	0	14

Total Scores
MCC	0.610
Average MCC ± 95% Confidence Intervals	0.598 ± 0.185
Sensitivity	0.598
Positive Predictive Value	0.630
Nr of predictions	13

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
3J3E_8	5_8S_rRNA links to Rfam database...	0.27	0.33	0.23	5	2720	28	6	11	11	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.42	0.53	0.34	10	4732	35	9	10	16	9
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.71	0.69	0.74	20	1506	7	2	5	0	9
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3ZEX_C	5_8S_rRNA links to Rfam database...	0.49	0.45	0.54	13	5350	15	2	9	4	16
4A1C_2	5_8S_rRNA links to Rfam database...	0.20	0.25	0.17	5	4486	37	9	16	12	15
4AOB_A	SAM links to Rfam database...	0.67	0.59	0.77	17	1415	6	2	3	1	12
4ENB_A	crcB links to Rfam database...	0.77	0.60	1.00	9	463	0	0	0	0	6
4ENC_A	crcB links to Rfam database...	0.73	0.60	0.90	9	486	1	1	0	0	6
4FRN_A	AdoCbl-variant links to Rfam database...	0.79	0.71	0.87	20	1825	3	1	2	0	8
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
