Overview

Metric	RNAfold		Mastr(seed)
MCC	0.589	>	0.036
Average MCC ± 95% Confidence Intervals	0.601 ± 0.109	>	0.007 ± 0.015
Sensitivity	0.625	>	0.004
Positive Predictive Value	0.562	>	0.375
Total TP	511	>	3
Total TN	99669	<	100570
Total FP	502	>	5
Total FP CONTRA	148	>	0
Total FP INCONS	250	>	5
Total FP COMP	104	>	0
Total FN	307	<	815
P-value	5.19332990918e-08

^top

Performance plots

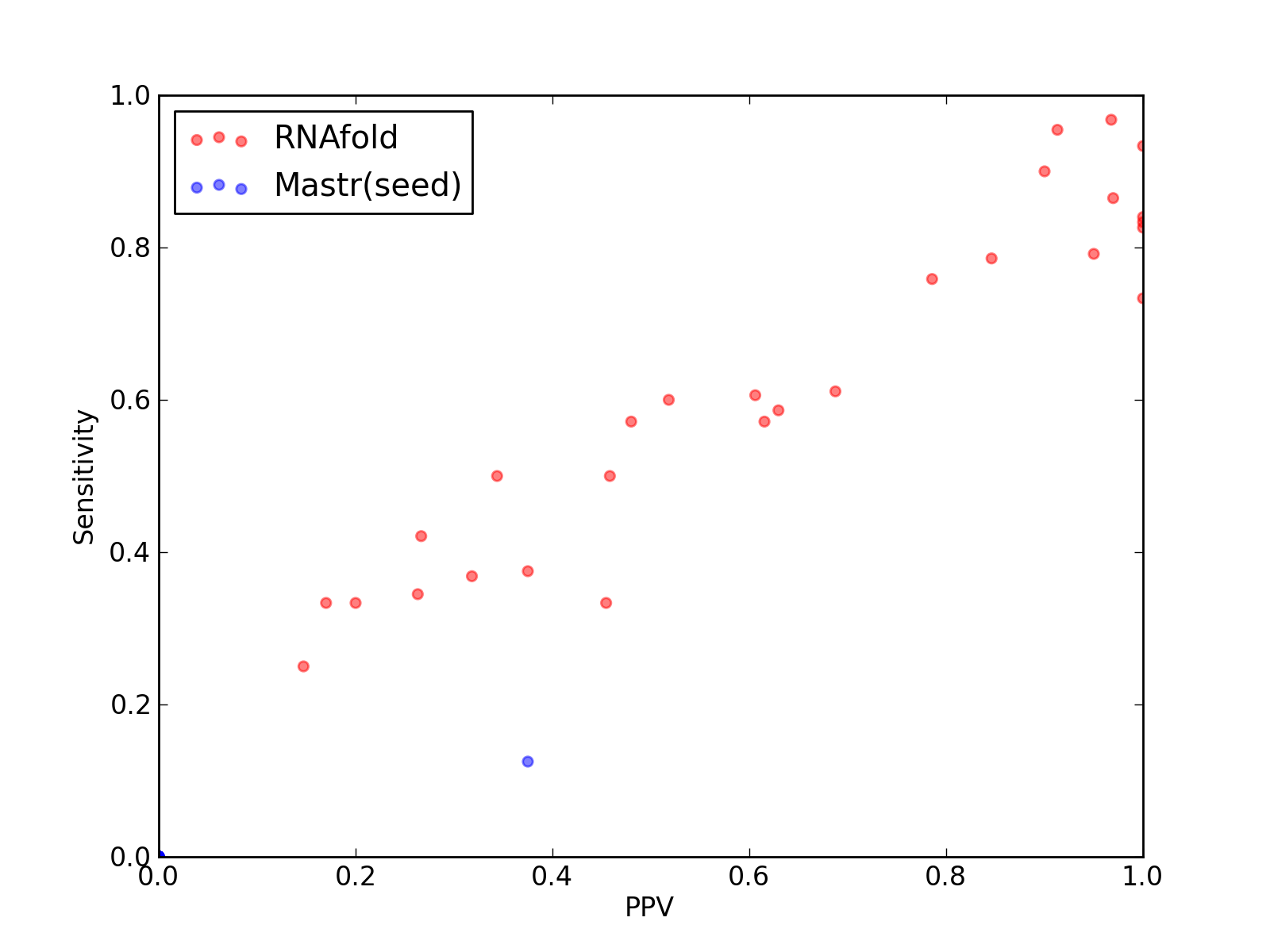

Comparison of performance of RNAfold and Mastr(seed). Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and Mastr(seed)).

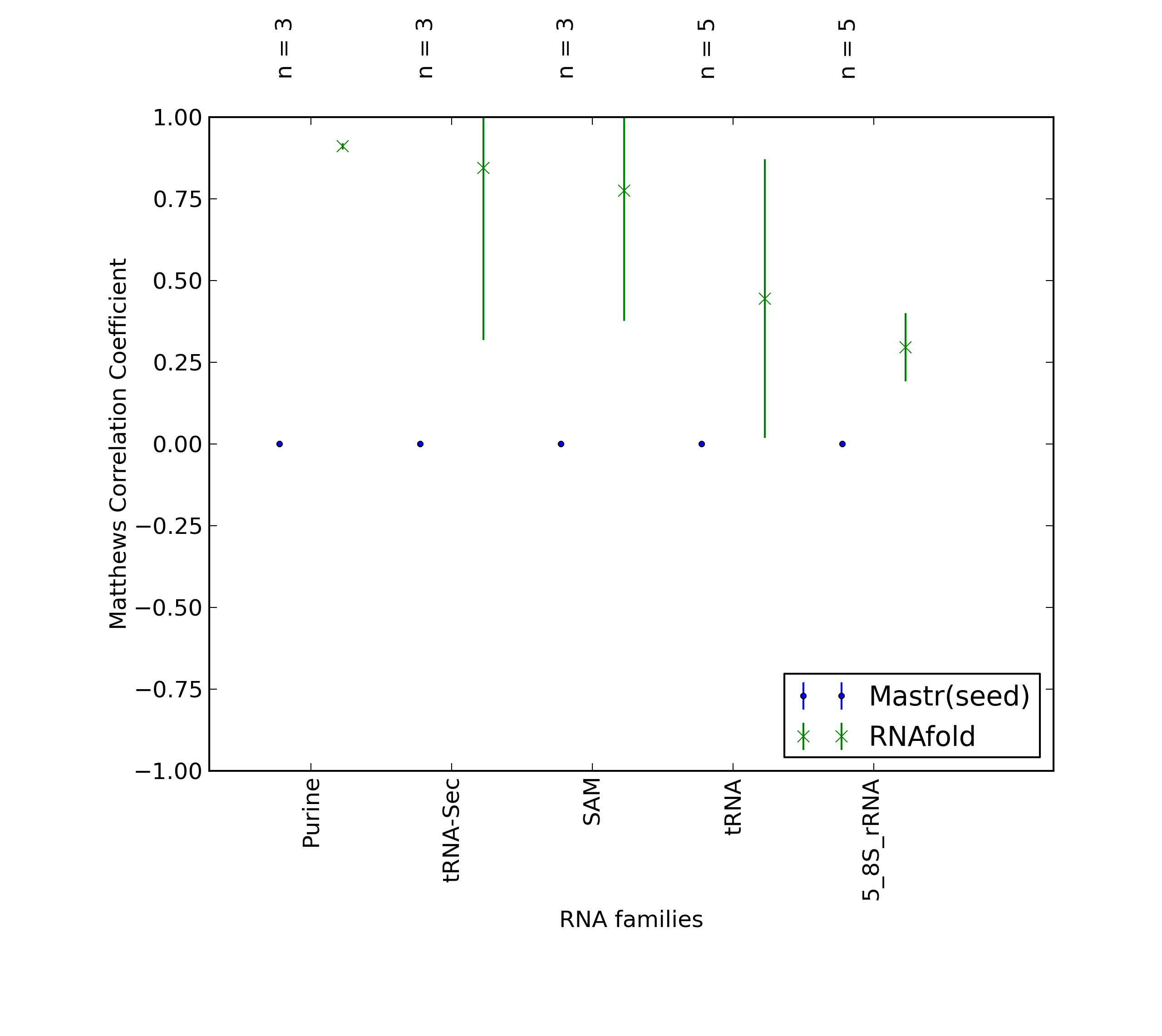

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and Mastr(seed)).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and Mastr(seed). The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and Mastr(seed)).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	511
Total TN	99669
Total FP	502
Total FP CONTRA	148
Total FP INCONS	250
Total FP COMP	104
Total FN	307

Total Scores
MCC	0.589
Average MCC ± 95% Confidence Intervals	0.601 ± 0.109
Sensitivity	0.625
Positive Predictive Value	0.562
Nr of predictions	29

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22340	95	45	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J3D_C	tRNA links to Rfam database...	0.33	0.37	0.32	7	946	15	3	12	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.25	0.33	0.20	5	2717	31	7	13	11	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.42	0.27	8	4731	42	10	12	20	11
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NPB_A	SAM links to Rfam database...	0.91	0.86	0.97	32	2245	5	1	0	4	5
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.60	0.61	0.61	20	1956	14	4	9	1	13
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.59	0.57	0.62	16	1822	10	2	8	0	12
4JF2_A	preQ1-II links to Rfam database...	0.86	0.79	0.95	19	1062	1	1	0	0	5

^top

Performance of Mastr(seed) - scored lower in this pairwise comparison

1. Total counts & total scores for Mastr(seed)

Total Base Pair Counts
Total TP	3
Total TN	100570
Total FP	5
Total FP CONTRA	0
Total FP INCONS	5
Total FP COMP	0
Total FN	815

Total Scores
MCC	0.036
Average MCC ± 95% Confidence Intervals	0.007 ± 0.015
Sensitivity	0.004
Positive Predictive Value	0.375
Nr of predictions	29

^top

2. Individual counts for Mastr(seed) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2LC8_A	GP_knot1 links to Rfam database...	0.00	0.00	0.00	0	528	0	0	0	0	18
2ZZN_D	tRNA links to Rfam database...	0.00	0.00	0.00	0	984	0	0	0	0	22
3A2K_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	1108	0	0	0	0	22
3A3A_A	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1500	0	0	0	0	30
3GX2_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1449	0	0	0	0	28
3IVN_B	Purine links to Rfam database...	0.00	0.00	0.00	0	903	0	0	0	0	23
3IYQ_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	22440	0	0	0	0	51
3IZ4_A	tmRNA links to Rfam database...	0.00	0.00	0.00	0	25536	0	0	0	0	95
3J20_0	tRNA links to Rfam database...	0.00	0.00	0.00	0	1219	0	0	0	0	21
3J3D_C	tRNA links to Rfam database...	0.00	0.00	0.00	0	968	0	0	0	0	19
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	2742	0	0	0	0	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4761	0	0	0	0	19
3JYV_7	tRNA links to Rfam database...	0.00	0.00	0.00	0	1111	0	0	0	0	20
3LA5_A	Purine links to Rfam database...	0.00	0.00	0.00	0	954	0	0	0	0	25
3NPB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	2278	0	0	0	0	37
3O58_3	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4764	0	0	0	0	22
3PDR_A	ykoK links to Rfam database...	0.00	0.00	0.00	0	4840	0	0	0	0	50
3RKF_A	Purine links to Rfam database...	0.00	0.00	0.00	0	866	0	0	0	0	24
3SD1_A	THF links to Rfam database...	0.00	0.00	0.00	0	1533	0	0	0	0	29
3W1K_J	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1678	0	0	0	0	31
3W3S_B	tRNA-Sec links to Rfam database...	0.00	0.00	0.00	0	1989	0	0	0	0	33
3ZEX_C	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	5374	0	0	0	0	29
4A1C_2	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	4516	0	0	0	0	20
4AOB_A	SAM links to Rfam database...	0.00	0.00	0.00	0	1437	0	0	0	0	29
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	472	0	0	0	0	15
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	496	0	0	0	0	15
4FRG_B	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1202	0	0	0	0	24
4FRN_A	AdoCbl-variant links to Rfam database...	0.00	0.00	0.00	0	1848	0	0	0	0	28
4JF2_A	preQ1-II links to Rfam database...	0.21	0.13	0.38	3	1074	5	0	5	0	21

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
