Overview

Metric	RNAfold		Vsfold4
MCC	0.575	>	0.553
Average MCC ± 95% Confidence Intervals	0.570 ± 0.094	<	0.572 ± 0.102
Sensitivity	0.604	>	0.549
Positive Predictive Value	0.555	<	0.565
Total TP	558	>	507
Total TN	100306	<	100413
Total FP	547	>	468
Total FP CONTRA	156	>	128
Total FP INCONS	291	>	263
Total FP COMP	100	>	77
Total FN	366	<	417
P-value	5.21776328505e-08

^top

Performance plots

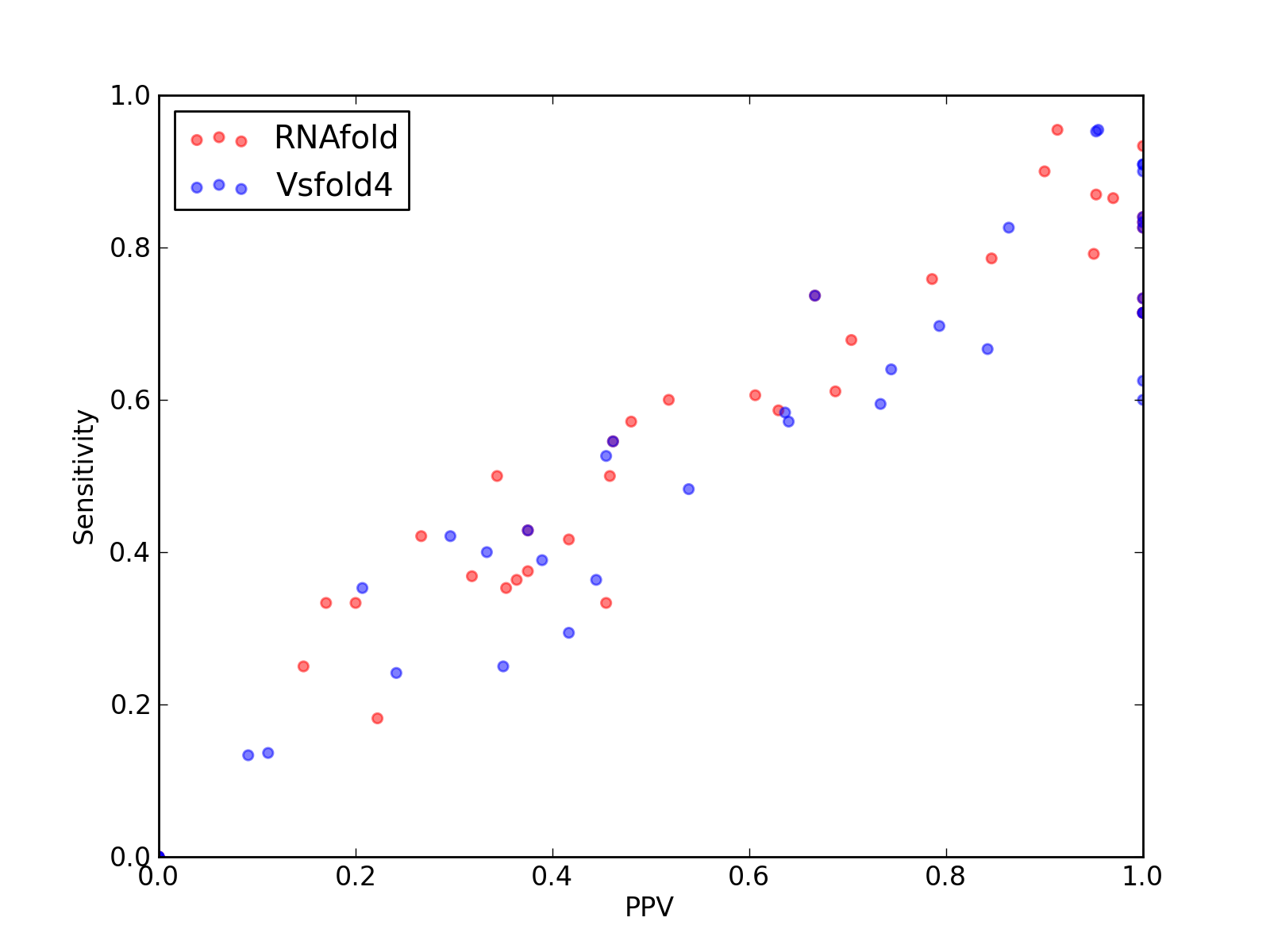

Comparison of performance of RNAfold and Vsfold4. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for RNAfold and Vsfold4).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for RNAfold and Vsfold4).
Comparison of average Matthews Correlation Coefficients (MCCs) for RNAfold and Vsfold4. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for RNAfold and Vsfold4).

^top

Performance of RNAfold - scored higher in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	558
Total TN	100306
Total FP	547
Total FP CONTRA	156
Total FP INCONS	291
Total FP COMP	100
Total FN	366

Total Scores
MCC	0.575
Average MCC ± 95% Confidence Intervals	0.570 ± 0.094
Sensitivity	0.604
Positive Predictive Value	0.555
Nr of predictions	38

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2M58_A	-	0.40	0.42	0.42	5	532	7	1	6	0	7
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.35	0.36	0.36	12	1786	22	1	20	1	21
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.69	0.68	0.70	19	1445	9	1	7	1	9
3IYQ_A	tmRNA links to Rfam database...	0.24	0.33	0.17	17	22340	95	45	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.56	0.60	0.52	57	25426	57	26	27	4	38
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J3D_C	tRNA links to Rfam database...	0.33	0.37	0.32	7	946	15	3	12	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.25	0.33	0.20	5	2717	31	7	13	11	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.42	0.27	8	4731	42	10	12	20	11
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1089	22	4	18	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NPB_A	SAM links to Rfam database...	0.91	0.86	0.97	32	2245	5	1	0	4	5
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	35	6	15	14	11
3PDR_A	ykoK links to Rfam database...	0.90	0.90	0.90	45	4790	7	2	3	2	5
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3W3S_B	tRNA-Sec links to Rfam database...	0.60	0.61	0.61	20	1956	14	4	9	1	13
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4482	43	11	18	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4JF2_A	preQ1-II links to Rfam database...	0.86	0.79	0.95	19	1062	1	1	0	0	5
4JRC_A	-	0.34	0.35	0.35	6	605	11	0	11	0	11

^top

Performance of Vsfold4 - scored lower in this pairwise comparison

1. Total counts & total scores for Vsfold4

Total Base Pair Counts
Total TP	507
Total TN	100413
Total FP	468
Total FP CONTRA	128
Total FP INCONS	263
Total FP COMP	77
Total FN	417

Total Scores
MCC	0.553
Average MCC ± 95% Confidence Intervals	0.572 ± 0.102
Sensitivity	0.549
Positive Predictive Value	0.565
Nr of predictions	38

^top

2. Individual counts for Vsfold4 [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2KRL_A	-	0.84	0.83	0.86	19	2002	9	2	1	6	4
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	515	13	0	13	0	18
2M58_A	-	-0.02	0.00	0.00	0	538	6	0	6	0	12
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.95	0.95	0.95	21	962	1	1	0	0	1
3A2K_C	tRNA links to Rfam database...	0.95	0.91	1.00	20	1088	0	0	0	0	2
3A3A_A	tRNA-Sec links to Rfam database...	0.95	0.90	1.00	27	1473	0	0	0	0	3
3ADB_C	-	0.95	0.91	1.00	30	1789	0	0	0	0	3
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.60	0.57	0.64	16	1424	10	0	9	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.28	0.25	0.35	7	1452	13	2	11	0	21
3IYQ_A	tmRNA links to Rfam database...	0.27	0.35	0.21	18	22353	80	40	29	11	33
3IZ4_A	tmRNA links to Rfam database...	0.39	0.39	0.39	37	25441	63	15	43	5	58
3J0L_a	-	0.39	0.36	0.44	4	402	6	4	1	1	7
3J20_0	tRNA links to Rfam database...	0.95	0.95	0.95	20	1198	2	1	0	1	1
3J3D_C	tRNA links to Rfam database...	0.48	0.53	0.45	10	946	12	4	8	0	9
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.09	2	2720	32	9	11	12	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.35	0.42	0.30	8	4734	30	11	8	11	11
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	19	4	15	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NPB_A	SAM links to Rfam database...	0.66	0.59	0.73	22	2248	10	0	8	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.12	0.14	0.11	3	4737	35	8	16	11	19
3PDR_A	ykoK links to Rfam database...	0.69	0.64	0.74	32	4797	13	3	8	2	18
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.23	0.24	0.24	7	1504	22	5	17	0	22
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3W3S_B	tRNA-Sec links to Rfam database...	0.74	0.70	0.79	23	1960	7	1	5	1	10
4A1C_2	5_8S_rRNA links to Rfam database...	0.36	0.40	0.33	8	4492	28	4	12	12	12
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.77	0.60	1.00	9	487	0	0	0	0	6
4FRG_B	AdoCbl-variant links to Rfam database...	0.60	0.58	0.64	14	1180	8	3	5	0	10
4JF2_A	preQ1-II links to Rfam database...	0.74	0.67	0.84	16	1063	3	0	3	0	8
4JRC_A	-	0.34	0.29	0.42	5	610	7	0	7	0	12

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
