Overview

Metric	Sfold		RNAshapes
MCC	0.617	>	0.585
Average MCC ± 95% Confidence Intervals	0.608 ± 0.086	>	0.585 ± 0.087
Sensitivity	0.604	<	0.606
Positive Predictive Value	0.638	>	0.573
Total TP	611	<	613
Total TN	109253	>	109142
Total FP	452	<	568
Total FP CONTRA	121	<	144
Total FP INCONS	226	<	312
Total FP COMP	105	<	112
Total FN	401	>	399
P-value	3.56938820447e-08

^top

Performance plots

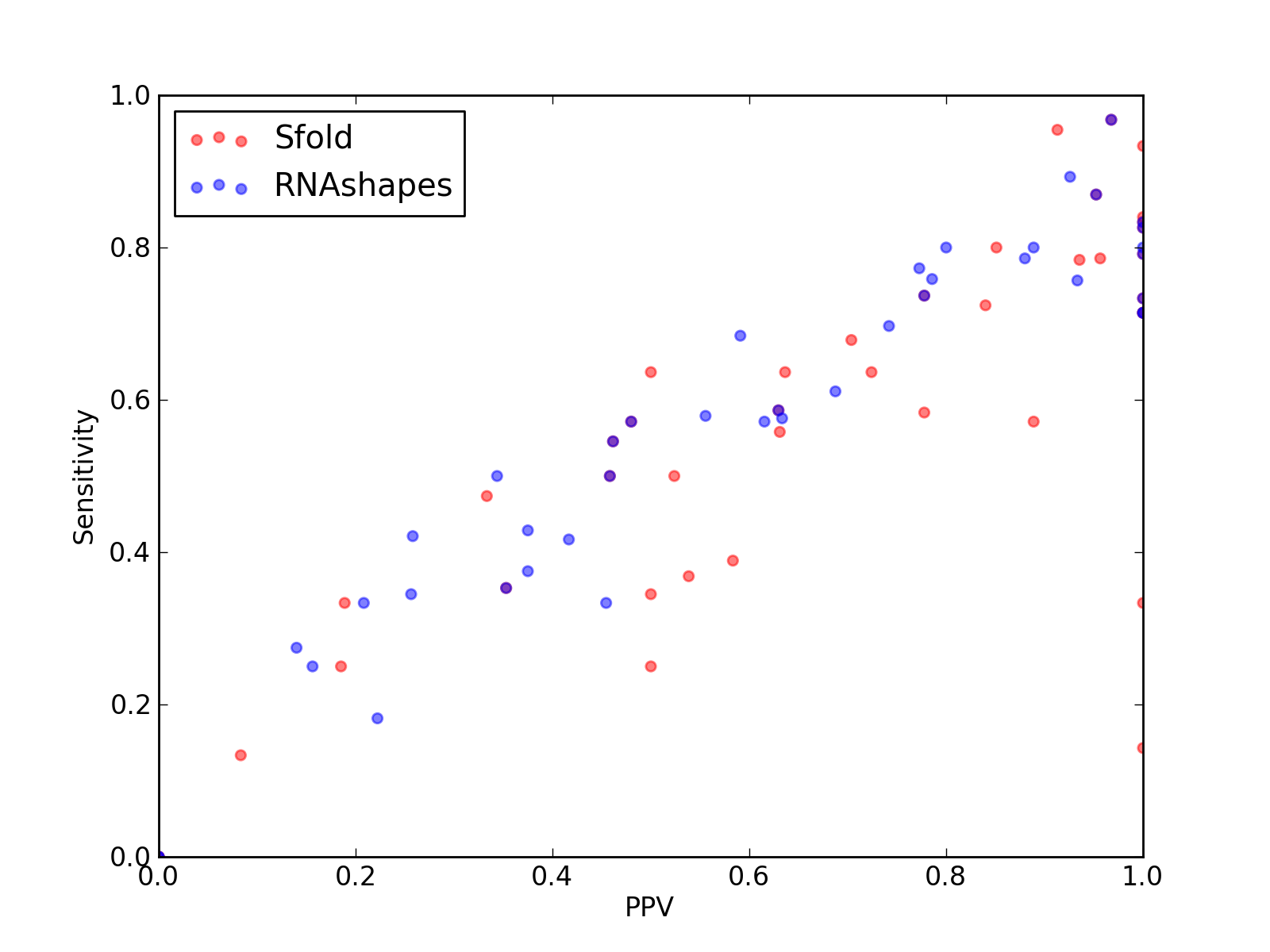

Comparison of performance of Sfold and RNAshapes. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Sfold and RNAshapes).

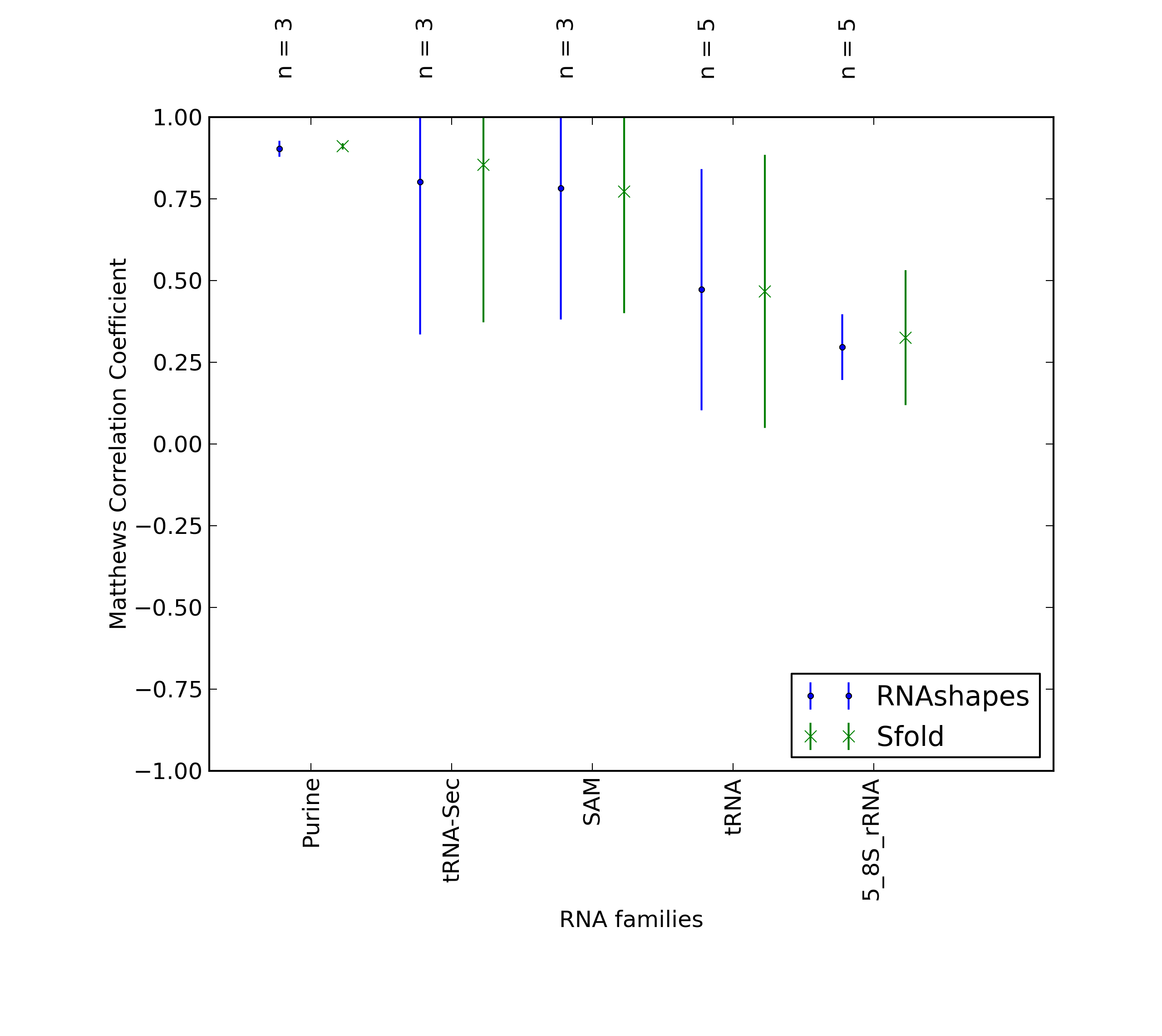

Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Sfold and RNAshapes).
Comparison of average Matthews Correlation Coefficients (MCCs) for Sfold and RNAshapes. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Sfold and RNAshapes).

^top

Performance of Sfold - scored higher in this pairwise comparison

1. Total counts & total scores for Sfold

Total Base Pair Counts
Total TP	611
Total TN	109253
Total FP	452
Total FP CONTRA	121
Total FP INCONS	226
Total FP COMP	105
Total FN	401

Total Scores
MCC	0.617
Average MCC ± 95% Confidence Intervals	0.608 ± 0.086
Sensitivity	0.604
Positive Predictive Value	0.638
Nr of predictions	41

^top

2. Individual counts for Sfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2LC8_A	GP_knot1 links to Rfam database...	0.46	0.39	0.58	7	516	5	0	5	0	11
2M58_A	-	0.34	0.25	0.50	3	538	3	1	2	0	9
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	3	2	0	1	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.67	0.64	0.72	21	1790	9	0	8	1	12
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.86	0.79	0.96	22	1426	2	1	0	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.69	0.68	0.70	19	1445	9	1	7	1	9
3IYQ_A	tmRNA links to Rfam database...	0.25	0.33	0.19	17	22350	86	39	34	13	34
3IZ4_A	tmRNA links to Rfam database...	0.59	0.56	0.63	53	25452	34	14	17	3	42
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J3D_C	tRNA links to Rfam database...	0.44	0.37	0.54	7	955	6	1	5	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.10	0.13	0.08	2	2718	32	6	16	10	13
3J3F_8	5_8S_rRNA links to Rfam database...	0.39	0.47	0.33	9	4734	37	8	10	19	10
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1095	16	2	14	0	20
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.75	0.74	0.78	14	717	4	0	4	0	5
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	7	0	2	5	8
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.50	0.52	11	4743	18	2	8	8	11
3PDR_A	ykoK links to Rfam database...	0.82	0.80	0.85	40	4793	9	2	5	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.78	0.72	0.84	21	1508	4	2	2	0	8
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.63	0.64	0.64	21	1956	13	4	8	1	12
3ZEX_C	5_8S_rRNA links to Rfam database...	0.41	0.34	0.50	10	5354	27	2	8	17	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.21	0.25	0.19	5	4489	34	8	14	12	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.37	0.14	1.00	1	219	0	0	0	0	6
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	0	0	0	0	4
4ENC_A	crcB links to Rfam database...	0.57	0.33	1.00	5	491	0	0	0	0	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.67	0.58	0.78	14	1184	4	3	1	0	10
4FRN_A	AdoCbl-variant links to Rfam database...	0.71	0.57	0.89	16	1830	2	2	0	0	12
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5
4JRC_A	-	0.34	0.35	0.35	6	605	11	0	11	0	11

^top

Performance of RNAshapes - scored lower in this pairwise comparison

1. Total counts & total scores for RNAshapes

Total Base Pair Counts
Total TP	613
Total TN	109142
Total FP	568
Total FP CONTRA	144
Total FP INCONS	312
Total FP COMP	112
Total FN	399

Total Scores
MCC	0.585
Average MCC ± 95% Confidence Intervals	0.585 ± 0.087
Sensitivity	0.606
Positive Predictive Value	0.573
Nr of predictions	41

^top

2. Individual counts for RNAshapes [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	0	5	0	7
2M58_A	-	0.40	0.42	0.42	5	532	7	1	6	0	7
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2ZZN_D	tRNA links to Rfam database...	0.77	0.77	0.77	17	962	5	1	4	0	5
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.84	0.80	0.89	24	1473	3	0	3	0	6
3ADB_C	-	0.71	0.70	0.74	23	1788	8	0	8	0	10
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.91	0.89	0.93	25	1422	3	1	1	1	3
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.83	0.79	0.88	22	1447	3	1	2	0	6
3IYQ_A	tmRNA links to Rfam database...	0.19	0.27	0.14	14	22340	95	43	43	9	37
3IZ4_A	tmRNA links to Rfam database...	0.57	0.58	0.56	55	25437	50	16	28	6	40
3J0L_a	-	0.18	0.18	0.22	2	402	8	3	4	1	9
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J3D_C	tRNA links to Rfam database...	0.63	0.68	0.59	13	946	9	3	6	0	6
3J3E_8	5_8S_rRNA links to Rfam database...	0.26	0.33	0.21	5	2718	29	6	13	10	10
3J3F_8	5_8S_rRNA links to Rfam database...	0.33	0.42	0.26	8	4730	42	11	12	19	11
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1092	20	1	18	1	20
3LA5_A	Purine links to Rfam database...	0.89	0.80	1.00	20	934	0	0	0	0	5
3NKB_B	-	0.75	0.74	0.78	14	717	6	0	4	2	5
3NPB_A	SAM links to Rfam database...	0.84	0.76	0.93	28	2248	5	1	1	3	9
3O58_3	5_8S_rRNA links to Rfam database...	0.41	0.50	0.34	11	4732	38	6	15	17	11
3PDR_A	ykoK links to Rfam database...	0.80	0.80	0.80	40	4790	12	3	7	2	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.60	0.58	0.63	19	1959	12	2	9	1	14
3ZEX_C	5_8S_rRNA links to Rfam database...	0.29	0.34	0.26	10	5335	42	5	24	13	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	41	11	16	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.59	0.57	0.62	16	1822	10	2	8	0	12
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5
4JRC_A	-	0.34	0.35	0.35	6	605	11	0	11	0	11

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
