Overview

Metric	UNAFold		McQFold
MCC	0.496	>	0.417
Average MCC ± 95% Confidence Intervals	0.573 ± 0.083	<	0.614 ± 0.098
Sensitivity	0.530	>	0.398
Positive Predictive Value	0.464	>	0.438
Total TP	2027	>	1523
Total TN	5849768	<	5850656
Total FP	2881	>	2187
Total FP CONTRA	674	>	441
Total FP INCONS	1666	>	1515
Total FP COMP	541	>	231
Total FN	1798	<	2302
P-value	3.56938820447e-08

^top

Performance plots

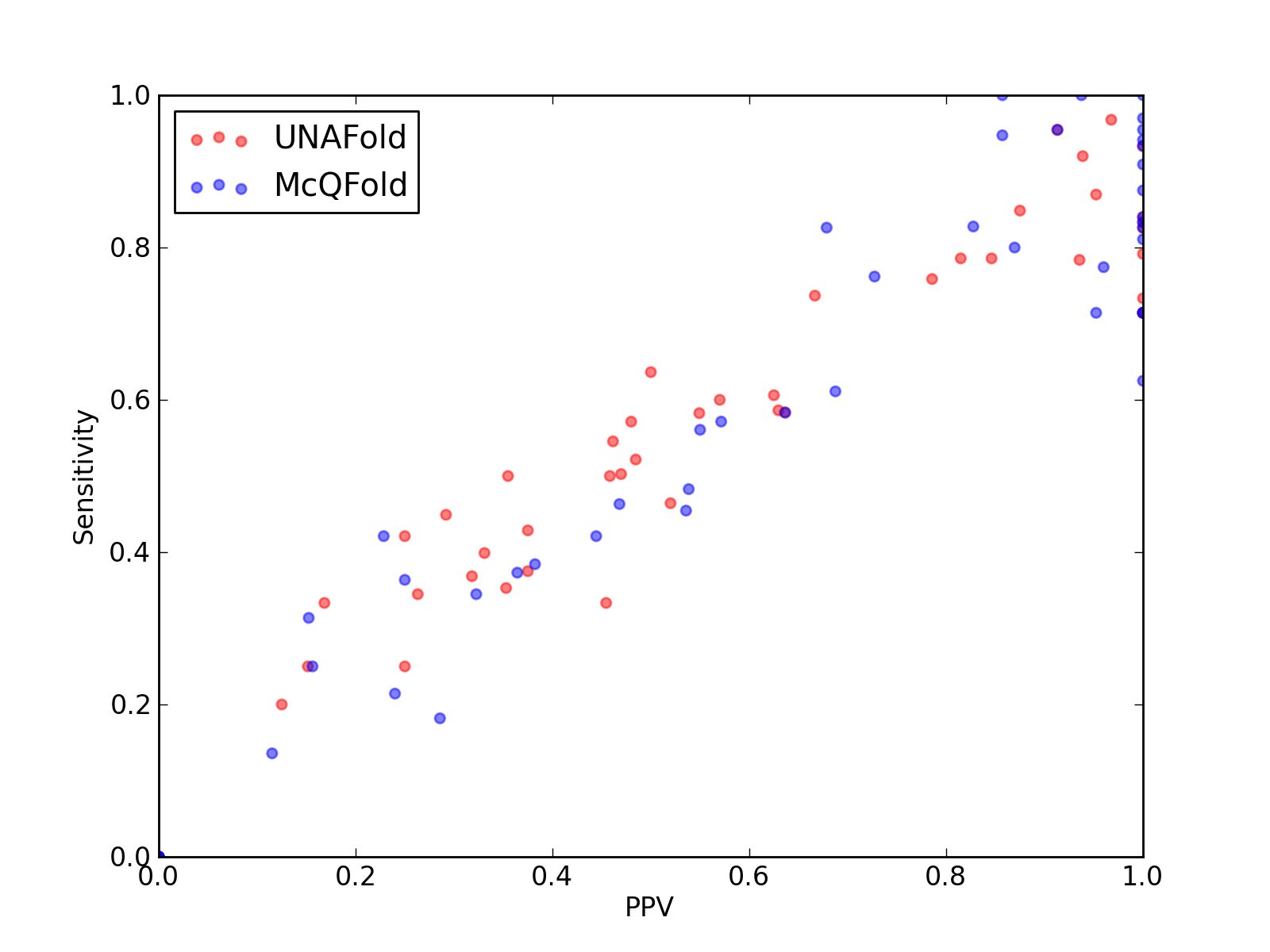

Comparison of performance of UNAFold and McQFold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for UNAFold and McQFold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for UNAFold and McQFold).
Comparison of average Matthews Correlation Coefficients (MCCs) for UNAFold and McQFold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for UNAFold and McQFold).

^top

Performance of UNAFold - scored higher in this pairwise comparison

1. Total counts & total scores for UNAFold

Total Base Pair Counts
Total TP	2027
Total TN	5849768
Total FP	2881
Total FP CONTRA	674
Total FP INCONS	1666
Total FP COMP	541
Total FN	1798

Total Scores
MCC	0.496
Average MCC ± 95% Confidence Intervals	0.573 ± 0.083
Sensitivity	0.530
Positive Predictive Value	0.464
Nr of predictions	46

^top

2. Individual counts for UNAFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	-0.03	0.00	0.00	0	229	7	1	6	0	8
2KRL_A	-	0.91	0.87	0.95	20	2003	9	1	0	8	3
2LC8_A	GP_knot1 links to Rfam database...	-0.03	0.00	0.00	0	513	15	3	12	0	18
2M58_A	-	0.60	0.58	0.64	7	533	4	1	3	0	5
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2WDL_A	-	0.49	0.50	0.47	396	1444479	488	87	360	41	392
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.47	0.50	0.46	11	1084	13	3	10	0	11
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.86	0.85	0.88	28	1787	4	0	4	0	5
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.81	0.79	0.85	22	1423	5	2	2	1	6
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.80	0.79	0.81	22	1445	6	1	4	1	6
3IYQ_A	tmRNA links to Rfam database...	0.23	0.33	0.17	17	22339	96	46	38	12	34
3IZ4_A	tmRNA links to Rfam database...	0.58	0.60	0.57	57	25436	53	12	31	10	38
3J0L_a	-	0.55	0.64	0.50	7	397	8	5	2	1	4
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.57	0.58	0.55	240	421931	250	36	161	53	172
3J20_0	tRNA links to Rfam database...	0.51	0.57	0.48	12	1194	14	3	10	1	9
3J3D_C	tRNA links to Rfam database...	0.33	0.37	0.32	7	946	15	3	12	0	12
3J3E_8	5_8S_rRNA links to Rfam database...	0.15	0.20	0.13	3	2718	32	6	15	11	12
3J3F_8	5_8S_rRNA links to Rfam database...	0.32	0.42	0.25	8	4729	44	12	12	20	11
3JYV_7	tRNA links to Rfam database...	0.24	0.25	0.25	5	1091	16	7	8	1	15
3JYX_5	-	0.36	0.45	0.29	216	1968262	763	245	279	239	265
3KIY_A	-	0.50	0.52	0.48	410	1485034	486	79	357	50	376
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.69	0.74	0.67	14	714	7	0	7	0	5
3NPB_A	SAM links to Rfam database...	0.85	0.78	0.94	29	2247	6	0	2	4	8
3O58_3	5_8S_rRNA links to Rfam database...	0.42	0.50	0.35	11	4733	34	5	15	14	11
3PDR_A	ykoK links to Rfam database...	0.93	0.92	0.94	46	4791	5	1	2	2	4
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.77	0.76	0.79	22	1505	6	4	2	0	7
3U4M_B	-	0.49	0.55	0.46	12	1250	14	3	11	0	10
3W1K_J	tRNA-Sec links to Rfam database...	0.97	0.97	0.97	30	1647	1	1	0	0	1
3W3S_B	tRNA-Sec links to Rfam database...	0.61	0.61	0.63	20	1957	13	4	8	1	13
3ZEX_B	-	0.36	0.40	0.33	138	420935	317	72	207	38	208
3ZEX_C	5_8S_rRNA links to Rfam database...	0.30	0.34	0.26	10	5336	43	5	23	15	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.15	5	4483	42	11	17	14	15
4AOB_A	SAM links to Rfam database...	0.60	0.59	0.63	17	1410	11	4	6	1	12
4ATO_G	-	0.38	0.43	0.38	3	212	5	5	0	0	4
4ENB_A	crcB links to Rfam database...	0.85	0.73	1.00	11	461	2	0	0	2	4
4ENC_A	crcB links to Rfam database...	0.37	0.33	0.45	5	485	7	0	6	1	10
4FRG_B	AdoCbl-variant links to Rfam database...	0.36	0.38	0.38	9	1178	15	2	13	0	15
4FRN_A	AdoCbl-variant links to Rfam database...	0.48	0.46	0.52	13	1823	12	2	10	0	15
4JF2_A	preQ1-II links to Rfam database...	0.89	0.79	1.00	19	1063	0	0	0	0	5
4JRC_A	-	0.34	0.35	0.35	6	605	11	0	11	0	11

^top

Performance of McQFold - scored lower in this pairwise comparison

1. Total counts & total scores for McQFold

Total Base Pair Counts
Total TP	1523
Total TN	5850656
Total FP	2187
Total FP CONTRA	441
Total FP INCONS	1515
Total FP COMP	231
Total FN	2302

Total Scores
MCC	0.417
Average MCC ± 95% Confidence Intervals	0.614 ± 0.098
Sensitivity	0.398
Positive Predictive Value	0.438
Nr of predictions	46

^top

2. Individual counts for McQFold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KFC_A	-	0.79	0.63	1.00	5	231	0	0	0	0	3
2KRL_A	-	0.75	0.83	0.68	19	1996	15	7	2	6	4
2LC8_A	GP_knot1 links to Rfam database...	0.64	0.61	0.69	11	512	5	1	4	0	7
2M58_A	-	0.60	0.58	0.64	7	533	5	1	3	1	5
2RP0_A	-	0.84	0.71	1.00	5	111	0	0	0	0	2
2WDL_A	-	0.37	0.37	0.36	294	1444515	545	84	429	32	494
2ZZN_D	tRNA links to Rfam database...	0.93	0.95	0.91	21	961	2	2	0	0	1
3A2K_C	tRNA links to Rfam database...	0.98	0.95	1.00	21	1087	0	0	0	0	1
3A3A_A	tRNA-Sec links to Rfam database...	0.97	0.93	1.00	28	1472	0	0	0	0	2
3ADB_C	-	0.98	0.97	1.00	32	1787	1	0	0	1	1
3GCA_A	-	0.84	0.71	1.00	5	153	0	0	0	0	2
3GX2_A	SAM links to Rfam database...	0.56	0.57	0.57	16	1421	13	4	8	1	12
3IVN_B	Purine links to Rfam database...	0.91	0.83	1.00	19	884	0	0	0	0	4
3IWN_A	c-di-GMP-I links to Rfam database...	0.21	0.21	0.24	6	1447	19	2	17	0	22
3IYQ_A	tmRNA links to Rfam database...	0.22	0.31	0.15	16	22335	100	45	44	11	35
3IZ4_A	tmRNA links to Rfam database...	0.46	0.46	0.47	44	25442	56	14	36	6	51
3J0L_a	-	0.21	0.18	0.29	2	404	6	3	2	1	9
3J20_2	SSU_rRNA_archaea links to Rfam database...	0.55	0.56	0.55	231	421948	234	41	148	45	181
3J20_0	tRNA links to Rfam database...	0.74	0.76	0.73	16	1197	7	3	3	1	5
3J3D_C	tRNA links to Rfam database...	0.90	0.95	0.86	18	947	3	3	0	0	1
3J3E_8	5_8S_rRNA links to Rfam database...	-0.01	0.00	0.00	0	2718	36	8	16	12	15
3J3F_8	5_8S_rRNA links to Rfam database...	0.31	0.42	0.23	8	4726	41	12	15	14	11
3JYV_7	tRNA links to Rfam database...	-0.02	0.00	0.00	0	1091	20	4	16	0	20
3JYX_5	-	0.00	0.00	0.00	0	1969002	0	0	0	0	481
3KIY_A	-	0.38	0.38	0.38	302	1485090	544	83	405	56	484
3LA5_A	Purine links to Rfam database...	0.91	0.84	1.00	21	933	0	0	0	0	4
3NKB_B	-	0.42	0.42	0.44	8	717	10	2	8	0	11
3NPB_A	SAM links to Rfam database...	0.90	0.81	1.00	30	2248	5	0	0	5	7
3O58_3	5_8S_rRNA links to Rfam database...	0.30	0.36	0.25	8	4732	27	15	9	3	14
3PDR_A	ykoK links to Rfam database...	0.83	0.80	0.87	40	4794	9	2	4	3	10
3RKF_A	Purine links to Rfam database...	0.91	0.83	1.00	20	846	0	0	0	0	4
3SD1_A	THF links to Rfam database...	0.82	0.83	0.83	24	1504	5	1	4	0	5
3U4M_B	-	0.95	0.91	1.00	20	1256	2	0	0	2	2
3W1K_J	tRNA-Sec links to Rfam database...	0.86	0.77	0.96	24	1653	1	1	0	0	7
3W3S_B	tRNA-Sec links to Rfam database...	0.49	0.45	0.54	15	1961	14	1	12	1	18
3ZEX_B	-	0.12	0.14	0.12	47	420944	379	78	283	18	299
3ZEX_C	5_8S_rRNA links to Rfam database...	0.33	0.34	0.32	10	5343	25	4	17	4	19
4A1C_2	5_8S_rRNA links to Rfam database...	0.19	0.25	0.16	5	4484	33	11	16	6	15
4AOB_A	SAM links to Rfam database...	0.50	0.48	0.54	14	1411	13	3	9	1	15
4ATO_G	-	-0.03	0.00	0.00	0	215	5	0	5	0	7
4ENB_A	crcB links to Rfam database...	1.00	1.00	1.00	15	457	0	0	0	0	0
4ENC_A	crcB links to Rfam database...	0.97	1.00	0.94	15	480	1	1	0	0	0
4FRG_B	AdoCbl-variant links to Rfam database...	0.93	0.88	1.00	21	1181	0	0	0	0	3
4FRN_A	AdoCbl-variant links to Rfam database...	0.82	0.71	0.95	20	1827	1	1	0	0	8
4JF2_A	preQ1-II links to Rfam database...	0.92	1.00	0.86	24	1054	5	4	0	1	0
4JRC_A	-	0.97	0.94	1.00	16	606	0	0	0	0	1

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
