Overview

Metric	Carnac(20)		RNAfold
MCC	0.590	>	0.540
Average MCC ± 95% Confidence Intervals	0.566 ± 0.072	>	0.545 ± 0.079
Sensitivity	0.389	<	0.477
Positive Predictive Value	0.899	>	0.616
Total TP	585	<	718
Total TN	284056	>	283541
Total FP	92	<	554
Total FP CONTRA	9	<	55
Total FP INCONS	57	<	393
Total FP COMP	26	<	106
Total FN	919	>	786
P-value	3.56938820447e-08

^top

Performance plots

Comparison of performance of Carnac(20) and RNAfold. Positive Predictive Value (PPV) is plotted against sensitivity. Each dot represents a single test of each method. See tables below for raw data (individual counts for Carnac(20) and RNAfold).
Average Matthews Correlation Coefficients (MCC) with 95% confidence intervals (CIs) were plotted for different RNA families, for which at least 3 members were present in the benchmarking dataset. 'n' denotes the number of MCCs used to calculate the average and CI. See tables below for raw data (individual counts for Carnac(20) and RNAfold).

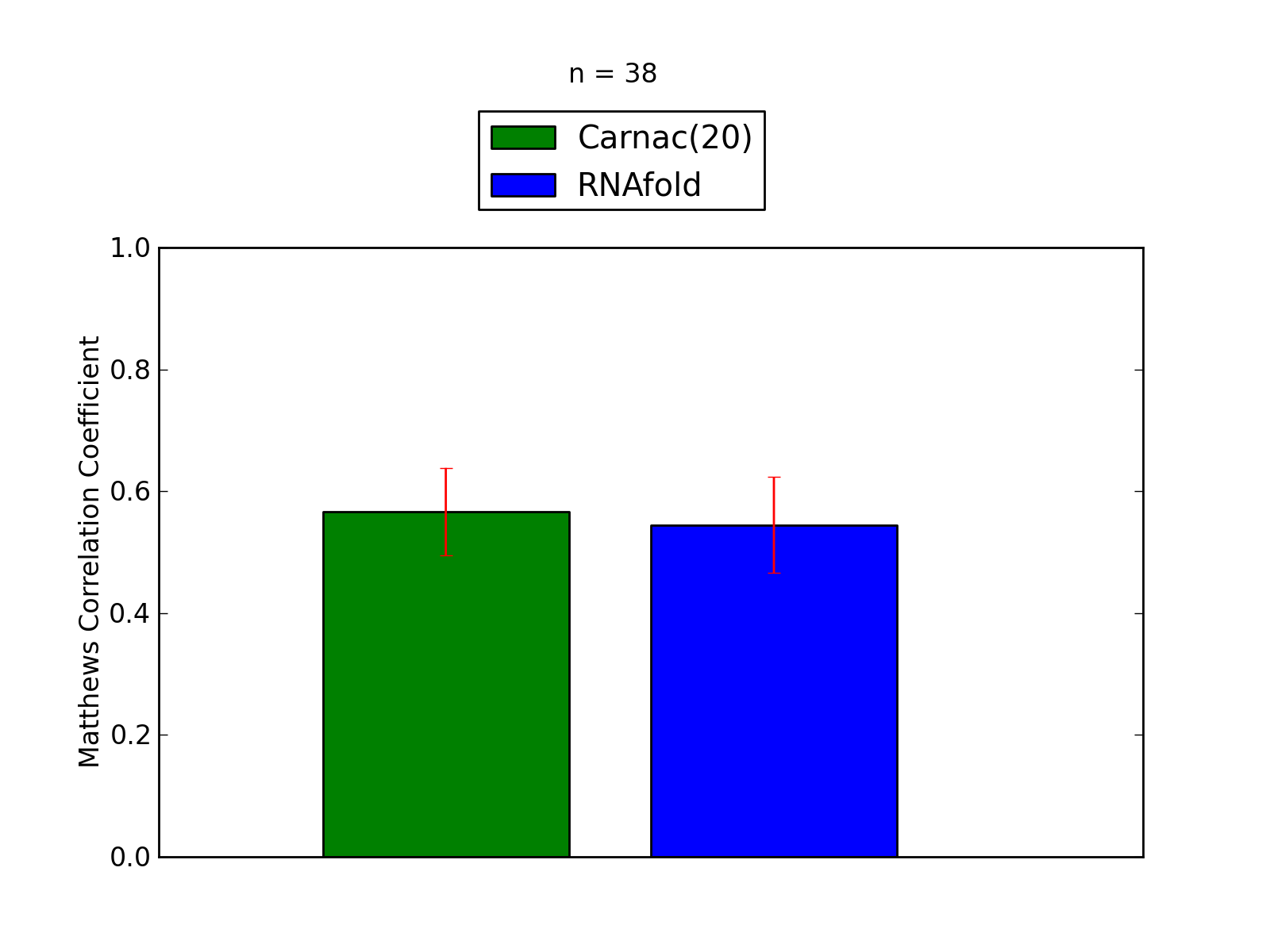

Comparison of average Matthews Correlation Coefficients (MCCs) for Carnac(20) and RNAfold. The whiskers correspond to 95% confidence intervals (CIs). 'n' denotes the number of MCCs used to calculate average MCCs and CIs. See tables below for raw data (individual counts for Carnac(20) and RNAfold).

^top

Performance of Carnac(20) - scored higher in this pairwise comparison

1. Total counts & total scores for Carnac(20)

Total Base Pair Counts
Total TP	585
Total TN	284056
Total FP	92
Total FP CONTRA	9
Total FP INCONS	57
Total FP COMP	26
Total FN	919

Total Scores
MCC	0.590
Average MCC ± 95% Confidence Intervals	0.566 ± 0.072
Sensitivity	0.389
Positive Predictive Value	0.899
Nr of predictions	38

^top

2. Individual counts for Carnac(20) [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.73	0.55	1.00	6	400	0	0	0	0	5
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XQD_Y	tRNA links to Rfam database...	0.79	0.63	1.00	17	2833	0	0	0	0	10
3A2K_C	tRNA links to Rfam database...	0.78	0.61	1.00	17	2909	0	0	0	0	11
3AMU_B	tRNA links to Rfam database...	0.69	0.59	0.80	16	2983	6	0	4	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.50	0.28	0.89	16	7363	2	1	1	0	41
3GX2_A	SAM links to Rfam database...	0.57	0.33	1.00	13	4358	0	0	0	0	27
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.47	0.23	0.94	31	70843	2	0	2	0	101
3IZF_C	5S_rRNA links to Rfam database...	0.73	0.56	0.97	30	6872	1	0	1	0	24
3J20_0	tRNA links to Rfam database...	0.62	0.53	0.73	16	2828	7	0	6	1	14
3J20_1	tRNA links to Rfam database...	0.86	0.74	1.00	17	2909	0	0	0	0	6
3J2L_3	5S_rRNA links to Rfam database...	0.46	0.34	0.64	18	7847	11	0	10	1	35
3J3D_C	tRNA links to Rfam database...	0.82	0.71	0.95	20	2754	1	0	1	0	8
3J3E_7	5S_rRNA links to Rfam database...	0.65	0.44	0.96	24	7115	1	0	1	0	30
3J3E_8	5_8S_rRNA links to Rfam database...	0.00	0.00	0.00	0	7503	0	0	0	0	33
3J3F_7	5S_rRNA links to Rfam database...	0.66	0.44	1.00	22	7238	0	0	0	0	28
3J3F_8	5_8S_rRNA links to Rfam database...	0.50	0.25	1.00	9	12237	0	0	0	0	27
3J3V_B	5S_rRNA links to Rfam database...	0.58	0.35	0.95	20	7000	1	0	1	0	37
3JYV_7	tRNA links to Rfam database...	0.68	0.50	0.94	16	2833	1	0	1	0	16
3JYX_4	5_8S_rRNA links to Rfam database...	0.46	0.21	1.00	7	12239	2	0	0	2	26
3JYX_3	5S_rRNA links to Rfam database...	0.64	0.56	0.75	15	6308	10	1	4	5	12
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.44	0.20	1.00	9	7012	2	0	0	2	37
3O58_2	5S_rRNA links to Rfam database...	0.83	0.71	0.96	27	7232	2	0	1	1	11
3O58_3	5_8S_rRNA links to Rfam database...	0.51	0.26	1.00	9	12394	0	0	0	0	26
3PDR_A	ykoK links to Rfam database...	0.62	0.40	0.97	29	12850	3	0	1	2	43
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.60	0.38	0.94	16	3899	1	0	1	0	26
3ZEX_D	5S_rRNA links to Rfam database...	0.73	0.53	1.00	26	6995	0	0	0	0	23
3ZEX_C	5_8S_rRNA links to Rfam database...	0.31	0.13	0.70	7	14186	3	1	2	0	45
3ZND_W	tRNA links to Rfam database...	0.47	0.39	0.56	9	2987	10	0	7	3	14
4A1C_2	5_8S_rRNA links to Rfam database...	0.33	0.15	0.71	5	11774	3	0	2	1	28
4A1C_3	5S_rRNA links to Rfam database...	0.67	0.52	0.88	28	7108	4	0	4	0	26
4AOB_A	SAM links to Rfam database...	0.49	0.33	0.74	14	4352	6	1	4	1	28
4ENB_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1275	0	0	0	0	19
4ENC_A	crcB links to Rfam database...	0.00	0.00	0.00	0	1326	0	0	0	0	19
4FRG_B	AdoCbl-variant links to Rfam database...	0.43	0.19	1.00	6	3480	0	0	0	0	26

^top

Performance of RNAfold - scored lower in this pairwise comparison

1. Total counts & total scores for RNAfold

Total Base Pair Counts
Total TP	718
Total TN	283541
Total FP	554
Total FP CONTRA	55
Total FP INCONS	393
Total FP COMP	106
Total FN	786

Total Scores
MCC	0.540
Average MCC ± 95% Confidence Intervals	0.545 ± 0.079
Sensitivity	0.477
Positive Predictive Value	0.616
Nr of predictions	38

^top

2. Individual counts for RNAfold [ download as .csv ]

RNA Chain	Rfam family	MCC	SENS	PPV	TP	TN	FP	FP CONTRA	FP INCONS	FP COMP	FN
2KDQ_B	mir-TAR links to Rfam database...	0.95	0.91	1.00	10	396	0	0	0	0	1
2WRQ_Y	tRNA links to Rfam database...	0.57	0.59	0.56	10	2832	13	5	3	5	7
2XQD_Y	tRNA links to Rfam database...	0.88	0.78	1.00	21	2829	0	0	0	0	6
3A2K_C	tRNA links to Rfam database...	0.42	0.39	0.46	11	2902	13	2	11	0	17
3AMU_B	tRNA links to Rfam database...	0.70	0.59	0.84	16	2984	5	0	3	2	11
3G4S_9	5S_rRNA links to Rfam database...	0.51	0.39	0.69	22	7349	10	1	9	0	35
3GX2_A	SAM links to Rfam database...	0.68	0.55	0.85	22	4345	5	0	4	1	18
3IVN_B	Purine links to Rfam database...	0.78	0.61	1.00	19	2327	0	0	0	0	12
3IZ4_A	tmRNA links to Rfam database...	0.51	0.47	0.55	62	70763	52	10	41	1	70
3IZF_C	5S_rRNA links to Rfam database...	0.59	0.52	0.67	28	6861	14	1	13	0	26
3J20_0	tRNA links to Rfam database...	0.43	0.40	0.48	12	2825	14	0	13	1	18
3J20_1	tRNA links to Rfam database...	0.96	0.91	1.00	21	2905	2	0	0	2	2
3J2L_3	5S_rRNA links to Rfam database...	0.62	0.53	0.74	28	7837	12	0	10	2	25
3J3D_C	tRNA links to Rfam database...	0.28	0.25	0.32	7	2753	15	1	14	0	21
3J3E_7	5S_rRNA links to Rfam database...	0.58	0.48	0.70	26	7103	11	1	10	0	28
3J3E_8	5_8S_rRNA links to Rfam database...	0.16	0.15	0.19	5	7476	31	2	20	9	28
3J3F_7	5S_rRNA links to Rfam database...	0.73	0.64	0.84	32	7222	7	0	6	1	18
3J3F_8	5_8S_rRNA links to Rfam database...	0.30	0.31	0.31	11	12210	39	4	21	14	25
3J3V_B	5S_rRNA links to Rfam database...	0.54	0.44	0.68	25	6984	12	1	11	0	32
3JYV_7	tRNA links to Rfam database...	-0.01	0.00	0.00	0	2828	22	1	21	0	32
3JYX_4	5_8S_rRNA links to Rfam database...	0.31	0.30	0.32	10	12215	33	5	16	12	23
3JYX_3	5S_rRNA links to Rfam database...	0.62	0.63	0.61	17	6300	22	1	10	11	10
3LA5_A	Purine links to Rfam database...	0.78	0.62	1.00	21	2464	0	0	0	0	13
3NPB_A	SAM links to Rfam database...	0.83	0.72	0.97	33	6987	4	0	1	3	13
3O58_2	5S_rRNA links to Rfam database...	0.59	0.61	0.58	23	7220	19	4	13	2	15
3O58_3	5_8S_rRNA links to Rfam database...	0.34	0.34	0.34	12	12368	34	2	21	11	23
3PDR_A	ykoK links to Rfam database...	0.75	0.63	0.90	45	12830	7	1	4	2	27
3RKF_A	Purine links to Rfam database...	0.76	0.59	1.00	20	2191	0	0	0	0	14
3SD1_A	THF links to Rfam database...	0.64	0.52	0.79	22	3888	6	1	5	0	20
3ZEX_D	5S_rRNA links to Rfam database...	0.77	0.65	0.91	32	6986	3	0	3	0	17
3ZEX_C	5_8S_rRNA links to Rfam database...	0.24	0.21	0.28	11	14157	42	1	27	14	41
3ZND_W	tRNA links to Rfam database...	0.20	0.22	0.19	5	2977	22	1	20	1	18
4A1C_2	5_8S_rRNA links to Rfam database...	0.14	0.15	0.14	5	11744	43	5	27	11	28
4A1C_3	5S_rRNA links to Rfam database...	0.70	0.59	0.82	32	7101	7	1	6	0	22
4AOB_A	SAM links to Rfam database...	0.50	0.40	0.63	17	4344	11	2	8	1	25
4ENB_A	crcB links to Rfam database...	0.70	0.58	0.85	11	1262	2	1	1	0	8
4ENC_A	crcB links to Rfam database...	0.32	0.26	0.42	5	1314	7	1	6	0	14
4FRG_B	AdoCbl-variant links to Rfam database...	0.32	0.28	0.38	9	3462	15	0	15	0	23

^top

Matthews Correlation Coeffient, Sensitivity and Positive Predictive Value have been calculated based on the paper by Gardener & Giegerich, 2004.
